KitchenAid
Gas Cooktop

Model # KGCV465MMT02 Official KitchenAid gas counter unit

Here are the diagrams and repair parts for Official KitchenAid KGCV465MMT02 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Spark Module 8522424
#29

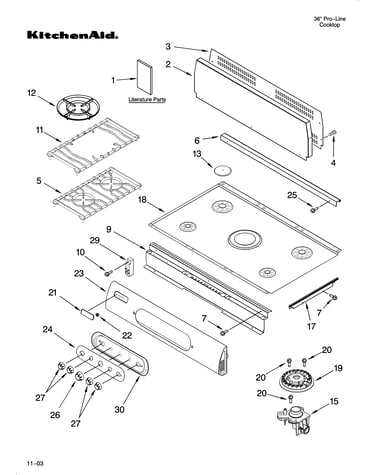

Cooktop, burner and grate parts diagram

Spark module

Part #8522424

Replaced by #WPW10110486

?
Manufacturer substitution
This part replaces 8522424. Substitute parts can look different from the original.
$112.14 |
10% OFF Phone Price : $124.14
In Stock
Screw 3196537
#4

Cooktop, burner and grate parts diagram

Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Holder Orifice 4456622
#15

Cooktop, burner and grate parts diagram

Holder orifice

Part #4456622

Replaced by #WPW10155786

?
Manufacturer substitution
This part replaces 4456622. Substitute parts can look different from the original.
$38.26 |
14% OFF Phone Price : $44.26
In Stock
Range Surface Burner Head, Right 4455979
#19A

Cooktop, burner and grate parts diagram

Range surface burner head, right

Part #4455979

Replaced by #WP4455979

?
Manufacturer substitution
This part replaces 4455979. Substitute parts can look different from the original.
$38.89 |
13% OFF Phone Price : $44.89
In Stock
Regulator 4455157
#11

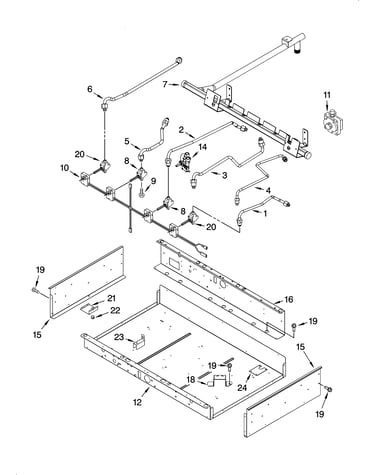

Burner box, gas valves, and switches diagram

Regulator

Part #4455157

Replaced by #WP9759091

?
Manufacturer substitution
This part replaces 4455157. Substitute parts can look different from the original.
$135.59 |
8% OFF Phone Price : $147.59
In Stock
Range Surface Burner External Orifice Cover Plate 8285250
#2

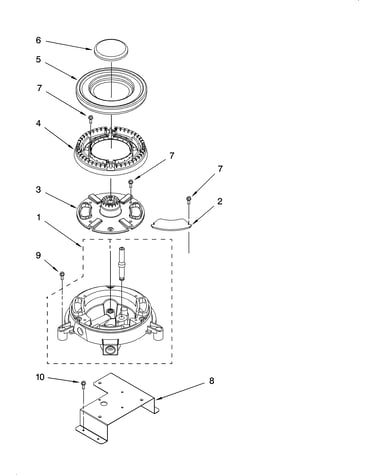

Triple crown burner diagram

Range surface burner external orifice cover plate

Part #8285250

$7.80
In Stock
Range Wire Harness 4456627
#NI

Burner box, gas valves, and switches diagram

Range wire harness

Part #4456627

$53.76
In Stock
Bushing 4173634
#NI

Burner box, gas valves, and switches diagram

Bushing

Part #4173634

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Burner Valve 8285247
#14

Burner box, gas valves, and switches diagram

Burner valve

Part #8285247

$34.76
In Stock
Cooktop Grounding Strap 8285402
#NI

Burner box, gas valves, and switches diagram

Cooktop grounding strap

Part #8285402

$32.87
In Stock
