Model # CRE8400BCW Official Maytag electric freestanding range

Here are the diagrams and repair parts for Official Maytag CRE8400BCW electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

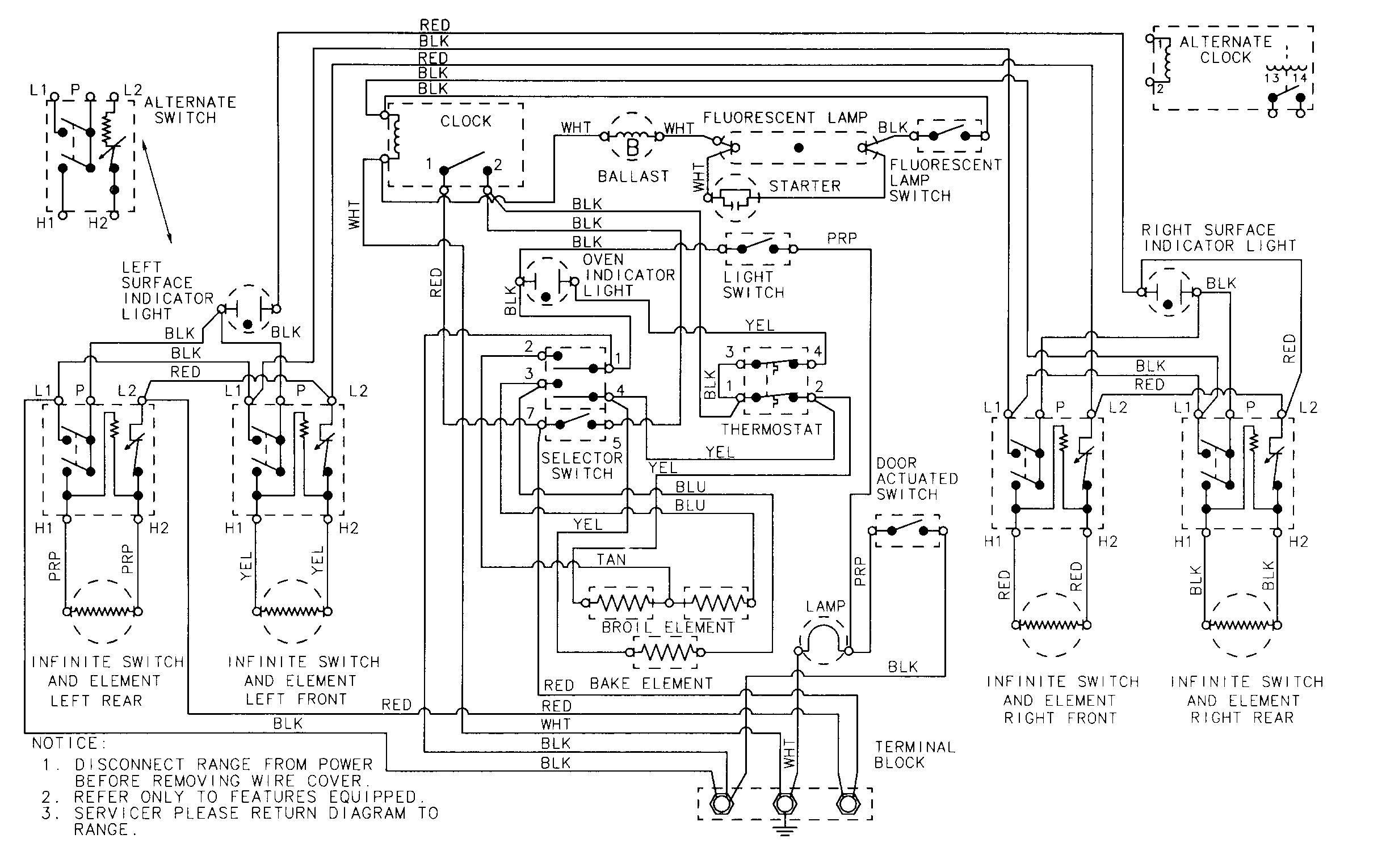

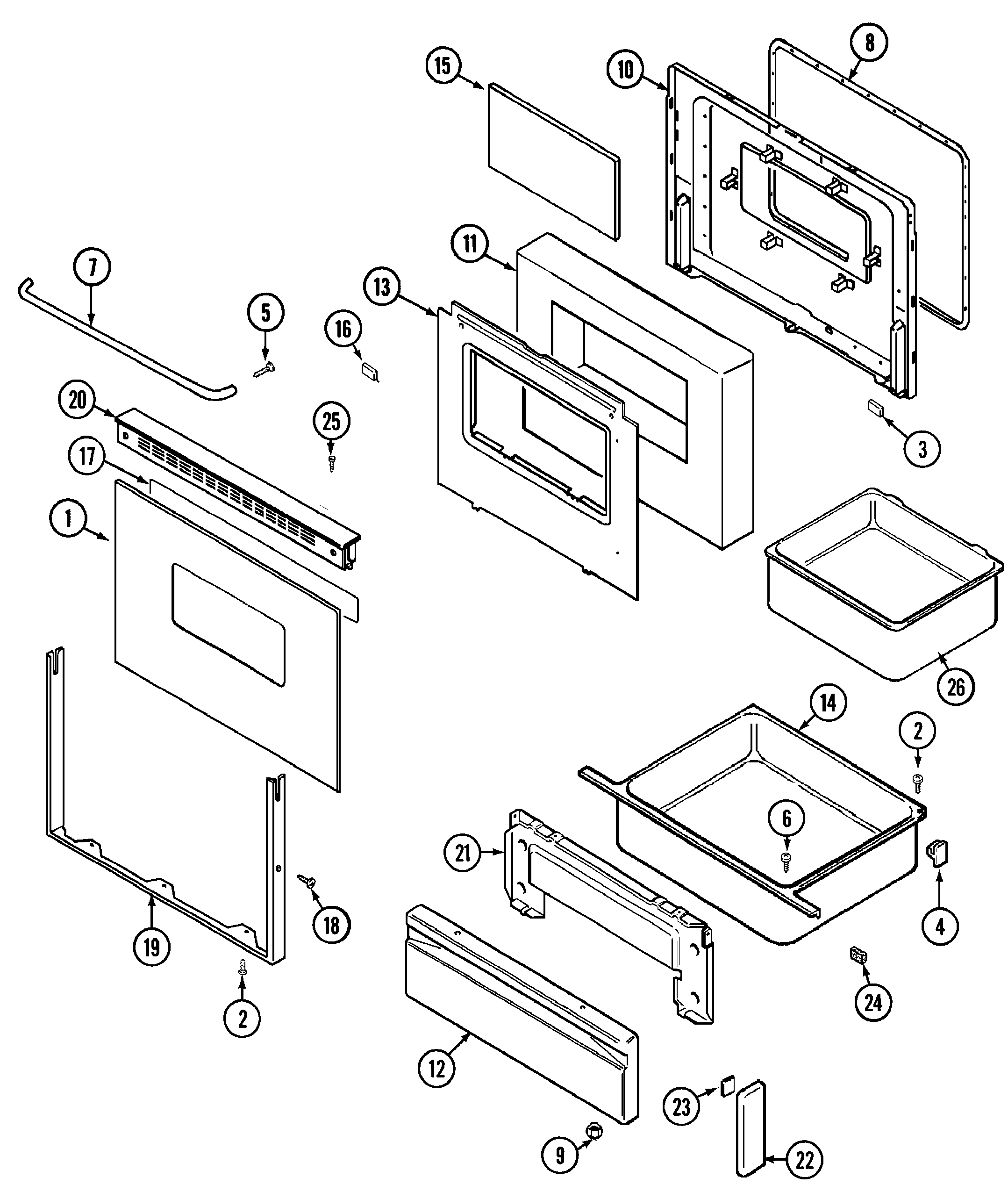

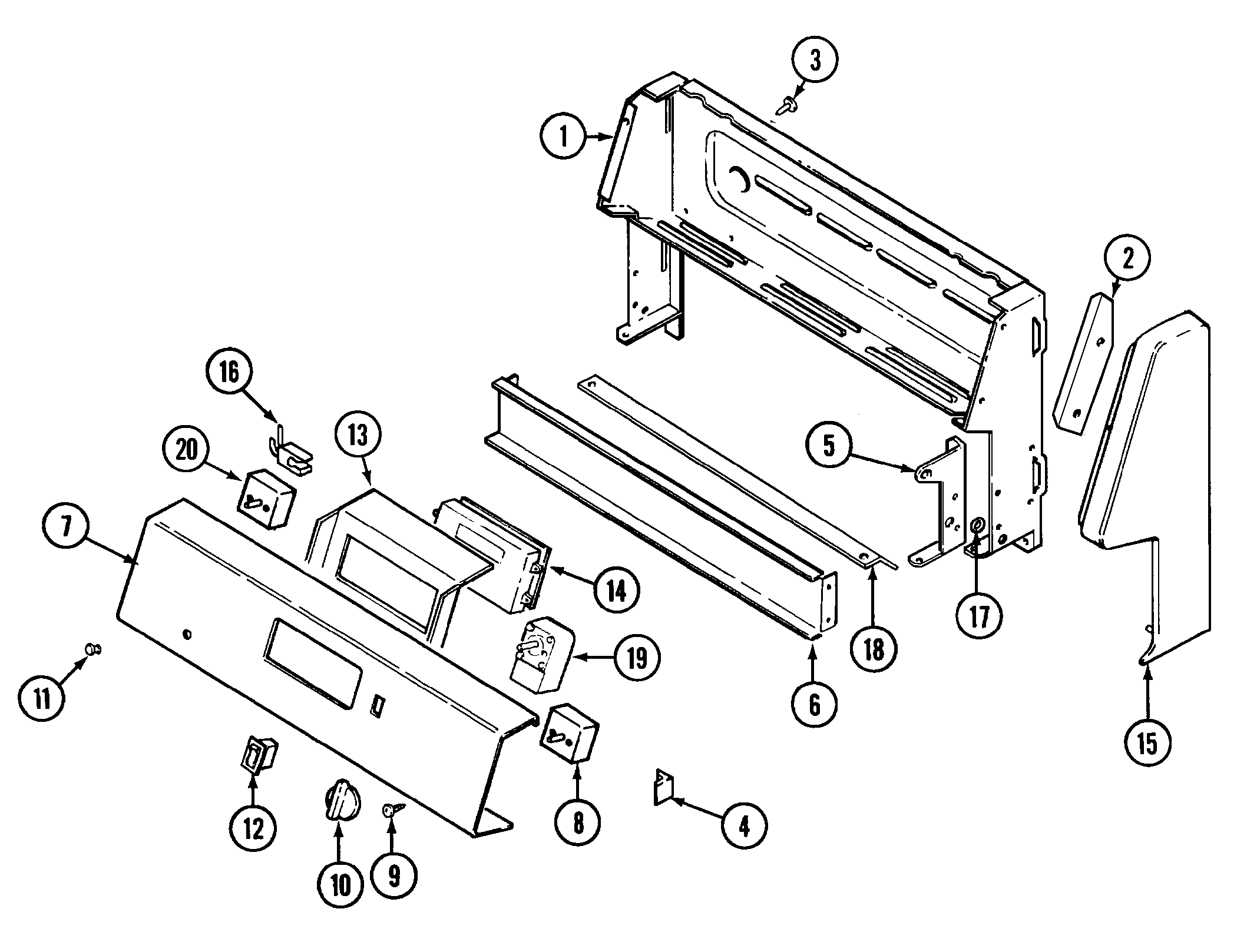

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Oven Bulb 7407P103-60
#15

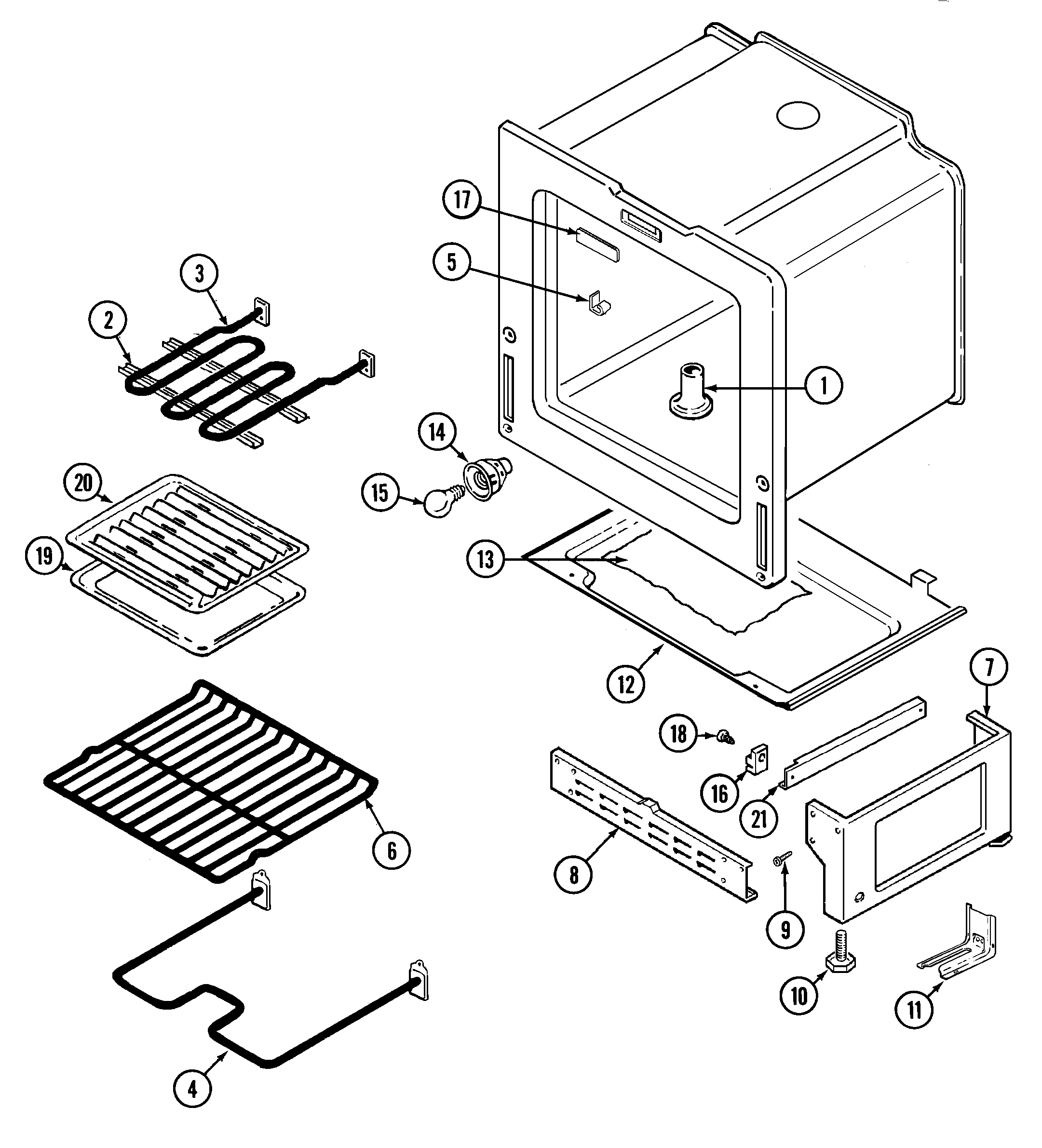

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Terminal Block 7401P039-60
#13

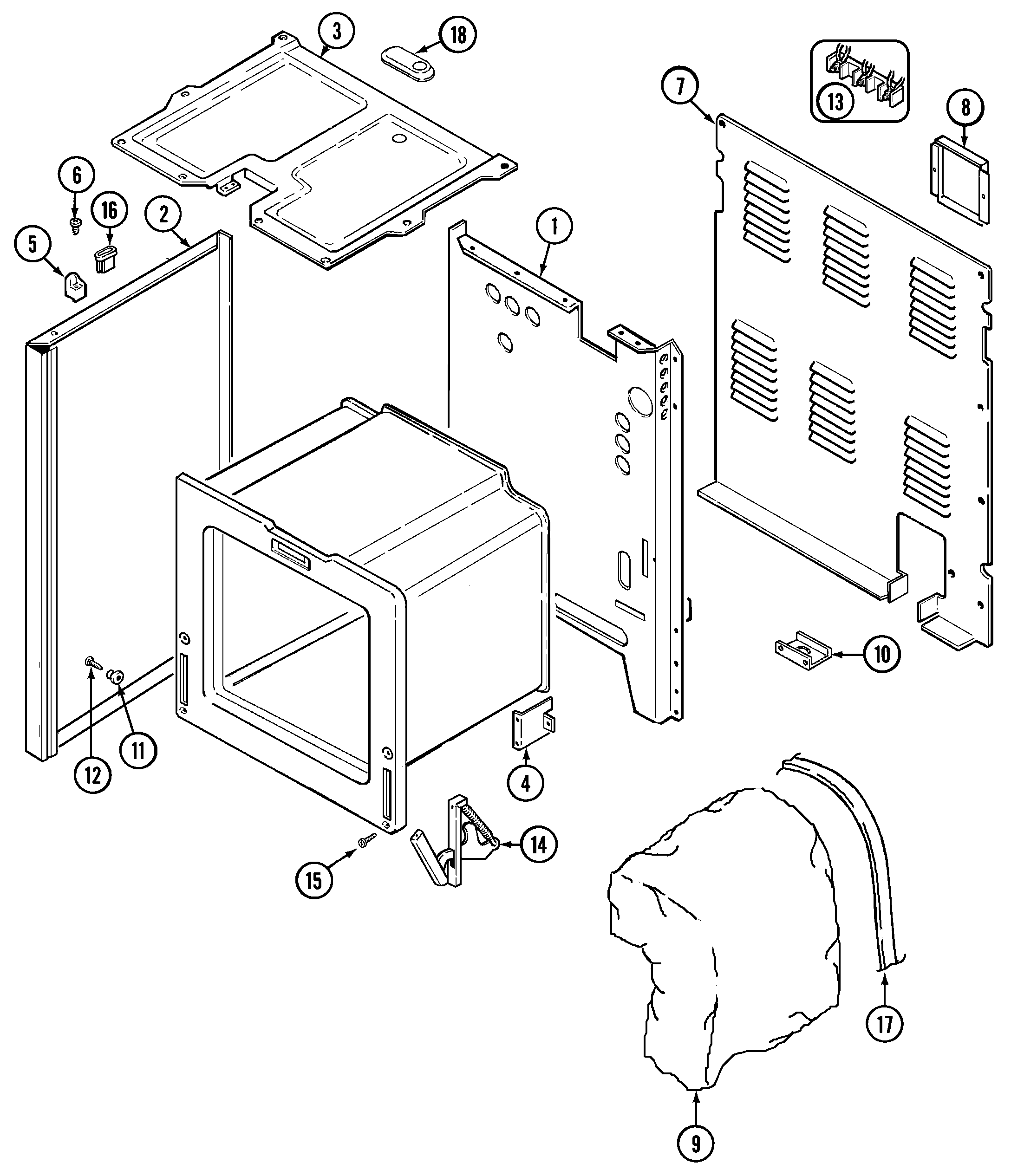

Body diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Receptacle 1430306K
#6

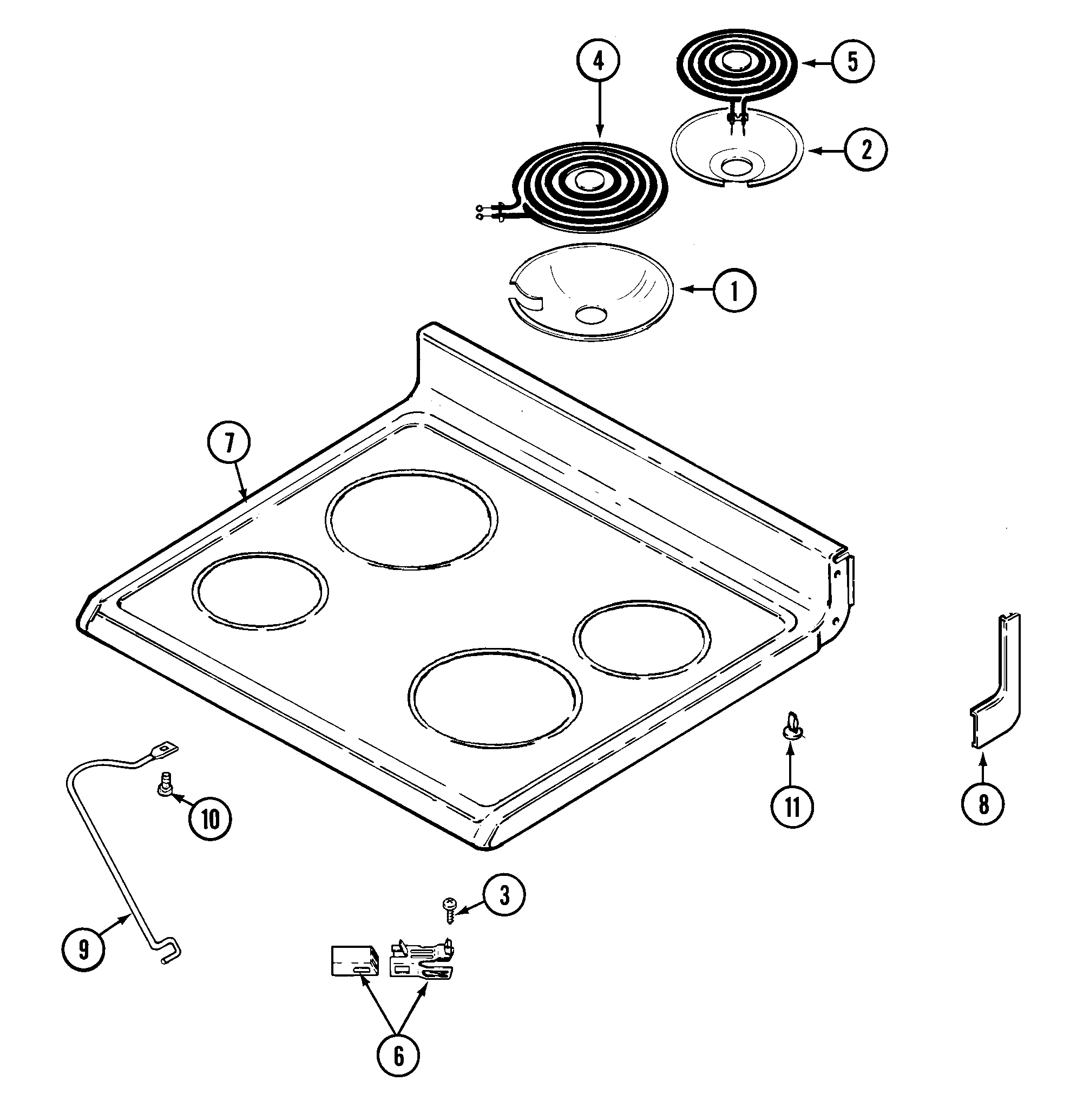

Top assembly diagram

Receptacle

Part #1430306K

Replaced by #12001676

?
Manufacturer substitution
This part replaces 1430306K. Substitute parts can look different from the original.
$10.73 |
16% OFF Phone Price : $12.73
In Stock
Drip Bowl 7725P015-60
#2A

Top assembly diagram

Drip bowl

Part #7725P015-60

Replaced by #WPW10196406

?
Manufacturer substitution
This part replaces 7725P015-60. Substitute parts can look different from the original.
$7.46 |
12% OFF Phone Price : $8.46
In Stock
Bake Element 04000058
#4

Oven/base diagram

Bake element

Part #04000058

Replaced by #WP74003019

?
Manufacturer substitution
This part replaces 04000058. Substitute parts can look different from the original.
$51.02 |
11% OFF Phone Price : $57.02
In Stock
Drip Bowl 74001212
#2

Top assembly diagram

Drip bowl

Part #74001212

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 74001212. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Element Kit 12001231
#5

Top assembly diagram

Element kit

Part #12001231

Replaced by #WPW10259868

?
Manufacturer substitution
This part replaces 12001231. Substitute parts can look different from the original.
$76.43 |
7% OFF Phone Price : $82.43
In Stock
Bracket Screw 7101P040-60
Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Oven Rack 74001757
#6

Oven/base diagram

Oven rack

Part #74001757

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 74001757. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
Element Kit 12001230
#4

Top assembly diagram

Element kit

Part #12001230

Replaced by #WP12001560

?
Manufacturer substitution
This part replaces 12001230. Substitute parts can look different from the original.
$90.29 |
6% OFF Phone Price : $96.29
In Stock
