Kenmore
Charcoal Grill

Model # 920104922 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 920104922 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Washer 40-4004
#52

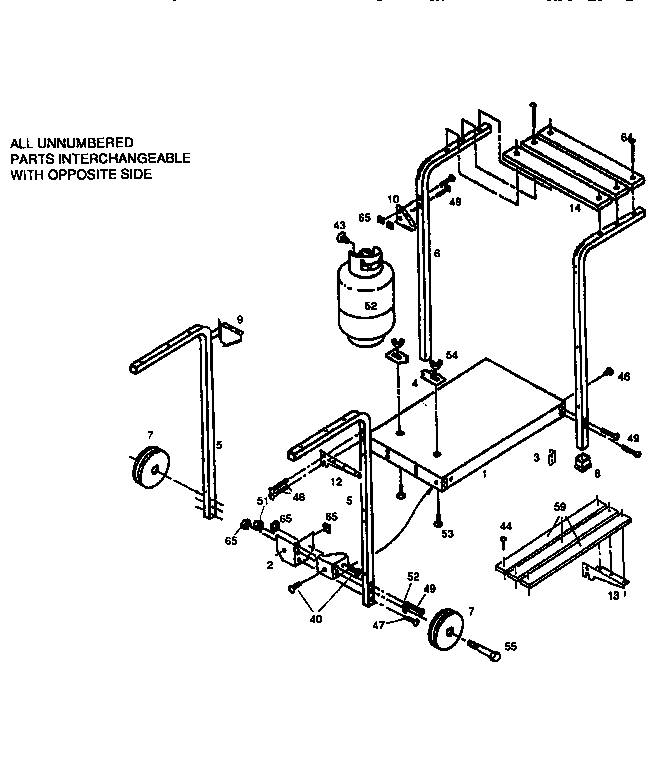

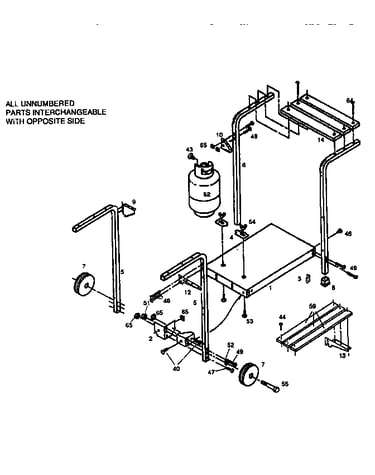

Deluxe cart diagram

Washer

Part #40-4004

Replaced by #STD551025

?
Manufacturer substitution
This part replaces 40-4004. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket Venturi 40-2598
#27

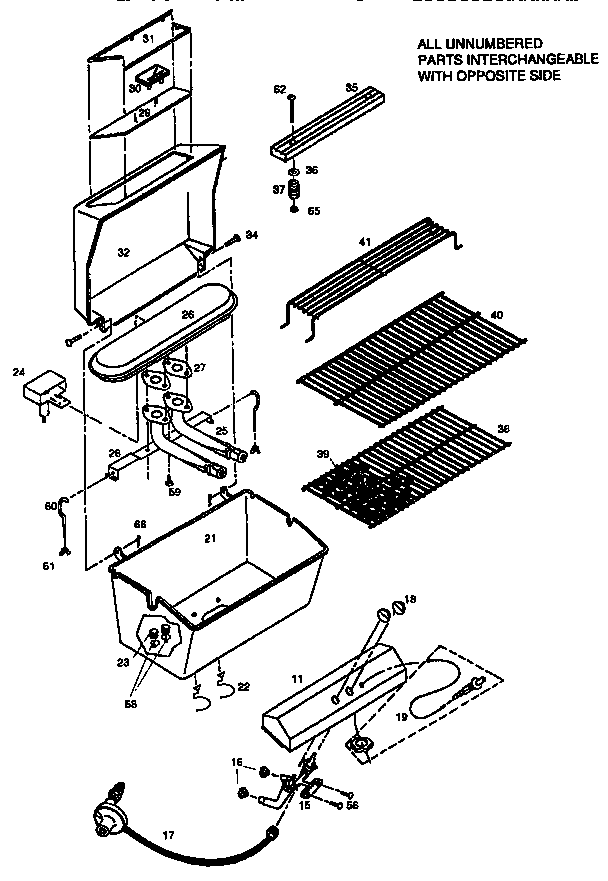

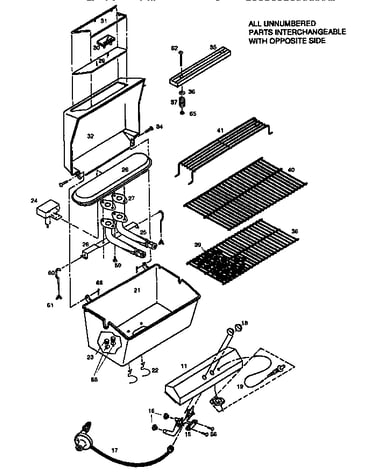

Grill and burner section diagram

Gasket venturi

Part #40-2598

The manufacturer no longer makes this part, and there's no substitute part

Too Shell 27-3258
#32

Grill and burner section diagram

Too shell

Part #27-3258

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD541025
#51

Deluxe cart diagram

Hex nut

Part #STD541025

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD512505
#56

Grill and burner section diagram

Bolt

Part #STD512505

The manufacturer no longer makes this part, and there's no substitute part

Hot Indicator 40-4242
#30

Grill and burner section diagram

Hot indicator

Part #40-4242

The manufacturer no longer makes this part, and there's no substitute part

Support 15-3280
#13

Deluxe cart diagram

Support

Part #15-3280

The manufacturer no longer makes this part, and there's no substitute part

Plank 13-5353
#59

Deluxe cart diagram

Plank

Part #13-5353

The manufacturer no longer makes this part, and there's no substitute part

Rack 0222
#39

Grill and burner section diagram

Rack

Part #0222

The manufacturer no longer makes this part, and there's no substitute part

10-24 Wg Nut STD541610
#61

Grill and burner section diagram

10-24 wg nut

Part #STD541610

The manufacturer no longer makes this part, and there's no substitute part
