Model # 4-5231X1 Official Murray 20" girls' sun & fun bmx bicycle

Here are the diagrams and repair parts for Official Murray 4-5231X1 20" girls' sun & fun bmx bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Kickstand As 302339
#20

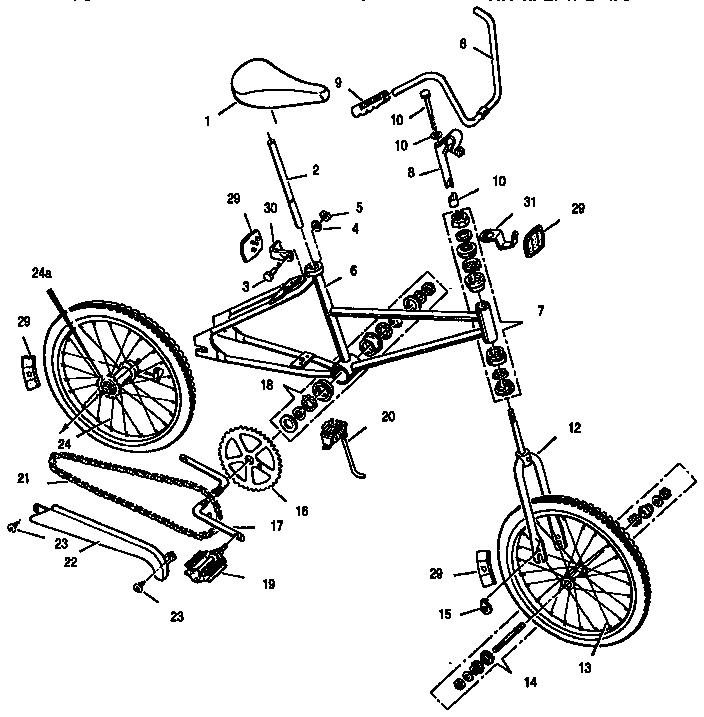

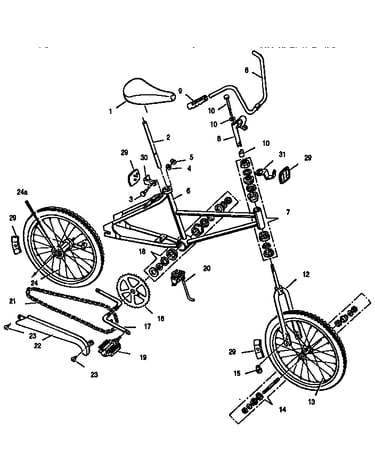

Girl's 20" bmx diagram

Kickstand as

Part #302339

The manufacturer no longer makes this part, and there's no substitute part

Inner Tube 139X1
#13B

Girl's 20" bmx diagram

Inner tube

Part #139X1

The manufacturer no longer makes this part, and there's no substitute part

Exp Bolt Wsh 40670
#10

Girl's 20" bmx diagram

Exp bolt wsh

Part #40670

The manufacturer no longer makes this part, and there's no substitute part

Rim Strip 118X18
#13C

Girl's 20" bmx diagram

Rim strip

Part #118X18

The manufacturer no longer makes this part, and there's no substitute part

Pedal 44878
#19

Girl's 20" bmx diagram

Pedal

Part #44878

The manufacturer no longer makes this part, and there's no substitute part

Chain Guard 41174E531
#22

Girl's 20" bmx diagram

Chain guard

Part #41174E531

The manufacturer no longer makes this part, and there's no substitute part

Decal 44X3939

#NI

All parts diagram

Decal

Part #44X3939

The manufacturer no longer makes this part, and there's no substitute part

Parts Bag 49655

#NI

All parts diagram

Parts bag

Part #49655

The manufacturer no longer makes this part, and there's no substitute part

(4-6) Expander Bolt, Washer, And Wedge N/P
(4-6) expander bolt, washer, and wedge

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

F Rflct Brkt 39863Z
#31

Girl's 20" bmx diagram

F rflct brkt

Part #39863Z

The manufacturer no longer makes this part, and there's no substitute part
