Model # JBS460DM1BB Official GE electric freestanding range

Here are the diagrams and repair parts for Official GE JBS460DM1BB electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
40a15bulb STD372401
#235

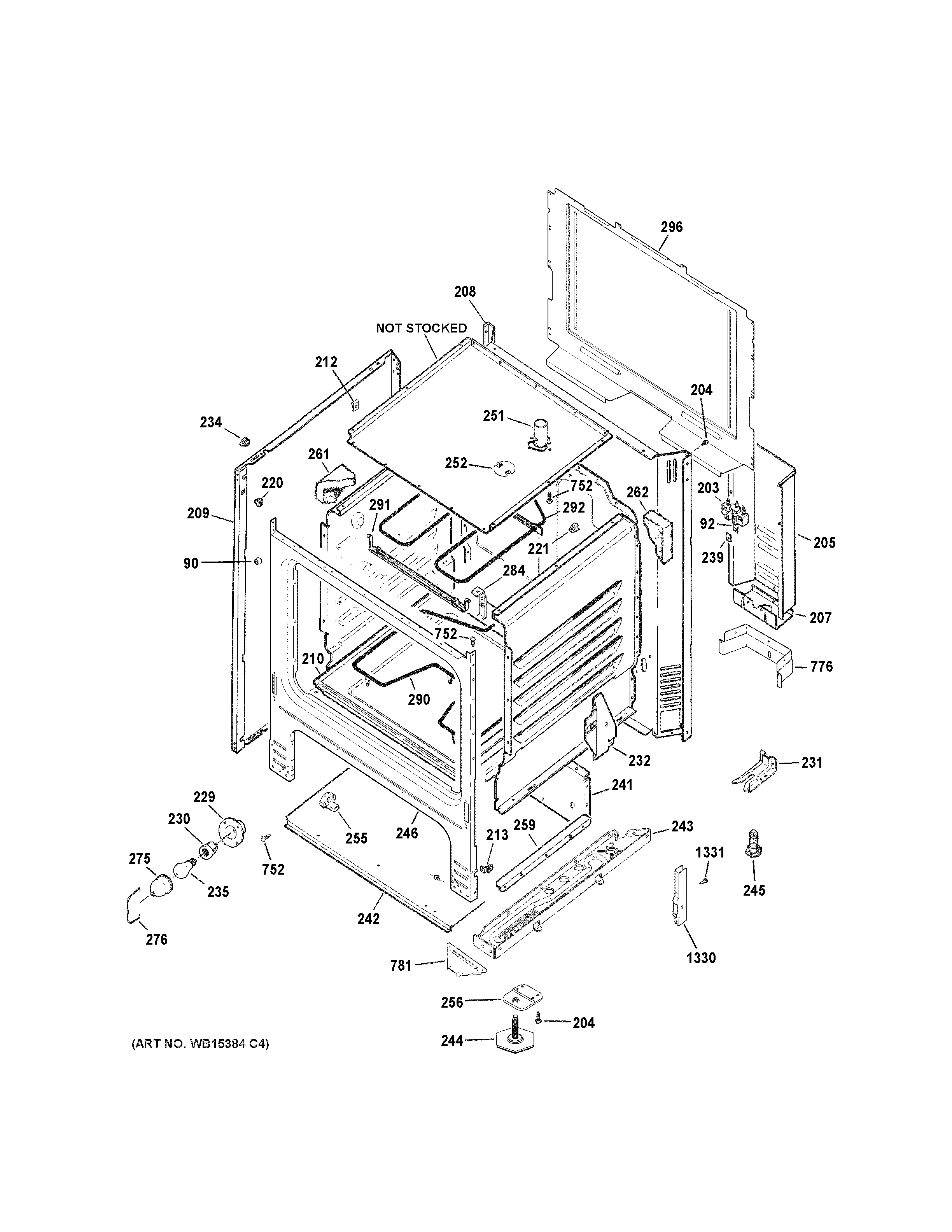

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Kit Surface Terminal WB17K10003
#961

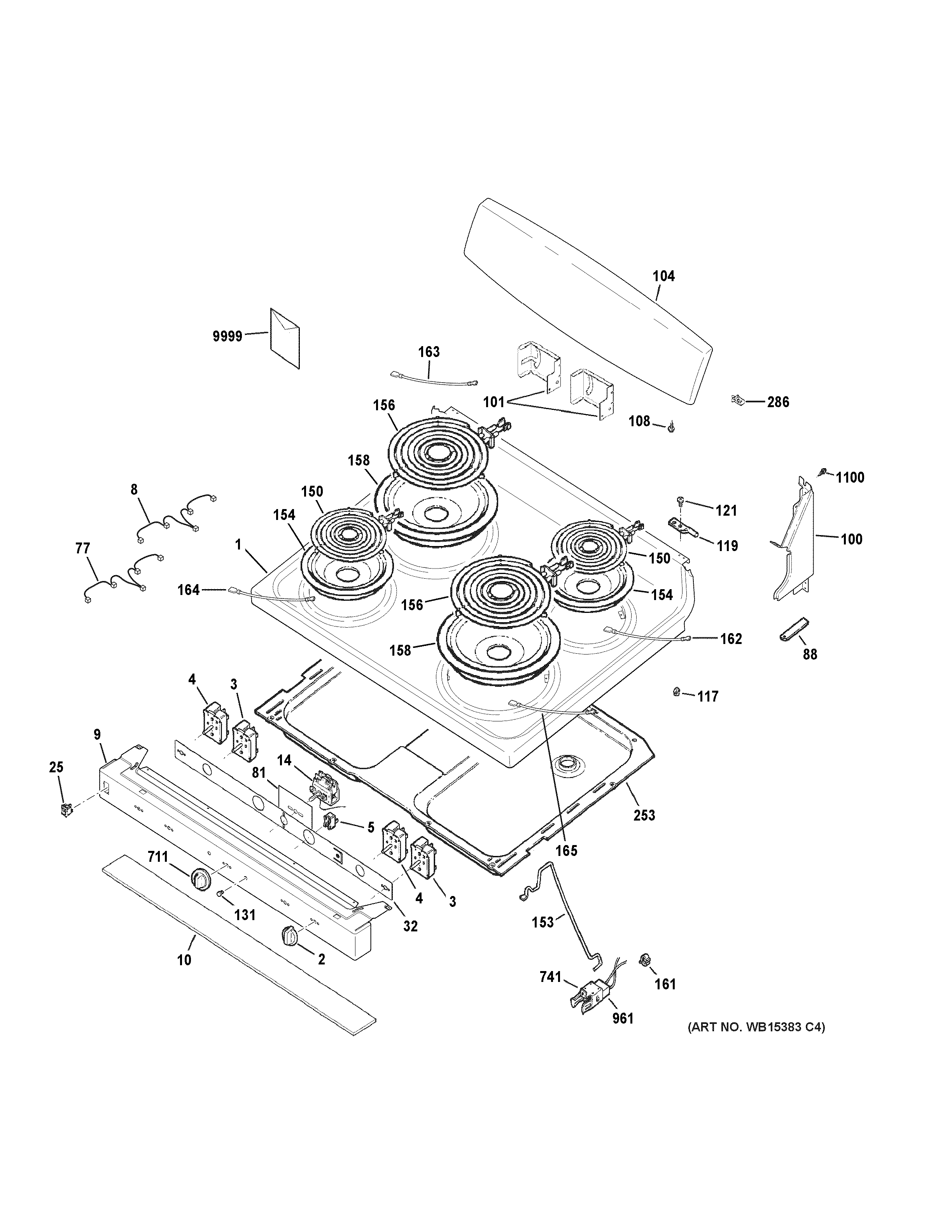

Control panel & cooktop diagram

Kit surface terminal

Part #WB17K10003

Replaced by #WB17T10006

?
Manufacturer substitution
This part replaces WB17K10003. Substitute parts can look different from the original.
BEST SELLER
$25.63 |
19% OFF Phone Price : $31.63
In Stock
Range Surface Element, 8-in WB30X31057
#156

Control panel & cooktop diagram

Range surface element, 8-in

Part #WB30X31057

BEST SELLER
$85.77 |
7% OFF Phone Price : $91.77
In Stock
Range Bake Element WB44K10005
#290

Body parts diagram

Range bake element

Part #WB44K10005

Replaced by #WB30X46987

?
Manufacturer substitution
This part replaces WB44K10005. Substitute parts can look different from the original.
BEST SELLER
$147.20
In Stock
Range Terminal Block (replaces Wb17t10016, Wb17t10023) WB17T10011
#203

Body parts diagram

Range terminal block (replaces wb17t10016, wb17t10023)

Part #WB17T10011

BEST SELLER
$40.67 |
13% OFF Phone Price : $46.67
In Stock
Range Drip Pan (replaces Wb32t10003) WB31T10015
#158

Control panel & cooktop diagram

Range drip pan (replaces wb32t10003)

Part #WB31T10015

BEST SELLER
$18.85 |
10% OFF Phone Price : $20.85
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
#91

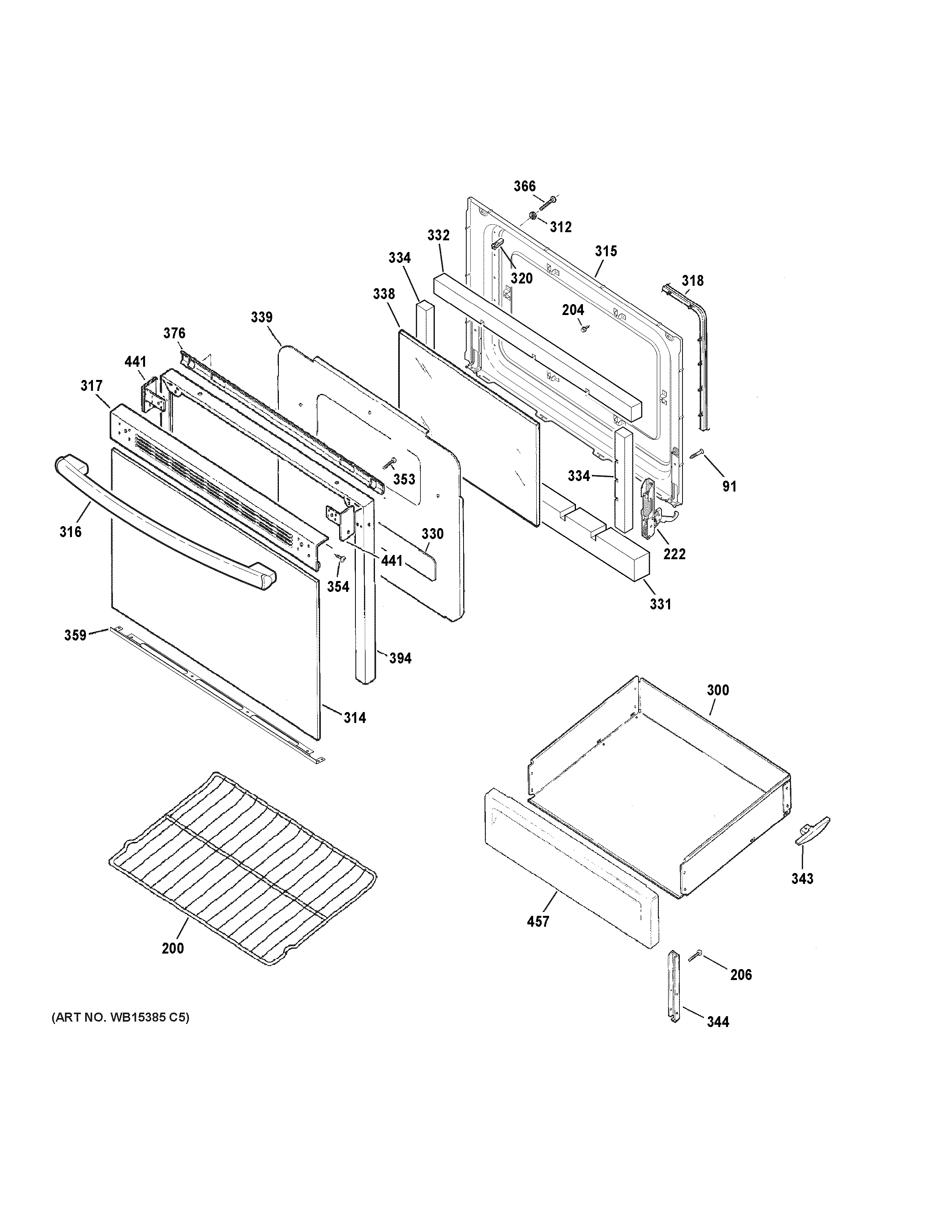

Door & drawer parts diagram

Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Gasket WB35X29721
#318

Door & drawer parts diagram

Range oven door gasket

Part #WB35X29721

Replaced by #WB35X29720

?
Manufacturer substitution
This part replaces WB35X29721. Substitute parts can look different from the original.
$25.20 |
19% OFF Phone Price : $31.20
In Stock
Range Oven Door Hinge Receiver WB10X20220
#1330

Body parts diagram

Range oven door hinge receiver

Part #WB10X20220

This item is not returnable
$7.84 |
11% OFF Phone Price : $8.84
In Stock
Drawer Support WB02K10163
#255

Body parts diagram

Drawer support

Part #WB02K10163

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
