Model # ZSA1202J1SS Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE ZSA1202J1SS microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Microwave Fuse WB27X10388
#47

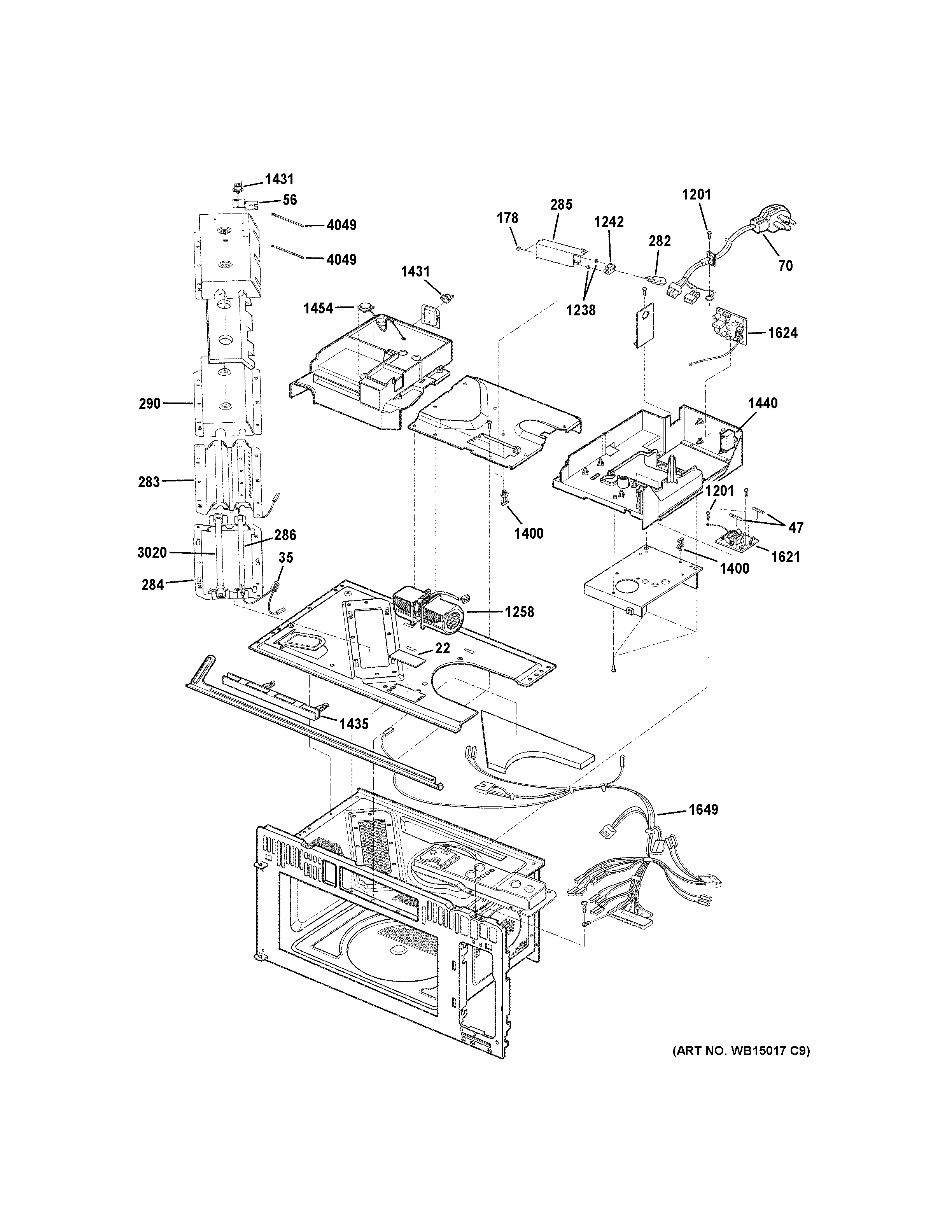

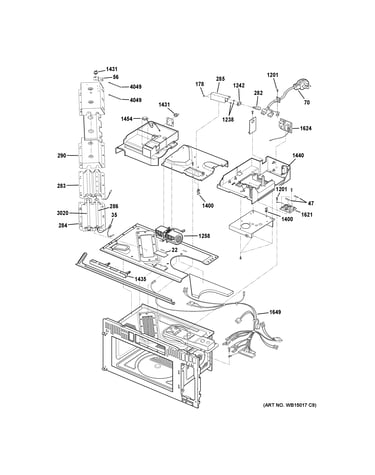

Interior parts (2) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave High-voltage Diode (replaces Wb18x10286, Wb27x1033, Wb27x10330) WB27X10037
#1648

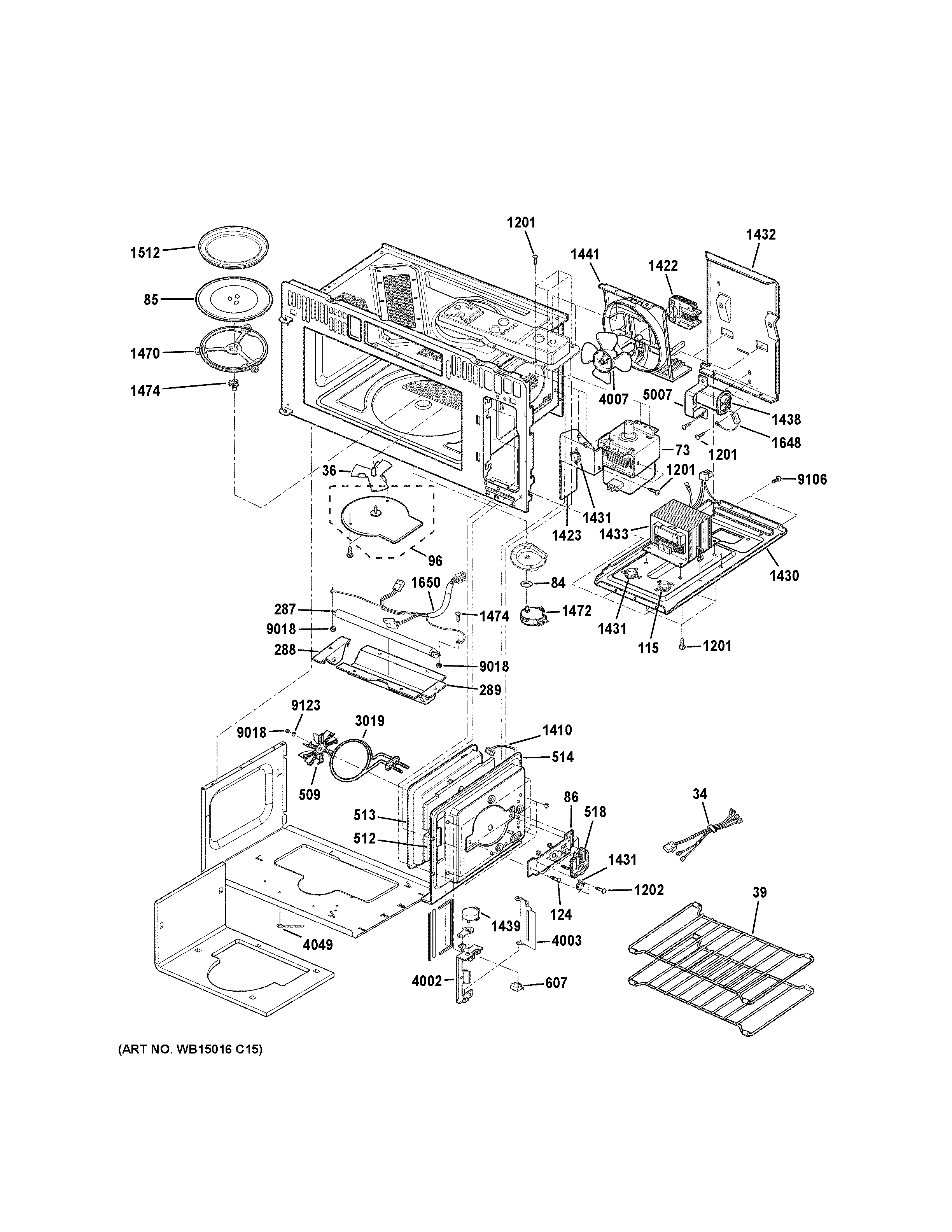

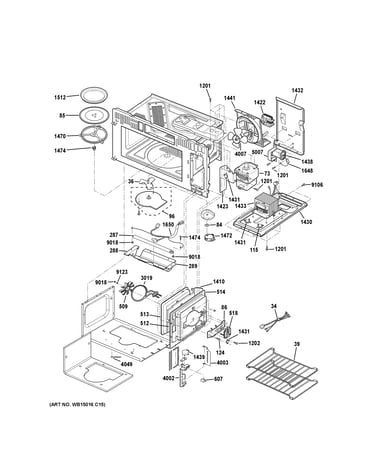

Interior parts (1) diagram

Microwave high-voltage diode (replaces wb18x10286, wb27x1033, wb27x10330)

Part #WB27X10037

BEST SELLER
$24.73 |
20% OFF Phone Price : $30.73
In Stock
Microwave Thermostat WB20X10048
Microwave thermostat

Part #WB20X10048

BEST SELLER
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Magnetron WB27X10865
#73

Interior parts (1) diagram

Magnetron

Part #WB27X10865

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Bulb (replaces Wb08x10051, Wb25x21248, Wb25x25393) WB08X10057
#291

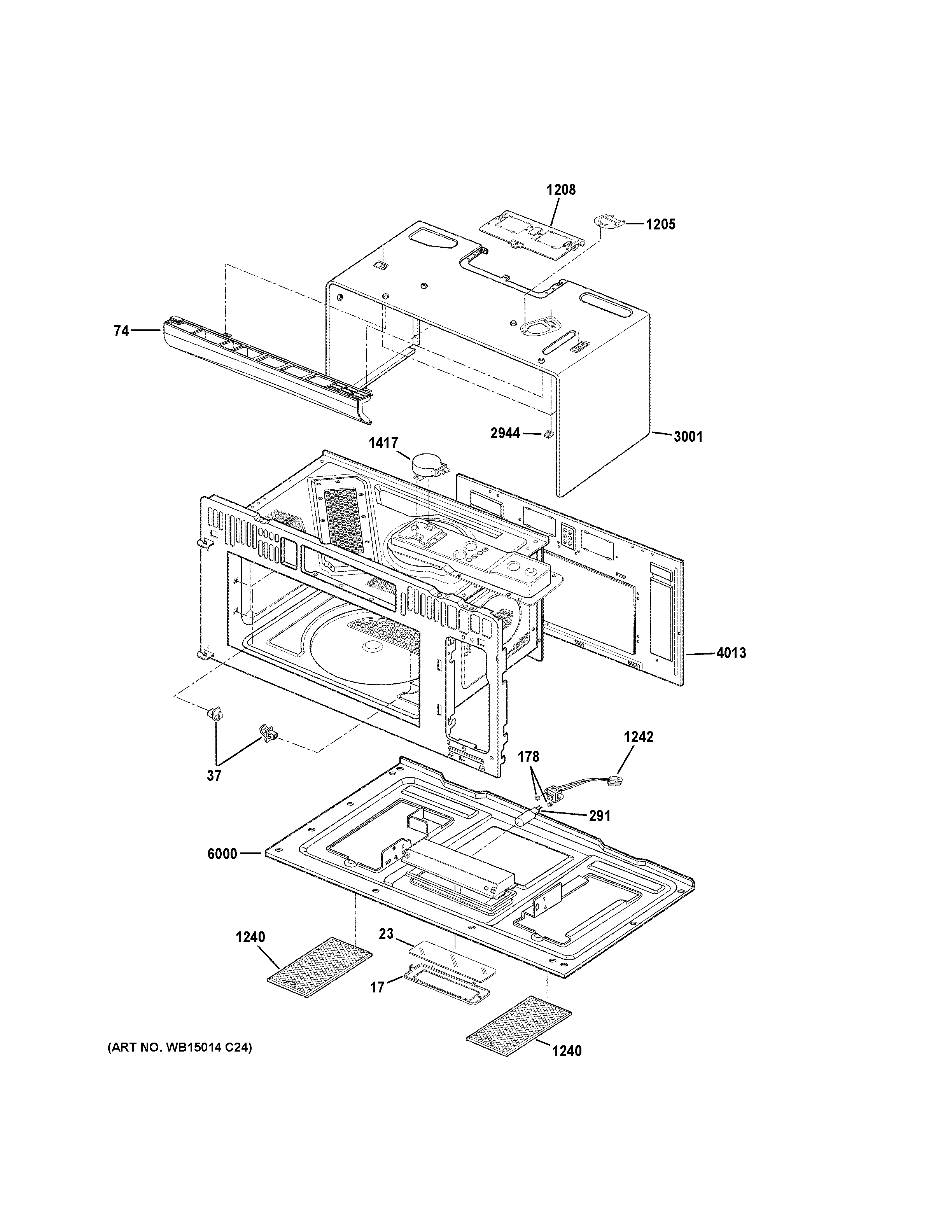

Oven cavity parts diagram

Microwave light bulb (replaces wb08x10051, wb25x21248, wb25x25393)

Part #WB08X10057

BEST SELLER
This item is not returnable
$12.90 |
13% OFF Phone Price : $14.90
In Stock
Microwave High-voltage Capacitor WB27X11031
#1438

Interior parts (1) diagram

Microwave high-voltage capacitor

Part #WB27X11031

$39.54 |
13% OFF Phone Price : $45.54
In Stock
Encoder Board WB27X11022
#1610

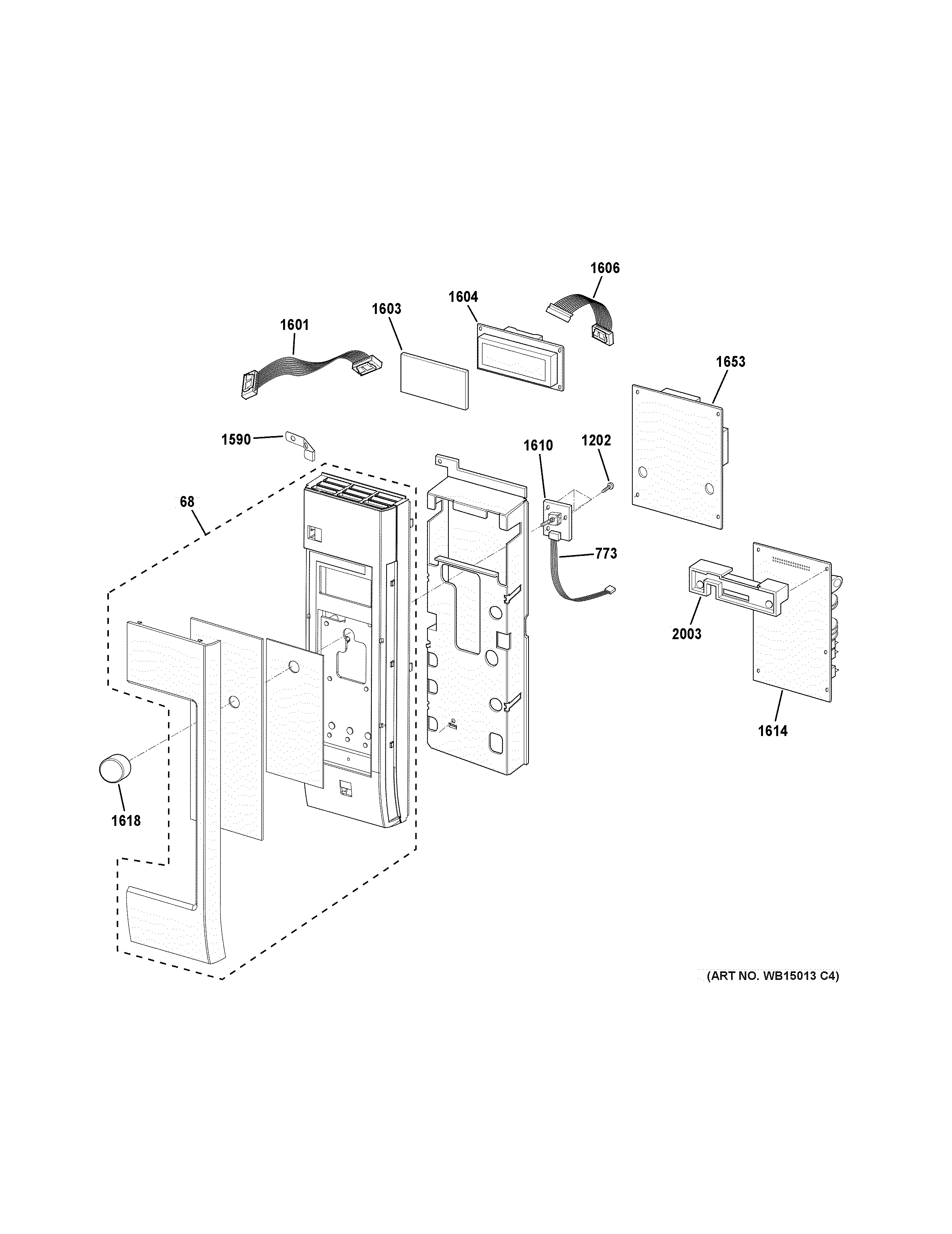

Control parts diagram

Encoder board

Part #WB27X11022

Replaced by #WB27X32632

?
Manufacturer substitution
This part replaces WB27X11022. Substitute parts can look different from the original.
$53.29 |
10% OFF Phone Price : $59.29
In Stock
Microwave Door Latch Hook WB02X21788
#28

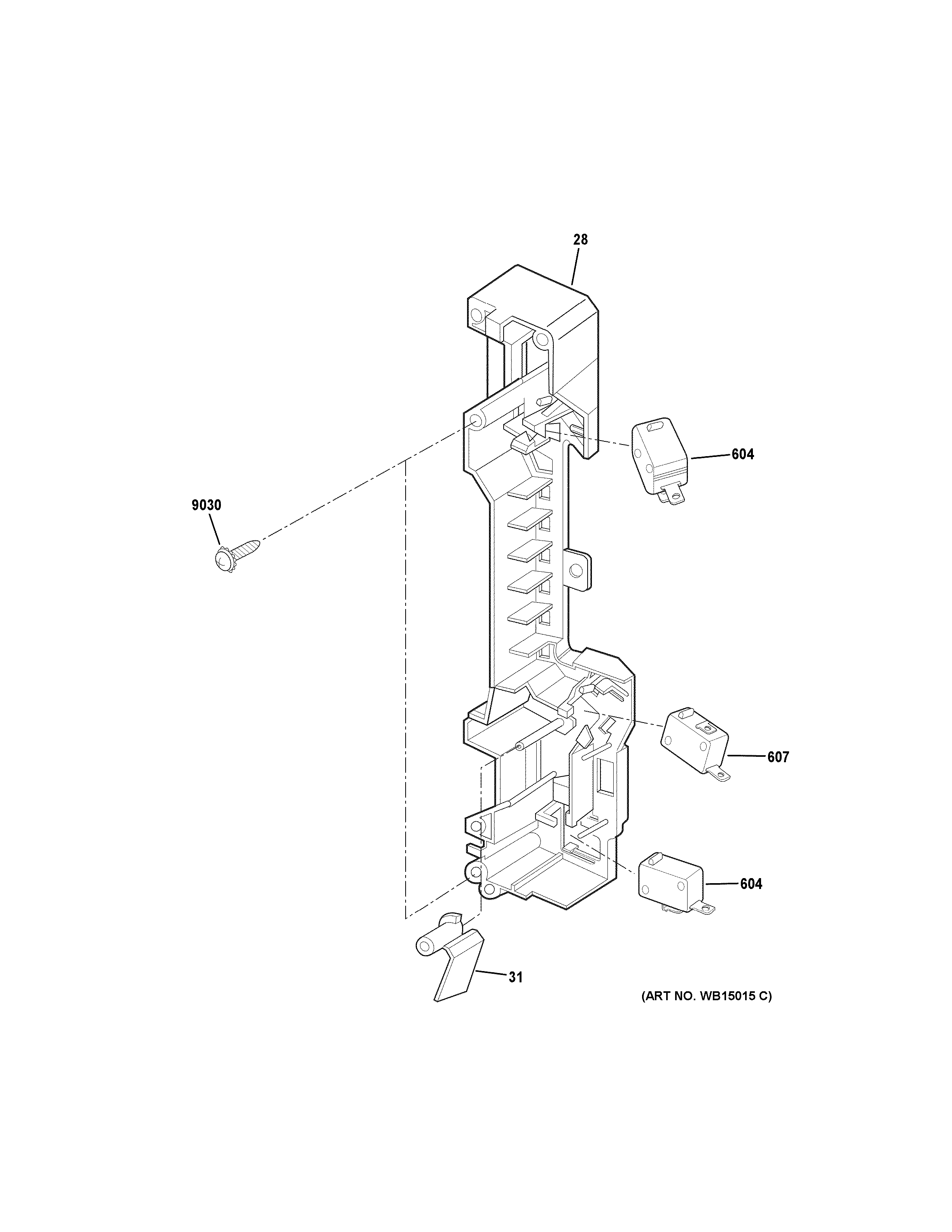

Latch board parts diagram

Microwave door latch hook

Part #WB02X21788

Replaced by #WB02X32720

?
Manufacturer substitution
This part replaces WB02X21788. Substitute parts can look different from the original.
This item is not returnable
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Microwave Charcoal Filter WB02X10943
#9990

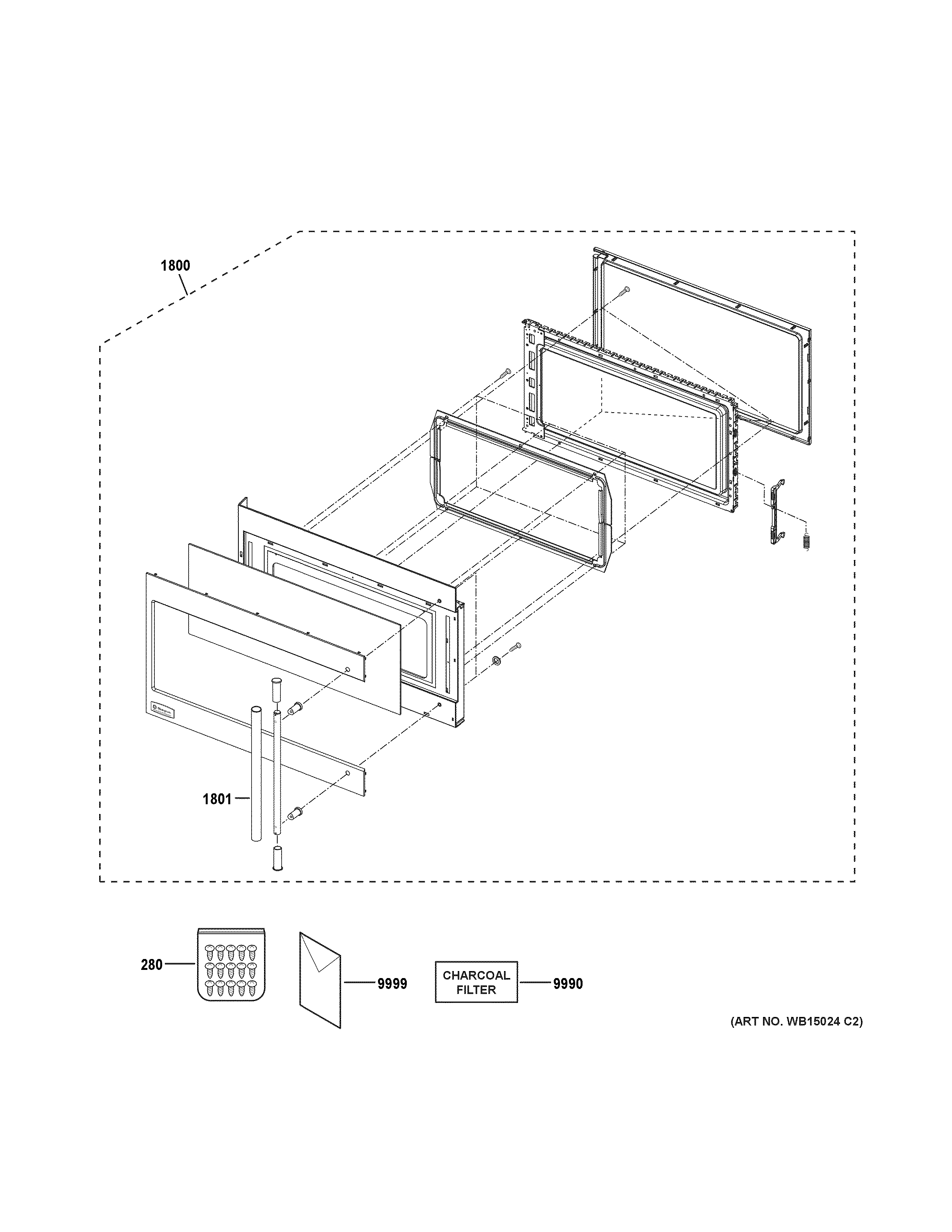

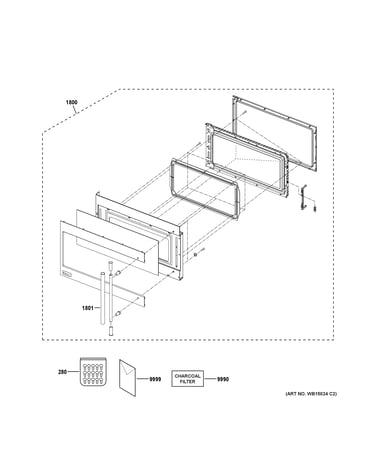

Door parts diagram

Microwave charcoal filter

Part #WB02X10943

Replaced by #WB02X35607

?
Manufacturer substitution
This part replaces WB02X10943. Substitute parts can look different from the original.
$21.16 |
22% OFF Phone Price : $27.16
In Stock
Microwave Mounting Plate WB56X10204
#9001

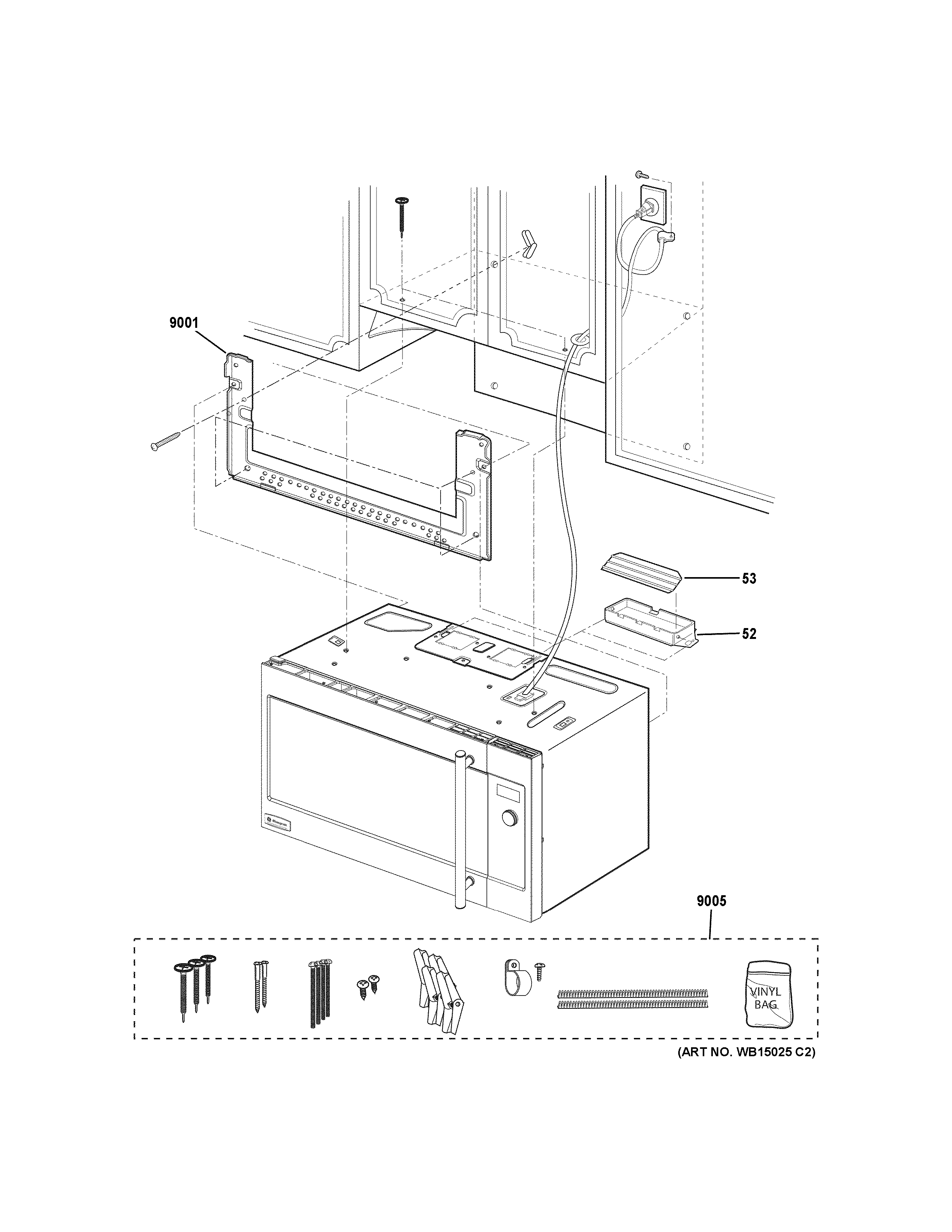

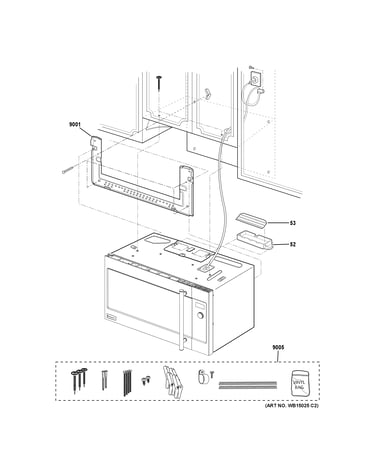

Installation parts diagram

Microwave mounting plate

Part #WB56X10204

Replaced by #WB56X35363

?
Manufacturer substitution
This part replaces WB56X10204. Substitute parts can look different from the original.
This item is not returnable
$20.80 |
22% OFF Phone Price : $26.80
In Stock
