White-Westinghouse
Top-Mount Refrigerator

Model # RT114LCD2 Official White-Westinghouse top-mount refrigerator - lw30590270

Here are the diagrams and repair parts for Official White-Westinghouse RT114LCD2 top-mount refrigerator - lw30590270, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Filter 5308000027
#5

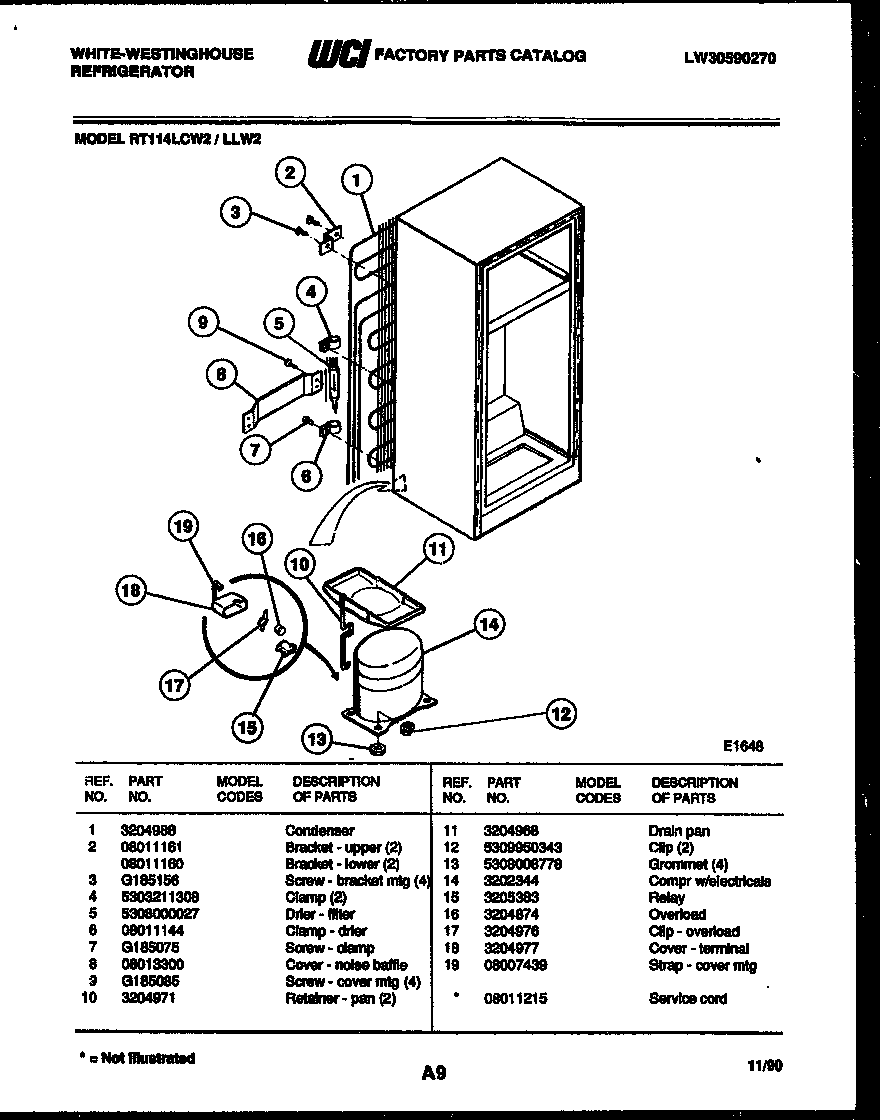

System and automatic defrost parts diagram

Filter

Part #5308000027

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 5308000027. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Timer 5308000035
#17

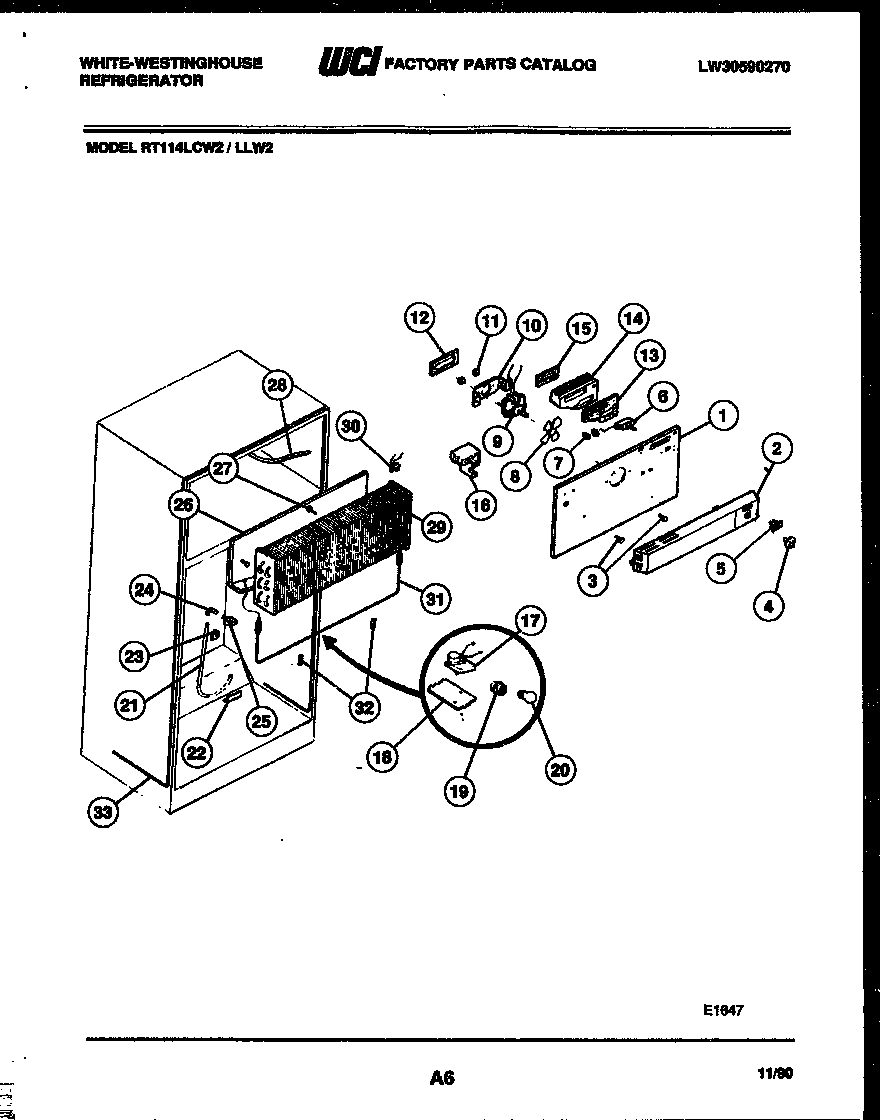

System and automatic defrost parts diagram

Refrigerator timer

Part #5308000035

Replaced by #215846604

?
Manufacturer substitution
This part replaces 5308000035. Substitute parts can look different from the original.
BEST SELLER
$27.89 |
18% OFF Phone Price : $33.89
In Stock
Refrigerator Thermostat 3204985
#30

System and automatic defrost parts diagram

Refrigerator thermostat

Part #3204985

Replaced by #5303917954

?
Manufacturer substitution
This part replaces 3204985. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Refrigerator Plug (white) 5308000090
#18

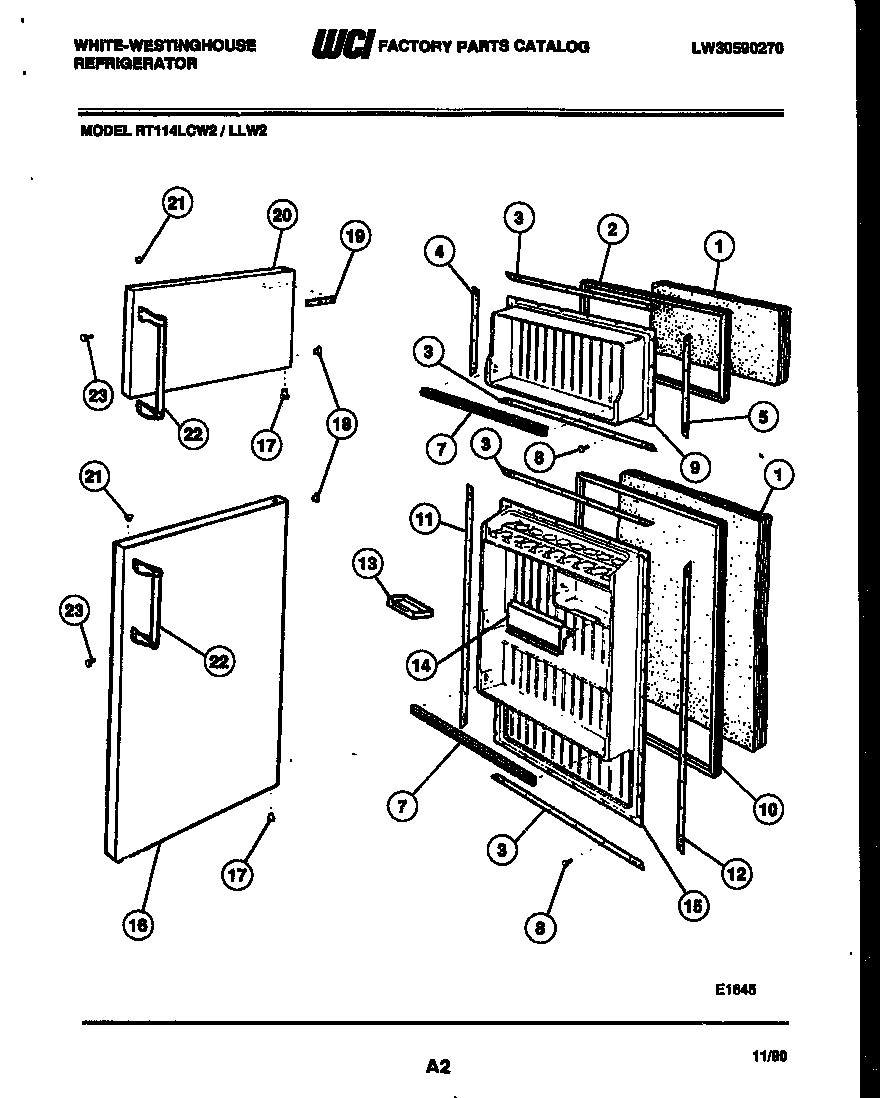

Door parts diagram

Refrigerator plug (white)

Part #5308000090

Replaced by #240494001

?
Manufacturer substitution
This part replaces 5308000090. Substitute parts can look different from the original.
This item is not returnable
$19.78 |
9% OFF Phone Price : $21.78
In Stock
Refrigerator Door Hinge 5303001321
#13

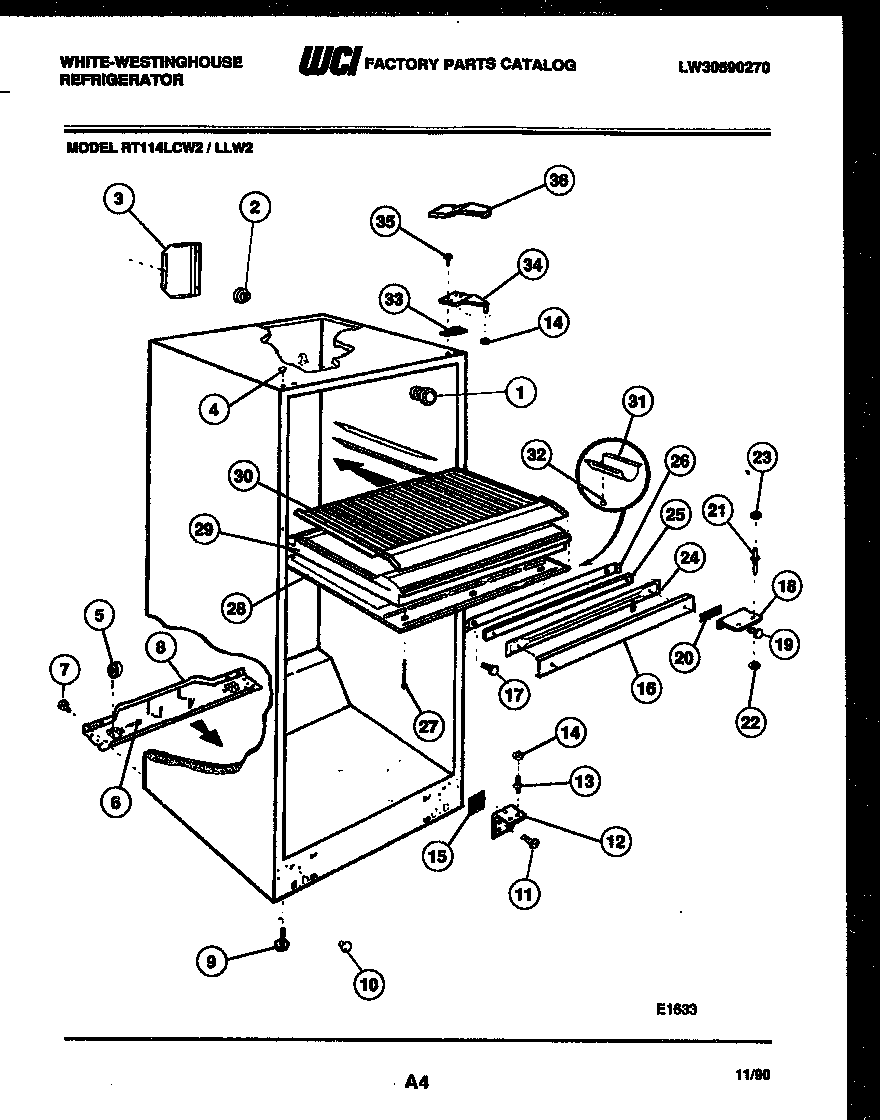

Cabinet parts diagram

Refrigerator door hinge

Part #5303001321

This item is not returnable
$13.24 |
13% OFF Phone Price : $15.24
In Stock
Refrigerator Tube 08011149
#21

System and automatic defrost parts diagram

Refrigerator tube

Part #08011149

This item is not returnable
$2.49
In Stock
Refrigerator Spacer 08011220
#14

System and automatic defrost parts diagram

Refrigerator spacer

Part #08011220

This item is not returnable
$3.49
In Stock
Refrigerator Panel G185131
#9

Door parts diagram

Refrigerator panel

Part #G185131

$24.99
In Stock
Refrigerator Hinge 08011174
#12

Cabinet parts diagram

Refrigerator hinge

Part #08011174

$10.49
In Stock
Refrigerator Molding 08011228
#13A

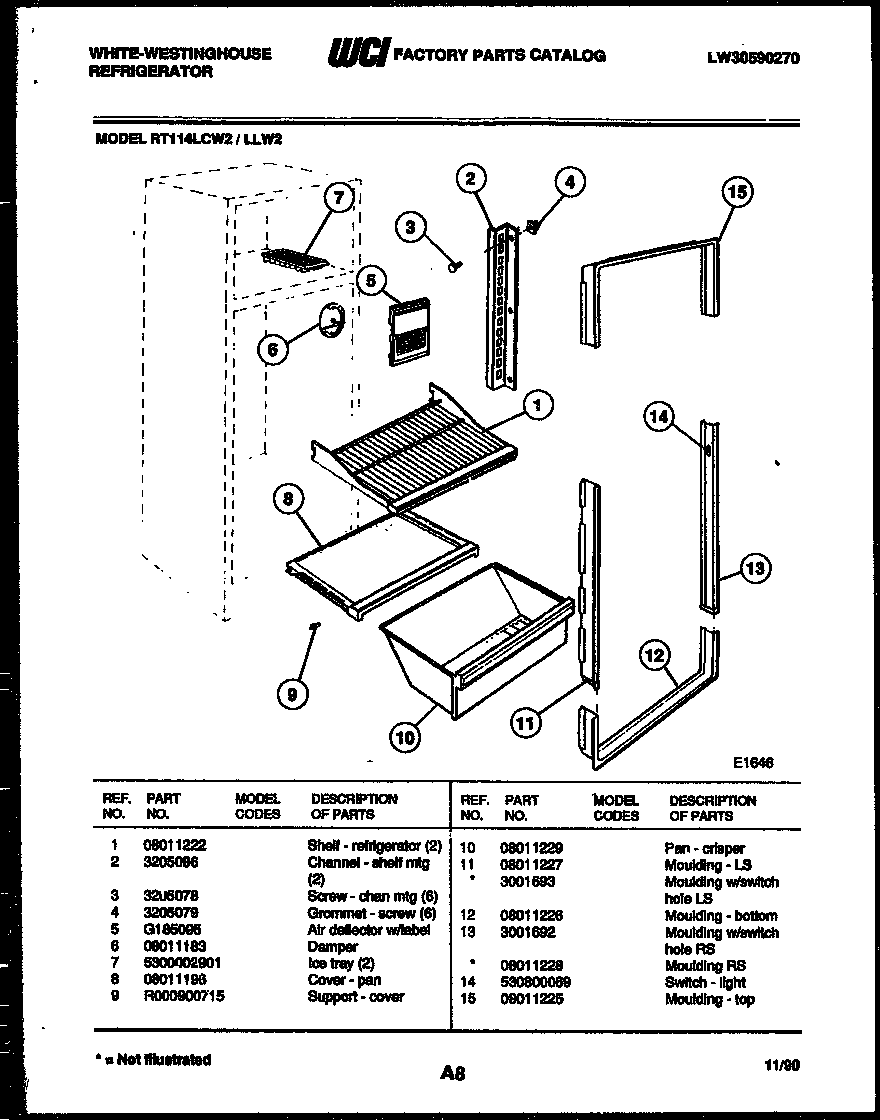

Shelves and supports diagram

Refrigerator molding

Part #08011228

$19.99
In Stock
