Model # JEC3536HB00 Official Jenn-Air electric counter unit

Here are the diagrams and repair parts for Official Jenn-Air JEC3536HB00 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Range Radiant Surface Element 8273994
#11D

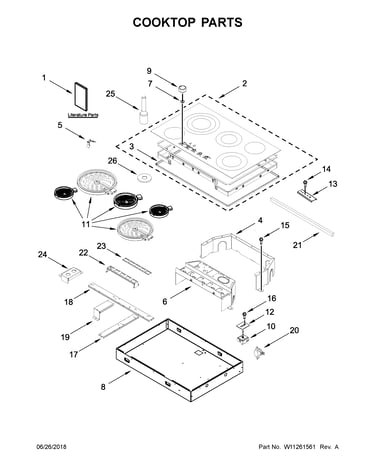

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$105.41 |
10% OFF Phone Price : $117.41
In Stock
Range Dual Radiant Surface Element W10275048
#11C

Cooktop parts diagram

Range dual radiant surface element

Part #W10275048

Replaced by #W11517959

?
Manufacturer substitution
This part replaces W10275048. Substitute parts can look different from the original.
BEST SELLER
$82.45 |
7% OFF Phone Price : $88.45
In Stock
Affresh Cooktop Cleaner (replaces 31464) W10355051
#NI

Optional parts (not included) diagram

Affresh cooktop cleaner (replaces 31464)

Part #W10355051

BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Dual Surface Element Control Switch W10437092
#10B

Cooktop parts diagram

Range dual surface element control switch

Part #W10437092

Replaced by #W10857622

?
Manufacturer substitution
This part replaces W10437092. Substitute parts can look different from the original.
BEST SELLER
$143.69 |
8% OFF Phone Price : $155.69
In Stock
Range Surface Element Control Switch W10578768
#10C

Cooktop parts diagram

Range surface element control switch

Part #W10578768

Replaced by #W10911303

?
Manufacturer substitution
This part replaces W10578768. Substitute parts can look different from the original.
BEST SELLER
$66.34 |
8% OFF Phone Price : $72.34
In Stock
Cooktop Surface Element W10187839
#11A

Cooktop parts diagram

Cooktop surface element

Part #W10187839

Replaced by #W11563195

?
Manufacturer substitution
This part replaces W10187839. Substitute parts can look different from the original.
BEST SELLER
$116.17 |
9% OFF Phone Price : $128.17
In Stock
Tape 8286642
#NI

Cooktop parts diagram

Tape

Part #8286642

Replaced by #WP8286642

?
Manufacturer substitution
This part replaces 8286642. Substitute parts can look different from the original.
$62.59 |
9% OFF Phone Price : $68.59
In Stock
Screw (black) 7101P309-60
#16

Cooktop parts diagram

Screw (black)

Part #7101P309-60

Replaced by #WP7101P309-60

?
Manufacturer substitution
This part replaces 7101P309-60. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Cooktop Element Control Switch Seal 3183956
#12

Cooktop parts diagram

Cooktop element control switch seal

Part #3183956

This item is not returnable
$31.09 |
16% OFF Phone Price : $37.09
In Stock
Lens, Lighted W11130622
#26

Cooktop parts diagram

Lens, lighted

Part #W11130622

Replaced by #W11310261

?
Manufacturer substitution
This part replaces W11130622. Substitute parts can look different from the original.
$14.43
In Stock
