Gas Walk-Behind Mower

Model # 917380450 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917380450 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Washer 61537
#57

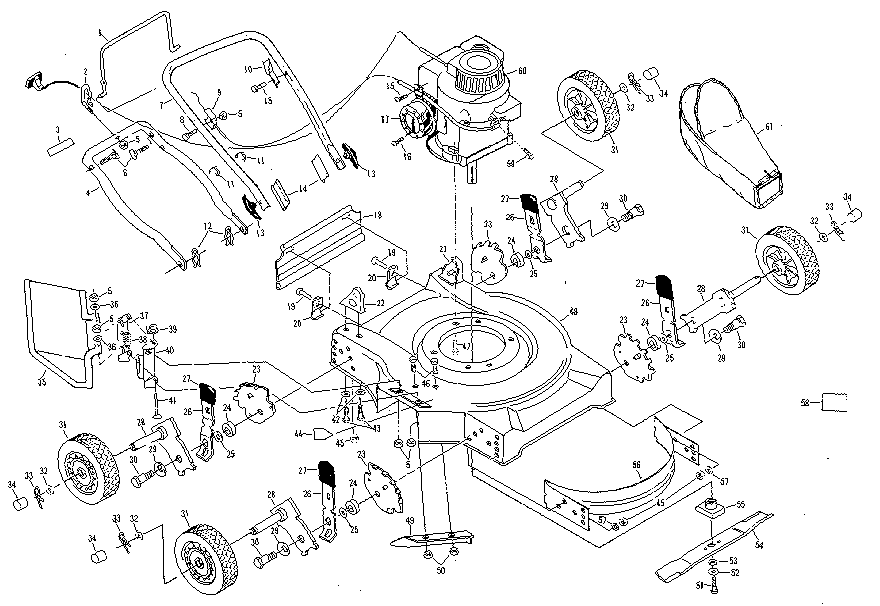

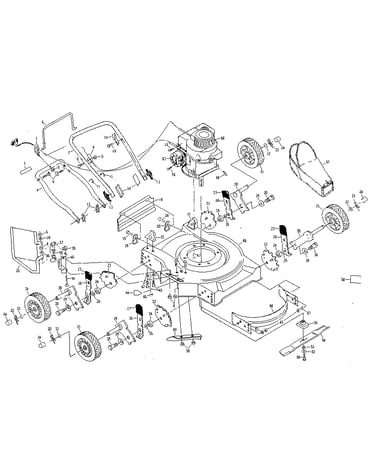

Main frame diagram

Washer

Part #61537

Replaced by #596134901

?
Manufacturer substitution
This part replaces 61537. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Washer 52160
#32

Main frame diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Spacer 84920
#24

Main frame diagram

Spacer

Part #84920

Replaced by #532401629

?
Manufacturer substitution
This part replaces 84920. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Shoulder Bolt 84921
#30

Main frame diagram

Shoulder bolt

Part #84921

Replaced by #532174719

?
Manufacturer substitution
This part replaces 84921. Substitute parts can look different from the original.
This item is not returnable
$13.69
In Stock
Upstop Bracket 850734
#10

Main frame diagram

Upstop bracket

Part #850734

Replaced by #532850733

?
Manufacturer substitution
This part replaces 850734. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Screw 55187
#43

Main frame diagram

Screw

Part #55187

Replaced by #532428867

?
Manufacturer substitution
This part replaces 55187. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#53

Main frame diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Retainer Clip 85179
#33

Main frame diagram

Retainer clip

Part #85179

Replaced by #532085179

?
Manufacturer substitution
This part replaces 85179. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Washer 59289
#42

Main frame diagram

Washer

Part #59289

Replaced by #532059289

?
Manufacturer substitution
This part replaces 59289. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lawn & Garden Equipment Screw 851084
#51

Main frame diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532851084

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
