Whirlpool
Top-Mount Refrigerator

Model # 3ET18DKXXW00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool 3ET18DKXXW00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

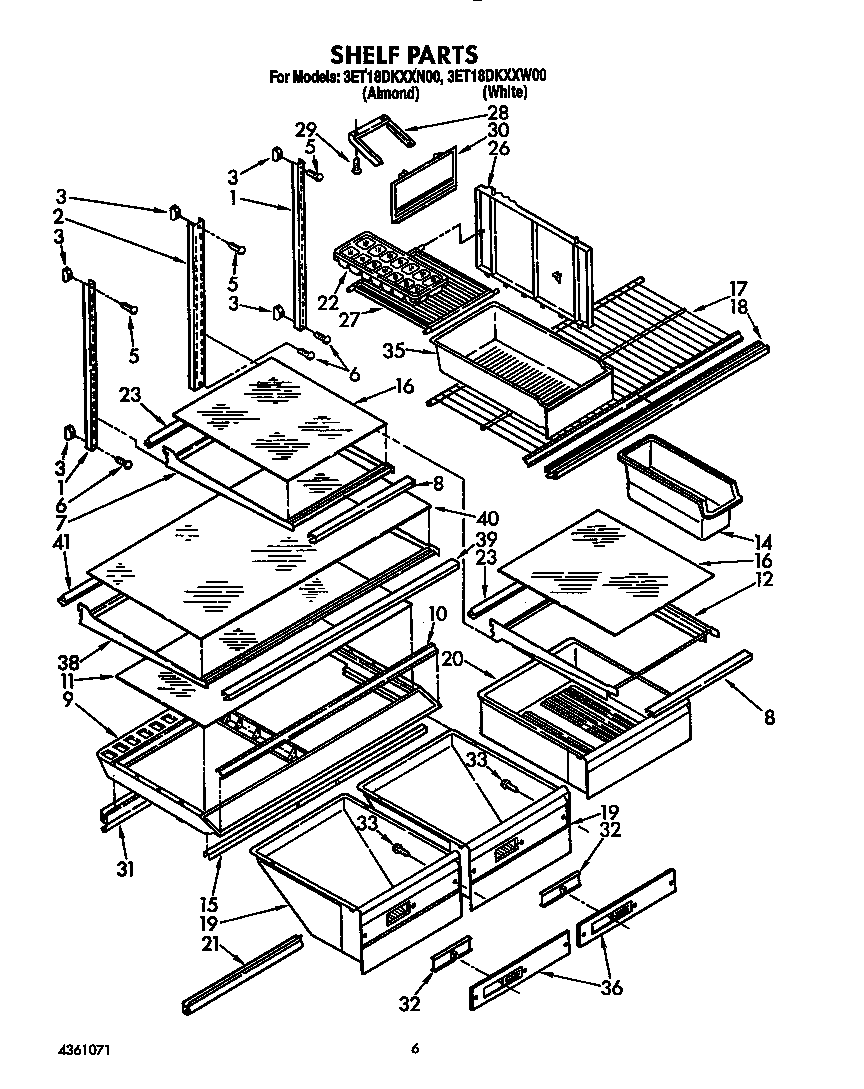

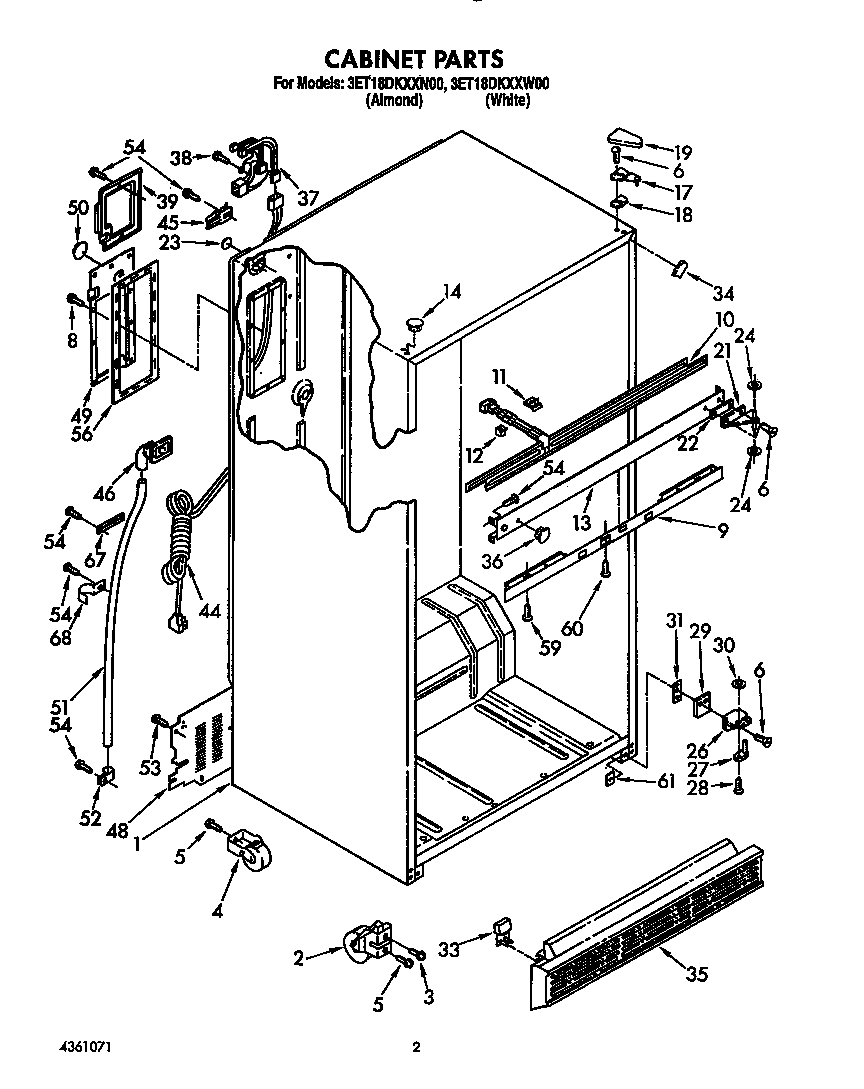

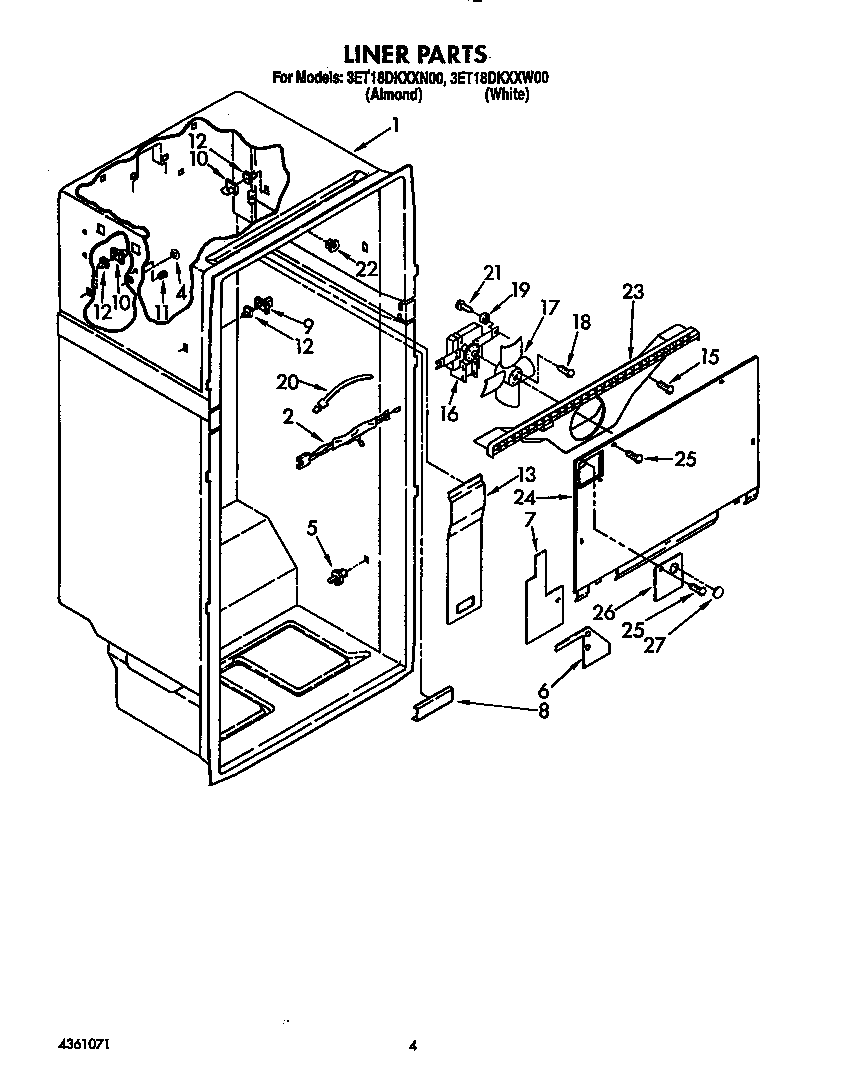

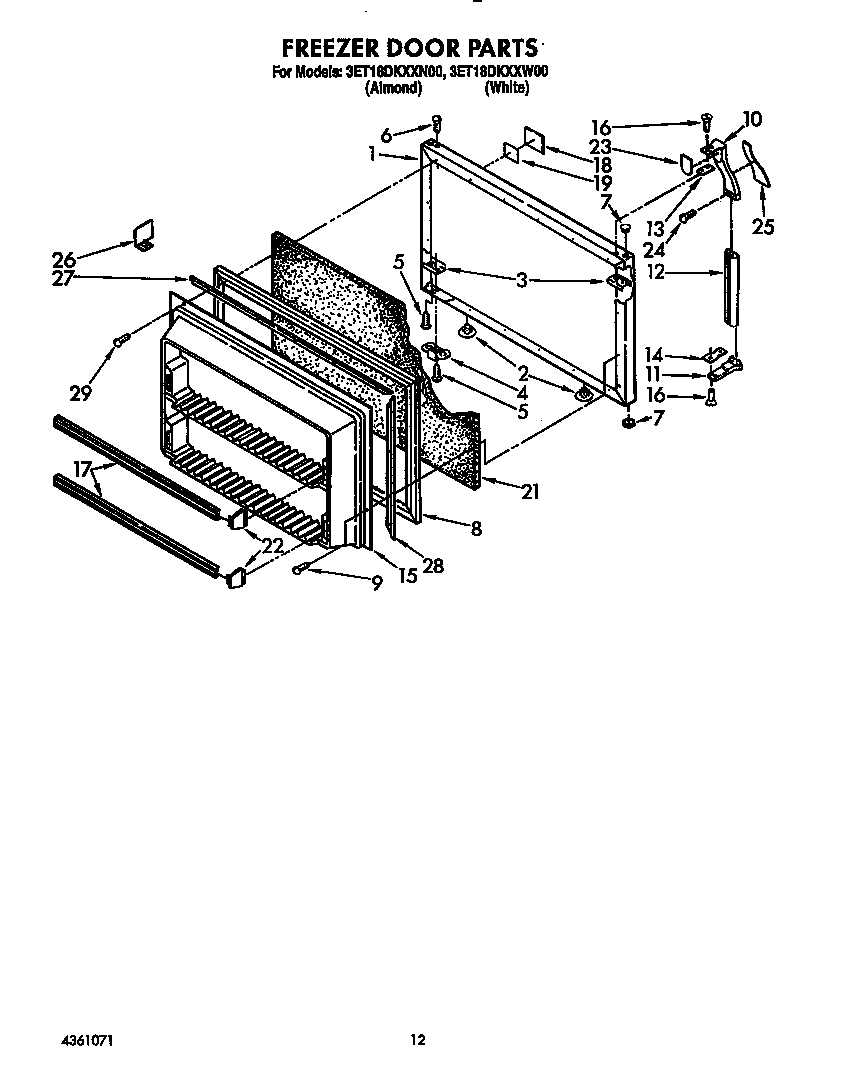

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 279 parts  |
Drier 945424
#11

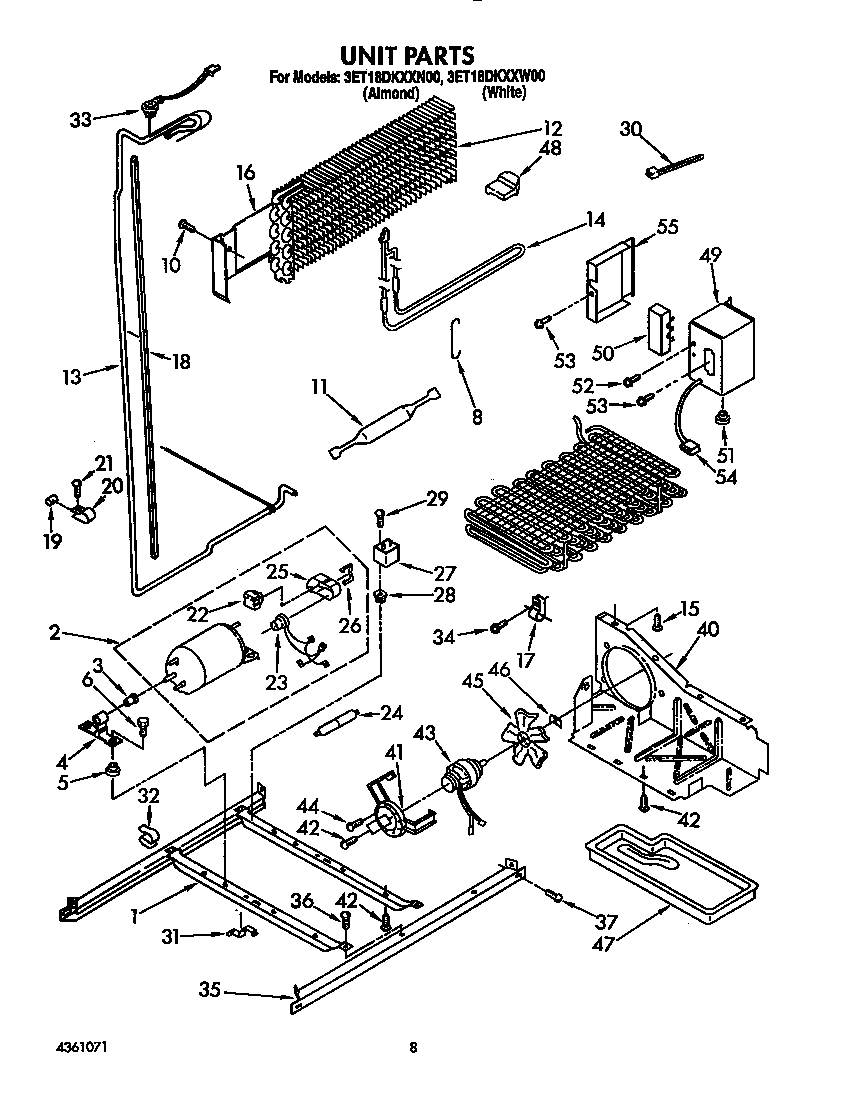

Unit diagram

Drier

Part #945424

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 945424. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Defrost Bi-metal 2149643
#33

Unit diagram

Refrigerator defrost bi-metal

Part #2149643

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces 2149643. Substitute parts can look different from the original.
BEST SELLER
$39.71 |
13% OFF Phone Price : $45.71
In Stock
Refrigerator Light Switch 1105461
#3

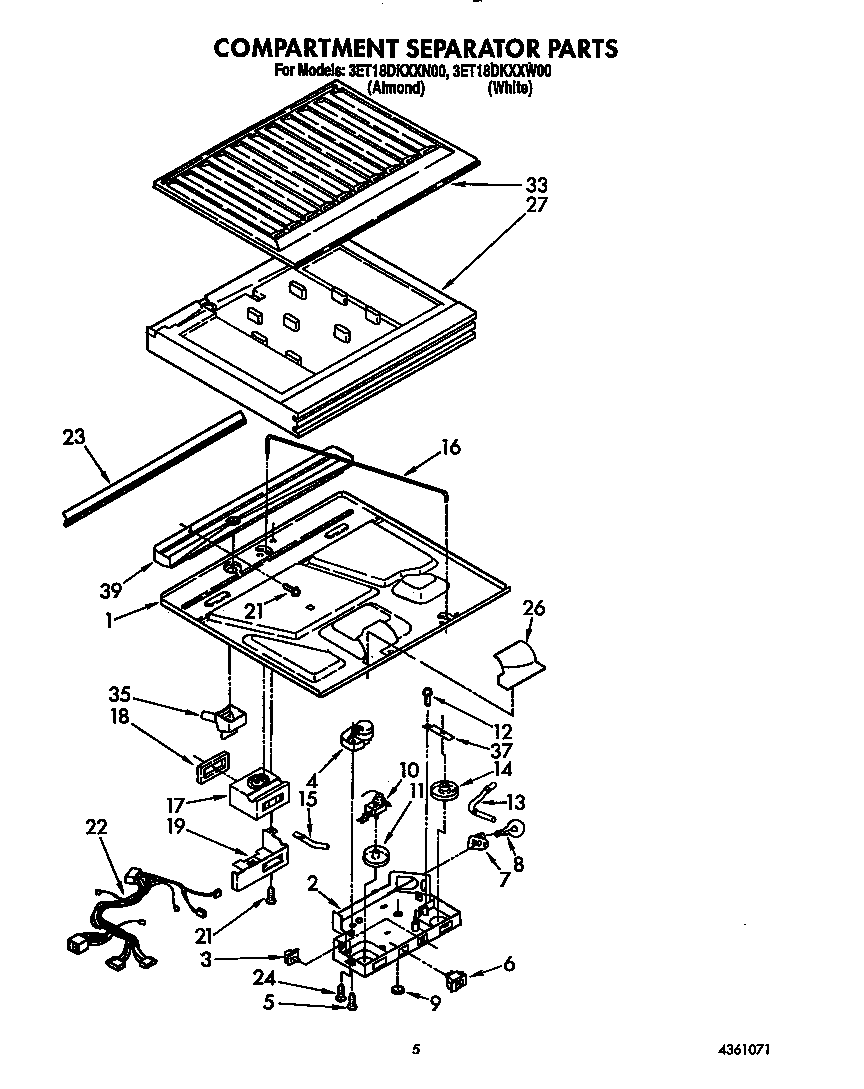

Compartment separator diagram

Refrigerator light switch

Part #1105461

Replaced by #WP2149705

?
Manufacturer substitution
This part replaces 1105461. Substitute parts can look different from the original.
BEST SELLER
$27.00 |
18% OFF Phone Price : $33.00
In Stock
Screw 488624
#42

Unit diagram

Screw

Part #488624

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 488624. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 487909
#17

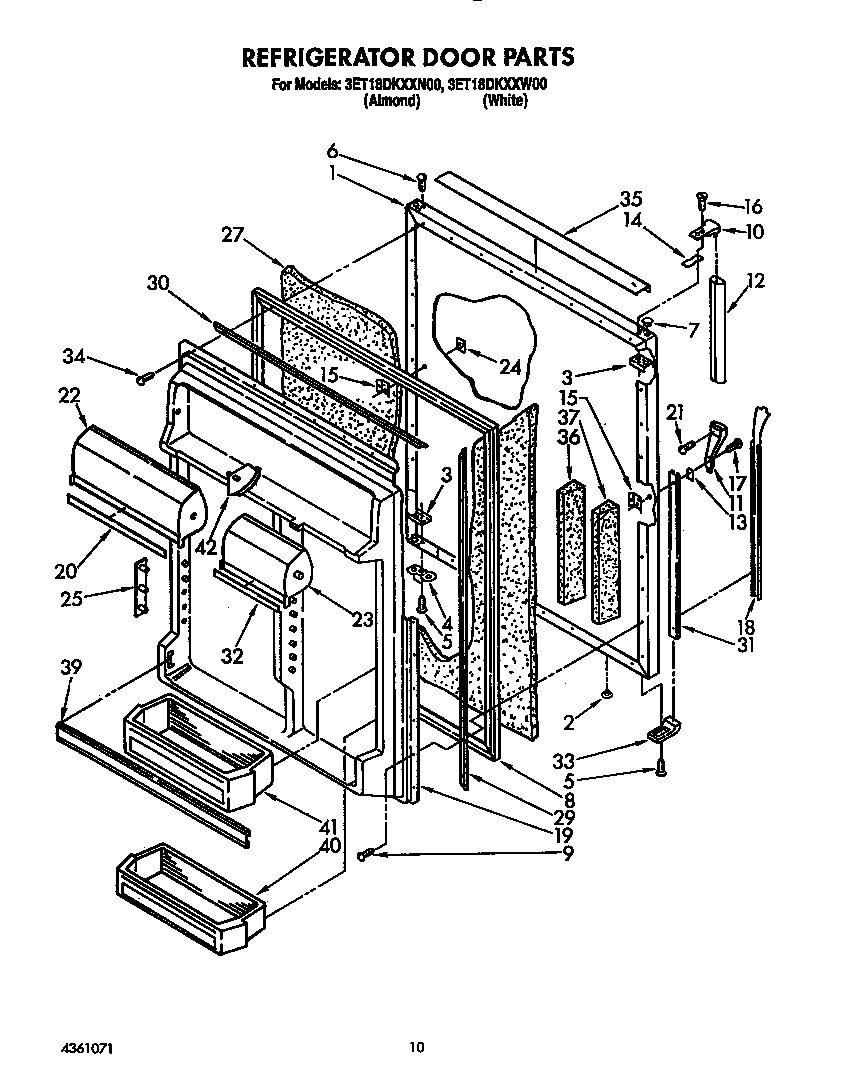

Refrigerator door diagram

Screw

Part #487909

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487909. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw 489287
Refrigerator screw

Part #489287

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 489287. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 489084
Screw

Part #489084

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 489084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764
#55G

Unit diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Spray Paint (white) 350930

#NI

All parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
