Model # PFEL87076 Official Proform 485e elliptical machine

Here are the diagrams and repair parts for Official Proform PFEL87076 485e elliptical machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Toyostove Exercise Equipment Magnet 113842
#24

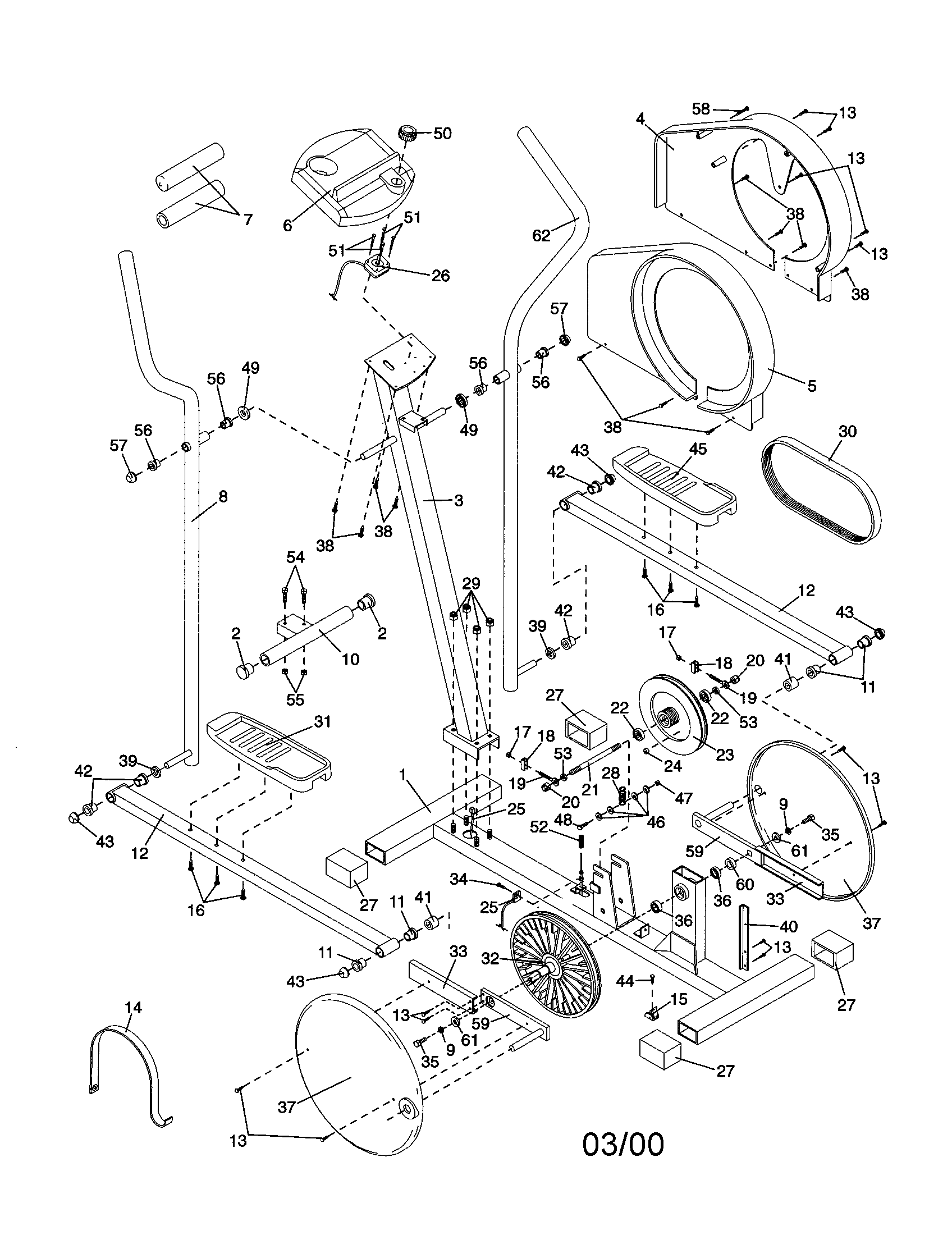

Stepper diagram

Toyostove exercise equipment magnet

Part #113842

This item is not returnable
In Stock
Toyostove Elliptical Nut 148710
#20

Stepper diagram

Toyostove elliptical nut

Part #148710

This item is not returnable
In Stock
Exercise Equipment Screw 145911
#58

Stepper diagram

Exercise equipment screw

Part #145911

This item is not returnable
In Stock
Lifestyler Bkt,sideshil 141092
#40

Stepper diagram

Lifestyler bkt,sideshil

Part #141092

This item is not returnable
In Stock
Warning Decal 148332

#NI

All parts diagram

Warning decal

Part #148332

This item is not returnable
In Stock
Nordictrack Finish Washr 125328
#46

Stepper diagram

Nordictrack finish washr

Part #125328

This item is not returnable
In Stock
Nordictrack Exercise Equipment Flat Washer 014122
#53

Stepper diagram

Nordictrack exercise equipment flat washer

Part #014122

This item is not returnable
In Stock
Healthrider Exercise Equipment Flange Screw 163352
#35

Stepper diagram

Healthrider exercise equipment flange screw

Part #163352

This item is not returnable
In Stock
Nordictrack Screw,abphth 013356
#34

Stepper diagram

Nordictrack screw,abphth

Part #013356

This item is not returnable
In Stock
Reebok Exercise Equipment Bolt 104536
#19

Stepper diagram

Reebok exercise equipment bolt

Part #104536

This item is not returnable
In Stock
