GE
Central Air Conditioner

Model # A2B778EPCND1 Official GE air conditioner

Here are the diagrams and repair parts for Official GE A2B778EPCND1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Screw WZ4X288
#959

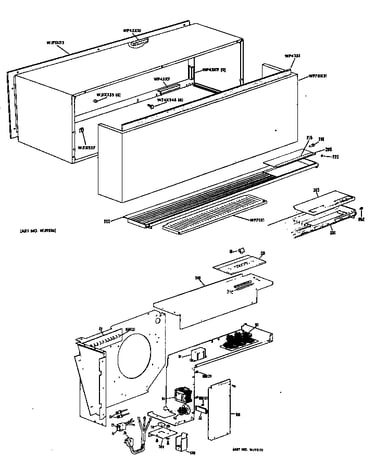

Cabinet diagram

Screw

Part #WZ4X288

This item is not returnable
$3.49
In Stock
Screw WZ4X362

#NI

All parts diagram

Screw

Part #WZ4X362

This item is not returnable
$4.99
In Stock
Screw WZ2X548
#952A

Cabinet diagram

Screw

Part #WZ2X548

This item is not returnable
$5.49
In Stock
Clip WJ3X87

#NI

All parts diagram

Clip

Part #WJ3X87

This item is not returnable
$2.16
In Stock
Condenser WJ88X159
#110

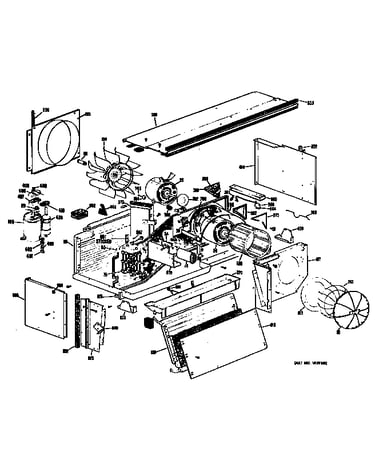

Chassis diagram

Condenser

Part #WJ88X159

$351.49
In Stock
Spring Gr WJ2X258
#400B

Chassis diagram

Spring gr

Part #WJ2X258

$17.49
In Stock
Use & Care Z 49-7070

#NI

All parts diagram

Use & care z

Part #49-7070

Replaced by #49-7144-1

?
Manufacturer substitution
This part replaces 49-7070. Substitute parts can look different from the original.
$8.49
In Stock
Bracket Kit WP41X12

#NI

All parts diagram

Bracket kit

Part #WP41X12

The manufacturer no longer makes this part, and there's no substitute part

Tube Seal At Barrier Top WP60X10

#NI

All parts diagram

Tube seal at barrier top

Part #WP60X10

The manufacturer no longer makes this part, and there's no substitute part

Bracket Compressor Mount WP66X01

#NI

All parts diagram

Bracket compressor mount

Part #WP66X01

The manufacturer no longer makes this part, and there's no substitute part
