Kenmore Elite
Gas Range

Model # 79032363416 Official Kenmore Elite gas range

Here are the diagrams and repair parts for Official Kenmore Elite 79032363416 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

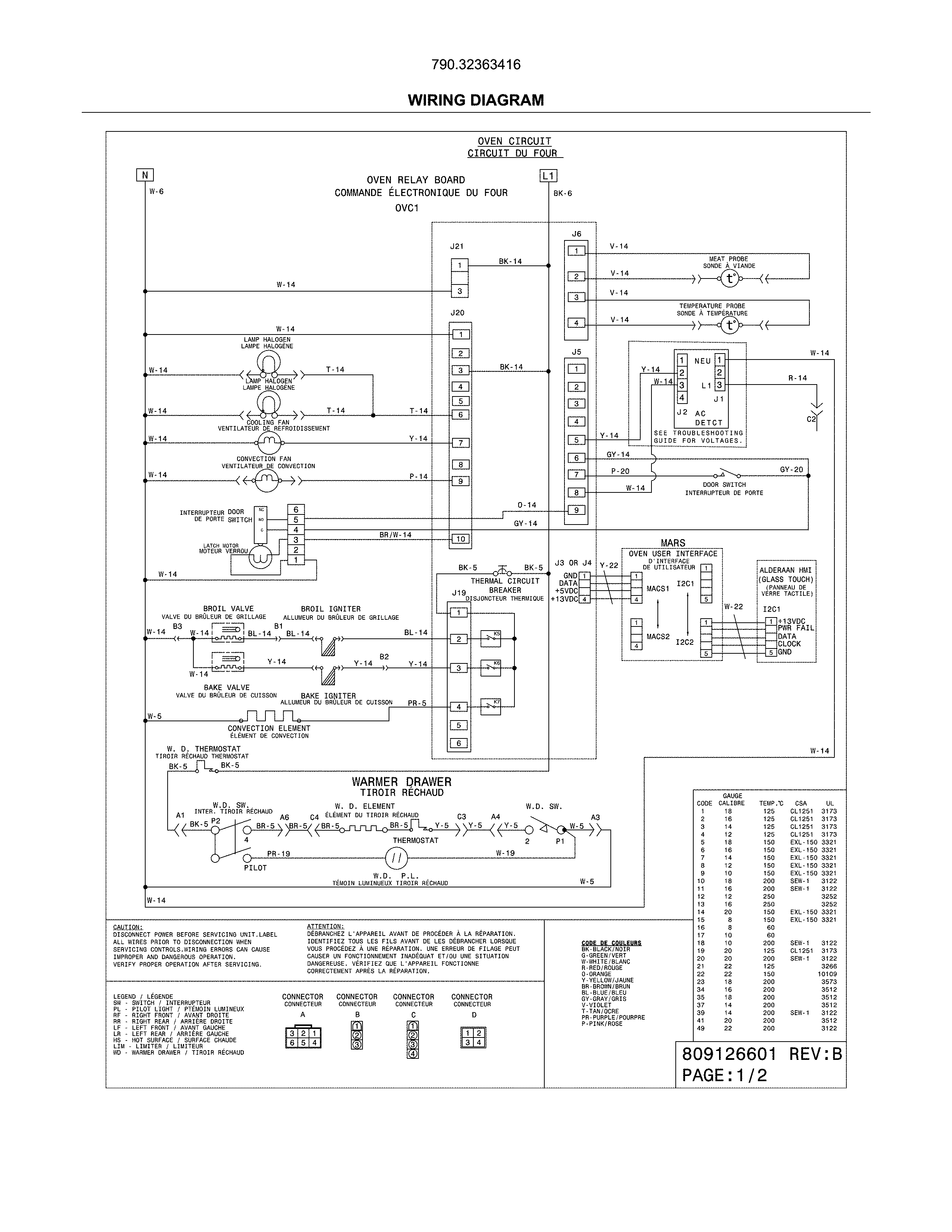

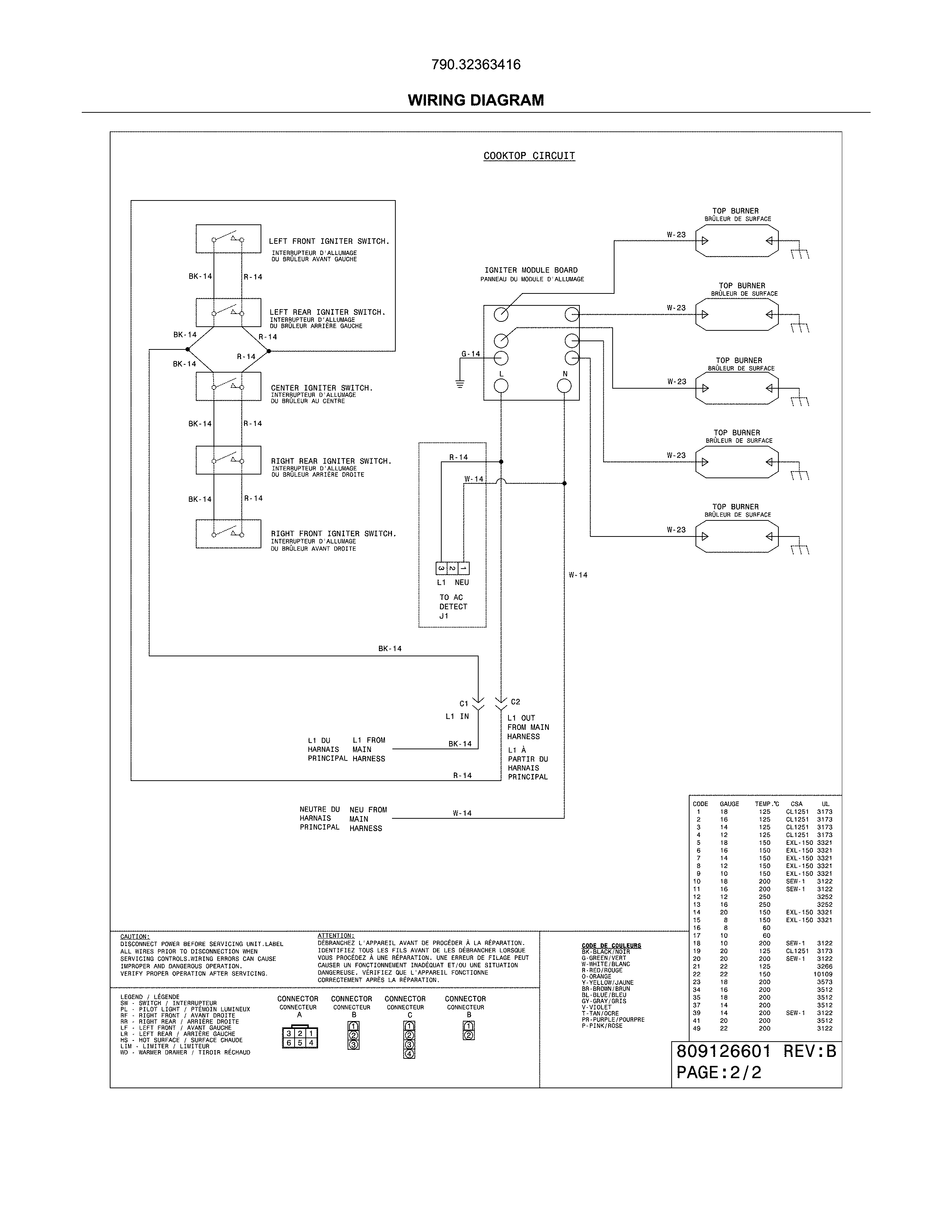

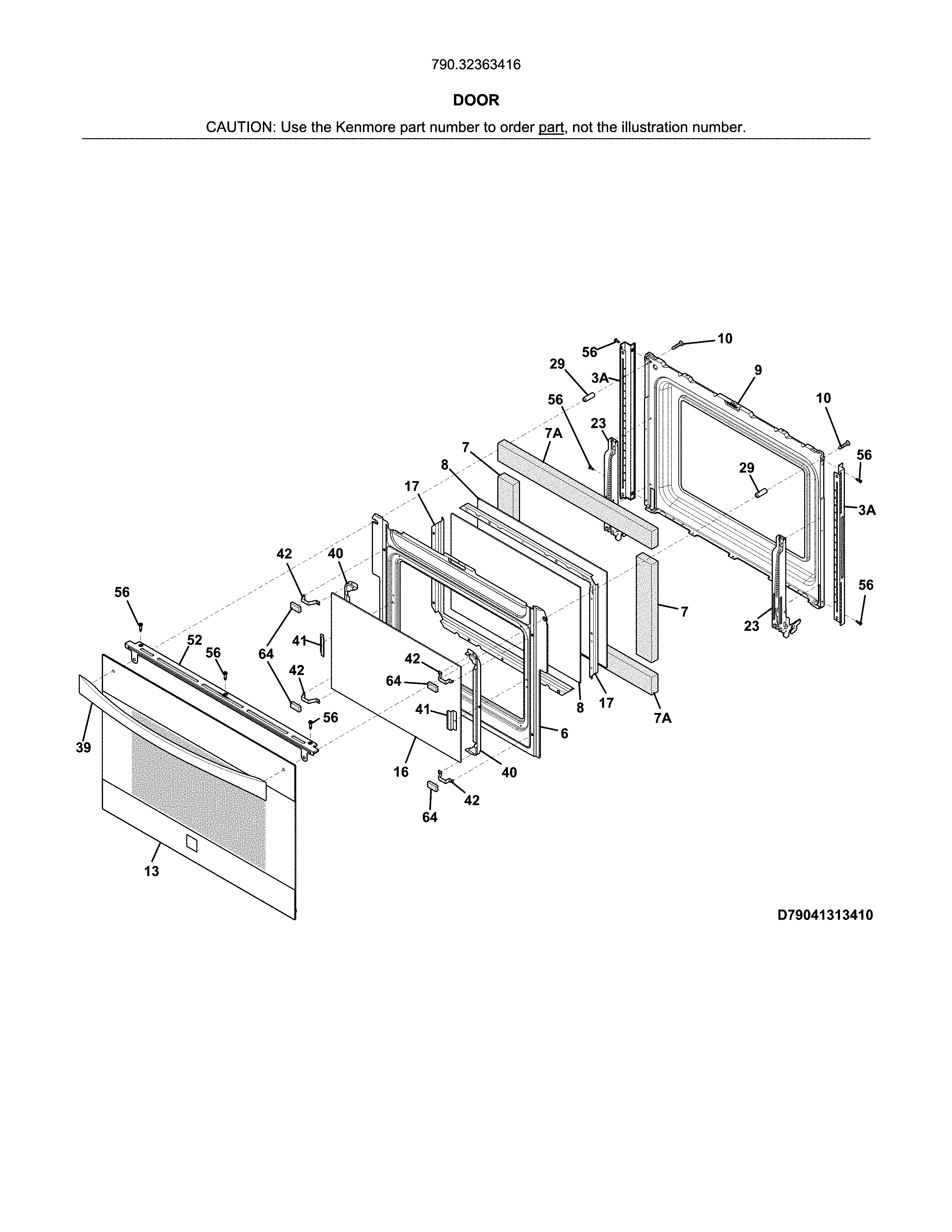

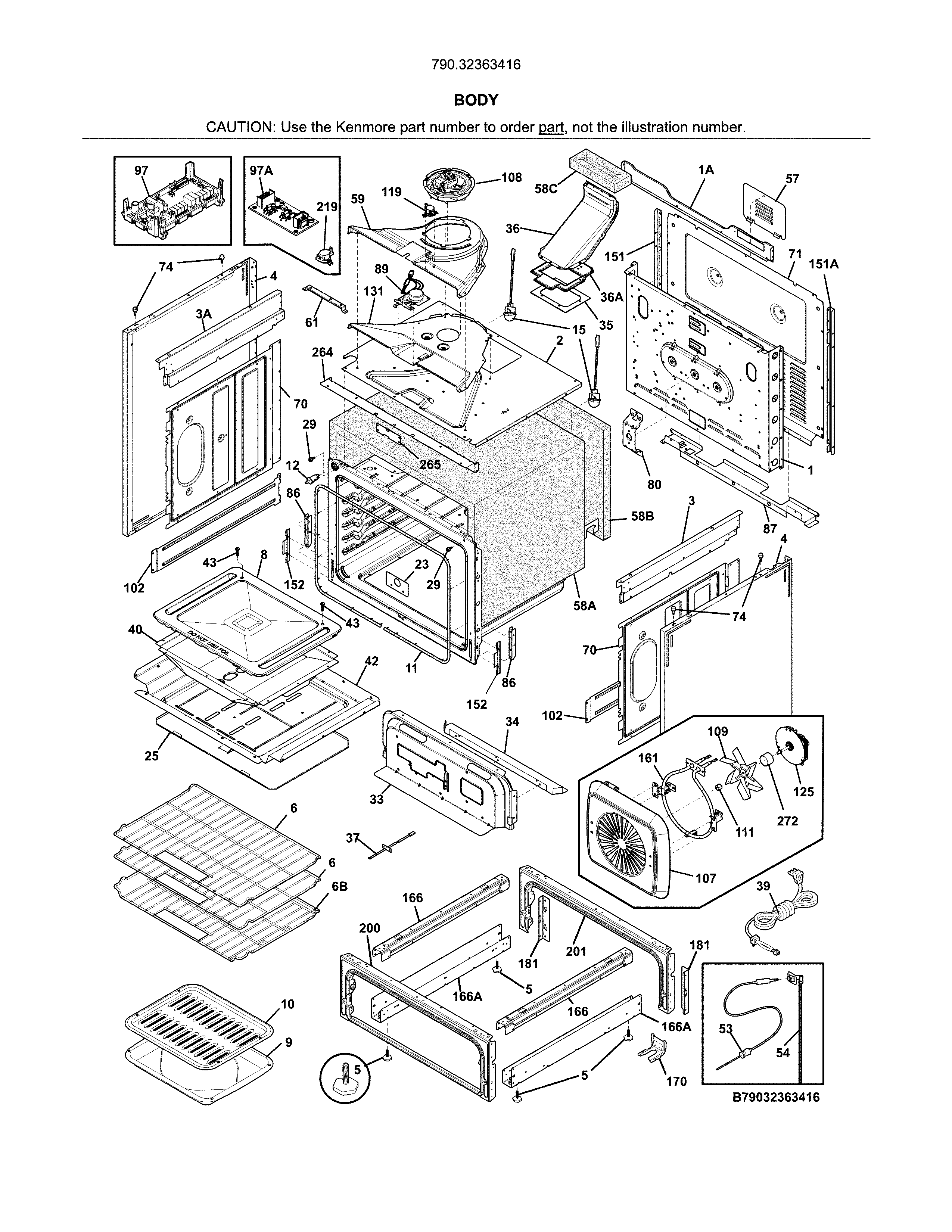

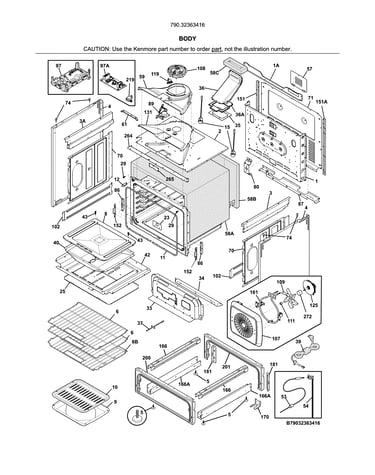

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 211 parts  |
Range Screw 5304472956
#4

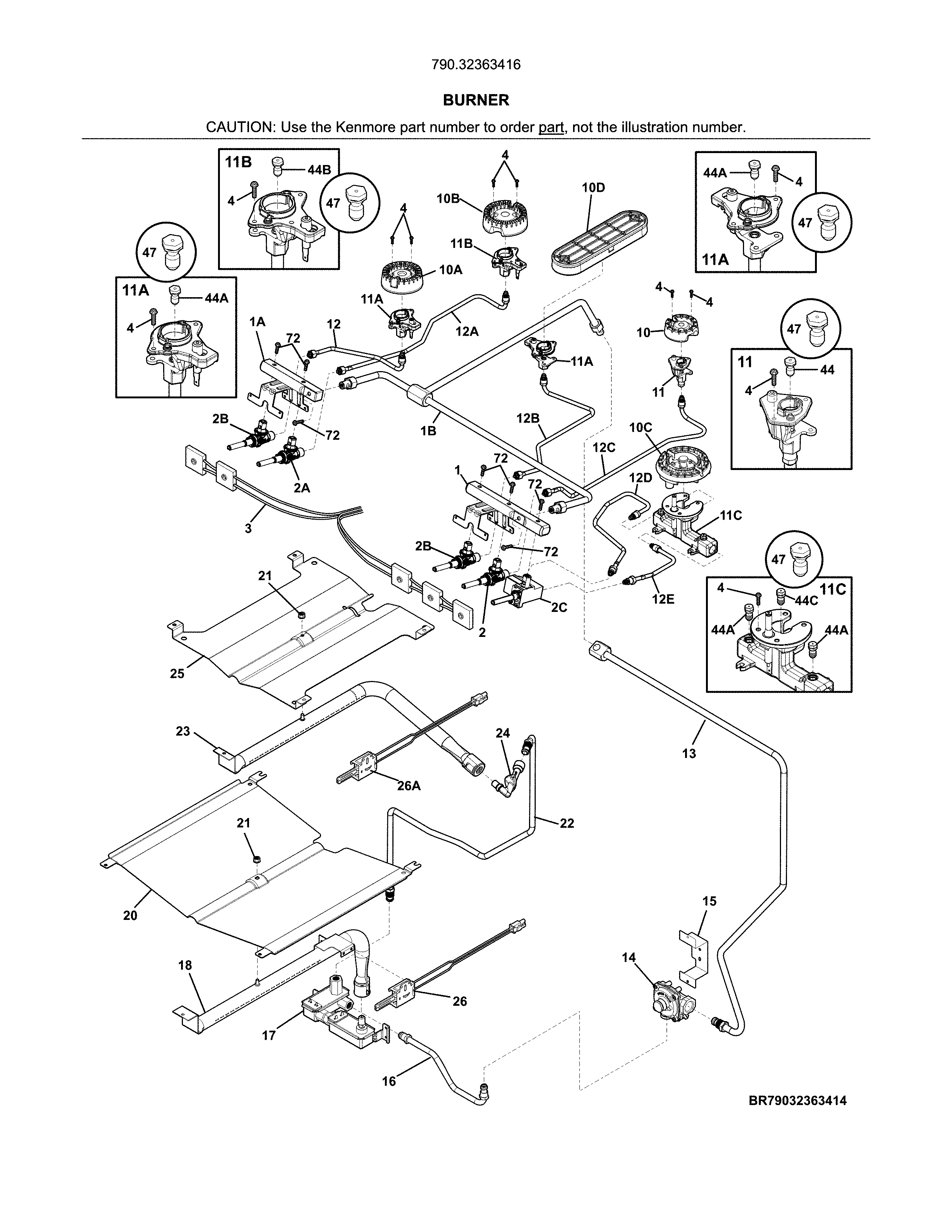

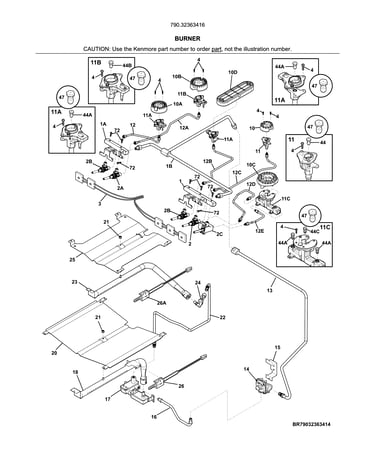

Burner diagram

Range screw

Part #5304472956

Replaced by #316240600

?
Manufacturer substitution
This part replaces 5304472956. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Indicator Light Lens (replaces 316437800) 316557300
#46

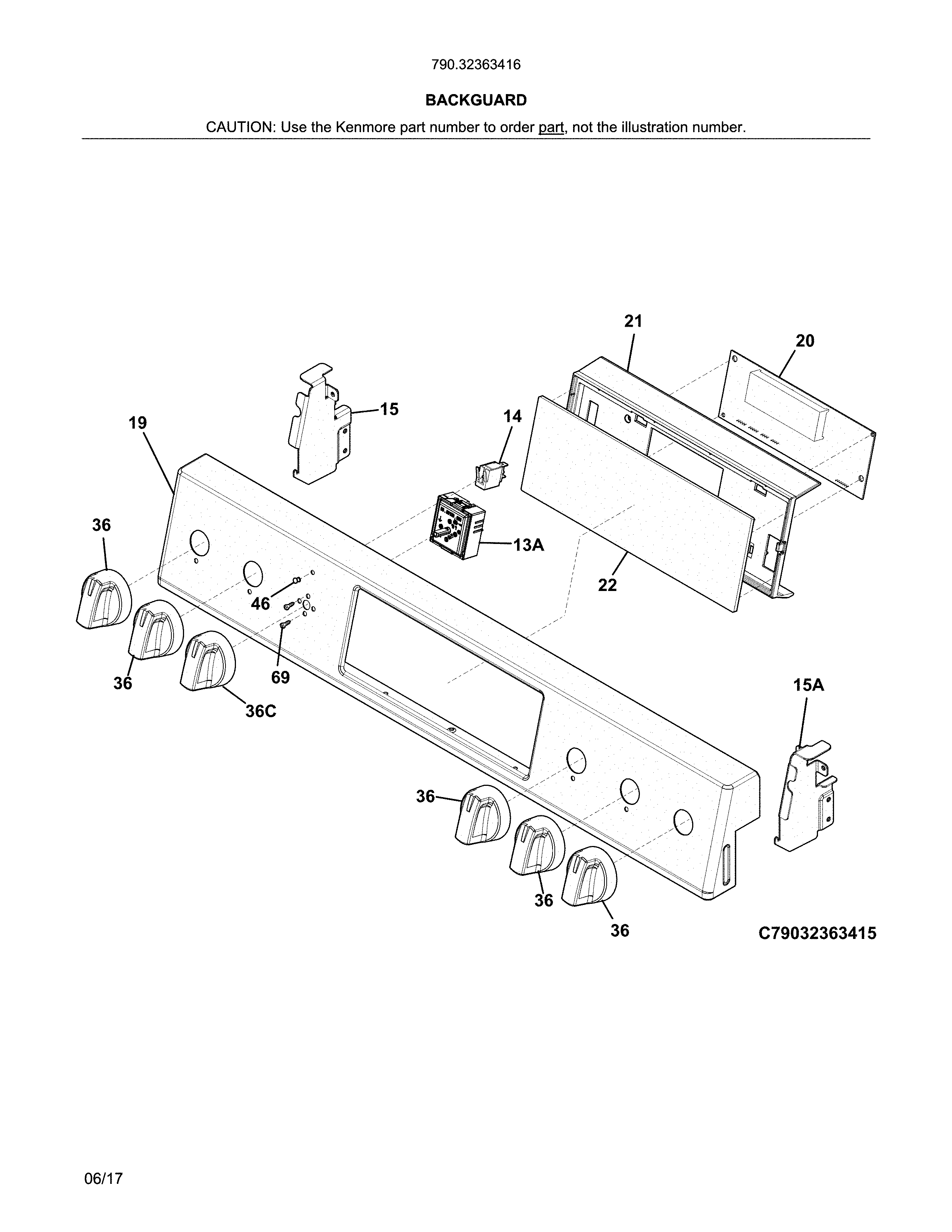

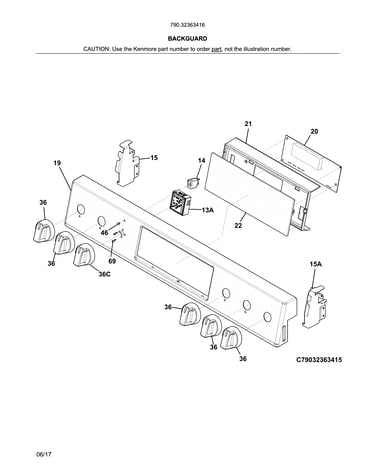

Backguard diagram

Range indicator light lens (replaces 316437800)

Part #316557300

BEST SELLER
$12.86 |
13% OFF Phone Price : $14.86
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22B

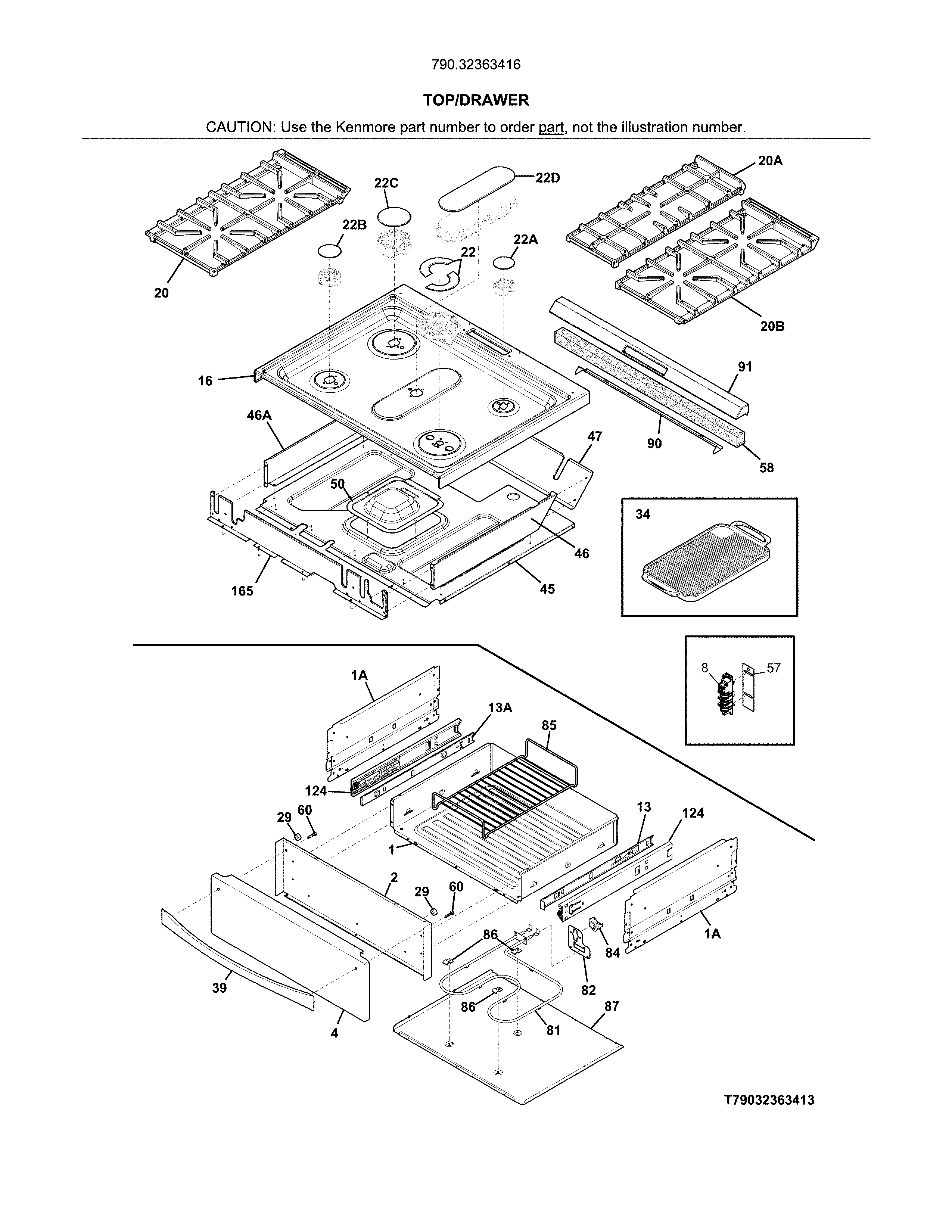

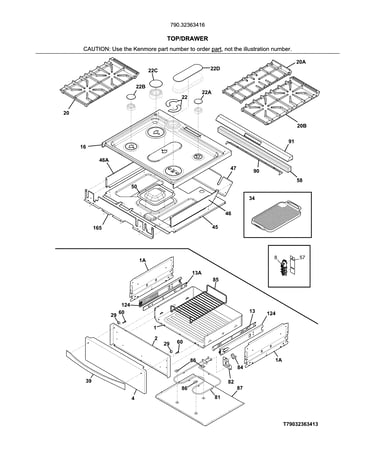

Top/drawer diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$26.31 |
19% OFF Phone Price : $32.31
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10A

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$38.70 |
13% OFF Phone Price : $44.70
In Stock
Range Spark Module (replaces 318079001) 808608804
#8

Top/drawer diagram

Range spark module (replaces 318079001)

Part #808608804

BEST SELLER
$58.27 |
9% OFF Phone Price : $64.27
In Stock
Tappan Range Surface Burner Head (replaces 7316438600) 316438600
#10B

Burner diagram

Tappan range surface burner head (replaces 7316438600)

Part #316438600

BEST SELLER
$66.51 |
8% OFF Phone Price : $72.51
In Stock
Tappan Range Surface Burner Head (replaces 7316438200) 316438200
#10

Burner diagram

Tappan range surface burner head (replaces 7316438200)

Part #316438200

BEST SELLER
$48.17 |
11% OFF Phone Price : $54.17
In Stock
Range Bake Igniter 139013700
#26

Burner diagram

Range bake igniter

Part #139013700

BEST SELLER
$100.80 |
11% OFF Phone Price : $112.80
In Stock
Range Surface Burner Cap 316262004
#22C

Top/drawer diagram

Range surface burner cap

Part #316262004

Replaced by #5304508443

?
Manufacturer substitution
This part replaces 316262004. Substitute parts can look different from the original.
BEST SELLER
$33.31 |
15% OFF Phone Price : $39.31
In Stock
