Model # FPCE21TFL1 Official Frigidaire top-mount refrigerator - lf30589140
Here are the diagrams and repair parts for Official Frigidaire FPCE21TFL1 top-mount refrigerator - lf30589140, as well as links to manuals and error code tables, if available.
By Schematic
By Part

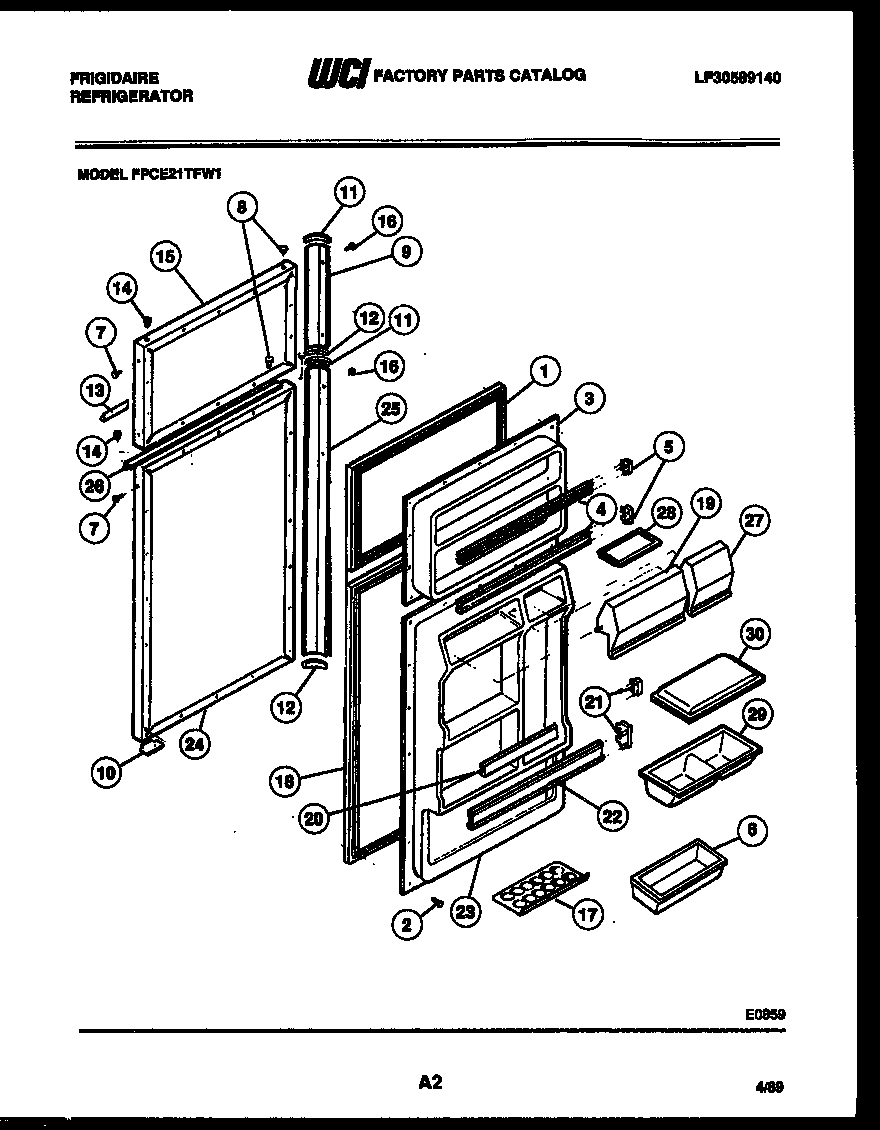

SELECT DIAGRAM
Browse Parts for
FPCE21TFL1 Refrigerators
#1

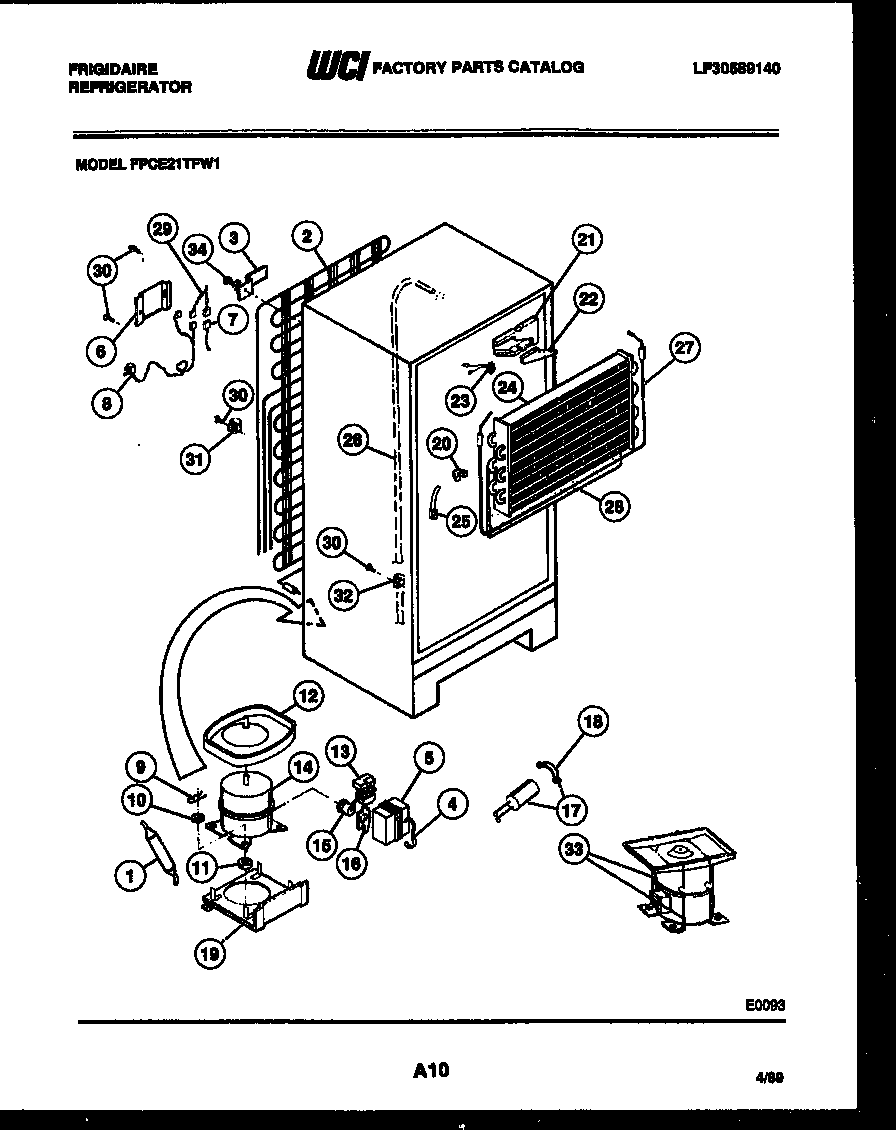

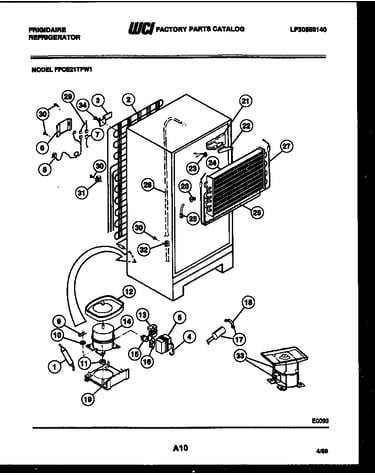

System and automatic defrost parts diagram
Drier
Part #3007351
Replaced by #5303305677
?
Manufacturer substitution
This part replaces 3007351. Substitute parts can look different from the original.
$12.96 |
13% OFF Phone Price : $14.96
In Stock
#16

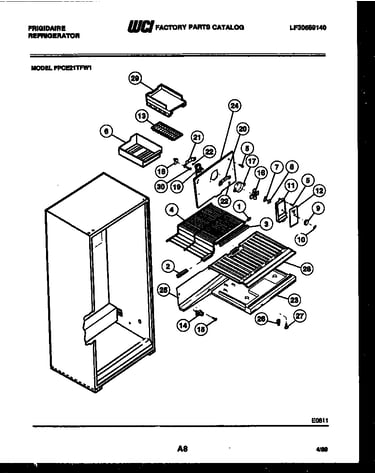

Shelves and supports diagram
Refrigerator blade
Part #08000010
Replaced by #5308000010
?
Manufacturer substitution
This part replaces 08000010. Substitute parts can look different from the original.
$41.08 |
13% OFF Phone Price : $47.08
In Stock
#25
System and automatic defrost parts diagram
Refrigerator strap
Part #08000110
Replaced by #5308000110
?
Manufacturer substitution
This part replaces 08000110. Substitute parts can look different from the original.
$52.30 |
10% OFF Phone Price : $58.30
In Stock
#19
Shelves and supports diagram
Evaporator motor
Part #08000036
Replaced by #5300158289
?
Manufacturer substitution
This part replaces 08000036. Substitute parts can look different from the original.
$88.69 |
6% OFF Phone Price : $94.69
In Stock
#35
Shelves and supports diagram
Refrigerator receptacle
Part #08000815
Replaced by #218906802
?
Manufacturer substitution
This part replaces 08000815. Substitute parts can look different from the original.
This item is not returnable
$18.49 |
10% OFF Phone Price : $20.49
In Stock
#5

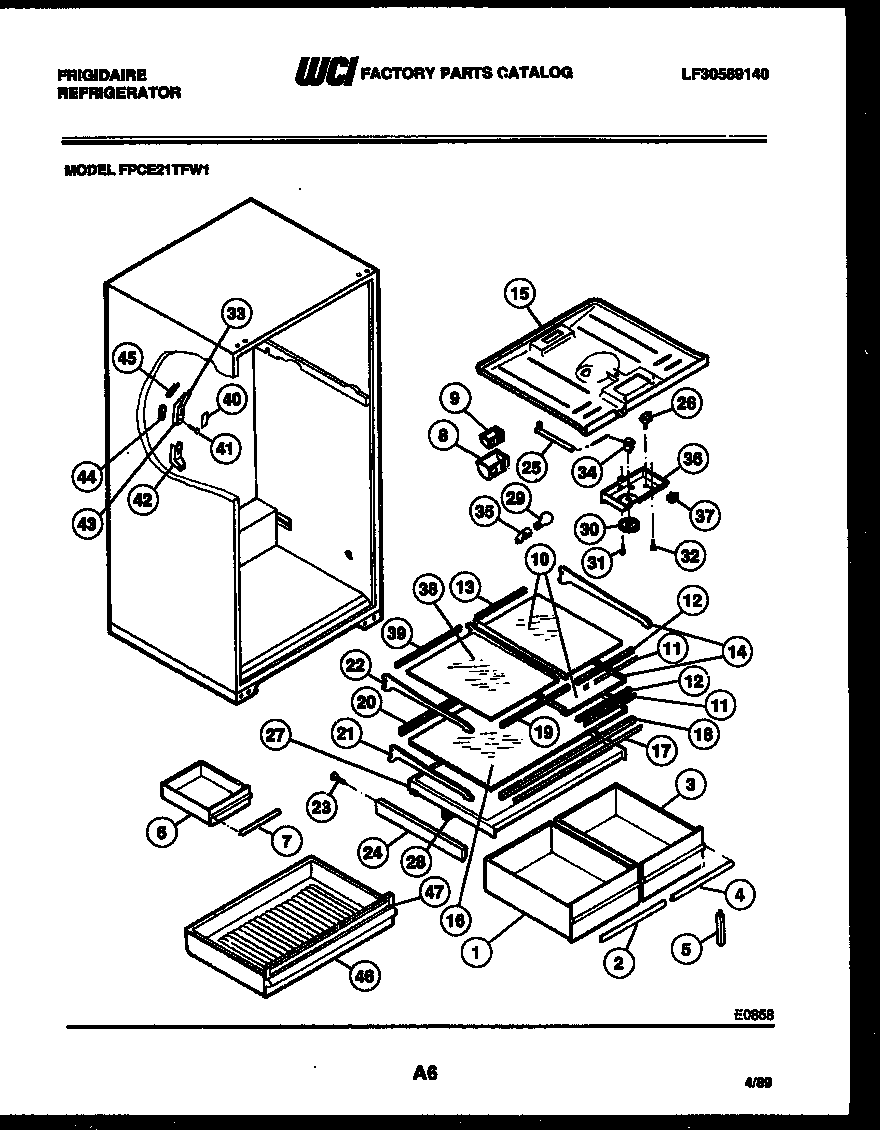

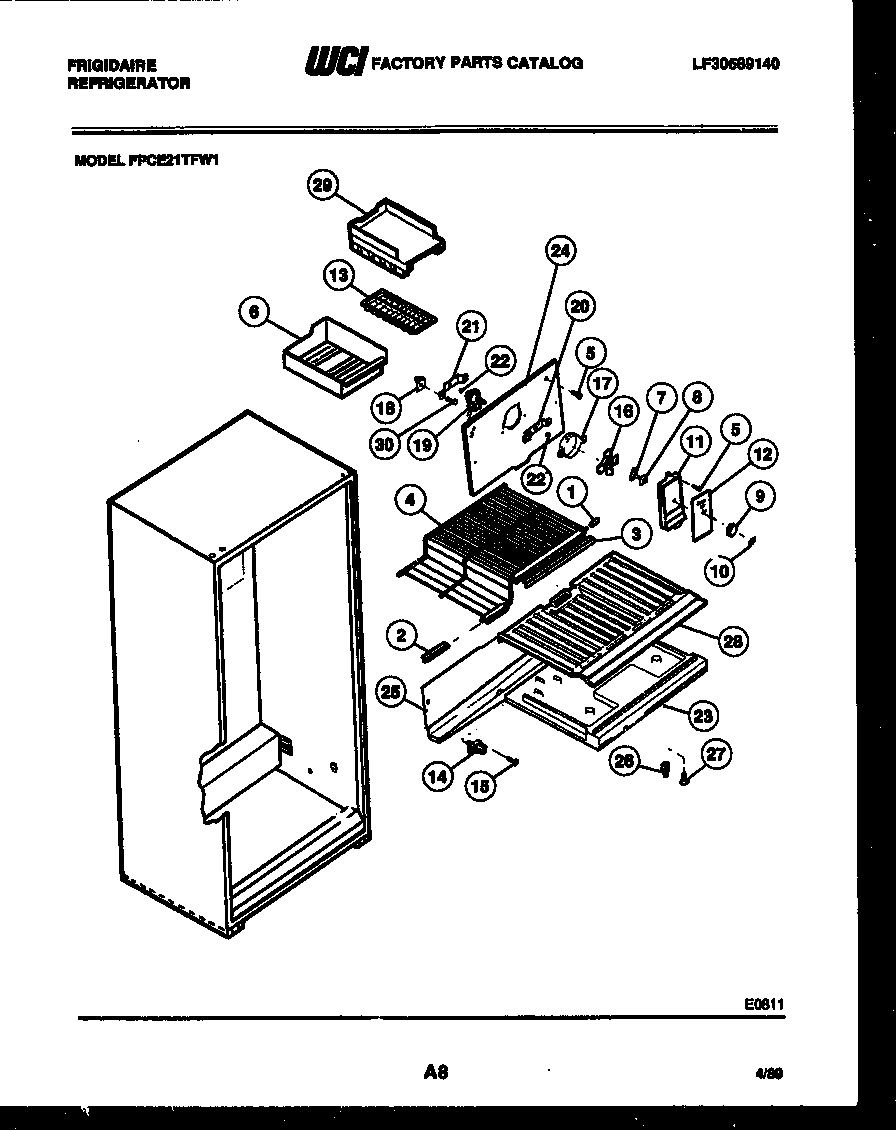

Shelves and supports diagram
Refrigerator screw
Part #08012354
Replaced by #5304455650
?
Manufacturer substitution
This part replaces 08012354. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
#17A

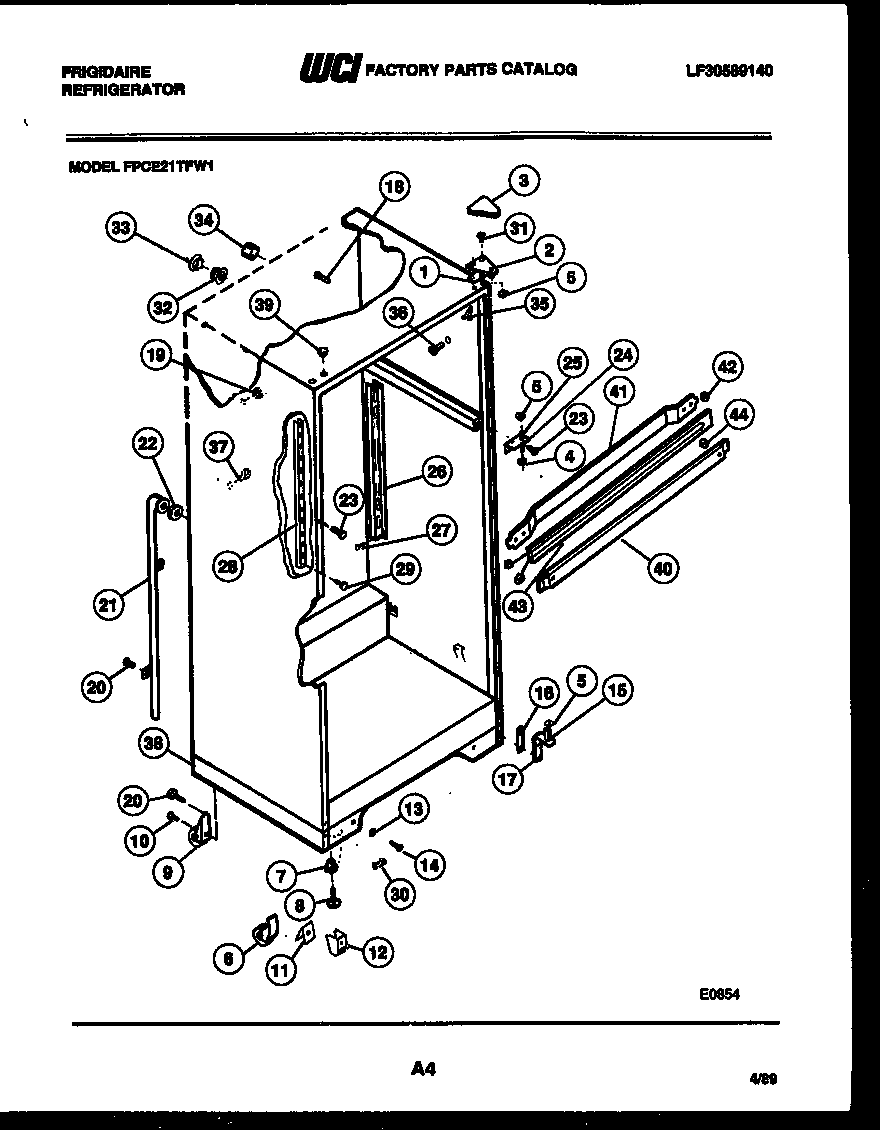

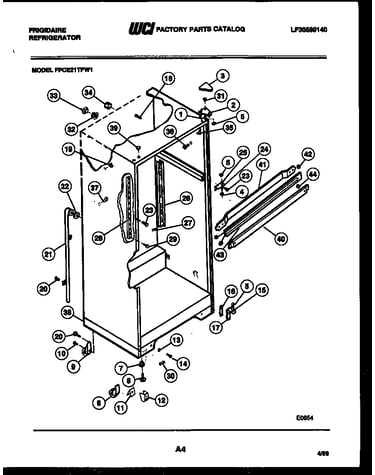

Cabinet parts diagram
Refrigerator hinge screw
Part #08010252
Replaced by #241710601
?
Manufacturer substitution
This part replaces 08010252. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
#31
Cabinet parts diagram
Screw-upr hi
Part #08000123
Replaced by #241710601
?
Manufacturer substitution
This part replaces 08000123. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
#26
Shelves and supports diagram
Refrigerator switch
Part #08000069
Replaced by #5309918806
?
Manufacturer substitution
This part replaces 08000069. Substitute parts can look different from the original.
This item is not returnable
$22.76 |
21% OFF Phone Price : $28.76
In Stock
#11
System and automatic defrost parts diagram
Grommet
Part #08008778
Replaced by #218513300
?
Manufacturer substitution
This part replaces 08008778. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
