Ryobi
Planer

Model # L-150 Official Ryobi hand planer

Here are the diagrams and repair parts for Official Ryobi L-150 hand planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Guide 6070803
#504

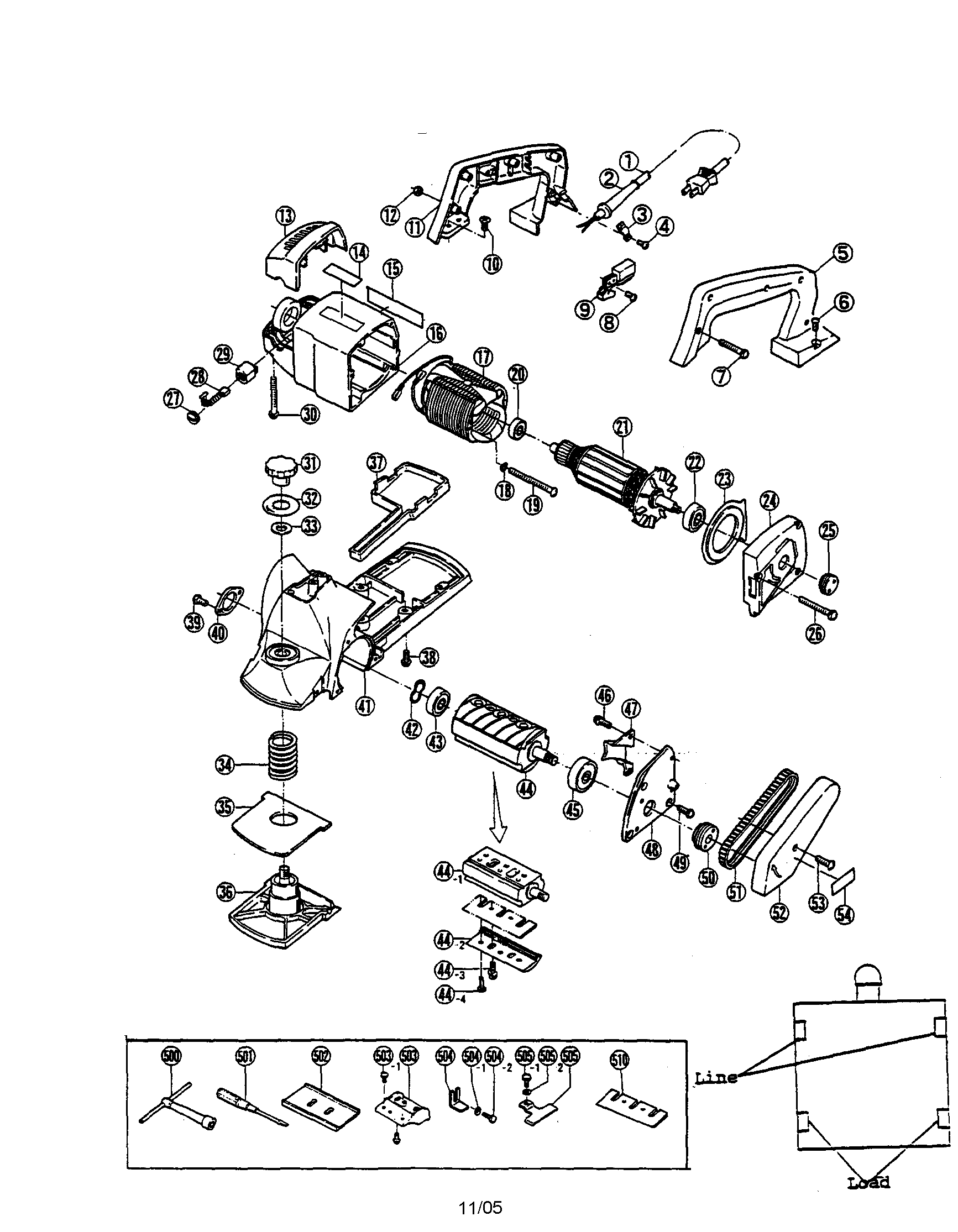

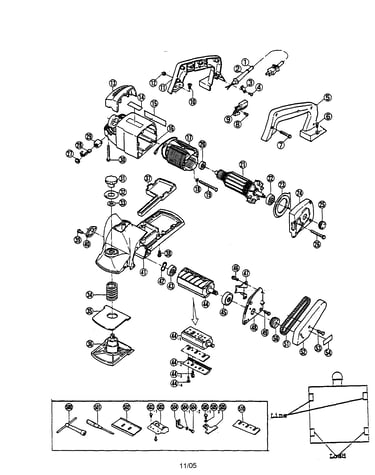

Hand planer diagram

Guide

Part #6070803

The manufacturer no longer makes this part, and there's no substitute part

Bolt 6131157
#44-4

Hand planer diagram

Bolt

Part #6131157

The manufacturer no longer makes this part, and there's no substitute part

Gauge 6071853
#502

Hand planer diagram

Gauge

Part #6071853

The manufacturer no longer makes this part, and there's no substitute part

Dust Sponge 6930019
#35

Hand planer diagram

Dust sponge

Part #6930019

The manufacturer no longer makes this part, and there's no substitute part

Screw 9040414
#6

Hand planer diagram

Screw

Part #9040414

The manufacturer no longer makes this part, and there's no substitute part

Holder 6570026
#29

Hand planer diagram

Holder

Part #6570026

The manufacturer no longer makes this part, and there's no substitute part

Brush Cap 6570070
#27

Hand planer diagram

Brush cap

Part #6570070

The manufacturer no longer makes this part, and there's no substitute part

Main Shoe 6800471
#41

Hand planer diagram

Main shoe

Part #6800471

The manufacturer no longer makes this part, and there's no substitute part

Pulley 6860030
#50

Hand planer diagram

Pulley

Part #6860030

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 9840627
#20

Hand planer diagram

Ball bearing

Part #9840627

The manufacturer no longer makes this part, and there's no substitute part
