Model # TM14K-P7705206W Official Amana energy saving refrigerator
Here are the diagrams and repair parts for Official Amana TM14K-P7705206W energy saving refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

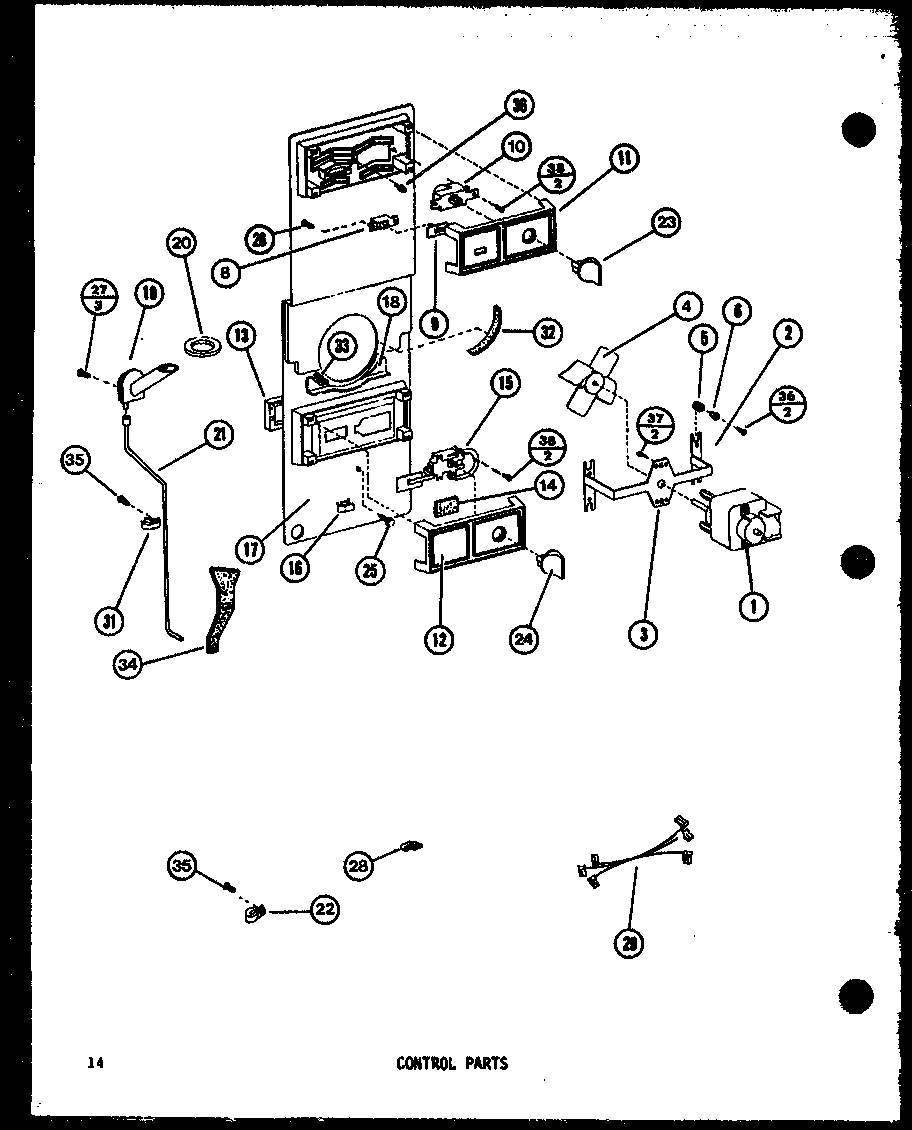

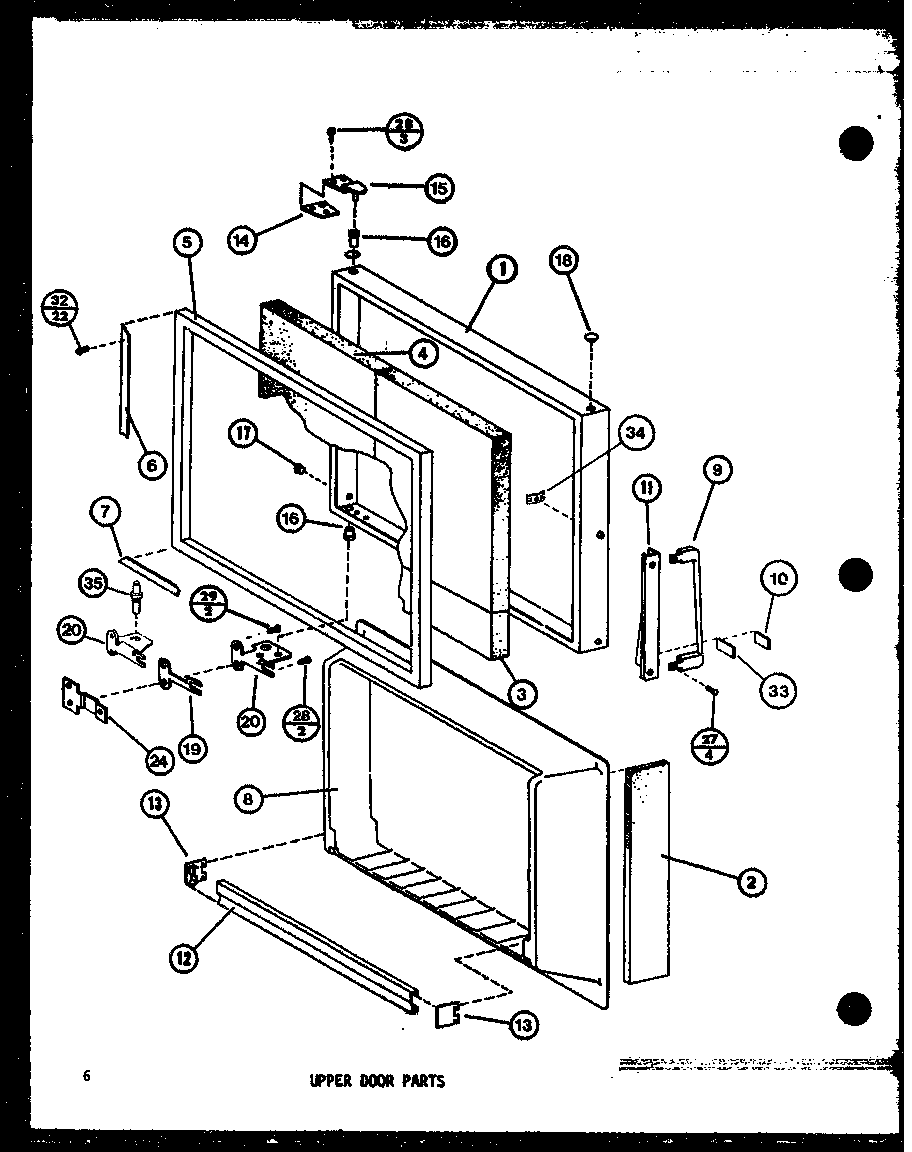

Browse Parts forTM14K-P7705206W Refrigerators
- #14

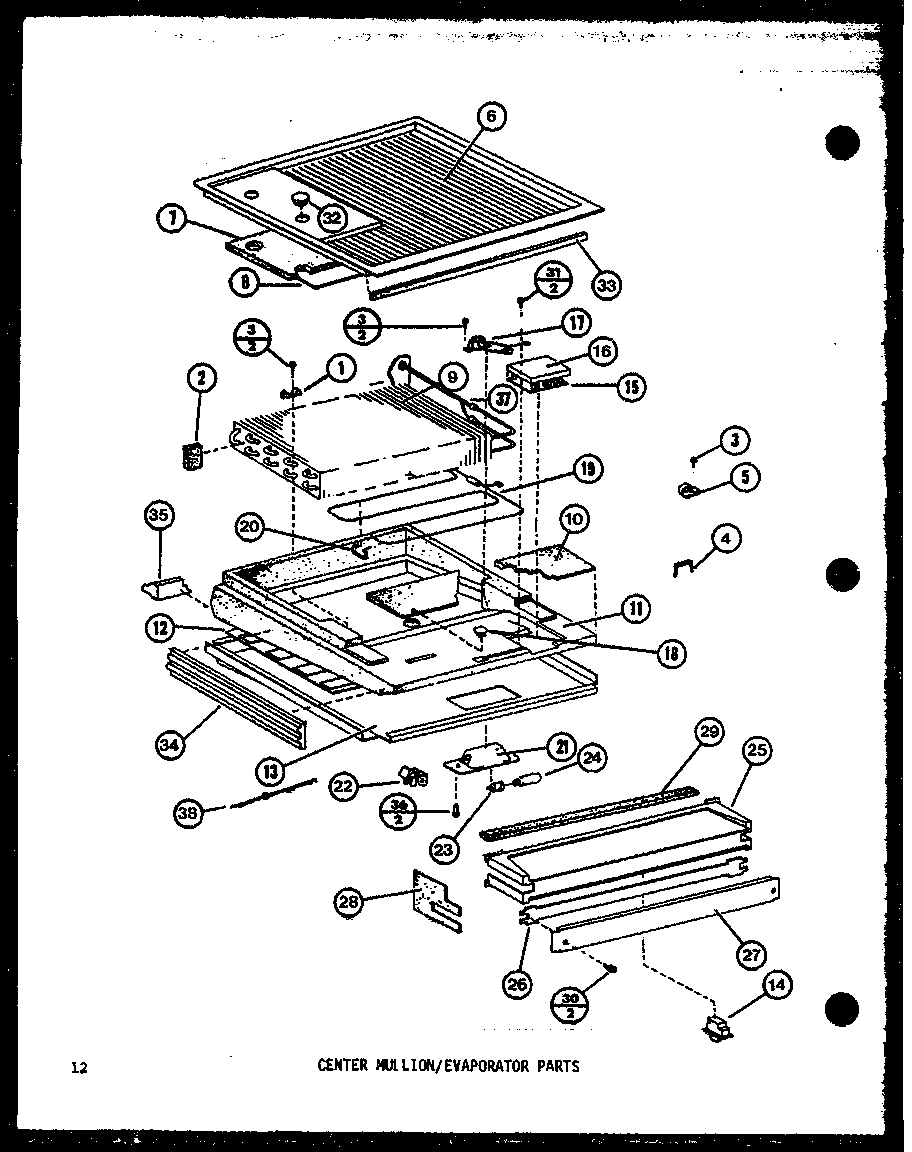

Center mullion/evaporator parts (tm14k/p7705206w) (tm14kg/p7705206wg) (tm14kl/p7705206wl) (tm14k1g/p7705207wg) (tm14k1l/p7705207wl) (tm14k1/p7705207w) diagram
SwitchPart #C3680304
Replaced by #W11384469
?Manufacturer substitutionThis part replaces C3680304. Substitute parts can look different from the original.$19.89 |9% OFF Phone Price : $21.89In Stock - #42

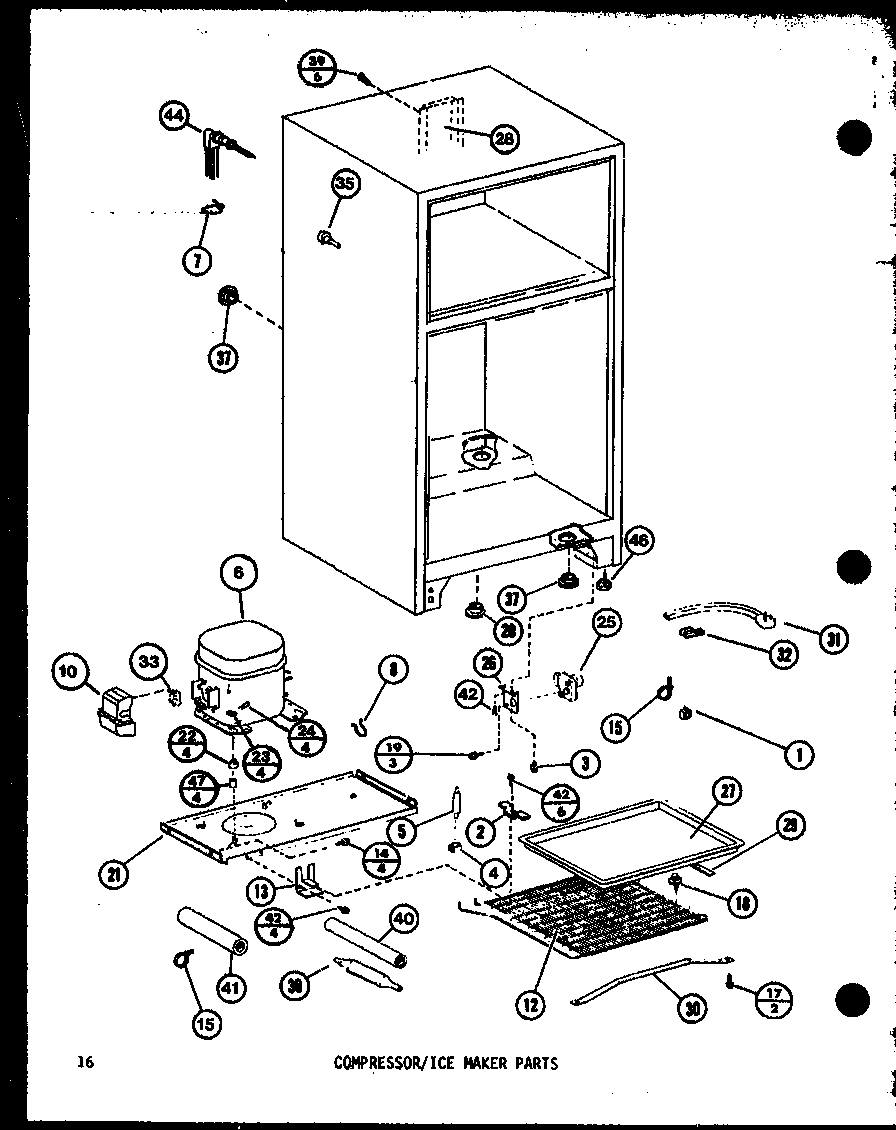

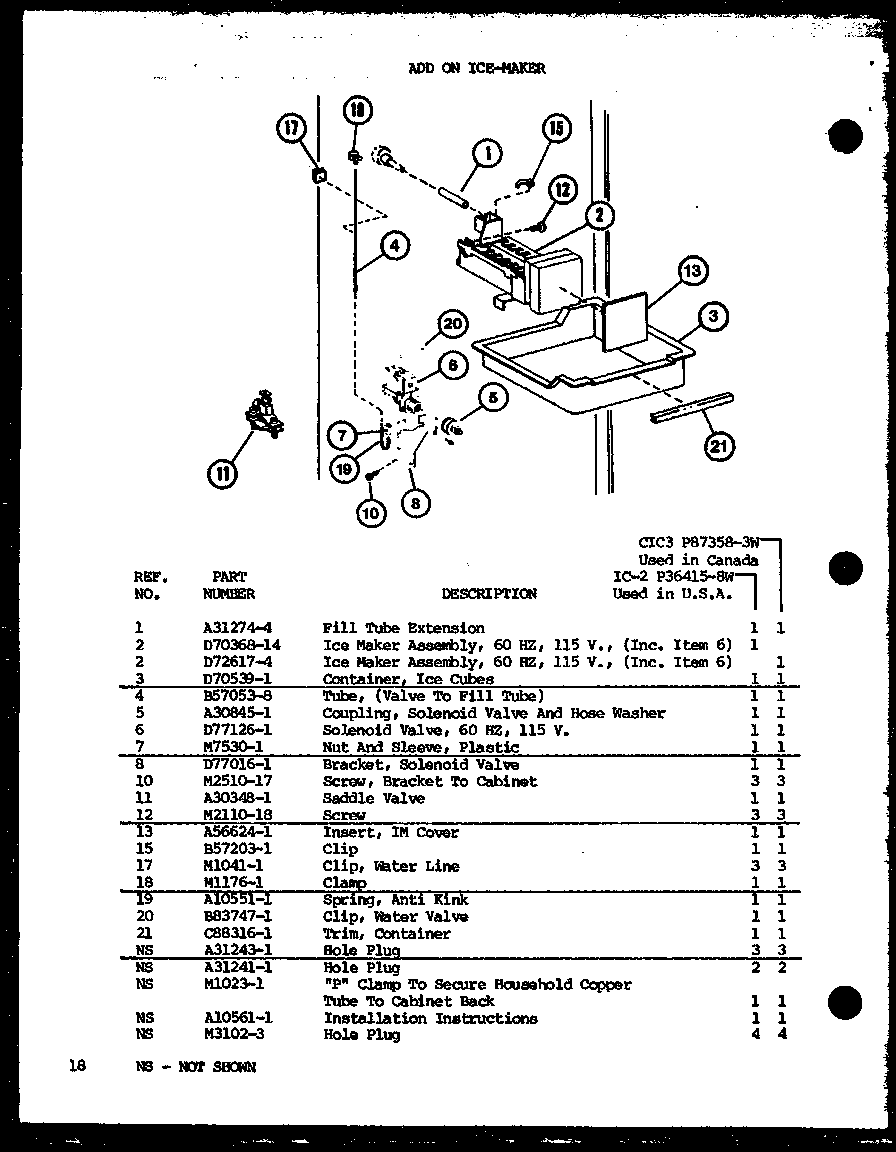

Compressor/ice maker parts (tm14k/p7705206w) (tm14kg/p7705206wg) (tm14kl/p7705206wl) (tm14k1g/p7705207wg) (tm14k1l/p7705207wl) (tm14k1/p7705207w) diagram
ScrewPart #M0211016
Replaced by #WP90767
?Manufacturer substitutionThis part replaces M0211016. Substitute parts can look different from the original.This item is not returnable$4.15 |19% OFF Phone Price : $5.15In Stock - Refrigerator screw
Part #M0222416
Replaced by #WPW10348409
?Manufacturer substitutionThis part replaces M0222416. Substitute parts can look different from the original.This item is not returnable$4.15 |19% OFF Phone Price : $5.15In Stock - #24
Center mullion/evaporator parts (tm14k/p7705206w) (tm14kg/p7705206wg) (tm14kl/p7705206wl) (tm14k1g/p7705207wg) (tm14k1l/p7705207wl) (tm14k1/p7705207w) diagram
Refrigerator lamp, 40-watt, 115 to 125-voltPart #A0282803
The manufacturer no longer makes this part, and there's no substitute part
- #16

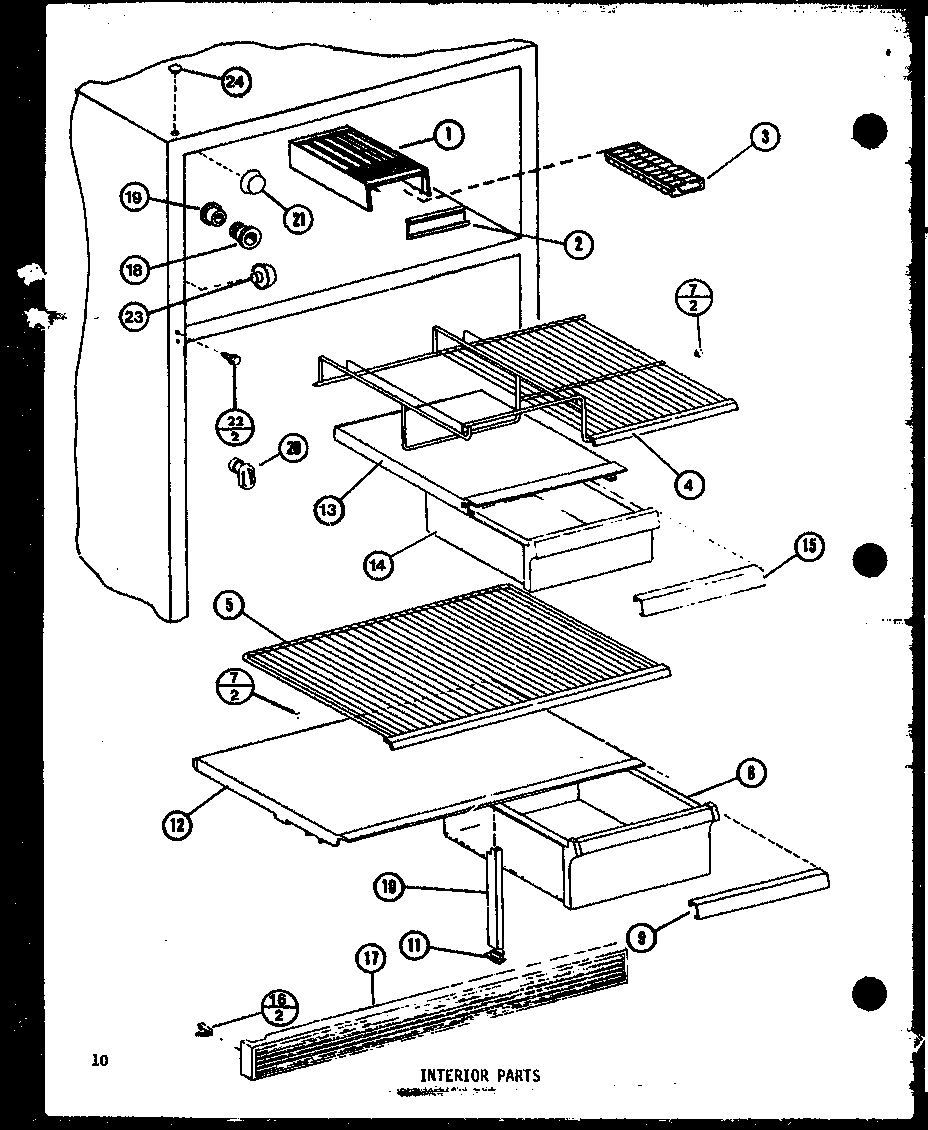

Interior parts (tm14k/p7705206w) (tm14kg/p7705206wg) (tm14kl/p7705206wl) (tm14k1g/p7705207wg) (tm14k1l/p7705207wl) (tm14k1/p7705207w) diagram
ClipPart #M0117301
Replaced by #WPM0117303
?Manufacturer substitutionThis part replaces M0117301. Substitute parts can look different from the original.This item is not returnable$6.60 |13% OFF Phone Price : $7.60In Stock - Machine screw
Part #M0257244
Replaced by #R9800670
?Manufacturer substitutionThis part replaces M0257244. Substitute parts can look different from the original.This item is not returnable$4.97 |17% OFF Phone Price : $5.97In Stock - Screw
Part #M0211217
Replaced by #WP489464
?Manufacturer substitutionThis part replaces M0211217. Substitute parts can look different from the original.This item is not returnable$6.60 |13% OFF Phone Price : $7.60In Stock - #20
Compressor/ice maker parts (tm14k/p7705206w) (tm14kg/p7705206wg) (tm14kl/p7705206wl) (tm14k1g/p7705207wg) (tm14k1l/p7705207wl) (tm14k1/p7705207w) diagram
Imperial refrigerator insulation fill hole plugPart #A3076901
This item is not returnable$5.79 |15% OFF Phone Price : $6.79In Stock - #36
Center mullion/evaporator parts (tm14k/p7705206w) (tm14kg/p7705206wg) (tm14kl/p7705206wl) (tm14k1g/p7705207wg) (tm14k1l/p7705207wl) (tm14k1/p7705207w) diagram
ScrewPart #M0230917
Replaced by #67006425
?Manufacturer substitutionThis part replaces M0230917. Substitute parts can look different from the original.This item is not returnable$4.17 |19% OFF Phone Price : $5.17In Stock - #23

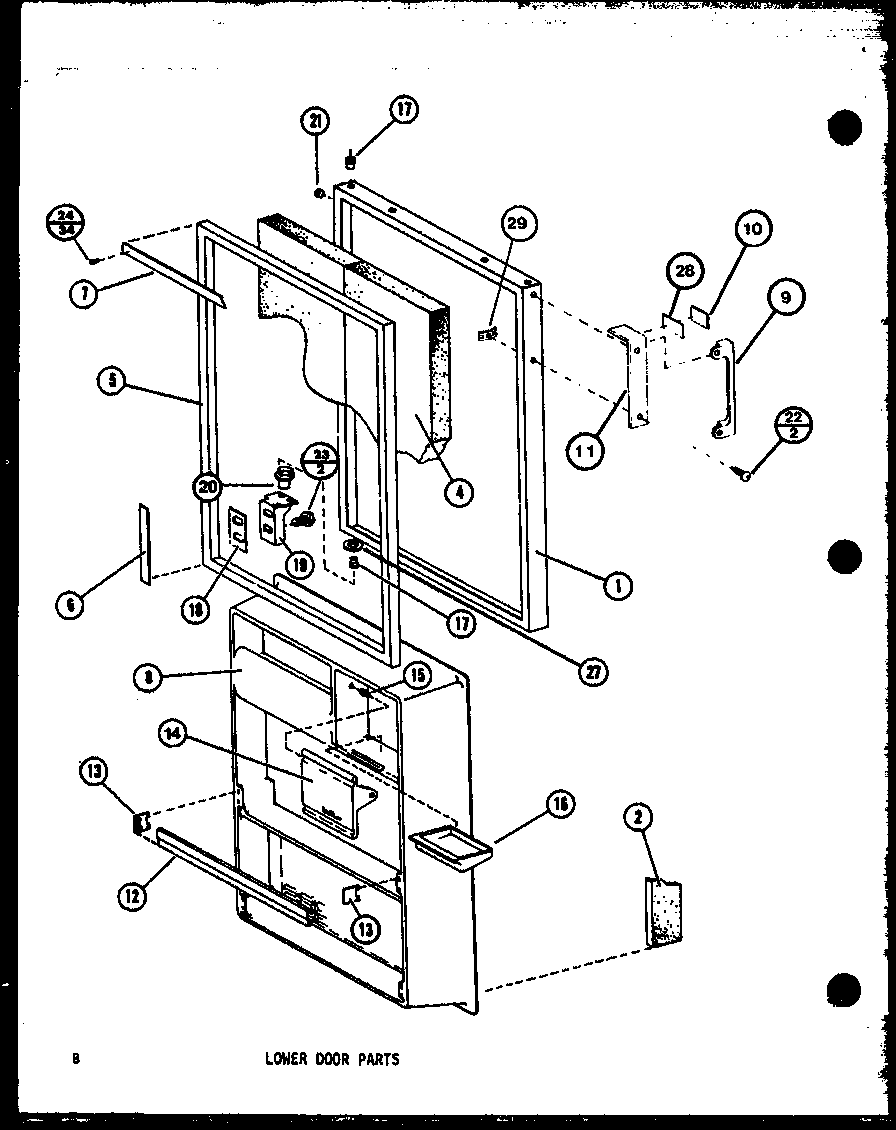

Lower door parts (tm14k/p7705206w) (tm14kg/p7705206wg) (tm14kl/p7705206wl) (tm14k1g/p7705207wg) (tm14k1l/p7705207wl) (tm14k1/p7705207w) diagram
ScrewPart #M0246258
Replaced by #WP67006715
?Manufacturer substitutionThis part replaces M0246258. Substitute parts can look different from the original.This item is not returnable$6.27 |14% OFF Phone Price : $7.27In Stock
