Chipper/Shredder

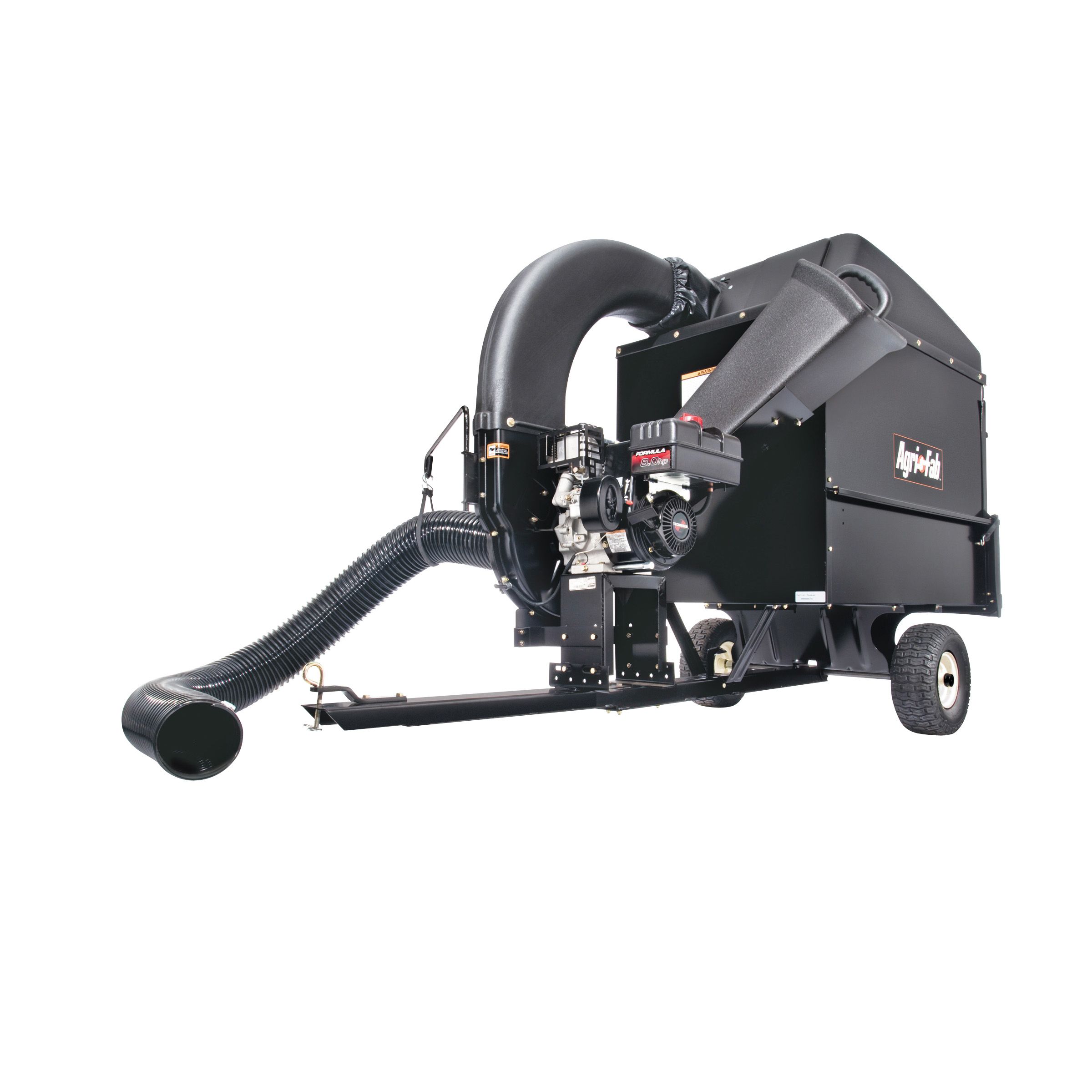

Model # 48624517 Official Craftsman chipper/shredder

Here are the diagrams and repair parts for Official Craftsman 48624517 chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

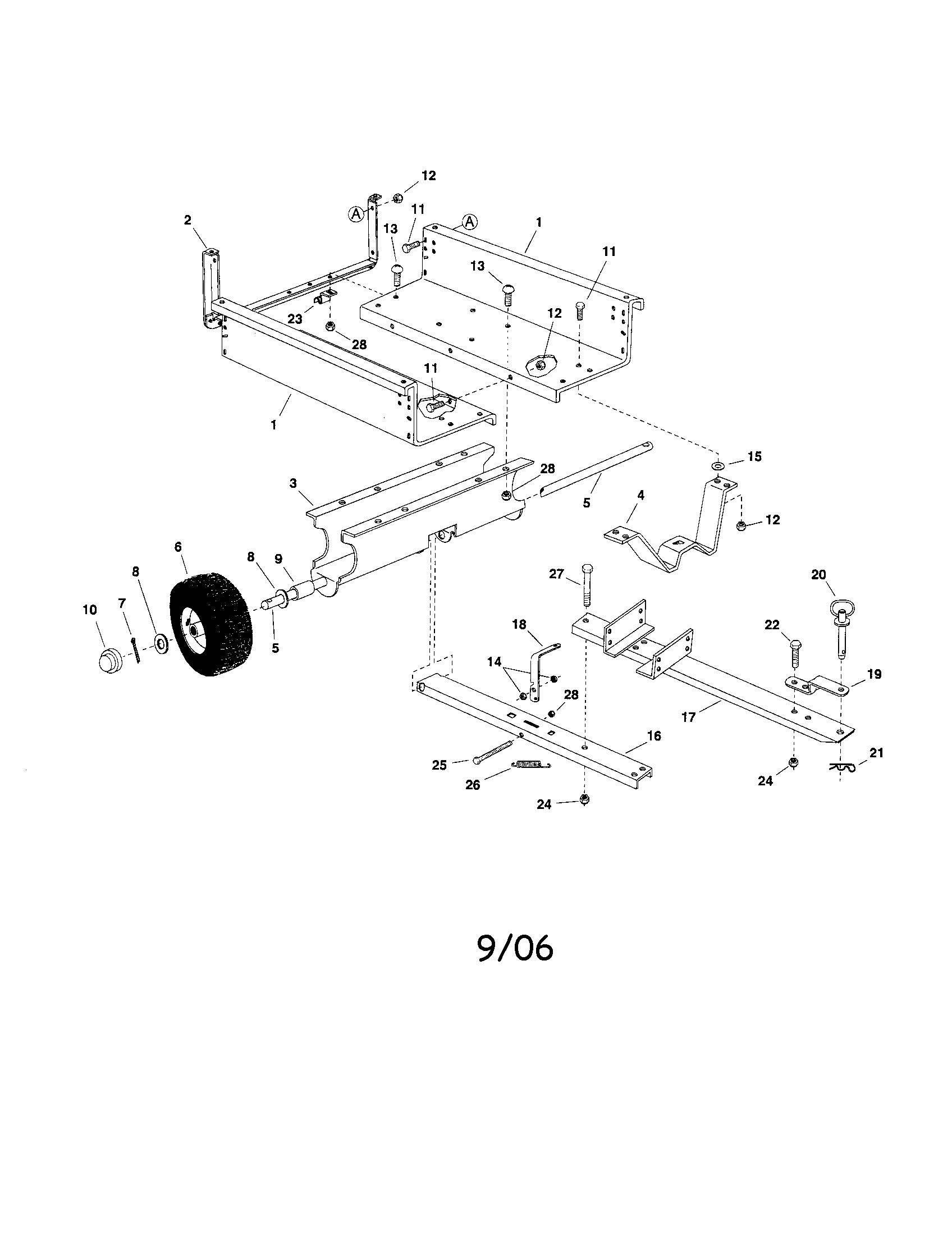

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Lawn Tractor Nut 47810
Lawn tractor nut

Part #47810

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
#44

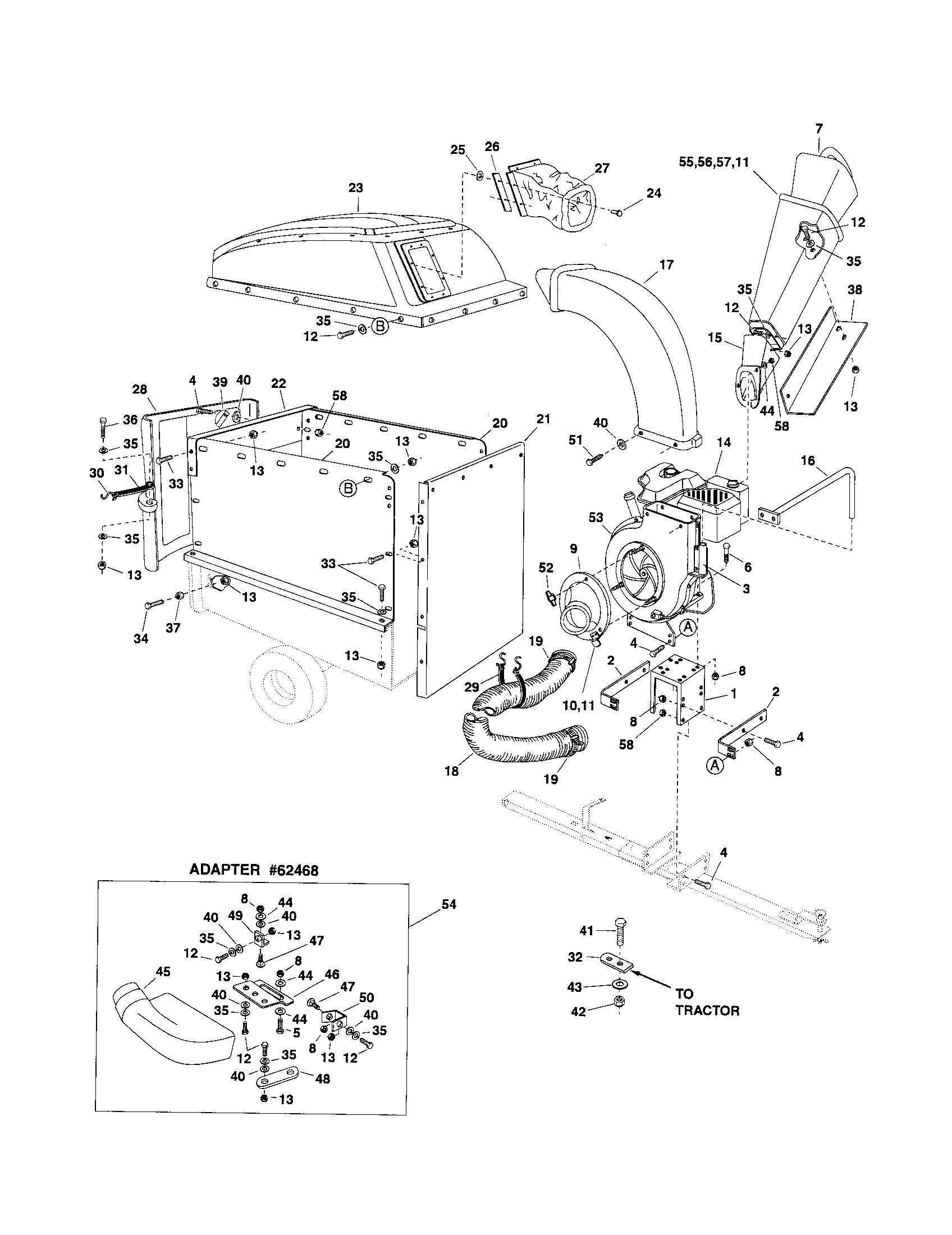

Chip-n-vac diagram

Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Blade 742-0544
#26

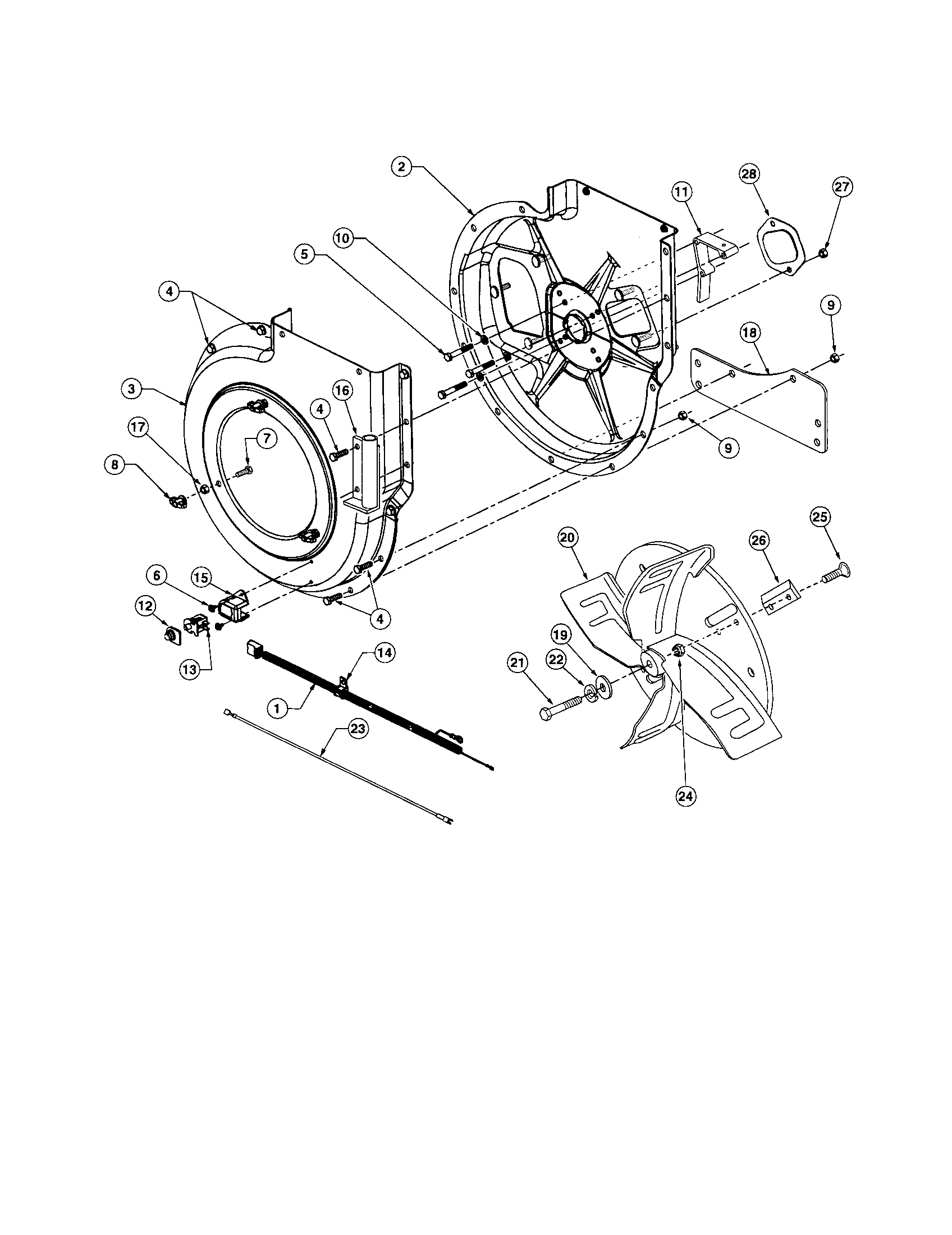

Impeller housing assembly diagram

Blade

Part #742-0544

Replaced by #742-0544B

?
Manufacturer substitution
This part replaces 742-0544. Substitute parts can look different from the original.
$40.88 |
13% OFF Phone Price : $46.88
In Stock
Ass'y, Hose 63375
#9

Chip-n-vac diagram

Ass'y, hose

Part #63375

Replaced by #43791

?
Manufacturer substitution
This part replaces 63375. Substitute parts can look different from the original.
$30.60 |
16% OFF Phone Price : $36.60
In Stock
Agri-fab Chipper/shredder Discharge Boot 48133
#27

Chip-n-vac diagram

Agri-fab chipper/shredder discharge boot

Part #48133

$35.89 |
14% OFF Phone Price : $41.89
In Stock
Lawn & Garden Equipment Lock Washer 43086
#10

Impeller housing assembly diagram

Lawn & garden equipment lock washer

Part #43086

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Carriage Bolt, 5/16-18 X 3/4-in 43080
#47

Chip-n-vac diagram

Lawn & garden equipment carriage bolt, 5/16-18 x 3/4-in

Part #43080

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Nut 47189
Lawn & garden equipment nut

Part #47189

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Screw, 1/4-20 X 3/4-in 43012
#12

Chip-n-vac diagram

Lawn tractor attachment screw, 1/4-20 x 3/4-in

Part #43012

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Vacuum Chipper/shredder Switch Cover 731-1613
#15

Impeller housing assembly diagram

Lawn vacuum chipper/shredder switch cover

Part #731-1613

This item is not returnable
$2.16
In Stock
