Tappan
Gas Range

Model # 36-3061-00-02 Official Tappan gas range - 5995222675

Here are the diagrams and repair parts for Official Tappan 36-3061-00-02 gas range - 5995222675, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

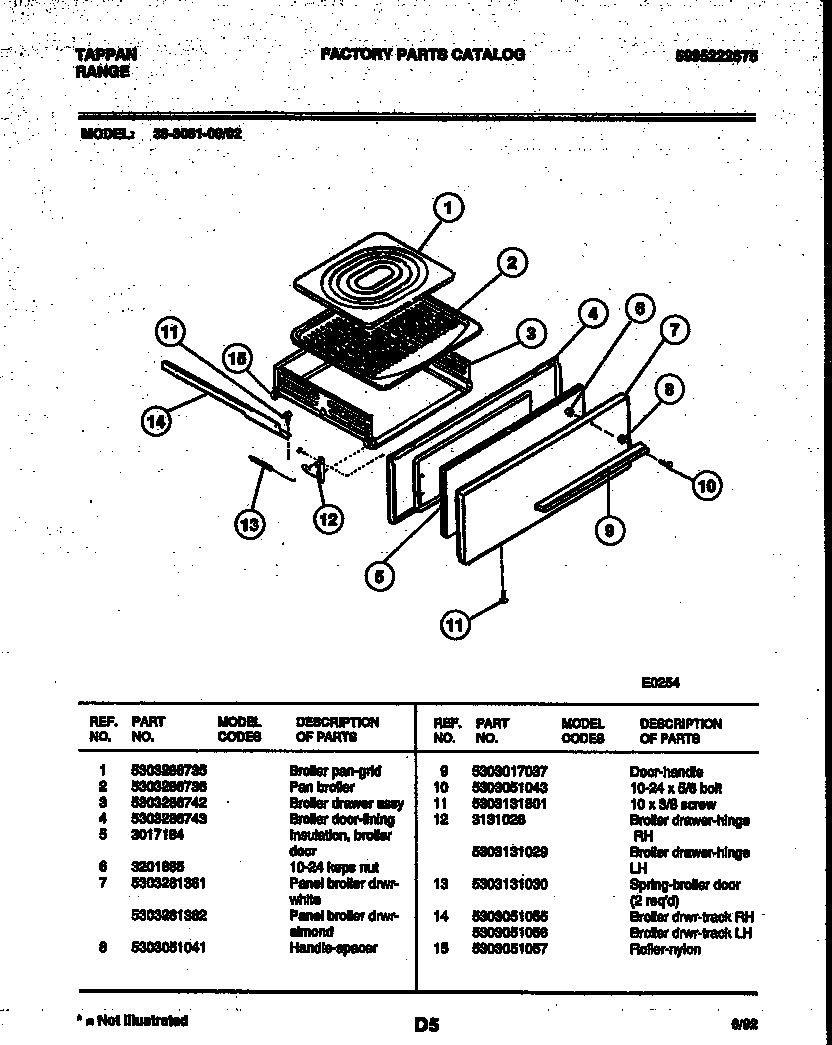

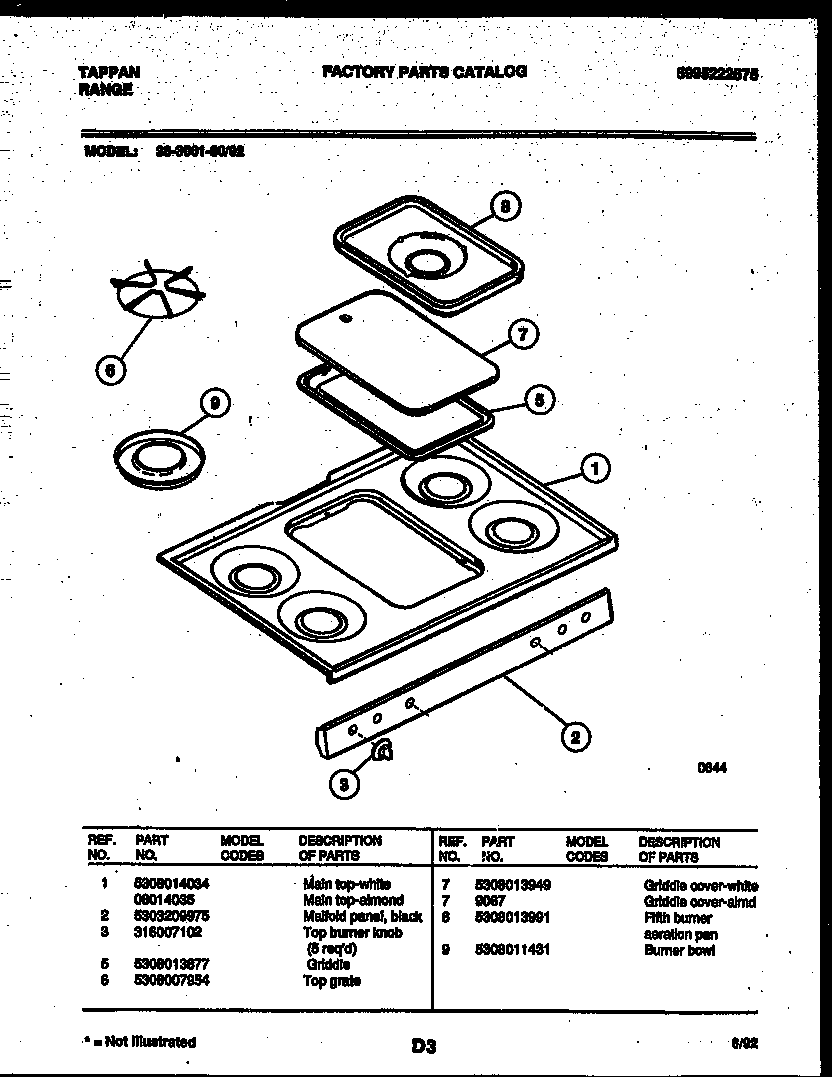

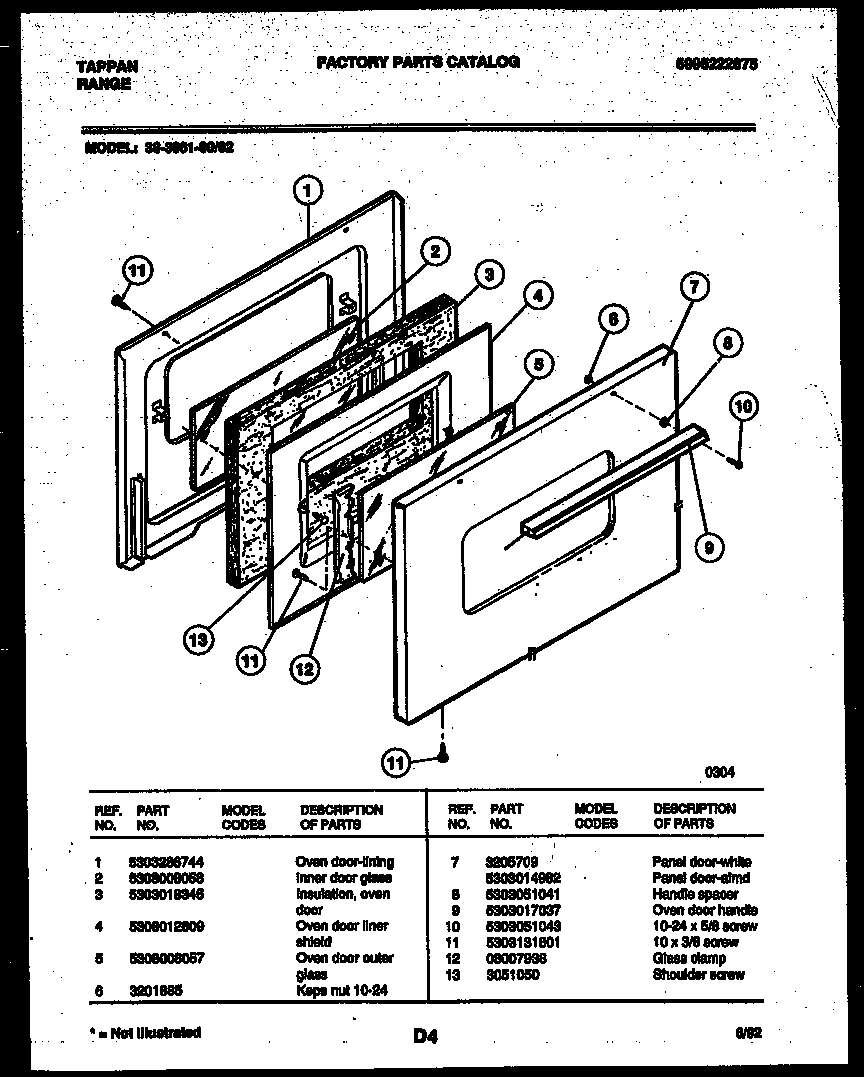

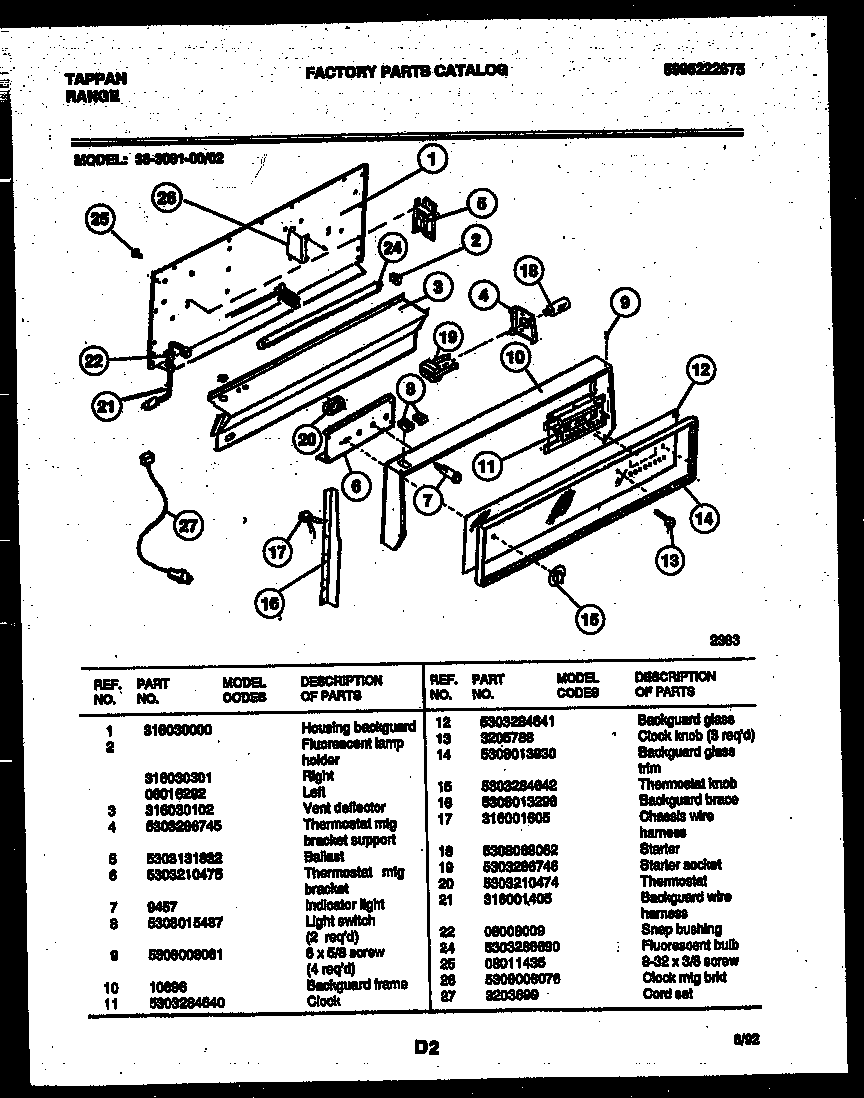

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Igniter 5308009420
#19

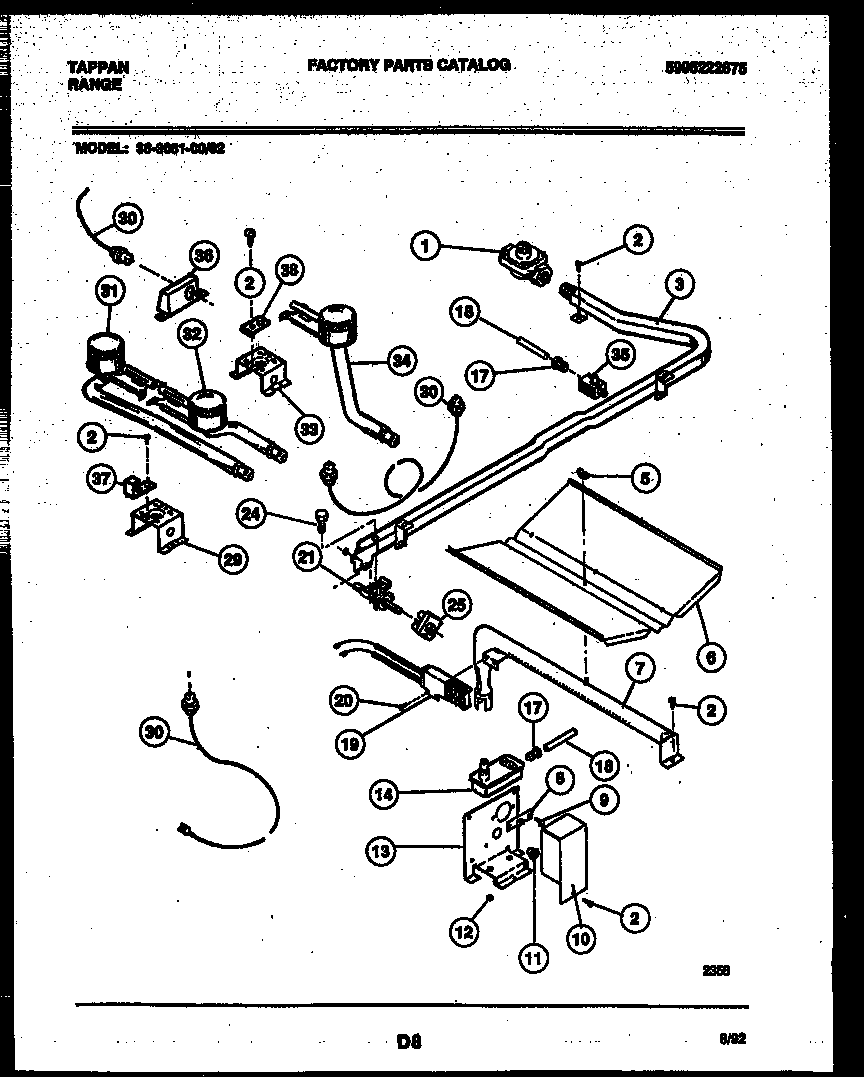

Burner parts diagram

Igniter

Part #5308009420

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5308009420. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Bulb 3201908
#22

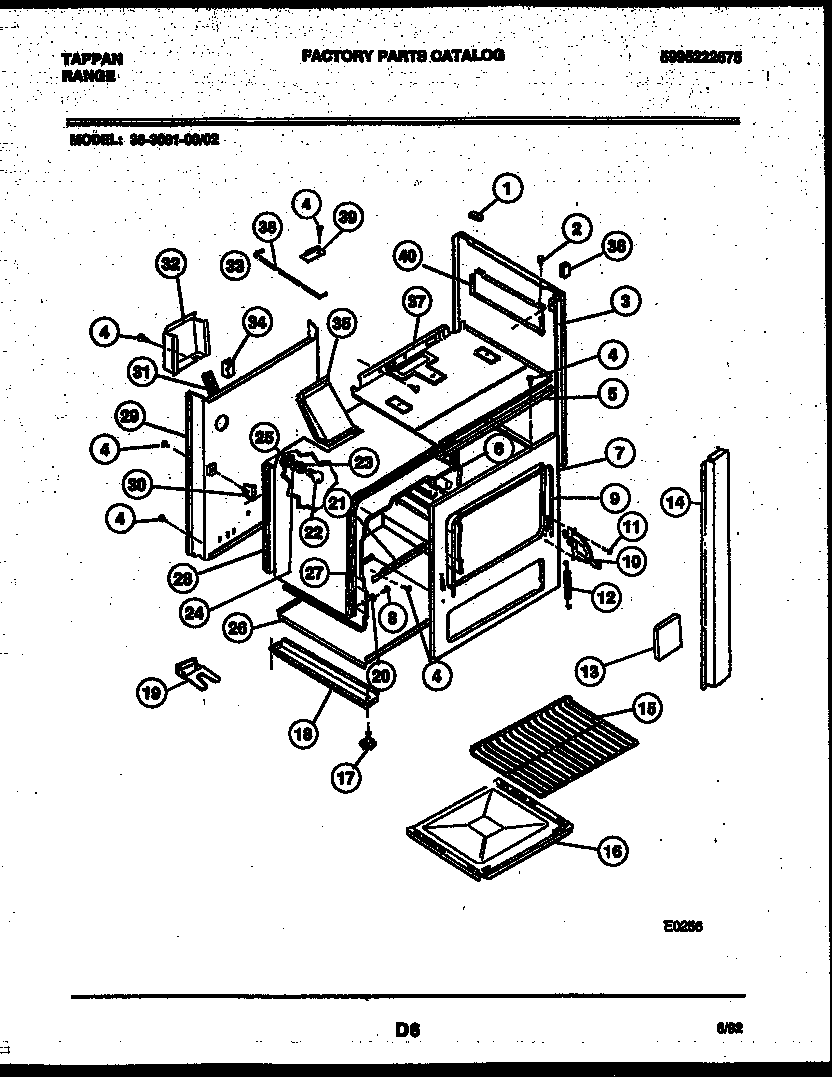

Body parts diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Receptacle 5308011085
#23

Body parts diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Oven Hinge 5303204672
#10

Body parts diagram

Oven hinge

Part #5303204672

Replaced by #318348801

?
Manufacturer substitution
This part replaces 5303204672. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Screw 3051070
#11

Body parts diagram

Screw

Part #3051070

Replaced by #5304500008

?
Manufacturer substitution
This part replaces 3051070. Substitute parts can look different from the original.
$13.29
In Stock
Nut 3201885
Nut

Part #3201885

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 3201885. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Spark Module 5303209931
#34

Body parts diagram

Spark module

Part #5303209931

Replaced by #5303912606

?
Manufacturer substitution
This part replaces 5303209931. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Range Surface Burner Igniter Retainer 3016993
#37

Burner parts diagram

Range surface burner igniter retainer

Part #3016993

$63.18
In Stock
Liner 5303286731
#6

Body parts diagram

Liner

Part #5303286731

$61.99
In Stock
Range Screw, #10-24 X 1/2-in 08002868
Range screw, #10-24 x 1/2-in

Part #08002868

$15.66 |
11% OFF Phone Price : $17.66
In Stock
