Top-Mount Refrigerator

Model # GTS19KSNBRSS Official GE top-mount refrigerator

Here are the diagrams and repair parts for Official GE GTS19KSNBRSS top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

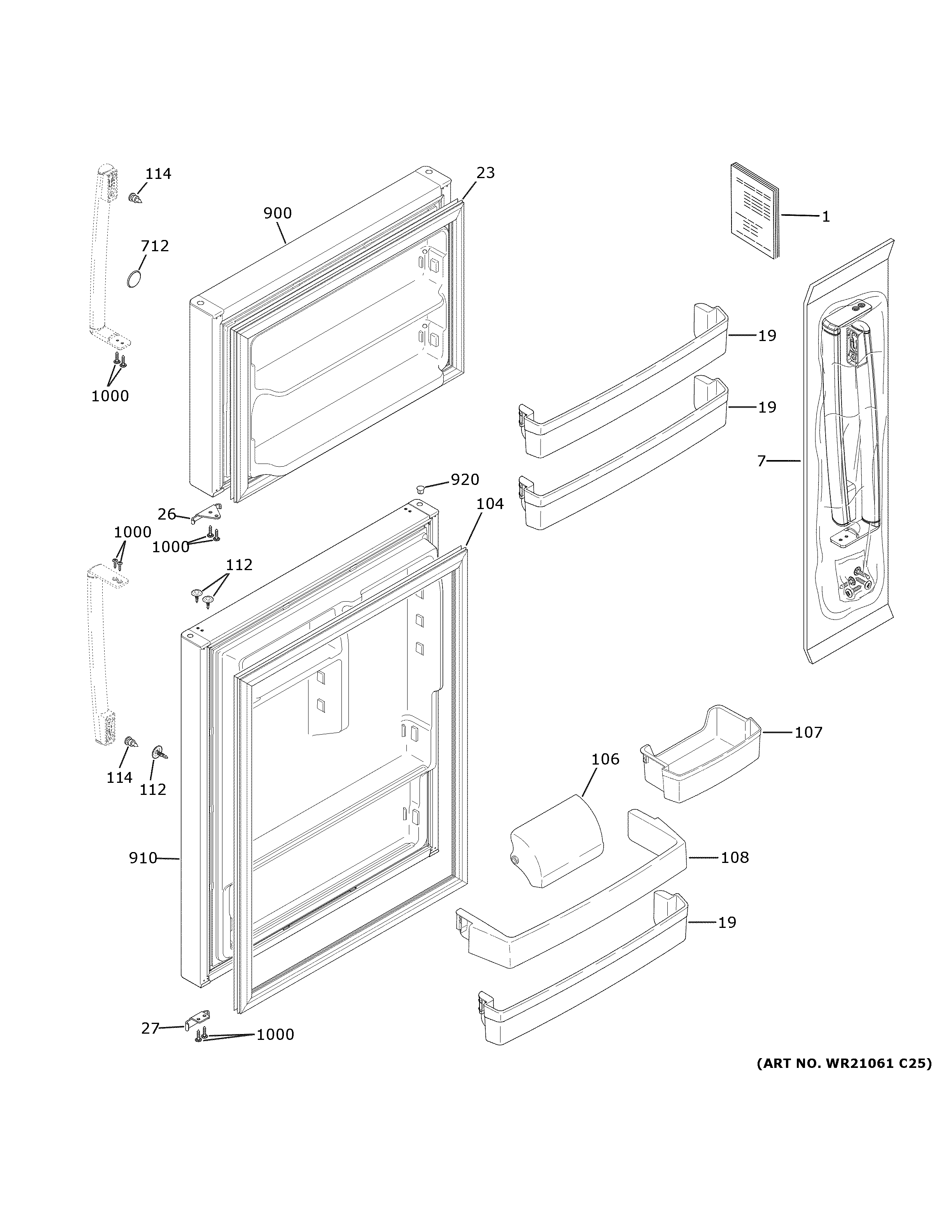

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
R600 Drier W/ Red Cap WR87X30875
#740

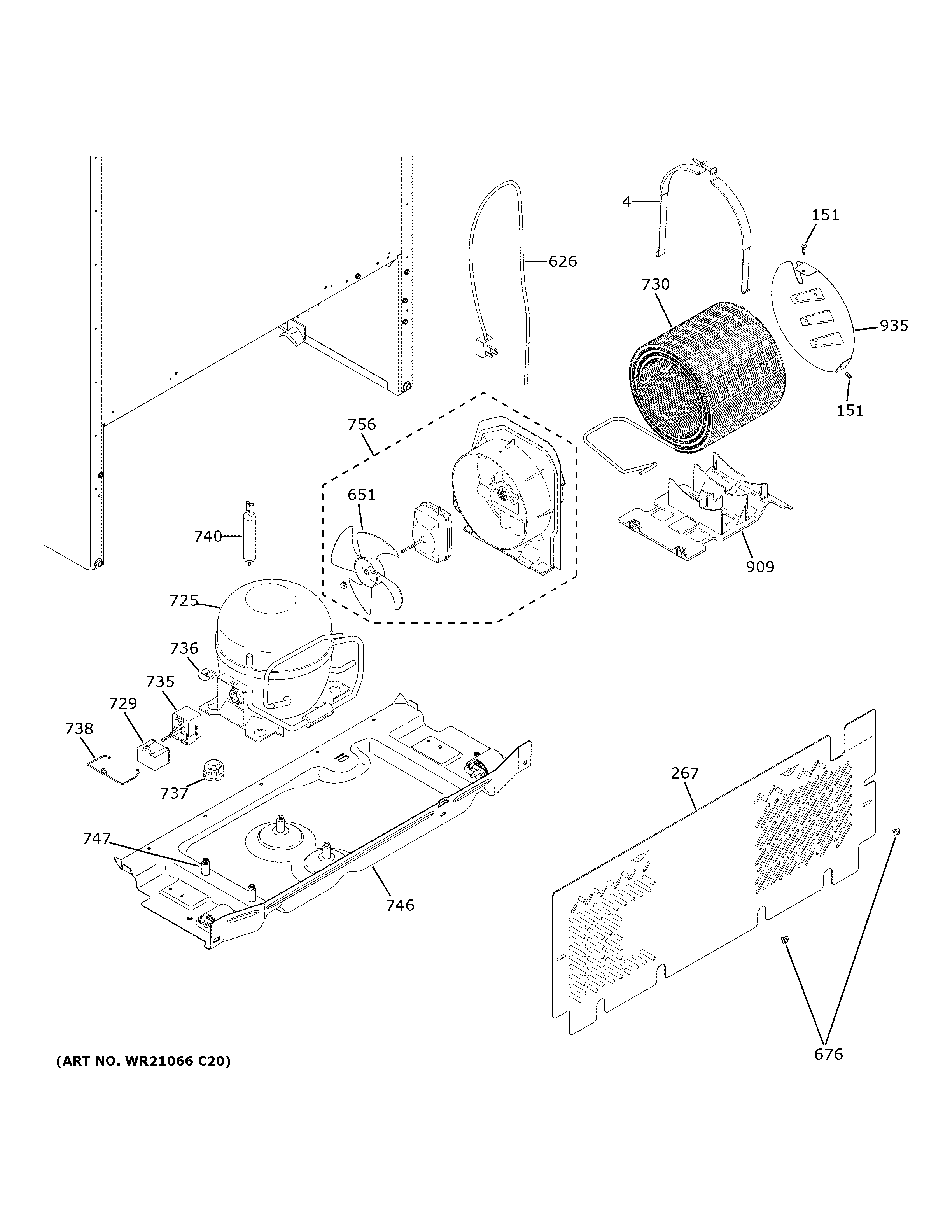

Machine compartment diagram

R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
$56.29
In Stock
Evaporator F WR60X31122
#610

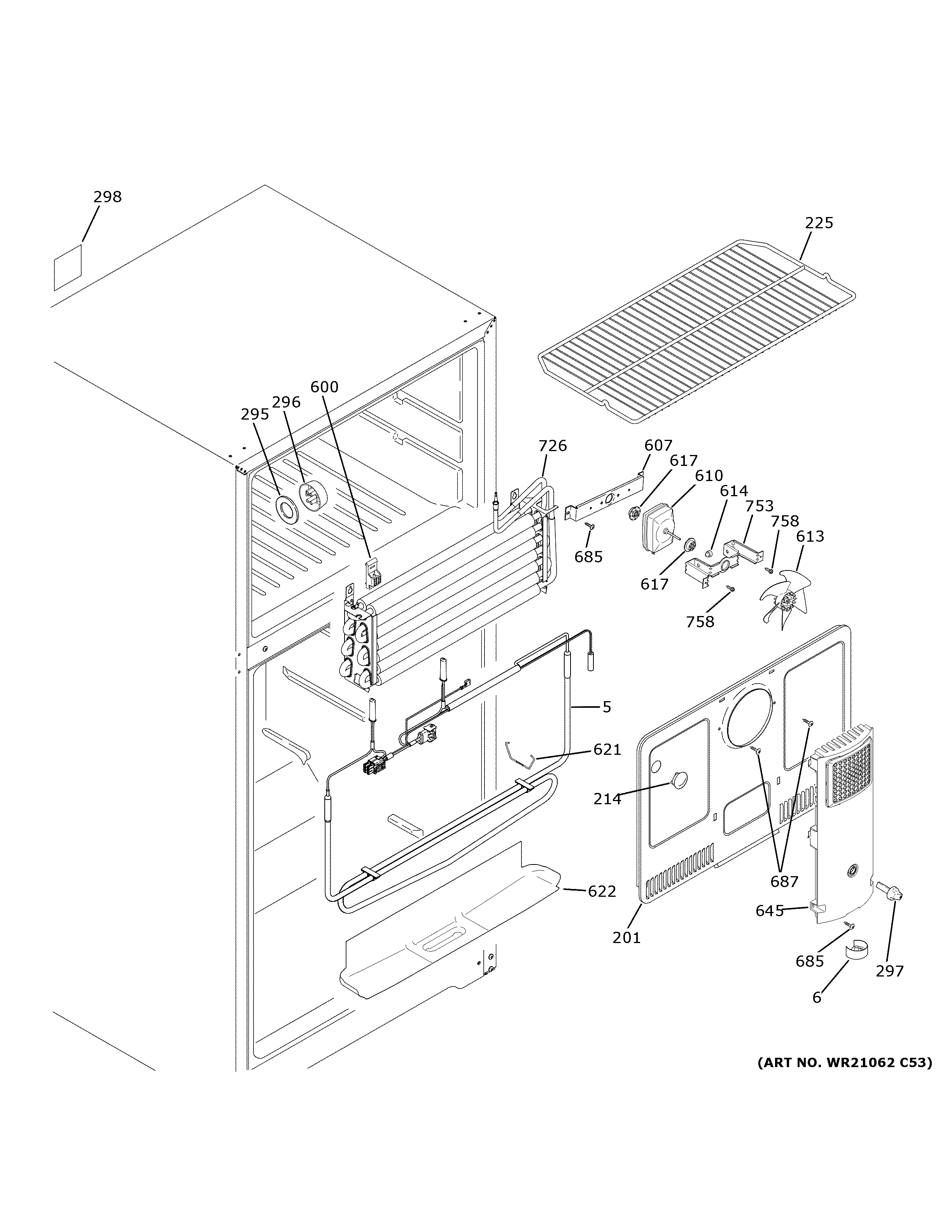

Freezer section diagram

Evaporator f

Part #WR60X31122

Replaced by #WR60X31522

?
Manufacturer substitution
This part replaces WR60X31122. Substitute parts can look different from the original.
BEST SELLER
$66.69 |
8% OFF Phone Price : $72.69
In Stock
Refrigerator WR55X33658
#257

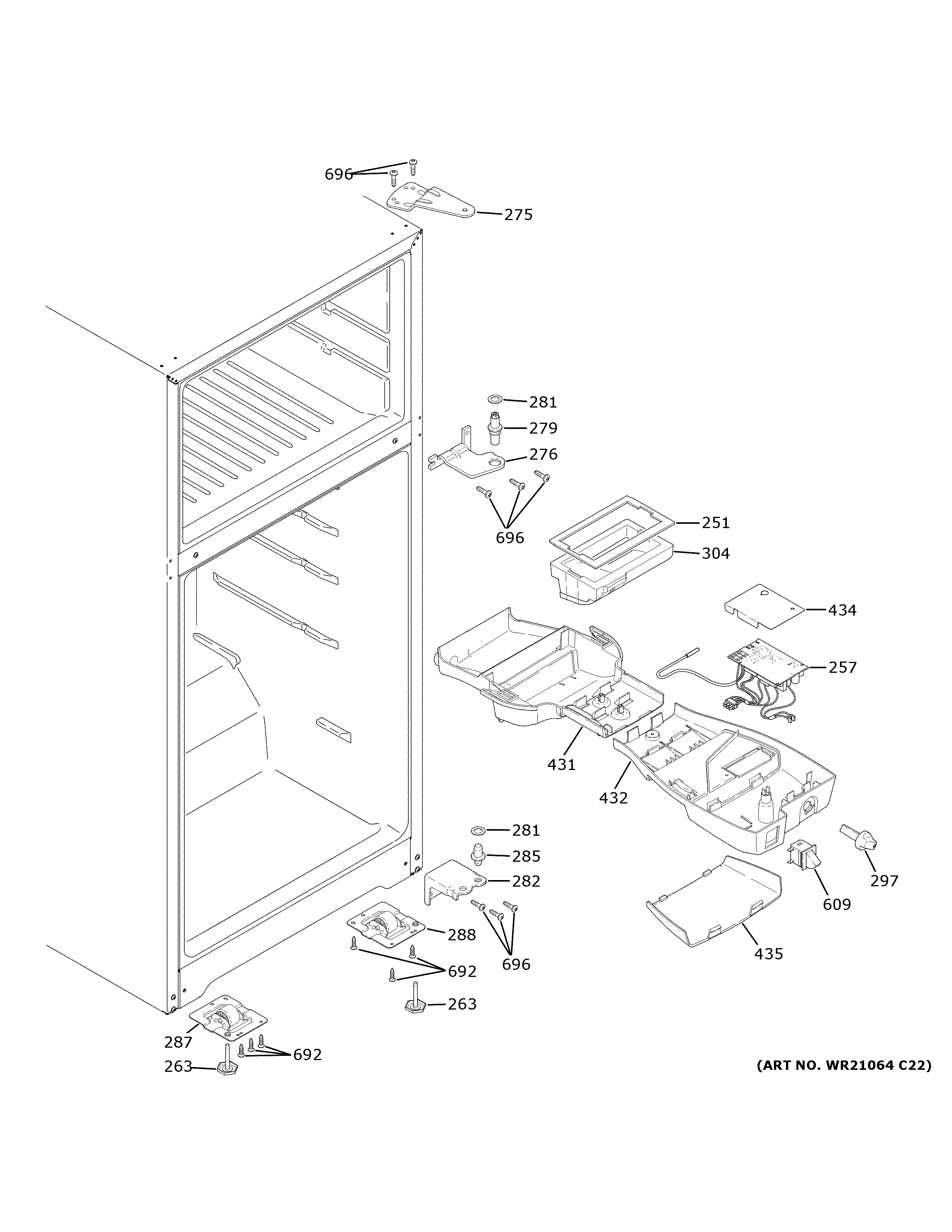

Fresh food section diagram

Refrigerator

Part #WR55X33658

Replaced by #WR55X43825

?
Manufacturer substitution
This part replaces WR55X33658. Substitute parts can look different from the original.
BEST SELLER
$167.49 |
7% OFF Phone Price : $179.49
In Stock
Refrigerator Deli Drawer Cover WR72X31124
#229

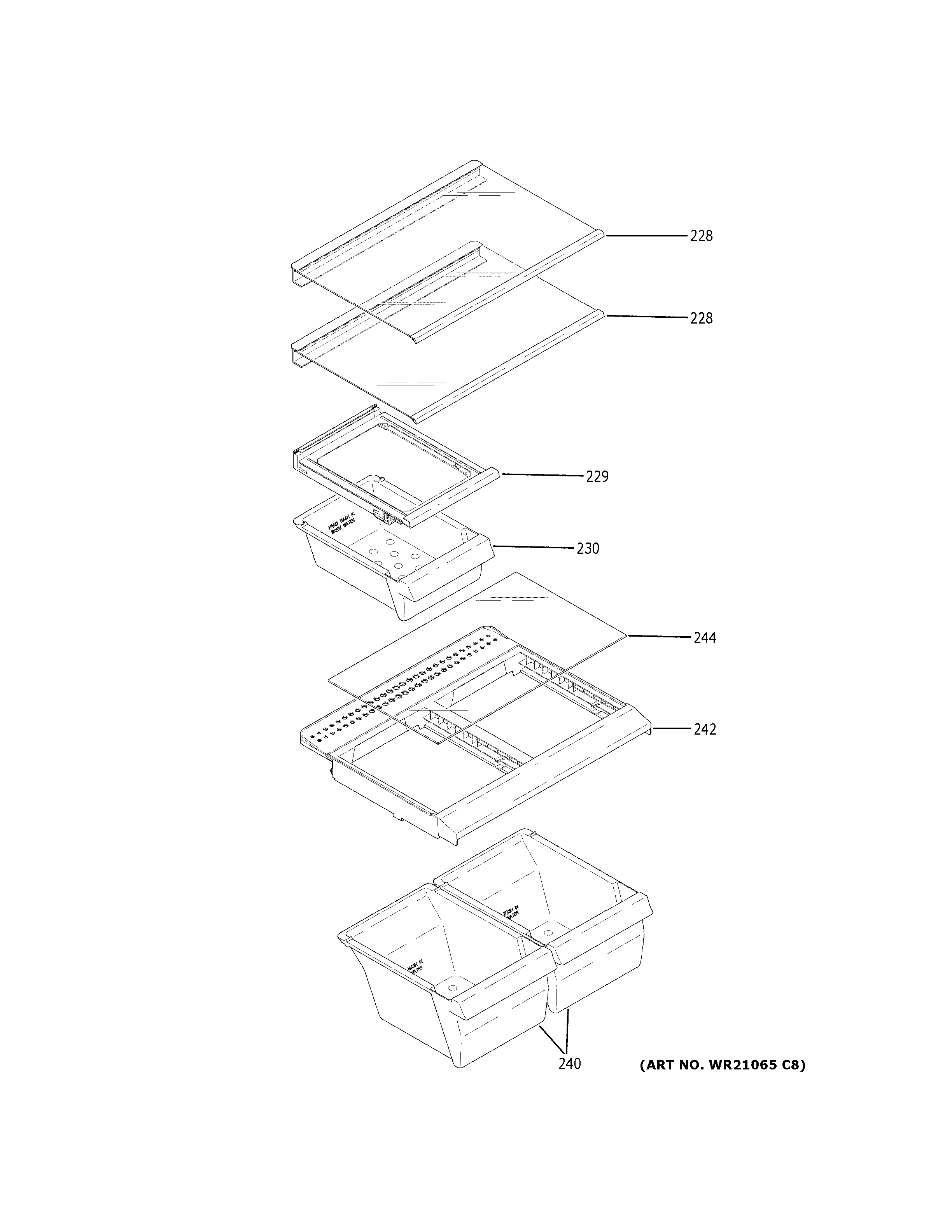

Fresh food shelves diagram

Refrigerator deli drawer cover

Part #WR72X31124

BEST SELLER
$31.30 |
16% OFF Phone Price : $37.30
In Stock
Compressor WR87X32209
#725

Machine compartment diagram

Compressor

Part #WR87X32209

Replaced by #WR87X31765

?
Manufacturer substitution
This part replaces WR87X32209. Substitute parts can look different from the original.
BEST SELLER
$214.28 |
5% OFF Phone Price : $226.28
In Stock
Refrigerator Evaporator Fan Blade (replaces Wr60x10047, Wr60x10188) WR60X10204
#613

Freezer section diagram

Refrigerator evaporator fan blade (replaces wr60x10047, wr60x10188)

Part #WR60X10204

BEST SELLER
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Machine compartment diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Icemaker Rep WR30X30719
#820

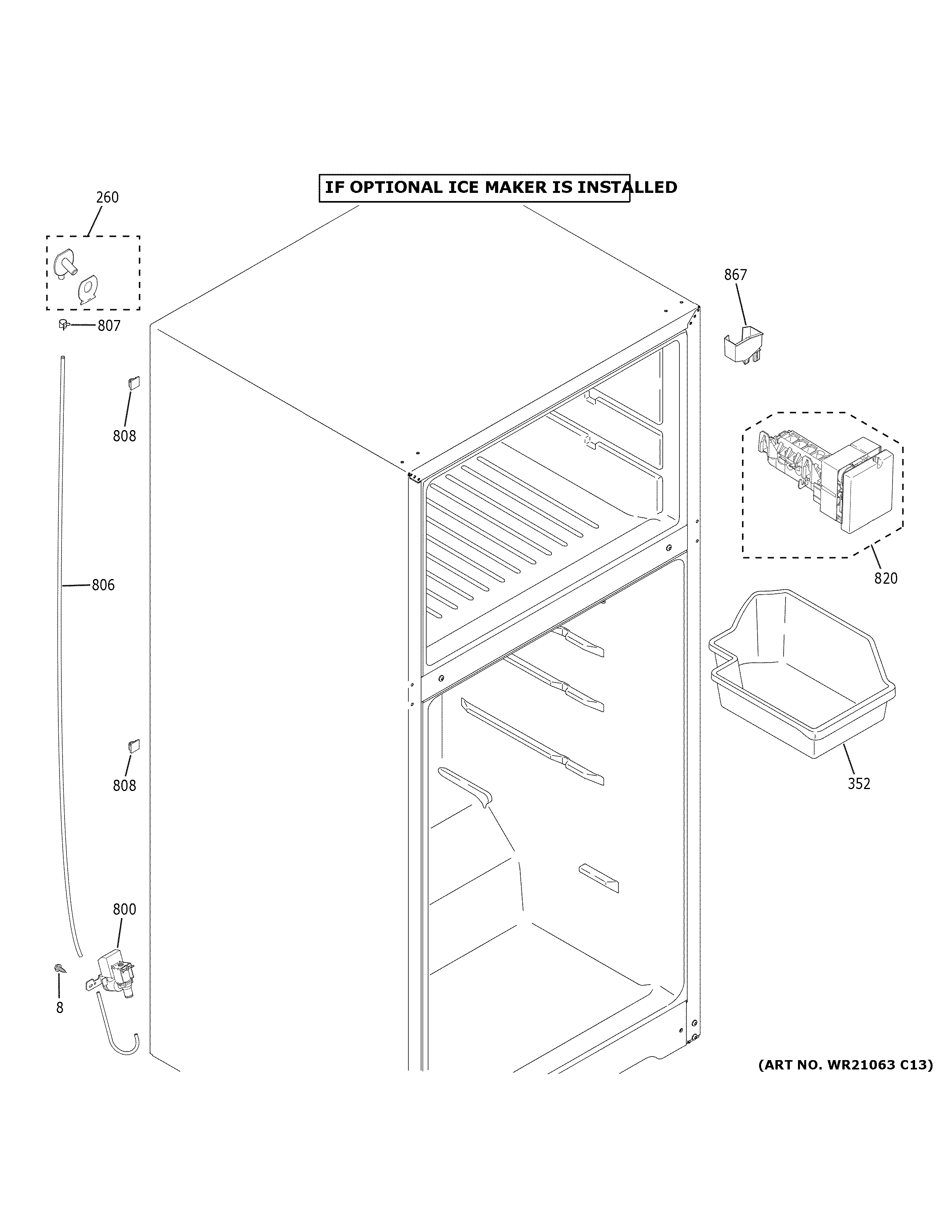

Ice maker diagram

Icemaker rep

Part #WR30X30719

Replaced by #WR30X30972

?
Manufacturer substitution
This part replaces WR30X30719. Substitute parts can look different from the original.
BEST SELLER
$174.74 |
6% OFF Phone Price : $186.74
In Stock
Refrigerator Water Inlet Valve WR57X32213
#800

Ice maker diagram

Refrigerator water inlet valve

Part #WR57X32213

BEST SELLER
$30.94 |
16% OFF Phone Price : $36.94
In Stock
Evaporator WR87X32220
#726

Freezer section diagram

Evaporator

Part #WR87X32220

Replaced by #WR87X31628

?
Manufacturer substitution
This part replaces WR87X32220. Substitute parts can look different from the original.
BEST SELLER
$109.71 |
10% OFF Phone Price : $121.71
In Stock
