Model # DSC-W830/S Official Sony camera

Here are the diagrams and repair parts for Official Sony DSC-W830-S camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Speaker 185834371
#SP1

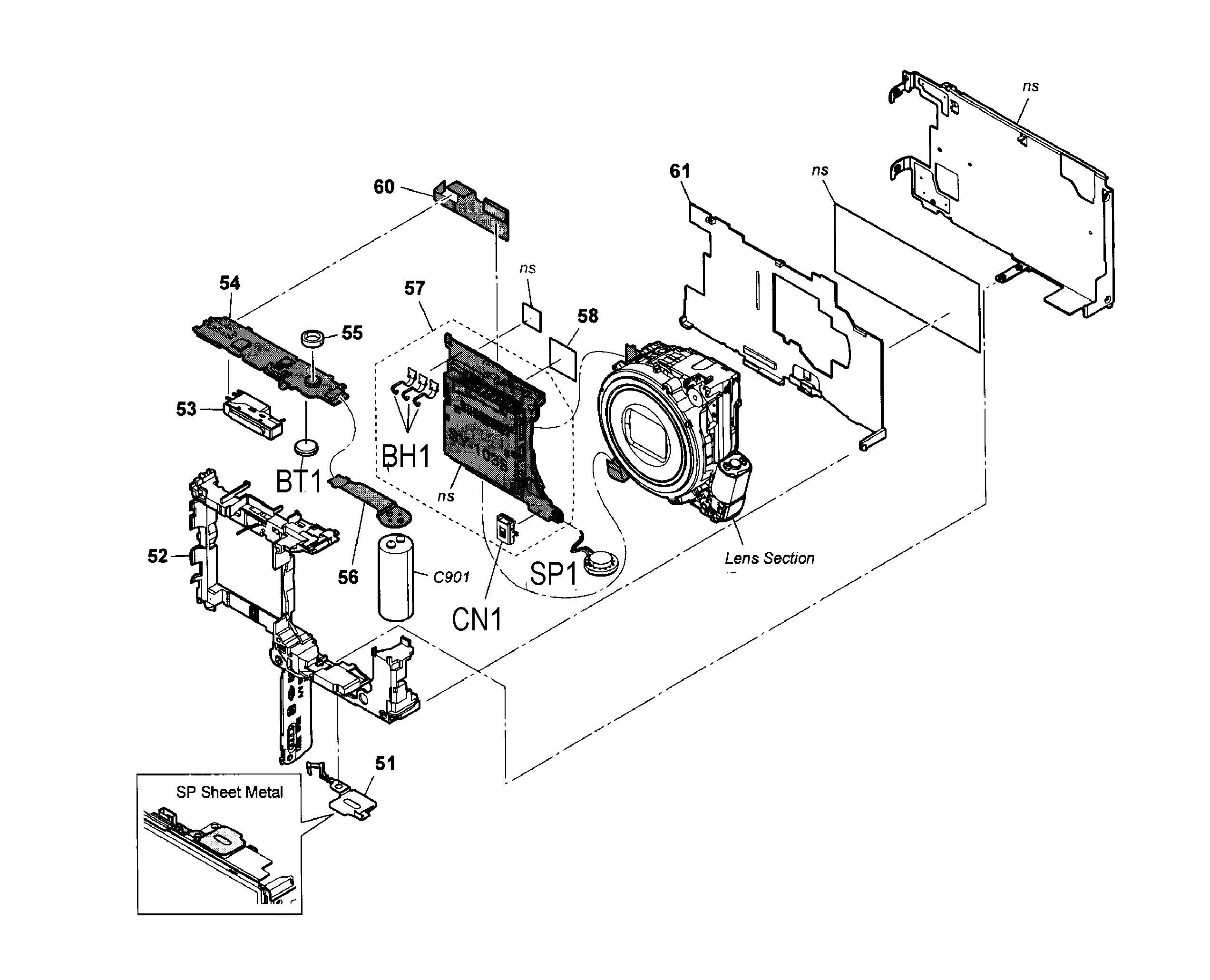

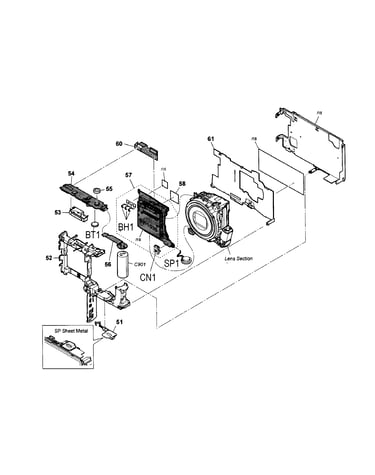

Main assy diagram

Speaker

Part #185834371

$15.23
In Stock
Device Lens 884890741
#101

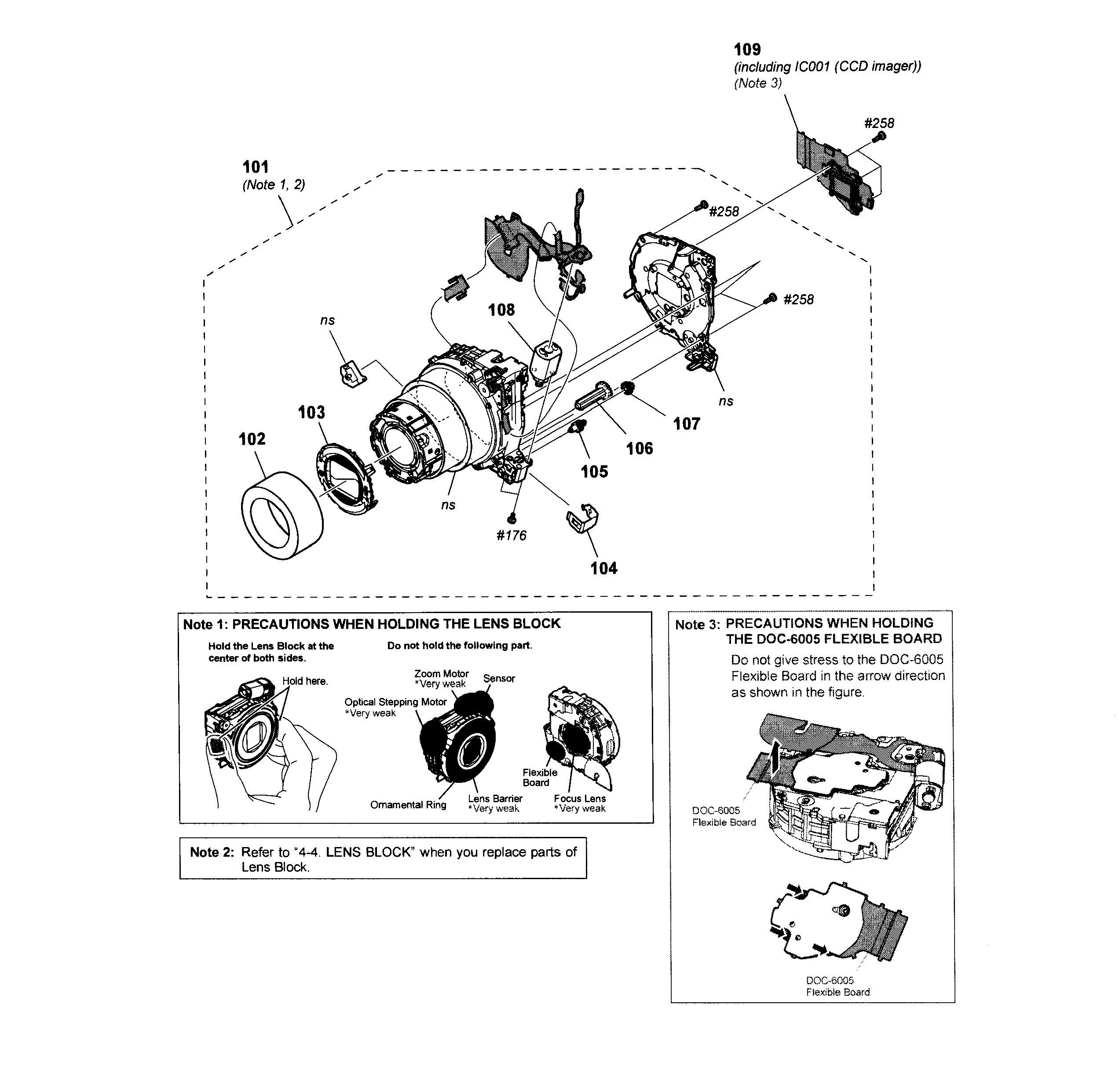

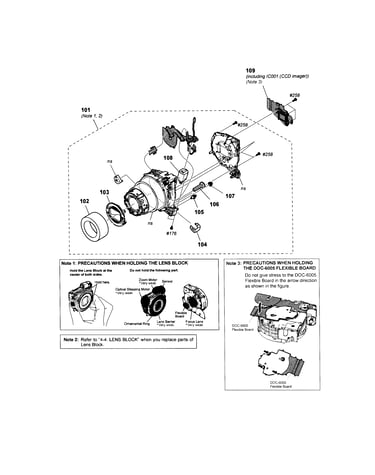

Lens assy diagram

Device lens

Part #884890741

$83.21
In Stock
Barrier-pn A1897949A
#103A

Lens assy diagram

Barrier-pn

Part #A1897949A

$22.31
In Stock
Wrist Stra 447089911
#NI

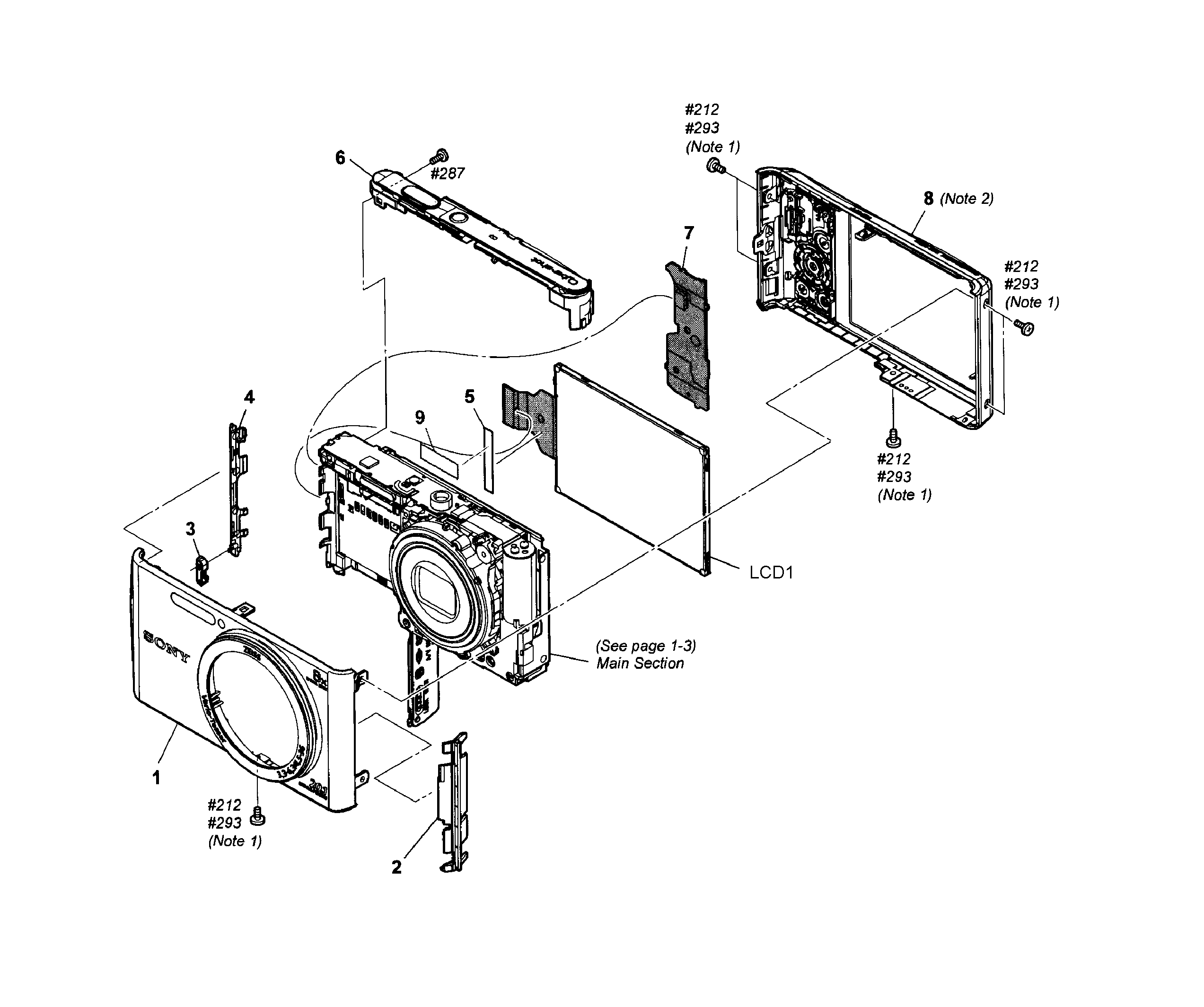

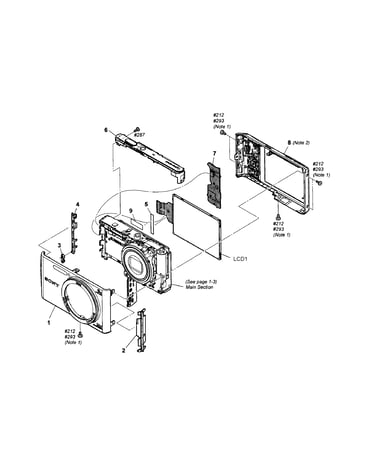

Overall assy diagram

Wrist stra

Part #447089911

$18.61
In Stock
Sheet Electrostatic 453384701
#9

Overall assy diagram

Sheet electrostatic

Part #453384701

This item is not returnable
$5.65
In Stock
Electric Sheet 446911601
#58

Main assy diagram

Electric sheet

Part #446911601

$7.67
In Stock
Cabinet Up X25892211
#6

Overall assy diagram

Cabinet up

Part #X25892211

$24.36
In Stock
Pcb Ma1004 188734011
#56

Main assy diagram

Pcb ma1004

Part #188734011

$10.31
In Stock
Pcb Sw1002 A1903143A
#7

Overall assy diagram

Pcb sw1002

Part #A1903143A

$21.10
In Stock
Fuse 157641531
#NI

Overall assy diagram

Fuse

Part #157641531

This item is not returnable
$6.17
In Stock
