Model # 41516105 Official Kenmore lp gas grill

Here are the diagrams and repair parts for Official Kenmore 41516105 lp gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Grease Cup 80000270
#56

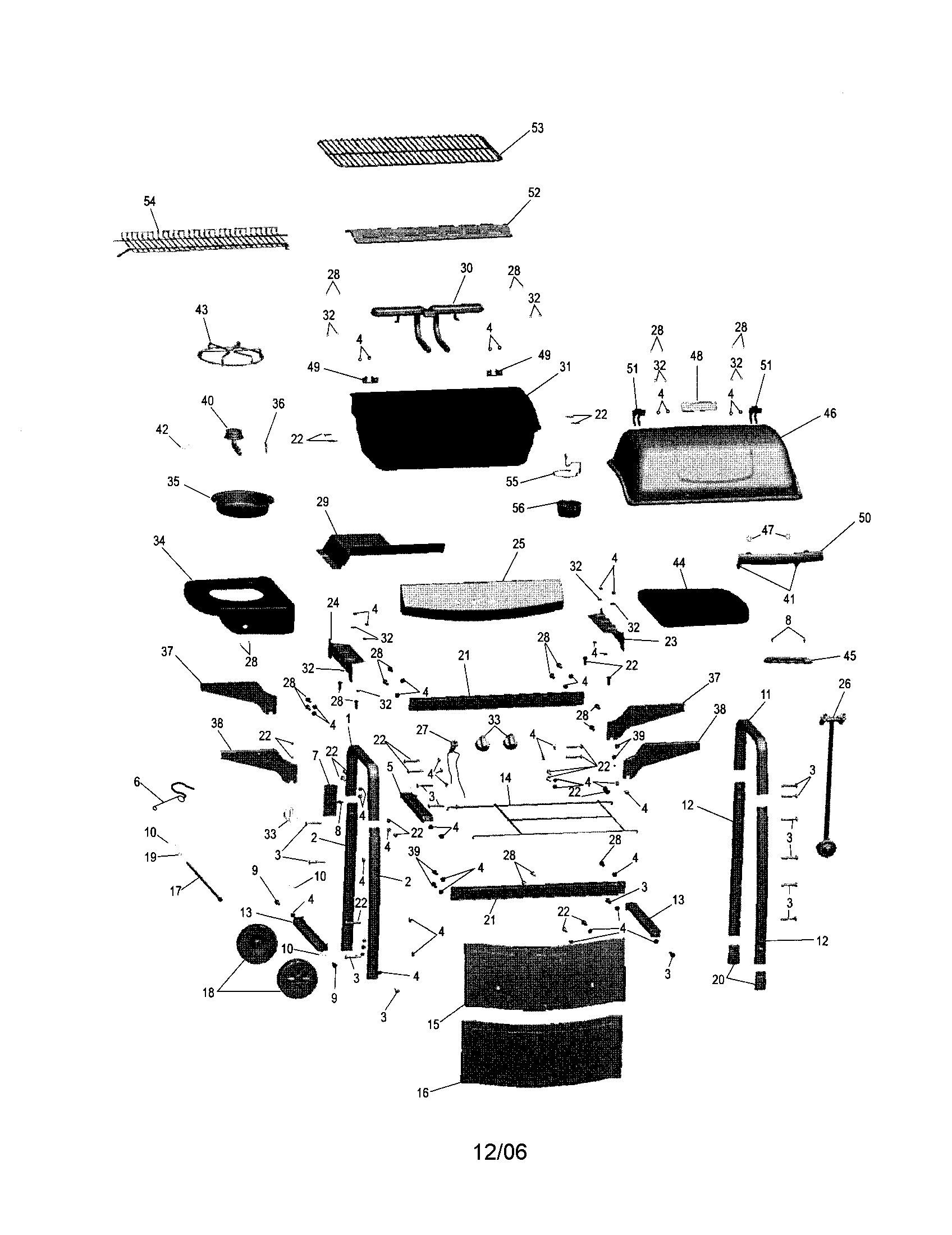

Liquid propane gas grill diagram

Grease cup

Part #80000270

Replaced by #G430-0033-W1

?
Manufacturer substitution
This part replaces 80000270. Substitute parts can look different from the original.
This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
Wheel 80010191
#18

Liquid propane gas grill diagram

Wheel

Part #80010191

Replaced by #G206-0025-W1

?
Manufacturer substitution
This part replaces 80010191. Substitute parts can look different from the original.
$6.69 |
13% OFF Phone Price : $7.69
In Stock
Cooking Grate 80009841
#53

Liquid propane gas grill diagram

Cooking grate

Part #80009841

Replaced by #G305-0006-W1

?
Manufacturer substitution
This part replaces 80009841. Substitute parts can look different from the original.
$25.29 |
19% OFF Phone Price : $31.29
In Stock
Control Knob 80000035
#33

Liquid propane gas grill diagram

Control knob

Part #80000035

Replaced by #G401-0023-W1

?
Manufacturer substitution
This part replaces 80000035. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
Tank Support Bracket 80010082
#13

Liquid propane gas grill diagram

Tank support bracket

Part #80010082

Replaced by #G305-0021-W1

?
Manufacturer substitution
This part replaces 80010082. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Heat Shield 80010089
#29

Liquid propane gas grill diagram

Heat shield

Part #80010089

Replaced by #G434-0009-W1

?
Manufacturer substitution
This part replaces 80010089. Substitute parts can look different from the original.
This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
Gas Grill Side Burner Electrode 80011100
#27

Liquid propane gas grill diagram

Gas grill side burner electrode

Part #80011100

This item is not returnable
$2.16
In Stock
Match Holder 80004320
#6

Liquid propane gas grill diagram

Match holder

Part #80004320

Replaced by #G508-0039-W1

?
Manufacturer substitution
This part replaces 80004320. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Logo Plate 80012215
#48

Liquid propane gas grill diagram

Logo plate

Part #80012215

Replaced by #80010544

?
Manufacturer substitution
This part replaces 80012215. Substitute parts can look different from the original.
$9.99
In Stock
Firebox Support 80010083
#24

Liquid propane gas grill diagram

Firebox support

Part #80010083

Replaced by #G305-0030-W1

?
Manufacturer substitution
This part replaces 80010083. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
