Model # 53682163 Official Craftsman 15" snow thrower

Here are the diagrams and repair parts for Official Craftsman 53682163 15" snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

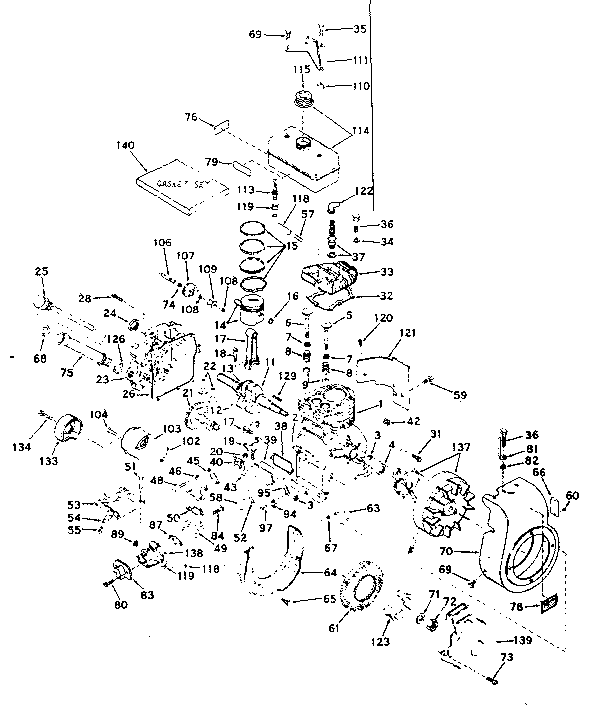

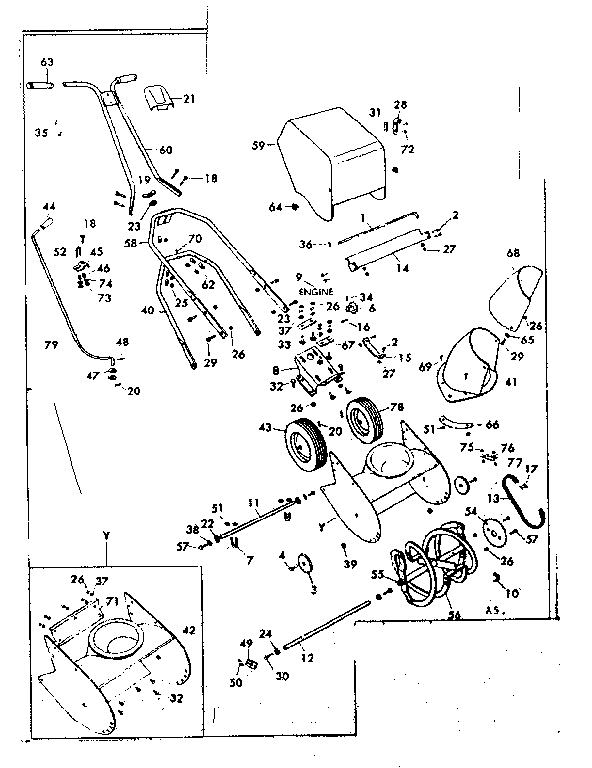

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 246 parts  |
Carriage Bolt 998010
#32

Replacement parts diagram

Carriage bolt

Part #998010

The manufacturer no longer makes this part, and there's no substitute part

Hex Lock Nut 9415988
#26

Replacement parts diagram

Hex lock nut

Part #9415988

The manufacturer no longer makes this part, and there's no substitute part

Washer 8728
#62

Replacement parts diagram

Washer

Part #8728

Replaced by #783000MA

?
Manufacturer substitution
This part replaces 8728. Substitute parts can look different from the original.
This item is not returnable
$9.34
In Stock
Craftsman Handle Assembly 30755
#40

Replacement parts diagram

Craftsman handle assembly

Part #30755

$782.25
In Stock
Lckwshr 5/16 138485
#38

Replacement parts diagram

Lckwshr 5/16

Part #138485

Replaced by #138485MA

?
Manufacturer substitution
This part replaces 138485. Substitute parts can look different from the original.
$8.74
In Stock
Screw 191245
#77

Replacement parts diagram

Screw

Part #191245

The manufacturer no longer makes this part, and there's no substitute part

U-bolt 23940
#52

Replacement parts diagram

U-bolt

Part #23940

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 25840
#65

Replacement parts diagram

Spring washer

Part #25840

The manufacturer no longer makes this part, and there's no substitute part

Sprkt 11 Tth 23906
#6

Replacement parts diagram

Sprkt 11 tth

Part #23906

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 457507
#73

Replacement parts diagram

Lock nut

Part #457507

The manufacturer no longer makes this part, and there's no substitute part
