Model # 748-2 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 748-2 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |

Pinion 2-606534-01
#49

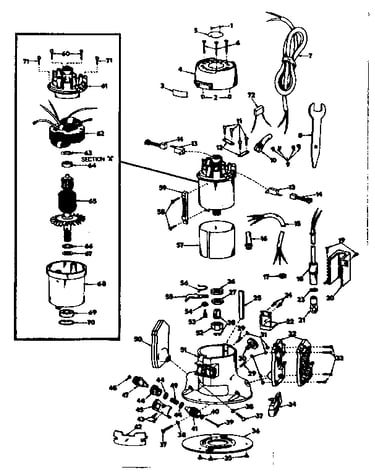

Unit parts diagram

Pinion

Part #2-606534-01

The manufacturer no longer makes this part, and there's no substitute part

Base 2-606468-05
#51

Unit parts diagram

Base

Part #2-606468-05

The manufacturer no longer makes this part, and there's no substitute part

Drive Scrw 1-795247-10
#1

Unit parts diagram

Drive scrw

Part #1-795247-10

The manufacturer no longer makes this part, and there's no substitute part

Cord 2-612568-01
#7

Unit parts diagram

Cord

Part #2-612568-01

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 2-610646-01
#3

Unit parts diagram

Logo plate

Part #2-610646-01

The manufacturer no longer makes this part, and there's no substitute part

Hdle Cord 1-610980-02
#15

Unit parts diagram

Hdle cord

Part #1-610980-02

The manufacturer no longer makes this part, and there's no substitute part

Bulb 1-610951-01
#21

Unit parts diagram

Bulb

Part #1-610951-01

The manufacturer no longer makes this part, and there's no substitute part

Shroud 2-611144-01
#20

Unit parts diagram

Shroud

Part #2-611144-01

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 1-912171-801
#70

Unit parts diagram

Retaining ring

Part #1-912171-801

The manufacturer no longer makes this part, and there's no substitute part

Cup Washer 1-623881-01
#67

Unit parts diagram

Cup washer

Part #1-623881-01

The manufacturer no longer makes this part, and there's no substitute part
