Model # 19LE30Q Official Element lcd television

Here are the diagrams and repair parts for Official Element 19LE30Q lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Color Box RN01185H1200
#NI

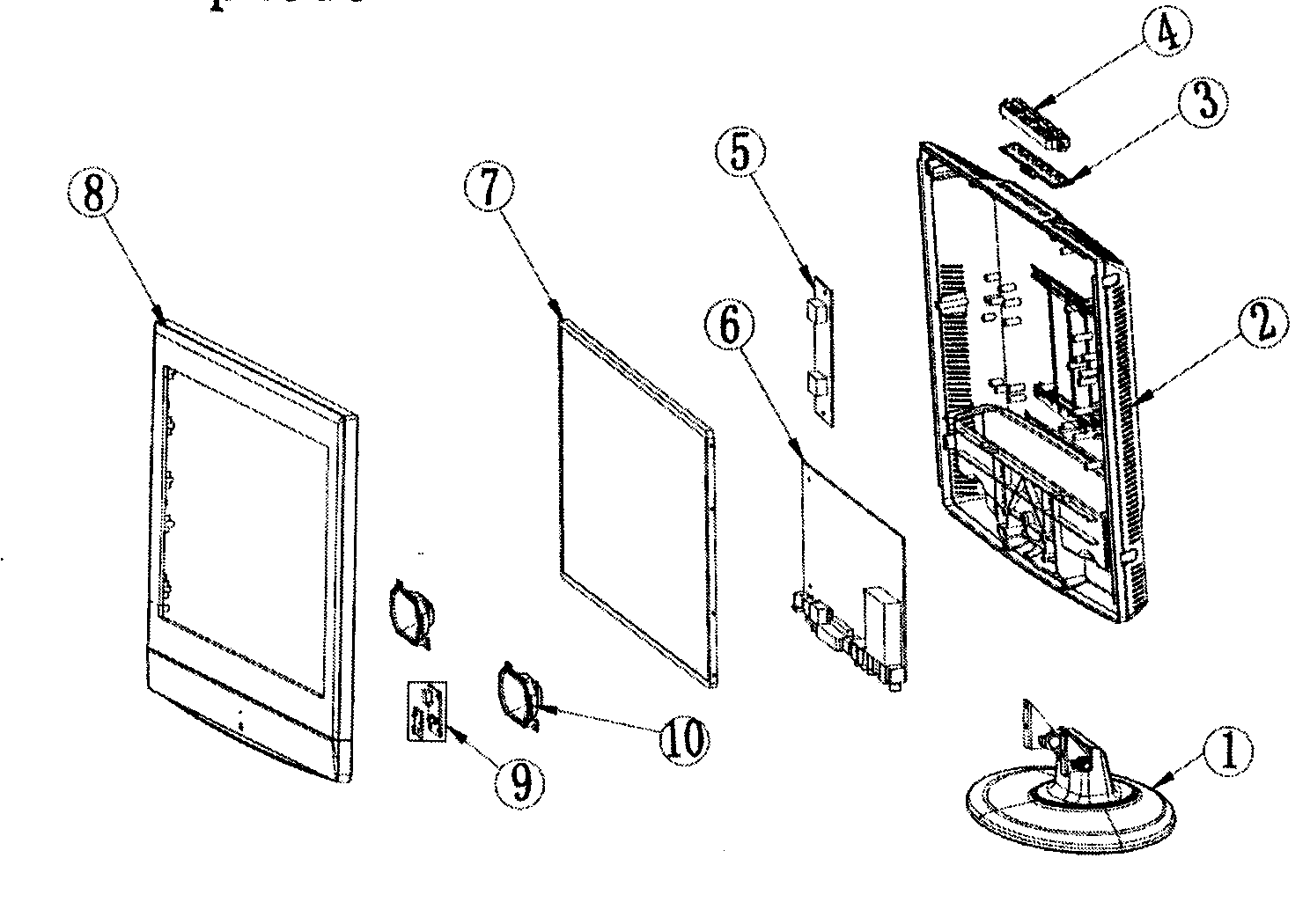

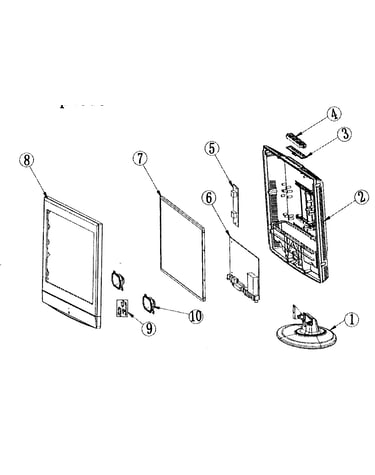

Cabinet parts diagram

Color box

Part #RN01185H1200

The manufacturer no longer makes this part, and there's no substitute part

Bk.cabinet RR02185H12H0
#2

Cabinet parts diagram

Bk.cabinet

Part #RR02185H12H0

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual RN03185H1200
#NI

Cabinet parts diagram

Owner's manual

Part #RN03185H1200

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker RE260720424050
#10

Cabinet parts diagram

Television speaker

Part #RE260720424050

The manufacturer no longer makes this part, and there's no substitute part

Keyboard Lne RE0419H0300
#NI

Cabinet parts diagram

Keyboard lne

Part #RE0419H0300

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Front RR01185H12H0
#8

Cabinet parts diagram

Cabinet front

Part #RR01185H12H0

The manufacturer no longer makes this part, and there's no substitute part

Screws,stand-8pk STD863412
#NI

Cabinet parts diagram

Screws,stand-8pk

Part #STD863412

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb RE01ZAT4DLNA2
#6

Cabinet parts diagram

Main pcb

Part #RE01ZAT4DLNA2

The manufacturer no longer makes this part, and there's no substitute part

Inverter RE022SBLK0
#5

Cabinet parts diagram

Inverter

Part #RE022SBLK0

The manufacturer no longer makes this part, and there's no substitute part

Cable Panel RE1026H03CM02
#NI

Cabinet parts diagram

Cable panel

Part #RE1026H03CM02

The manufacturer no longer makes this part, and there's no substitute part
