Model # CPF9826W429R Official Hardwick gas range

Here are the diagrams and repair parts for Official Hardwick CPF9826W429R gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

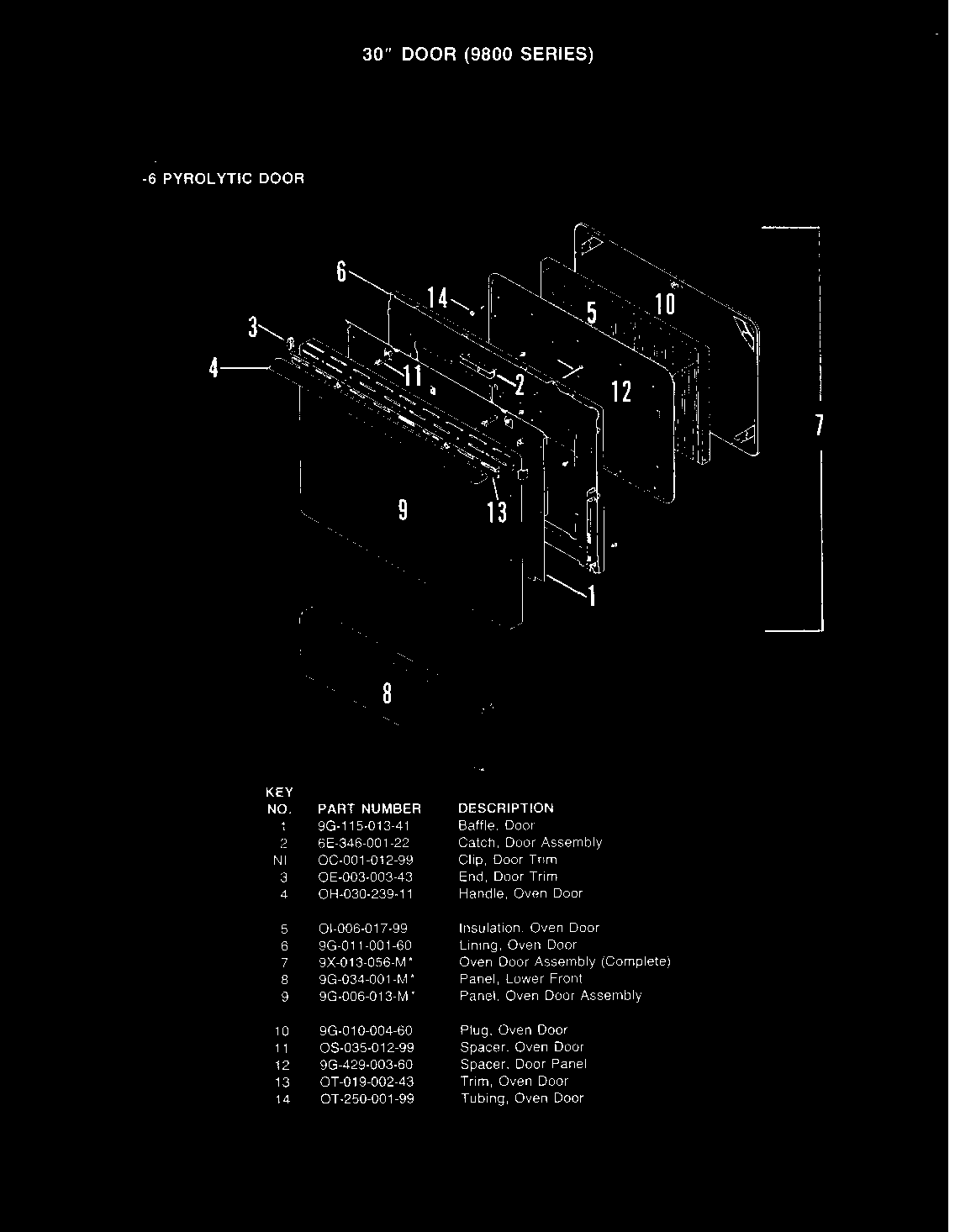

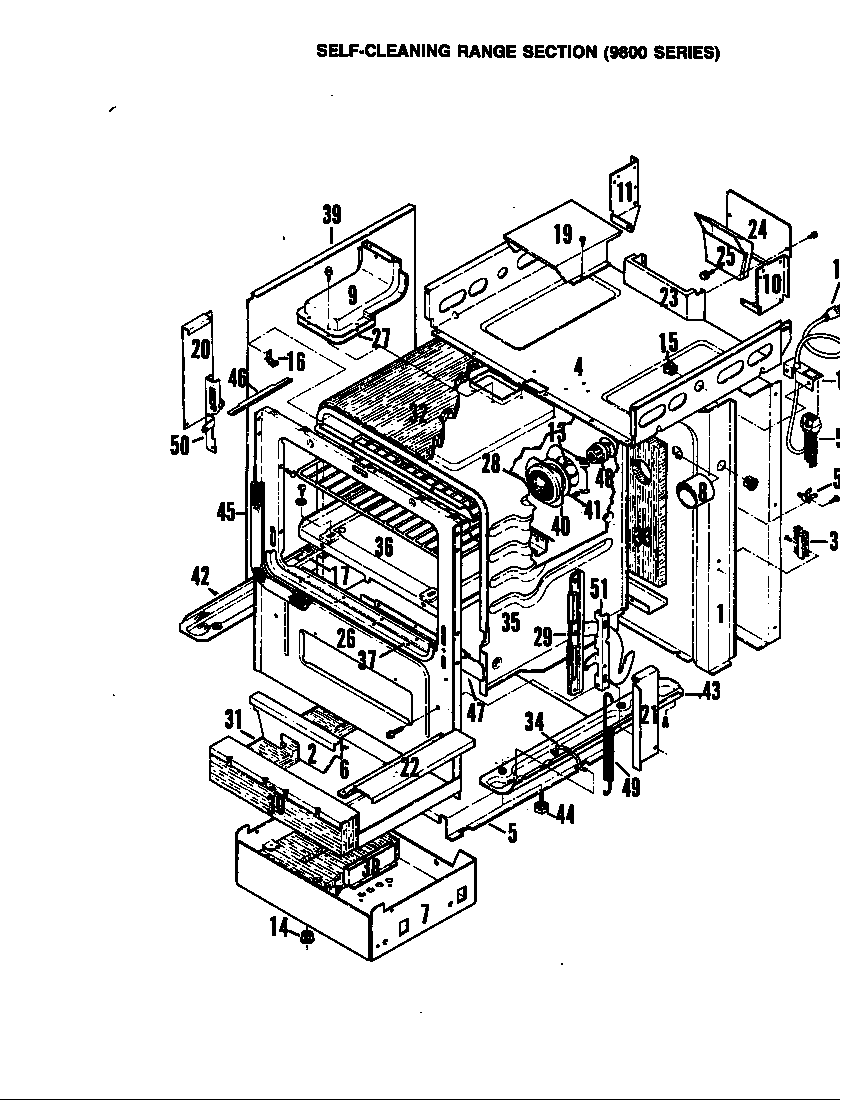

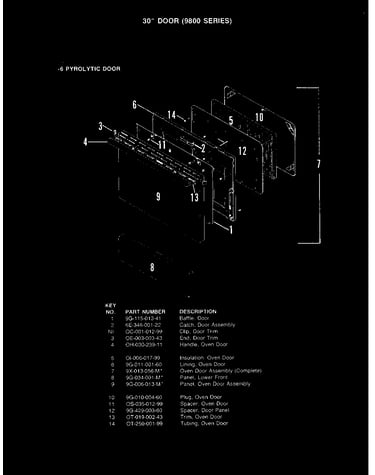

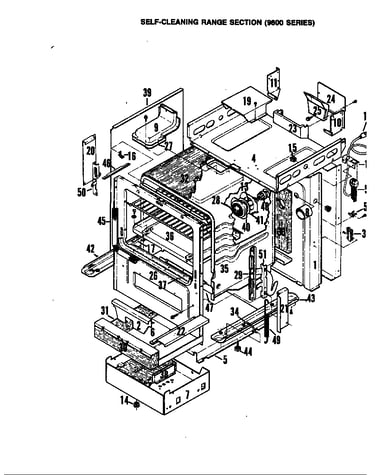

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Broiler Pan 9G06400453
#7

Top assy. diagram

Broiler pan

Part #9G06400453

Replaced by #4396923

?
Manufacturer substitution
This part replaces 9G06400453. Substitute parts can look different from the original.
$29.55
17% OFF Phone Price : $35.55
In Stock
Rim End Panel 0T01800211
#18

Top assy. diagram

Rim end panel

Part #0T01800211

Replaced by #Y0T01800211

?
Manufacturer substitution
This part replaces 0T01800211. Substitute parts can look different from the original.
In Stock
Switch 0S03007999
#28

Controls diagram

Switch

Part #0S03007999

The manufacturer no longer makes this part, and there's no substitute part

Broiler Tray 9G06700453
#17

Top assy. diagram

Broiler tray

Part #9G06700453

Replaced by #4396923

?
Manufacturer substitution
This part replaces 9G06700453. Substitute parts can look different from the original.
$29.55
17% OFF Phone Price : $35.55
In Stock
Top Burner Valve 0V88275365
#34A

Controls diagram

Top burner valve

Part #0V88275365

The manufacturer no longer makes this part, and there's no substitute part

Solenoid, Do 0S05000399
#25

Controls diagram

Solenoid, do

Part #0S05000399

The manufacturer no longer makes this part, and there's no substitute part

Strike 0S02900126
#16

Top assy. diagram

Strike

Part #0S02900126

The manufacturer no longer makes this part, and there's no substitute part

Burner Top R 9G20103222
#6

Controls diagram

Burner top r

Part #9G20103222

The manufacturer no longer makes this part, and there's no substitute part

Igniter Control 0C05001099
#8

Controls diagram

Igniter control

Part #0C05001099

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light 0L00602023
#8

Control panel (-429 models) diagram

Indicator light

Part #0L00602023

The manufacturer no longer makes this part, and there's no substitute part
