Model # 41748062700 Official Kenmore laundry accessories

Here are the diagrams and repair parts for Official Kenmore 41748062700 laundry accessories, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Laundry Appliance Pedestal Installation Bracket 134830300
#6

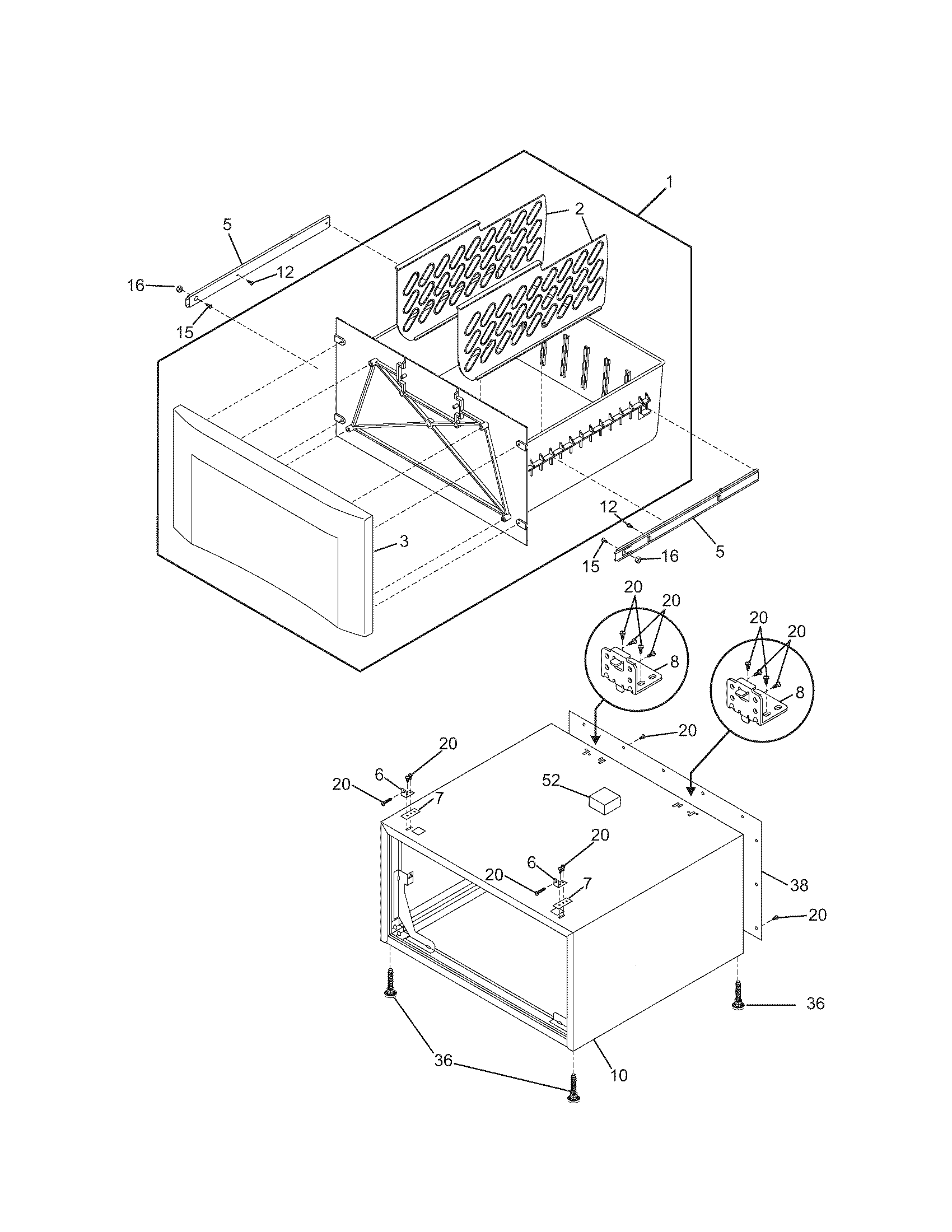

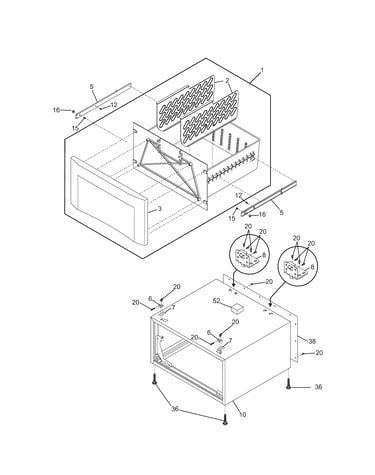

Pedestal diagram

Laundry appliance pedestal installation bracket

Part #134830300

Replaced by #5304523385

?
Manufacturer substitution
This part replaces 134830300. Substitute parts can look different from the original.
This item is not returnable
$24.84 |
19% OFF Phone Price : $30.84
In Stock
Laundry Appliance Pedestal Installation Kit 134816300
#8

Pedestal diagram

Laundry appliance pedestal installation kit

Part #134816300

Replaced by #5304523385

?
Manufacturer substitution
This part replaces 134816300. Substitute parts can look different from the original.
This item is not returnable
$24.84 |
19% OFF Phone Price : $30.84
In Stock
Kit 134862800
#NI

Pedestal diagram

Kit

Part #134862800

Replaced by #5304523385

?
Manufacturer substitution
This part replaces 134862800. Substitute parts can look different from the original.
This item is not returnable
$24.84 |
19% OFF Phone Price : $30.84
In Stock
Washer Vibration Dampener 131931202
#52

Pedestal diagram

Washer vibration dampener

Part #131931202

This item is not returnable
$18.77 |
10% OFF Phone Price : $20.77
In Stock
Laundry Appliance Pedestal Drawer Slide Rail 134443700
#5

Pedestal diagram

Laundry appliance pedestal drawer slide rail

Part #134443700

$90.92 |
6% OFF Phone Price : $96.92
In Stock
Laundry Appliance Lock Nut 134510400
#16

Pedestal diagram

Laundry appliance lock nut

Part #134510400

This item is not returnable
$17.49
In Stock
Panel 134802700
#38

Pedestal diagram

Panel

Part #134802700

$103.64
In Stock
Laundry Appliance Pedestal Screw, #10-16 X 1/2-in 134549700
#20

Pedestal diagram

Laundry appliance pedestal screw, #10-16 x 1/2-in

Part #134549700

$12.69 |
14% OFF Phone Price : $14.69
In Stock
Laundry Appliance Screw, #6-32 X 5/8-in 134509900
#15

Pedestal diagram

Laundry appliance screw, #6-32 x 5/8-in

Part #134509900

This item is not returnable
$13.97
In Stock
Cabinet 134797110
#10

Pedestal diagram

Cabinet

Part #134797110

Replaced by #137006182

?
Manufacturer substitution
This part replaces 134797110. Substitute parts can look different from the original.
$196.29
In Stock
