Kenmore
Wall Oven/Microwave Combo

Model # 79047852403 Official Kenmore wall oven/microwave combo

Here are the diagrams and repair parts for Official Kenmore 79047852403 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

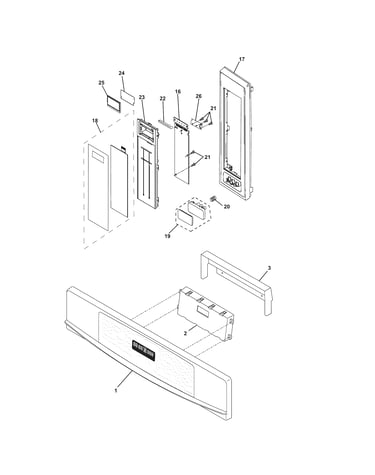

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Range Oven Light Bulb 5303013071
#15

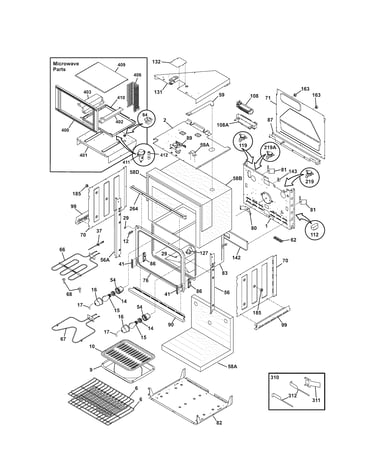

Lower oven diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Lower oven diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$43.55 |
12% OFF Phone Price : $49.55
In Stock
Range Oven Door Inner Glass 316117500
#8

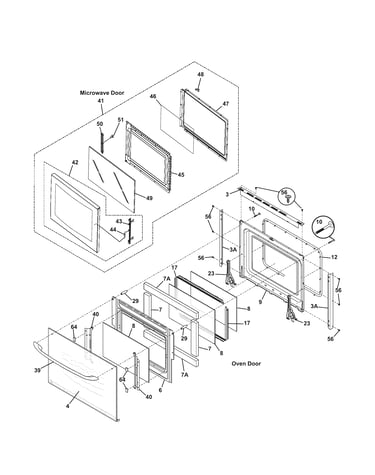

Doors diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Terminal Block 316056000
#62

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Wall Oven Thermal Fuse 318004900
#119

Lower oven diagram

Wall oven thermal fuse

Part #318004900

BEST SELLER
$57.43 |
9% OFF Phone Price : $63.43
In Stock
Fuse 5304442353
#412

Lower oven diagram

Fuse

Part #5304442353

Replaced by #318647300

?
Manufacturer substitution
This part replaces 5304442353. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Holder 5304442354
#411

Lower oven diagram

Holder

Part #5304442354

Replaced by #318647300

?
Manufacturer substitution
This part replaces 5304442354. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Range Broil Element 318255600
#66

Lower oven diagram

Range broil element

Part #318255600

Replaced by #318255605

?
Manufacturer substitution
This part replaces 318255600. Substitute parts can look different from the original.
BEST SELLER
$124.23 |
9% OFF Phone Price : $136.23
In Stock
Crosley Range High-limit Thermostat 318003614
#219

Lower oven diagram

Crosley range high-limit thermostat

Part #318003614

BEST SELLER
$67.02 |
8% OFF Phone Price : $73.02
In Stock
Cover 3201911
#16

Lower oven diagram

Cover

Part #3201911

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3201911. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
