GE
Washer

Model # WMSR2090T2WW Official GE washer - 1994

Here are the diagrams and repair parts for Official GE WMSR2090T2WW washer - 1994, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

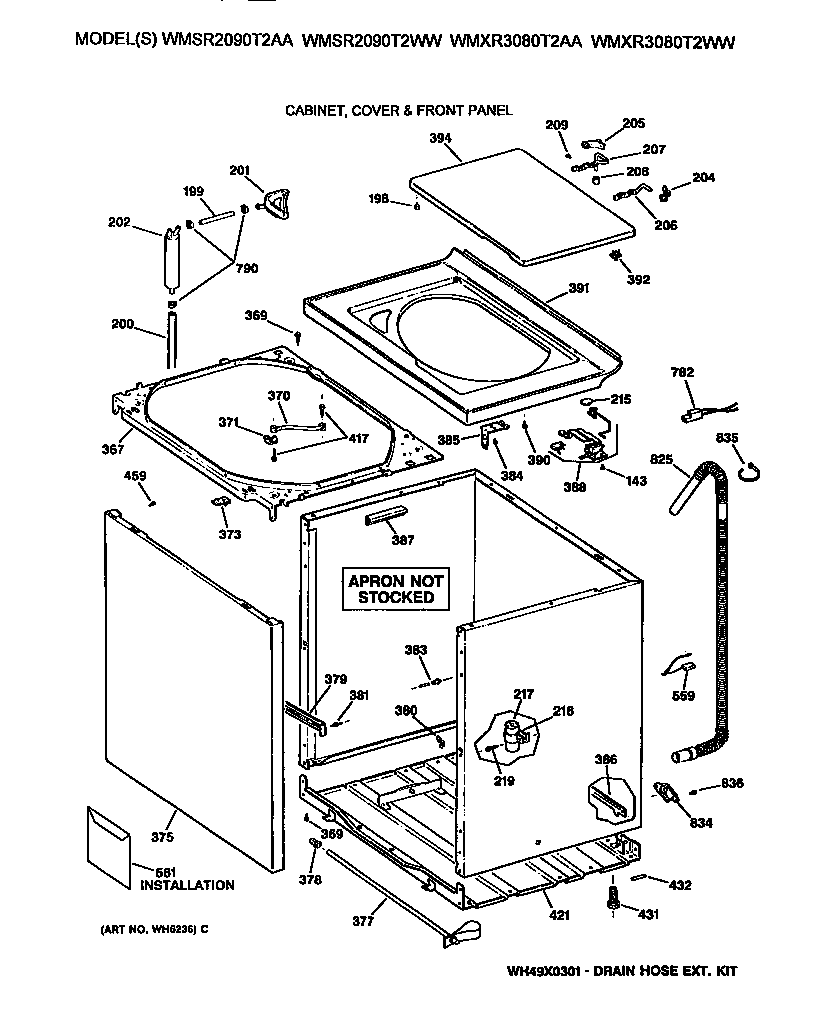

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |

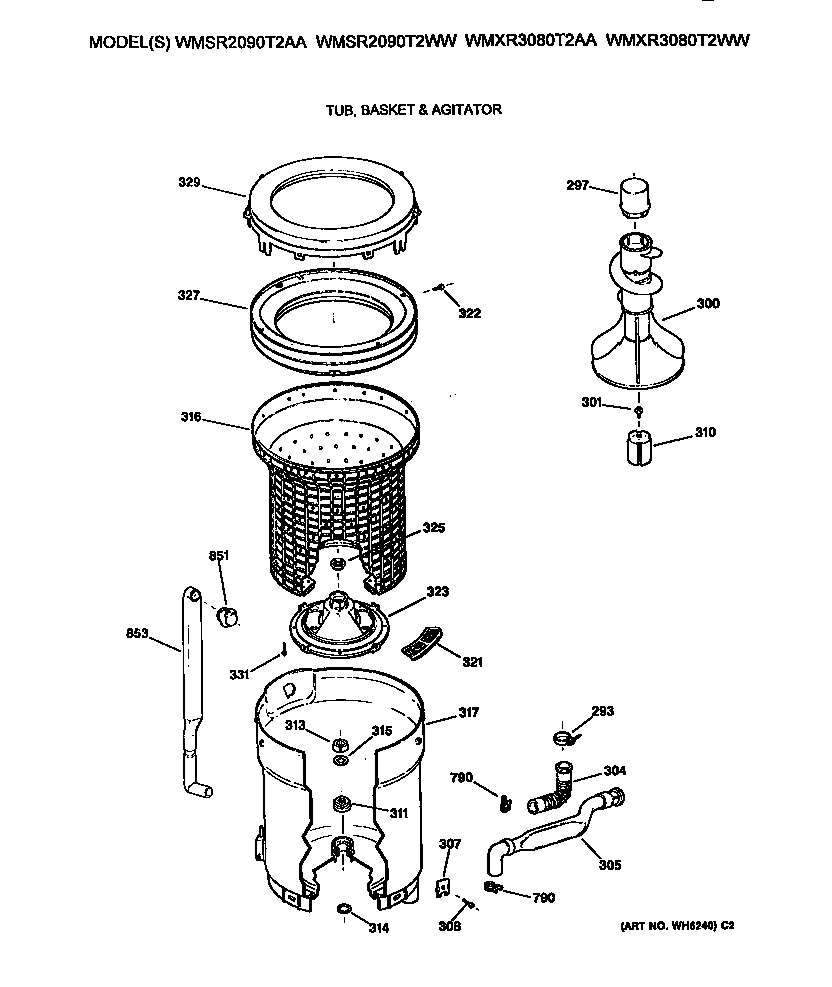

Washer Hub Nut (replaces Wh02x1193) WH2X1193

#325

All parts diagram

Washer hub nut (replaces wh02x1193)

Part #WH2X1193

BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Washer Tub Bearing (replaces Wh02x1198) WH2X1198

#309

All parts diagram

Washer tub bearing (replaces wh02x1198)

Part #WH2X1198

BEST SELLER
$29.01 |
17% OFF Phone Price : $35.01
In Stock
Washer Tub Bearing Washer (replaces Wh02x1197) WH2X1197

#314

All parts diagram

Washer tub bearing washer (replaces wh02x1197)

Part #WH2X1197

BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Agitator Assembly WH43X138

#300

All parts diagram

Agitator assembly

Part #WH43X138

Replaced by #WH43X10034

?
Manufacturer substitution
This part replaces WH43X138. Substitute parts can look different from the original.
BEST SELLER
$59.70 |
9% OFF Phone Price : $65.70
In Stock
Washer Dampening Strap (replaces Wh01x2727) WH1X2727

#370

All parts diagram

Washer dampening strap (replaces wh01x2727)

Part #WH1X2727

BEST SELLER
$10.16 |
16% OFF Phone Price : $12.16
In Stock
Washer Control Knob (replaces We01x10033, We01x10156, We01x2721, We1x1207, We1x1208, We1x2721, Wh01x2721) WH1X2721

#19

All parts diagram

Washer control knob (replaces we01x10033, we01x10156, we01x2721, we1x1207, we1x1208, we1x2721, wh01x2721)

Part #WH1X2721

BEST SELLER
This item is not returnable
$6.00 |
14% OFF Phone Price : $7.00
In Stock
Timer Knob WE1X1208

#19

All parts diagram

Timer knob

Part #WE1X1208

Replaced by #WH1X2721

?
Manufacturer substitution
This part replaces WE1X1208. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.00 |
14% OFF Phone Price : $7.00
In Stock
Washer Drive Belt (replaces Wh01x2026, Wh1x1904) WH1X2026

#603

All parts diagram

Washer drive belt (replaces wh01x2026, wh1x1904)

Part #WH1X2026

BEST SELLER
$7.73 |
11% OFF Phone Price : $8.73
In Stock
Washer Transmission Pulley Nut WH2X1203

#411

All parts diagram

Washer transmission pulley nut

Part #WH2X1203

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Tub-to-pump Hose WH41X371

#304

All parts diagram

Washer tub-to-pump hose

Part #WH41X371

Replaced by #WH41X22935

?
Manufacturer substitution
This part replaces WH41X371. Substitute parts can look different from the original.
This item is not returnable
$15.53 |
11% OFF Phone Price : $17.53
In Stock
