Model # ERDE48NGH Official Dacor range

Here are the diagrams and repair parts for Official Dacor ERDE48NGH range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

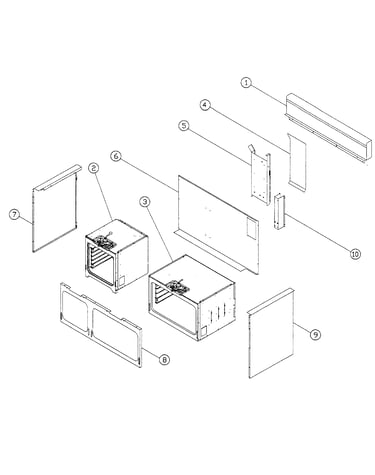

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Range Spark Module 86528
#4

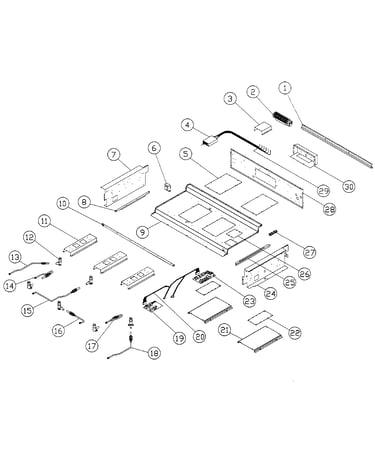

Top assy diagram

Range spark module

Part #86528

$161.99
In Stock
Range Surface Burner Cap, Large 72435SB
#8

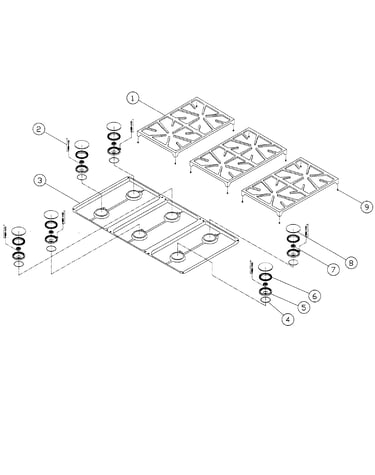

Top frame diagram

Range surface burner cap, large

Part #72435SB

$15.99
Back Order
Onen Rack 62782
#1

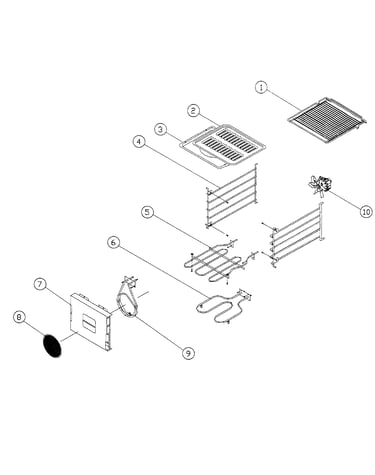

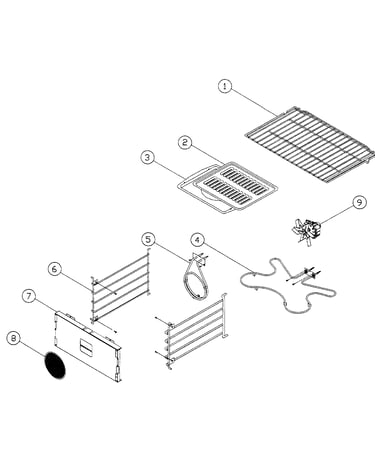

Components diagram

Onen rack

Part #62782

$81.99
Back Order
Side Suppo 36554
#24

Top assy diagram

Side suppo

Part #36554

$45.99
In Stock
Top Mnifol 36079
#1

Manifold diagram

Top mnifol

Part #36079

$34.99
In Stock
Bracket, Right 36085
#2

Manifold diagram

Bracket, right

Part #36085

This item is not returnable
$3.49
In Stock
Case 46064
#4

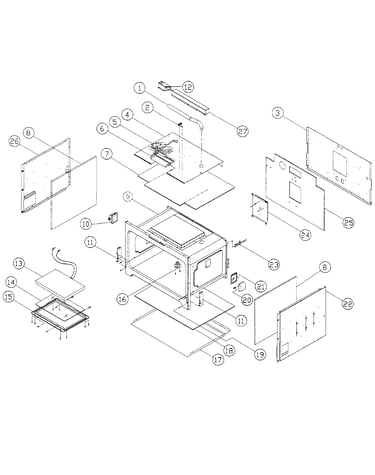

36" cell diagram

Case

Part #46064

$98.49
In Stock
Complete End Cap 62712CP
#9C

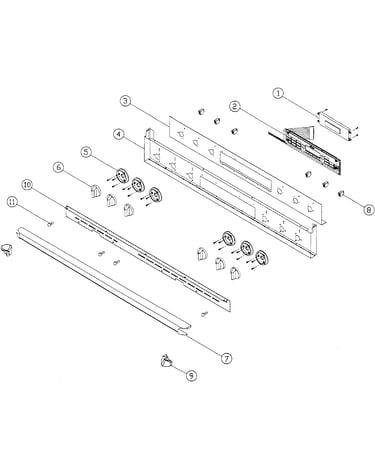

Control panel diagram

Complete end cap

Part #62712CP

$88.49
In Stock
Range Leveling Leg 700000
#11

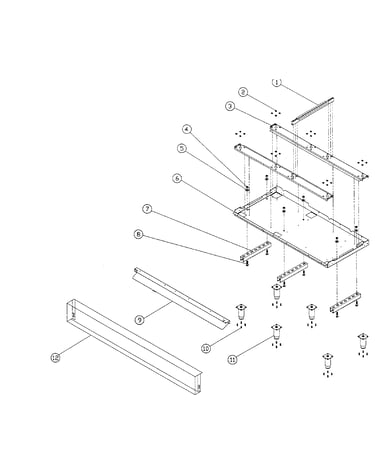

Base assy diagram

Range leveling leg

Part #700000

$37.49
In Stock
Case 26879
#4

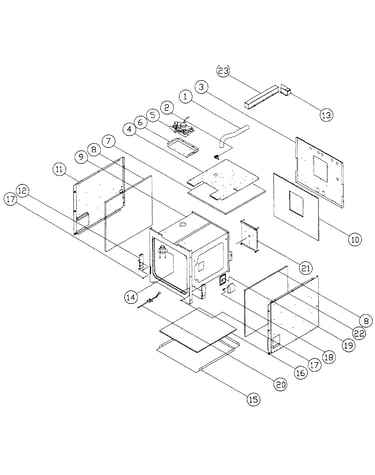

18" cell diagram

Case

Part #26879

$42.49
In Stock
