GE
Bottom-Mount Refrigerator

Model # QNE27JBMNFTS Official GE refrigerator

Here are the diagrams and repair parts for Official GE QNE27JBMNFTS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

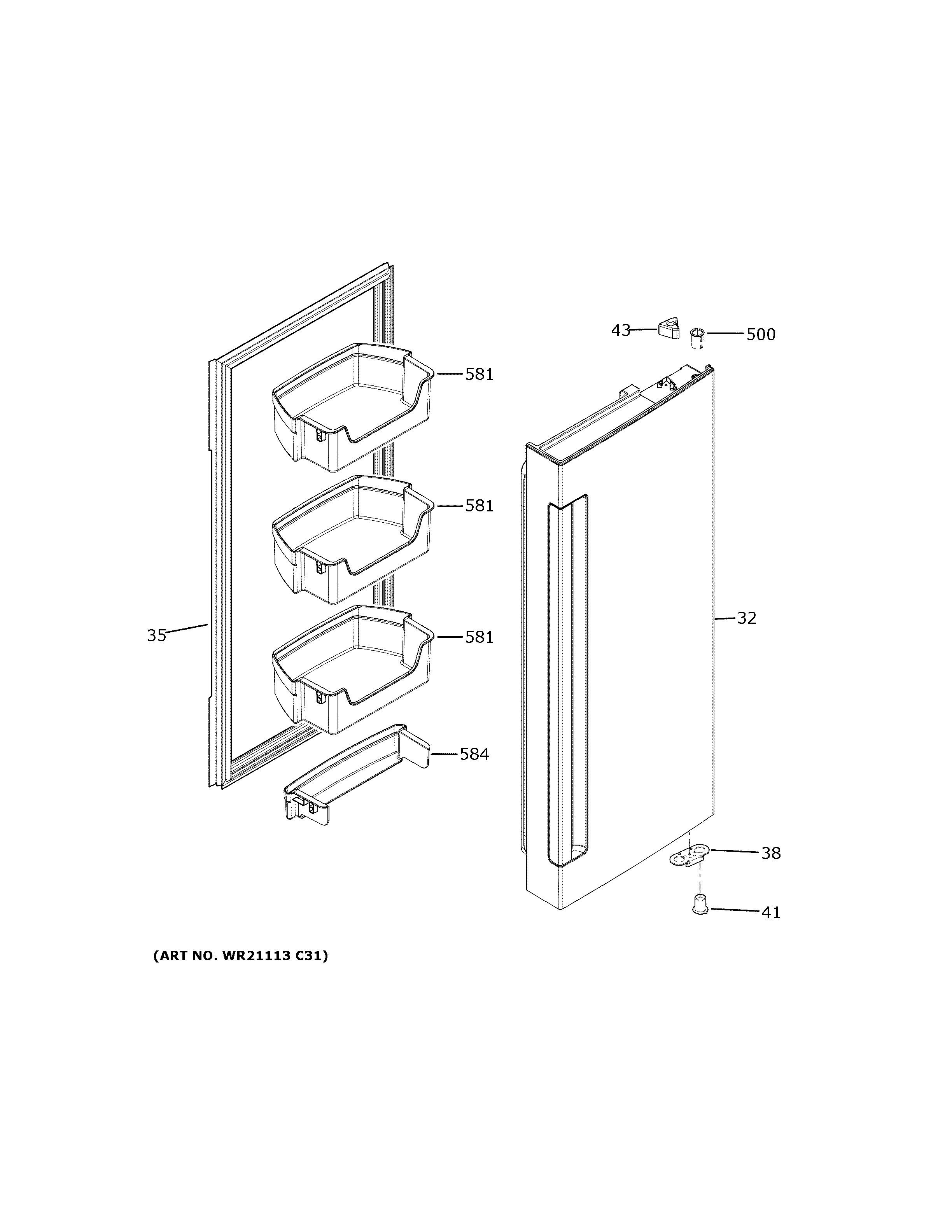

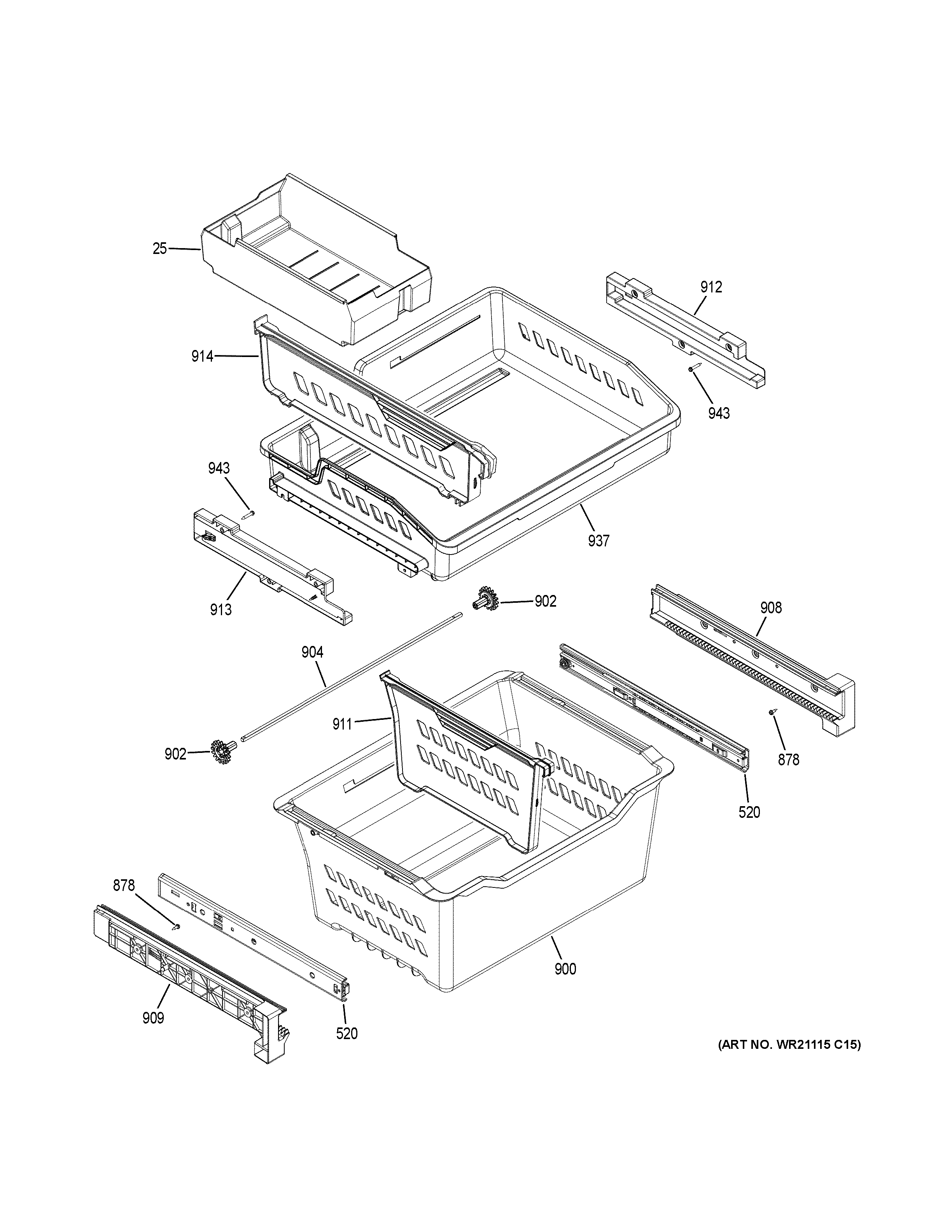

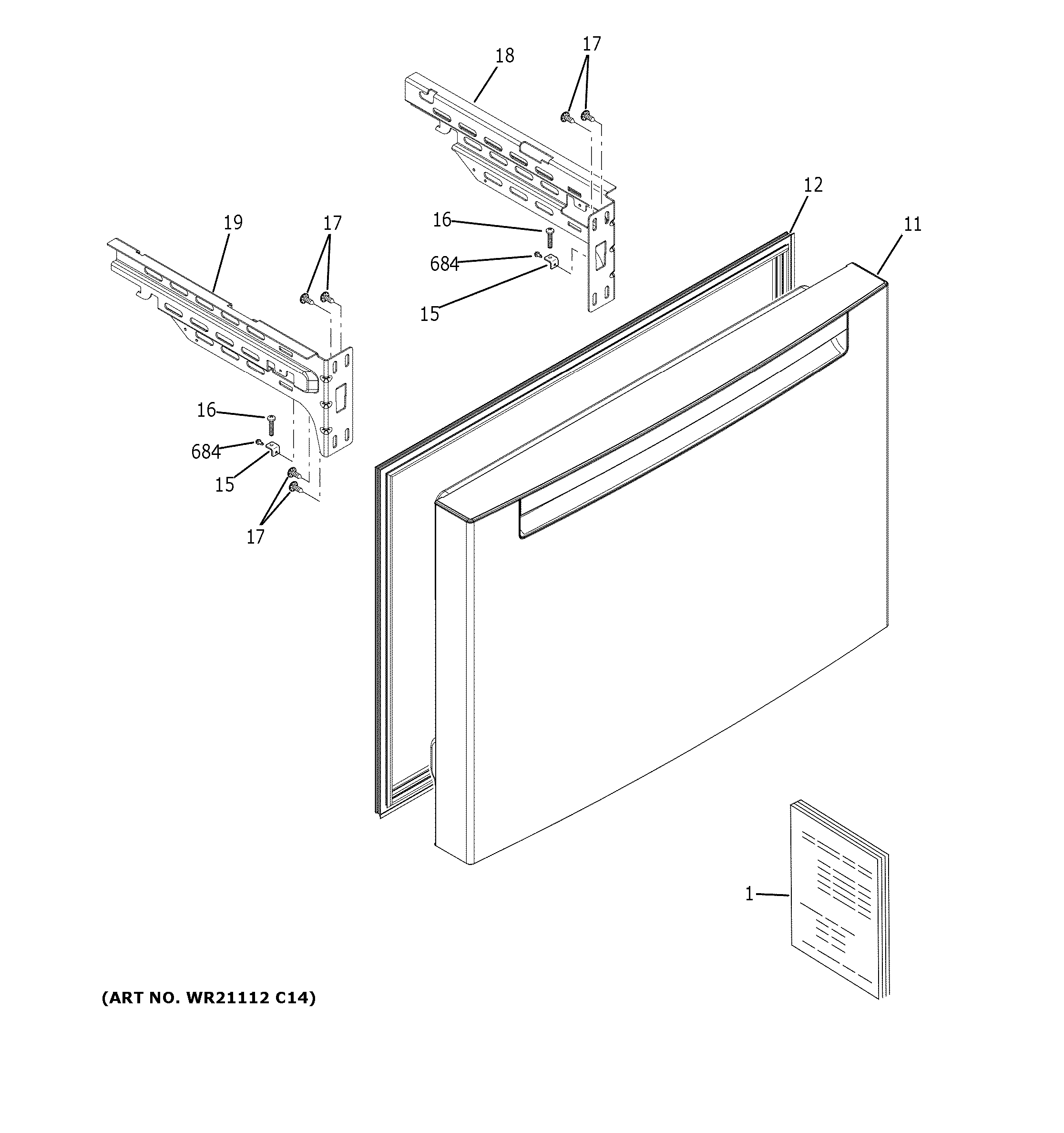

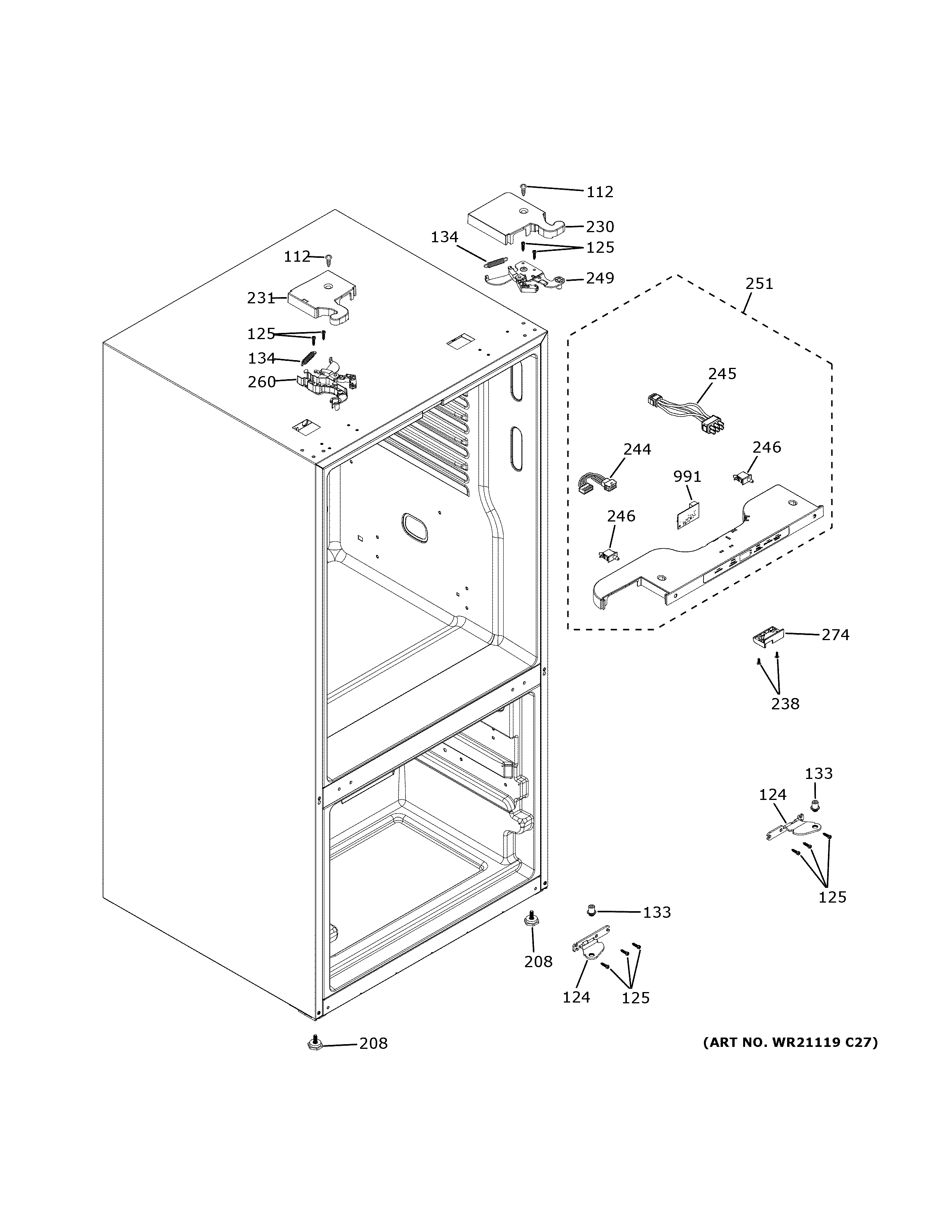

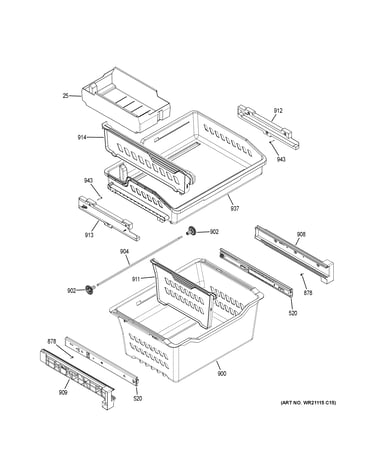

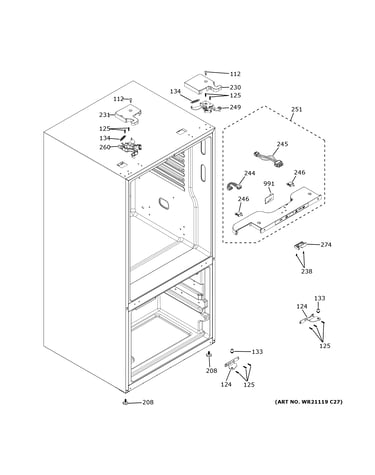

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Dryer Filter WR86X0096
#740

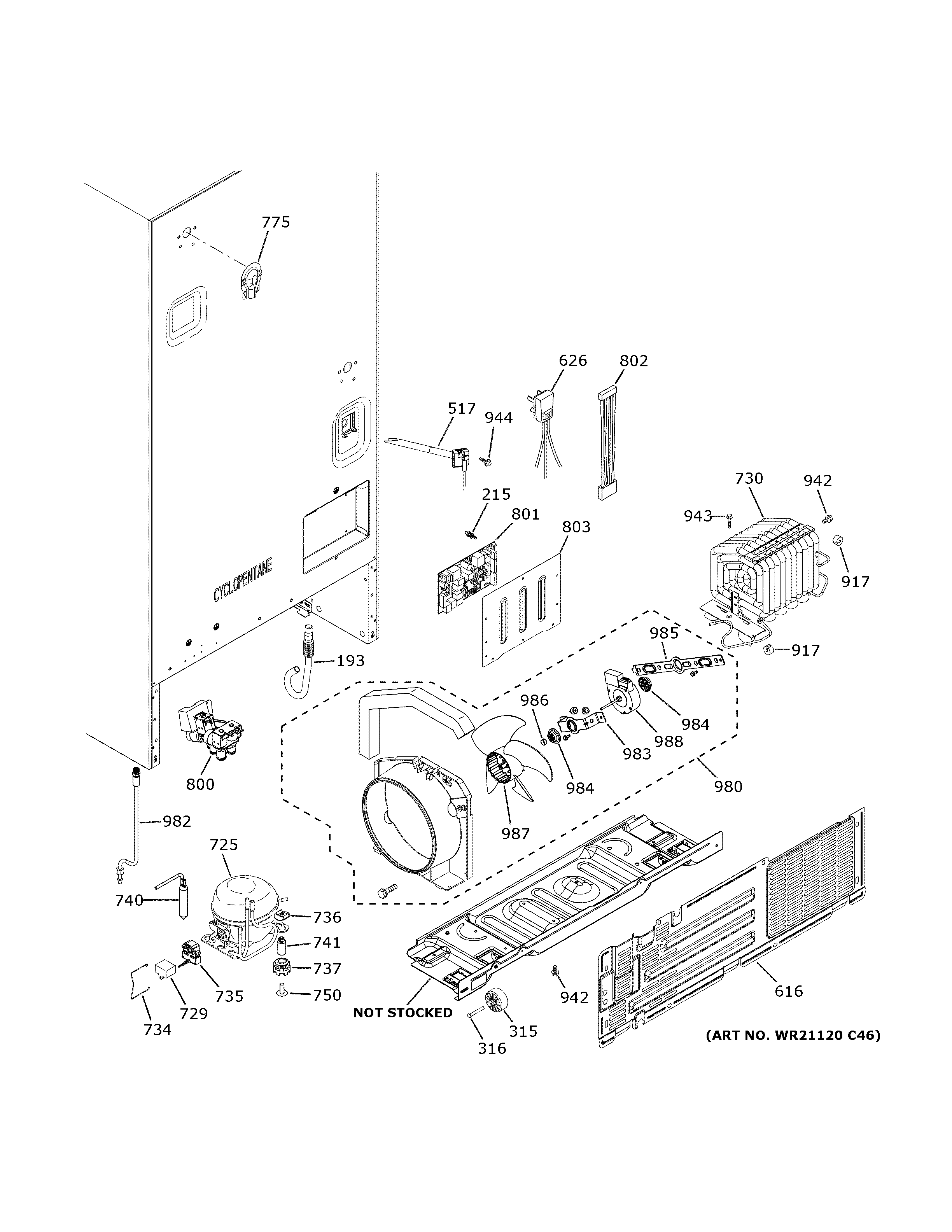

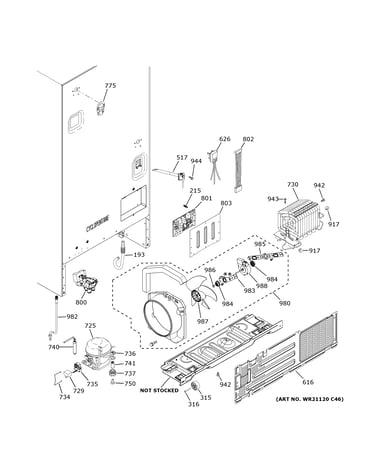

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Water Inlet Valve WR57X30891
#800

Machine compartment diagram

Refrigerator water inlet valve

Part #WR57X30891

Replaced by #WR57X30890

?
Manufacturer substitution
This part replaces WR57X30891. Substitute parts can look different from the original.
BEST SELLER
$78.92 |
7% OFF Phone Price : $84.92
In Stock
Hotpoint Ge Refrigerator Water Filter (replaces Xwf) XWFE
#281

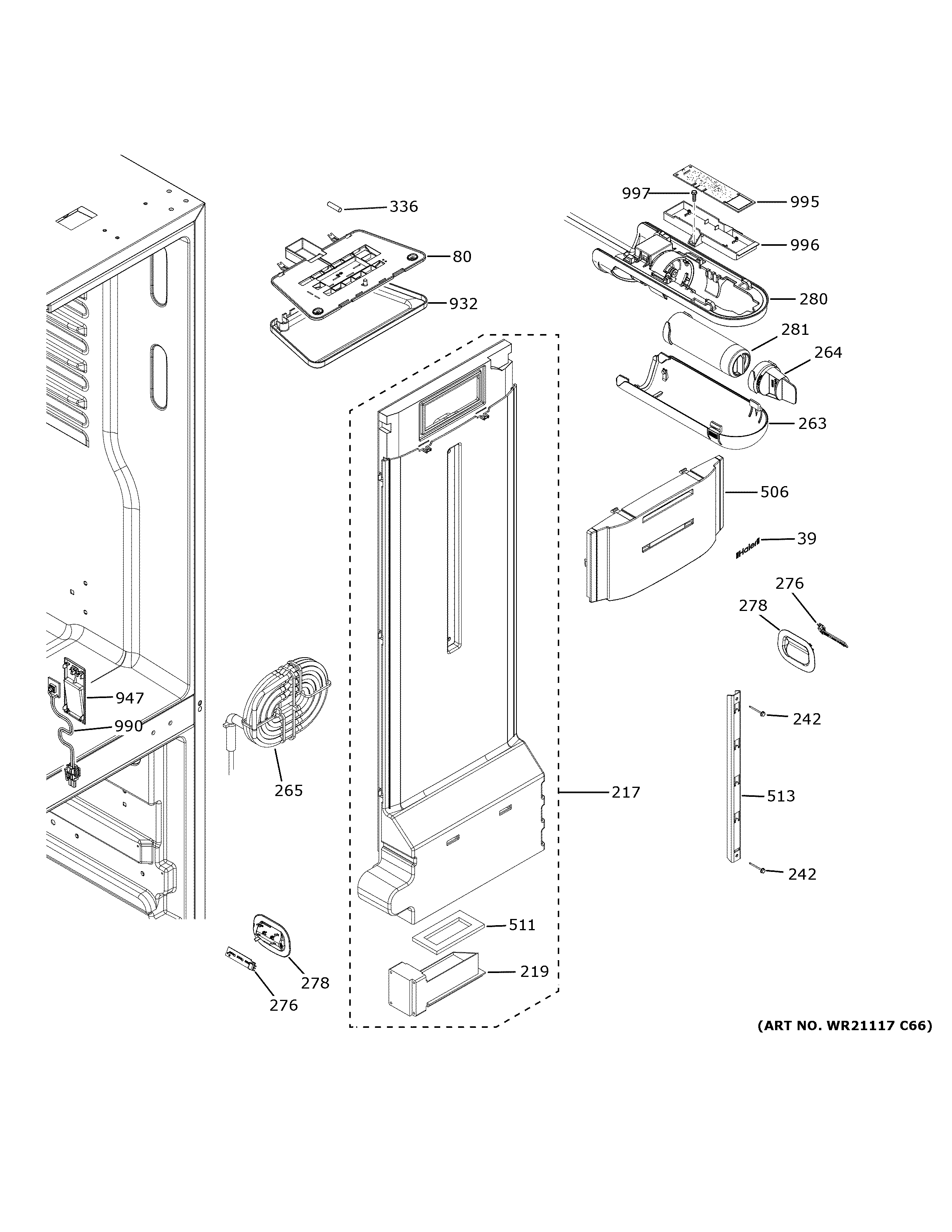

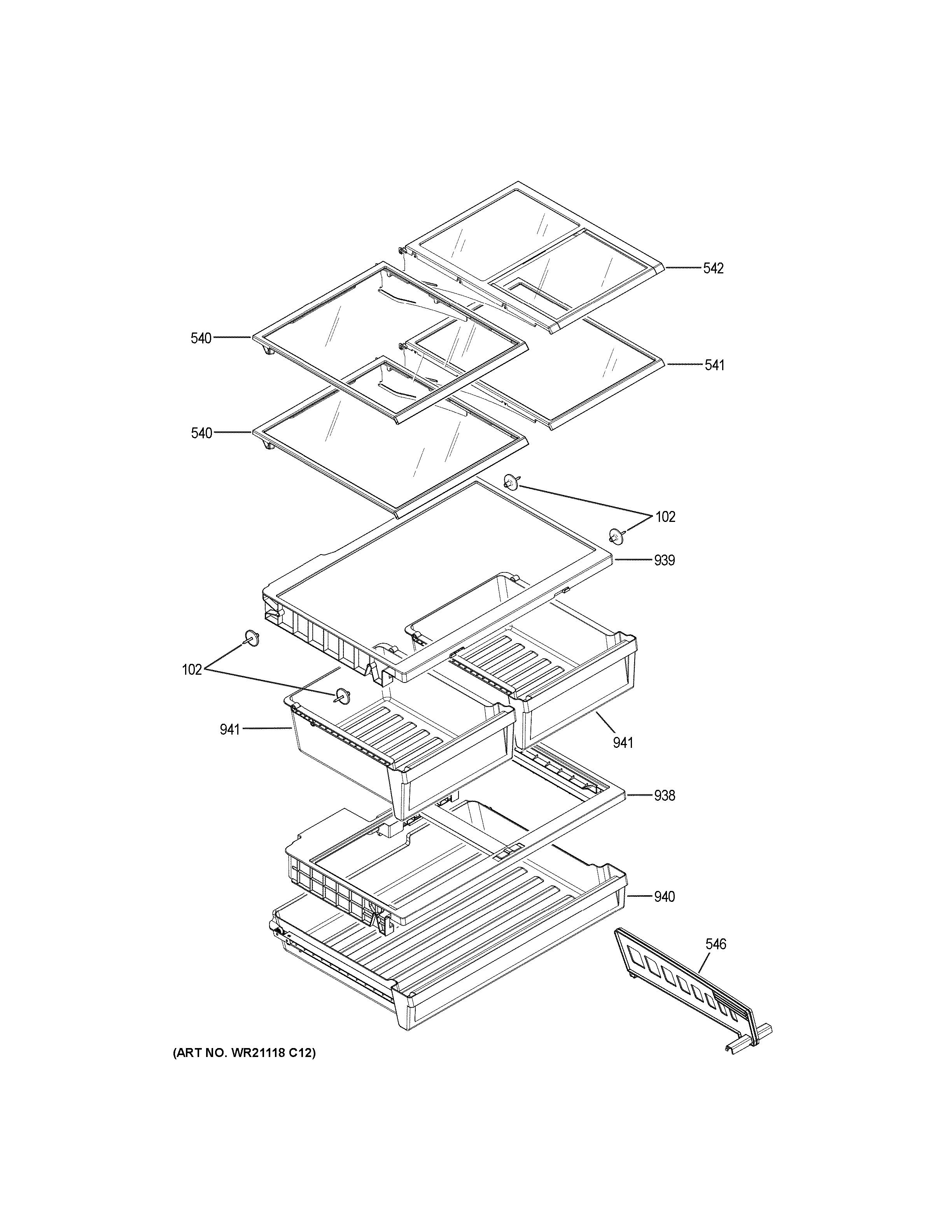

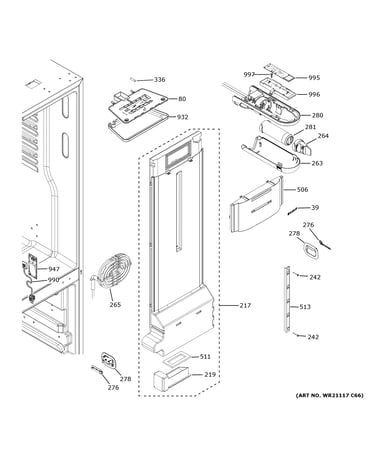

Fresh food section diagram

Hotpoint ge refrigerator water filter (replaces xwf)

Part #XWFE

BEST SELLER

Get free shipping with Automatic Reorder

$71.06 |
8% OFF Phone Price : $77.06
In Stock
Hotpoint Refrigerator Evaporator Fan Blade (replaces Wr60x10208) WR60X30922
#229

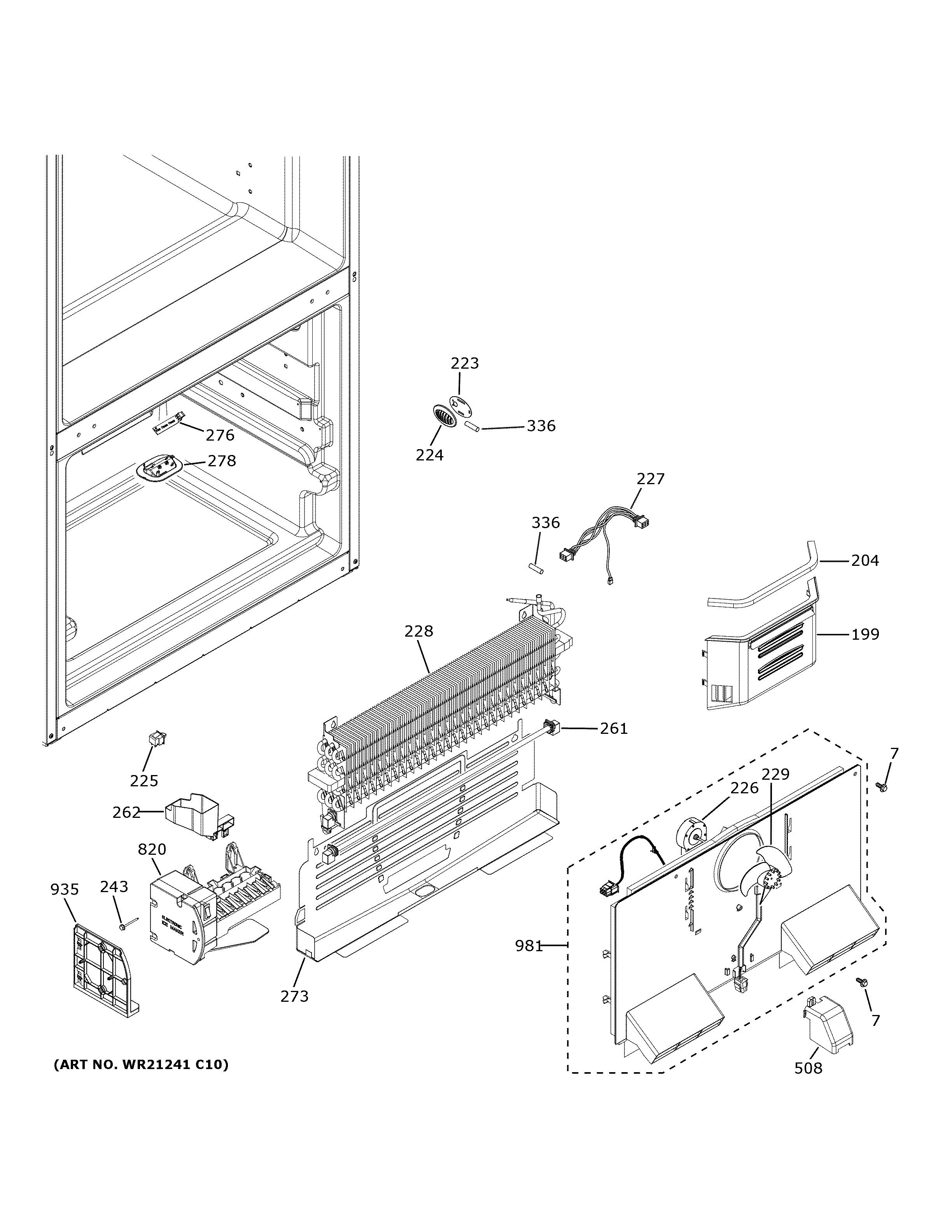

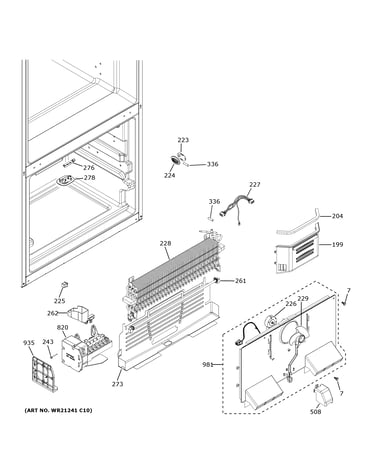

Freezer section diagram

Hotpoint refrigerator evaporator fan blade (replaces wr60x10208)

Part #WR60X30922

BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Refrigerator Flipper Assembly WR17X25027
#66

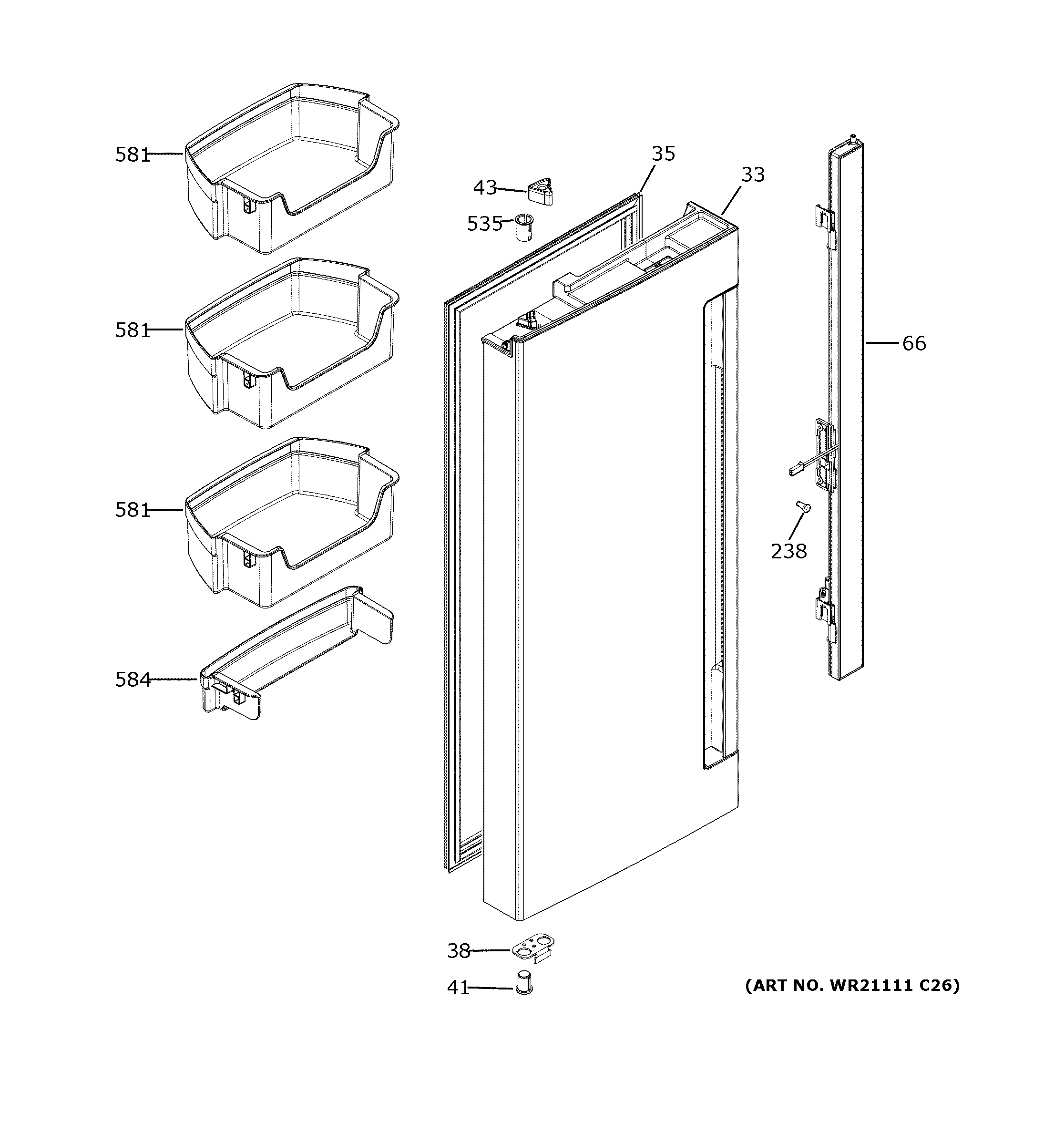

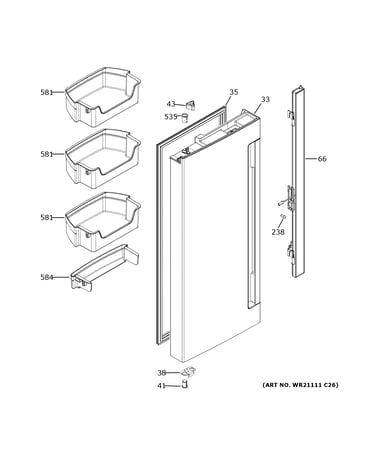

Fresh food door - lh diagram

Refrigerator flipper assembly

Part #WR17X25027

BEST SELLER
$185.89 |
6% OFF Phone Price : $197.89
In Stock
Refrigerator Air Damper (replaces Wr31x20918) WR60X27396
#219

Fresh food section diagram

Refrigerator air damper (replaces wr31x20918)

Part #WR60X27396

BEST SELLER
$118.81 |
9% OFF Phone Price : $130.81
In Stock
Compressor Assembly WR87X27951
#725

Machine compartment diagram

Compressor assembly

Part #WR87X27951

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X27951. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Water Filter Bypass (replaces Wr17x30044) WR17X33825
#264

Fresh food section diagram

Refrigerator water filter bypass (replaces wr17x30044)

Part #WR17X33825

BEST SELLER
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Duct Air Tower Ff Assembly WR14X25128
#217

Fresh food section diagram

Duct air tower ff assembly

Part #WR14X25128

BEST SELLER
$79.96
In Stock
