Model # FGES3065PFH Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FGES3065PFH electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

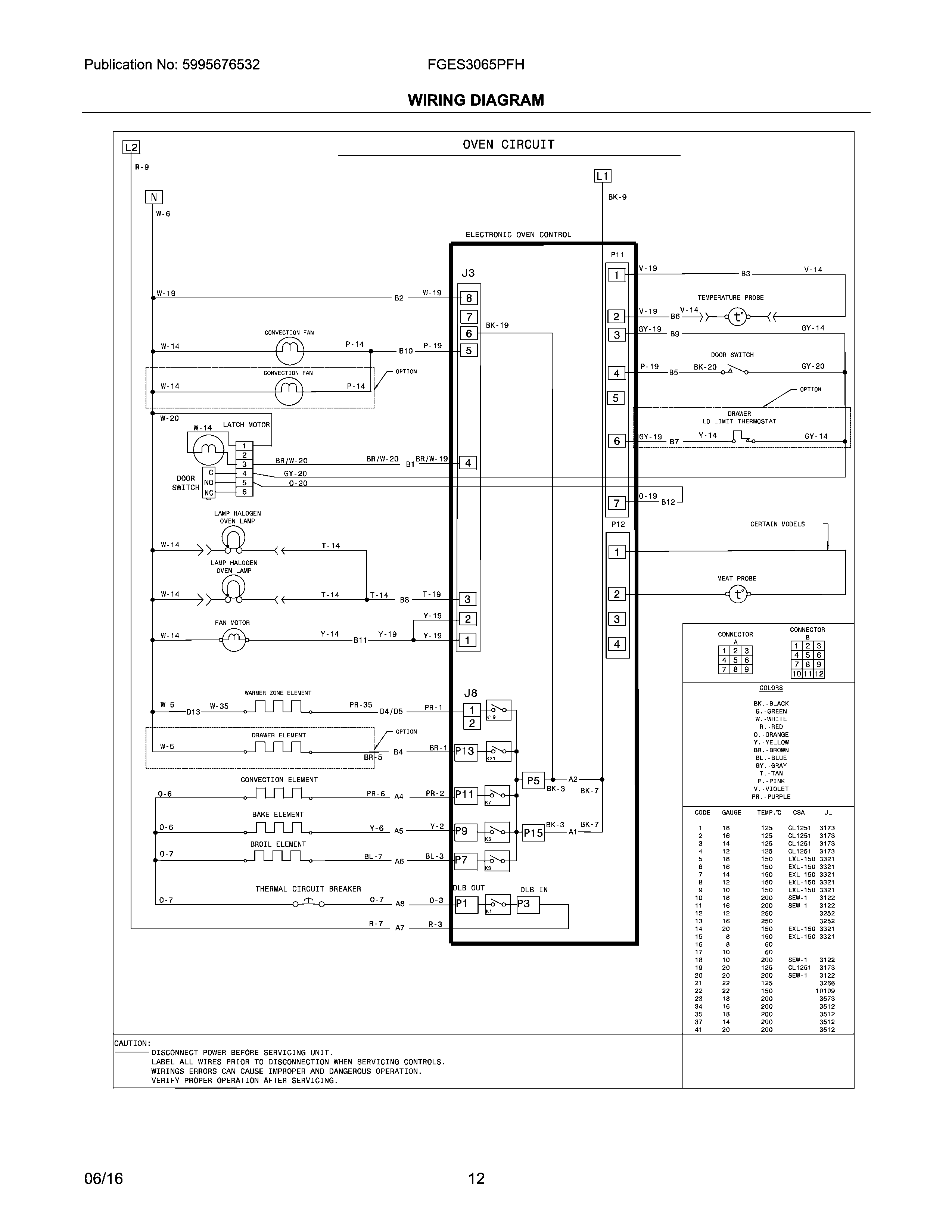

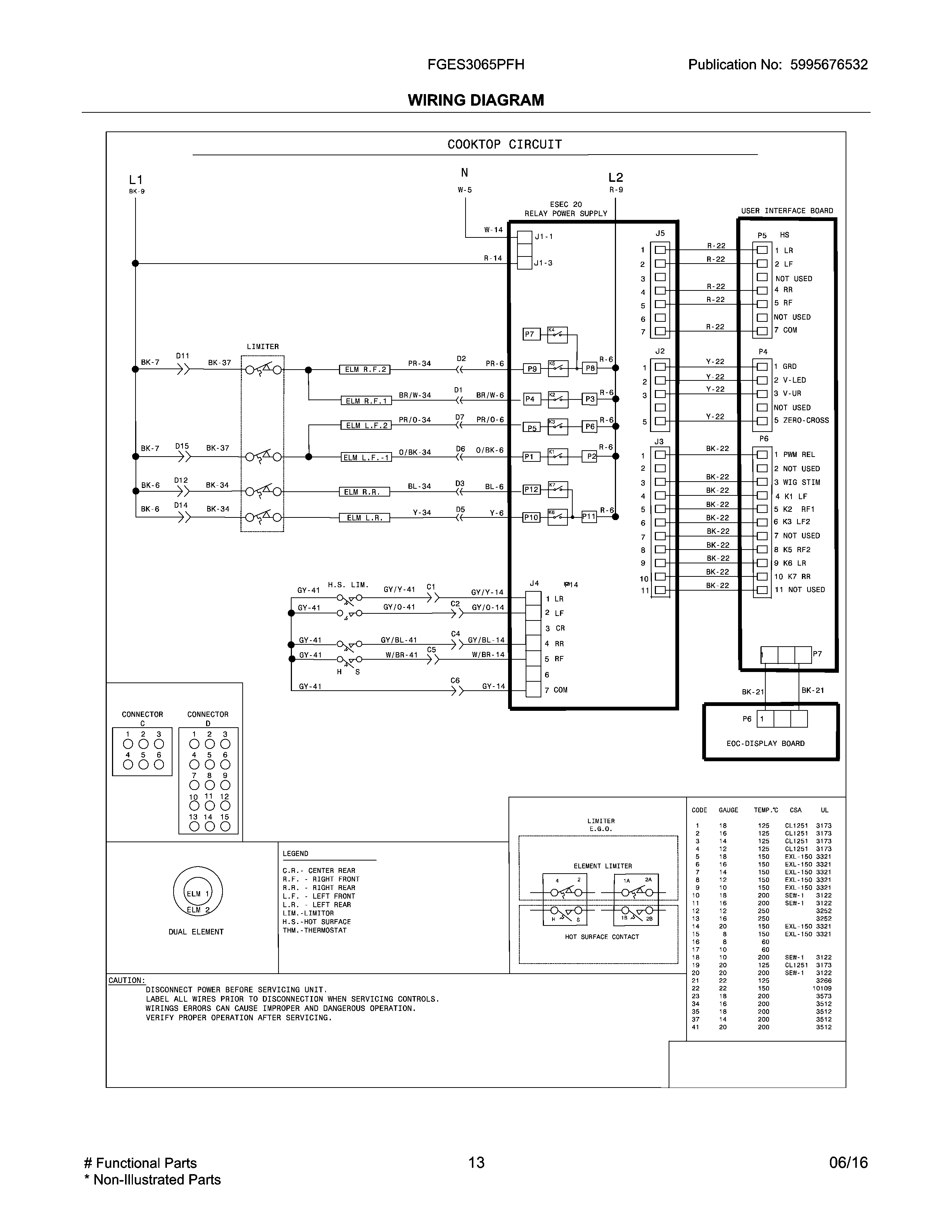

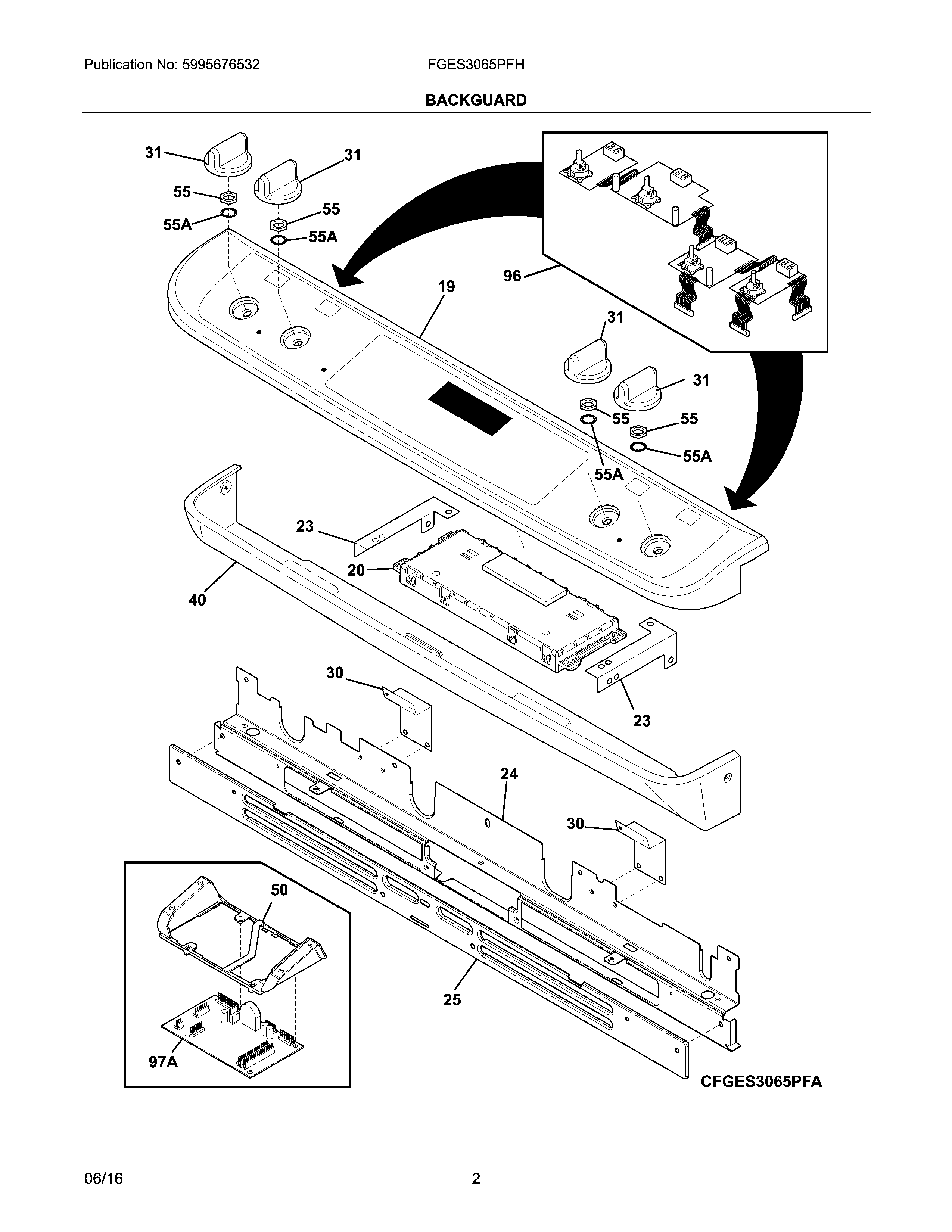

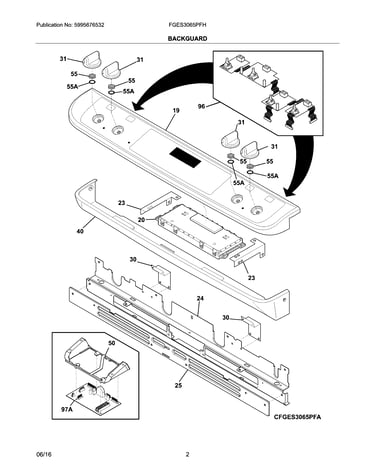

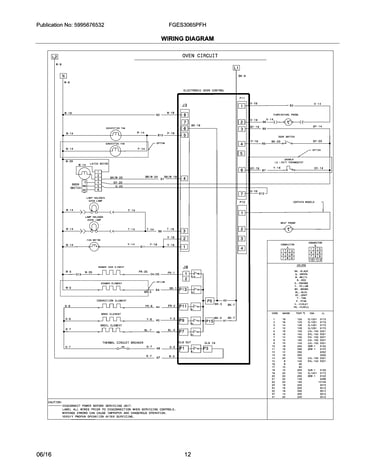

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

Top/drawer diagram

Range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$138.09 |
8% OFF Phone Price : $150.09
In Stock
Range Oven Door Inner Glass 316117504
#8

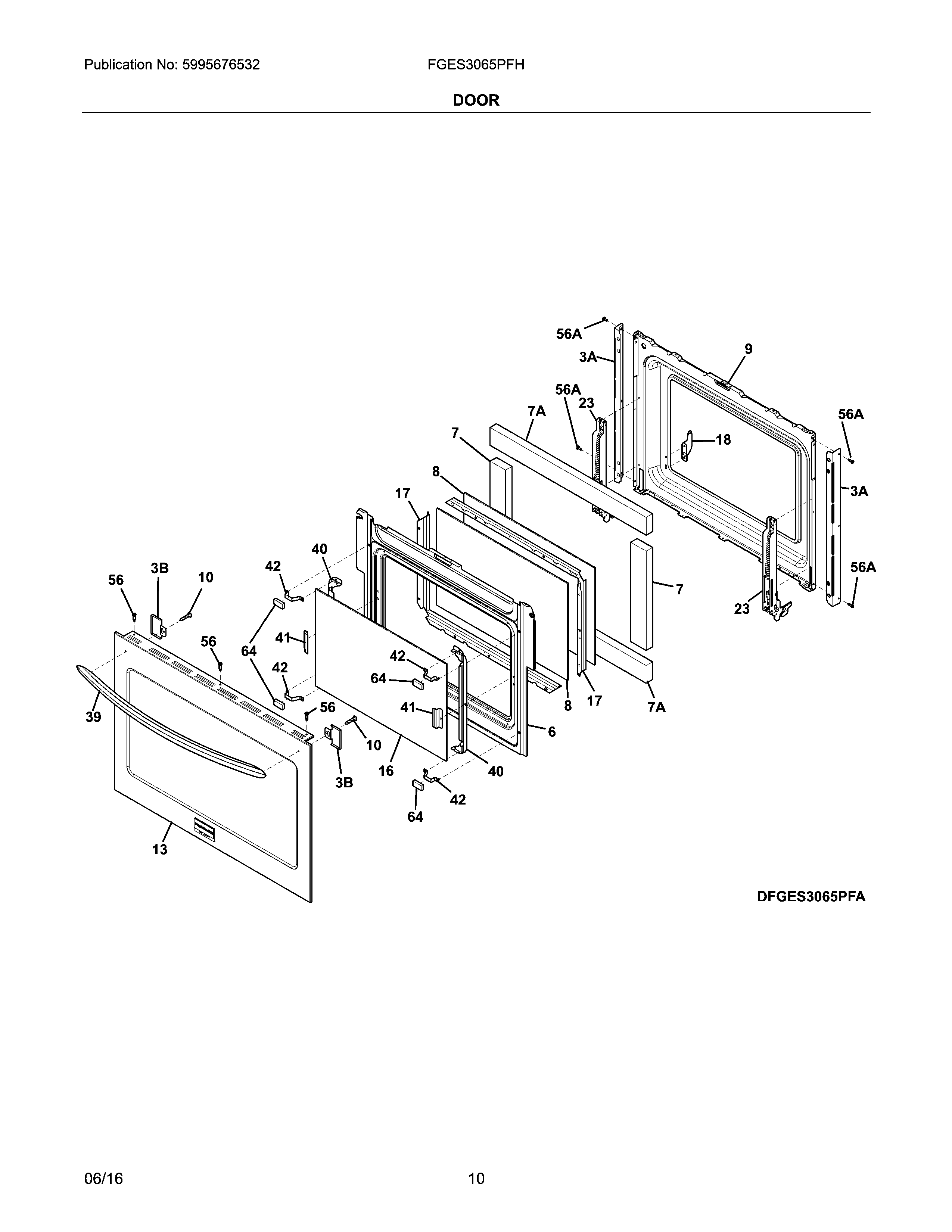

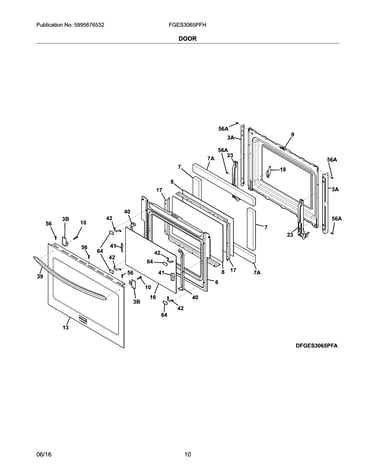

Door diagram

Range oven door inner glass

Part #316117504

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117504. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Tappan Range Dual Radiant Surface Element (replaces 316465002) 316282000
#15A

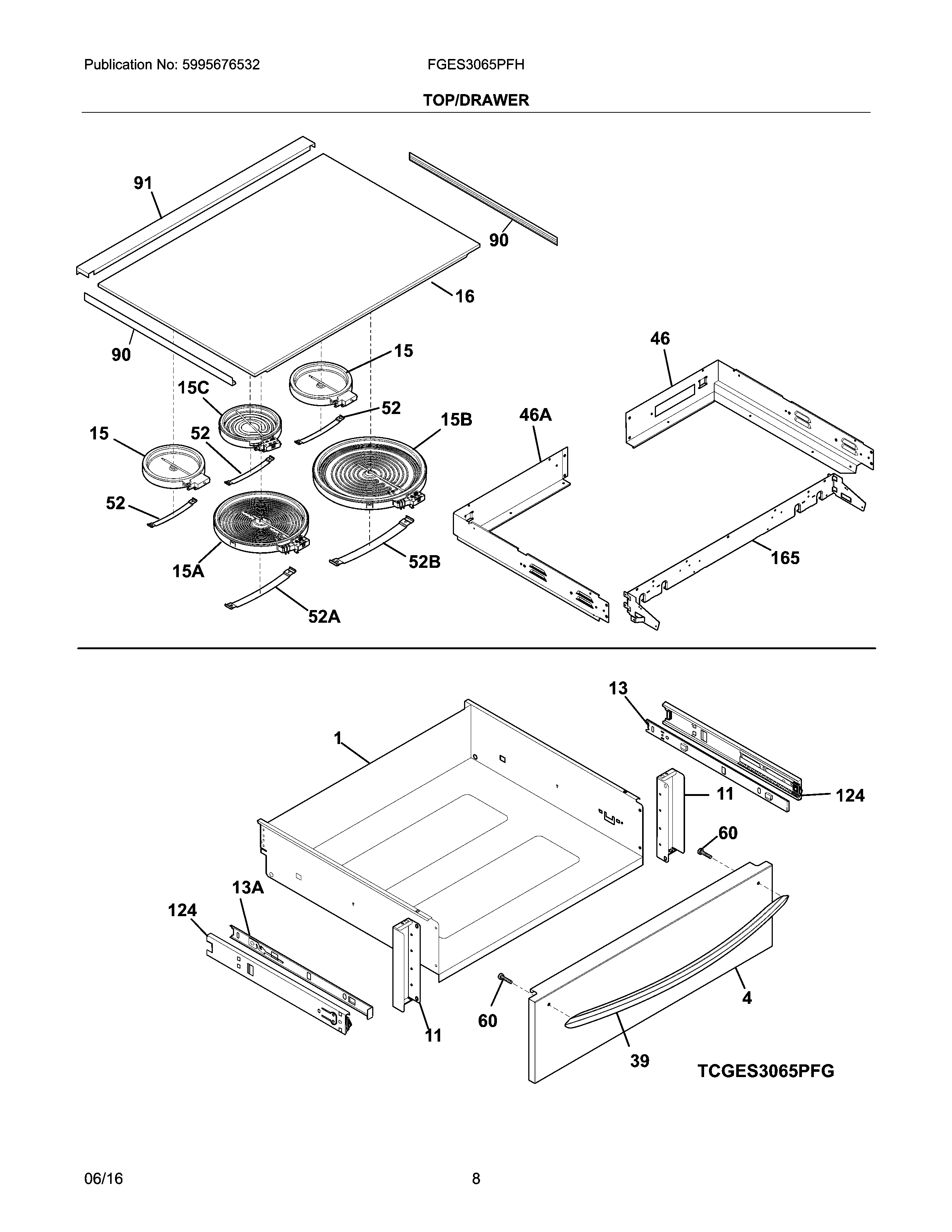

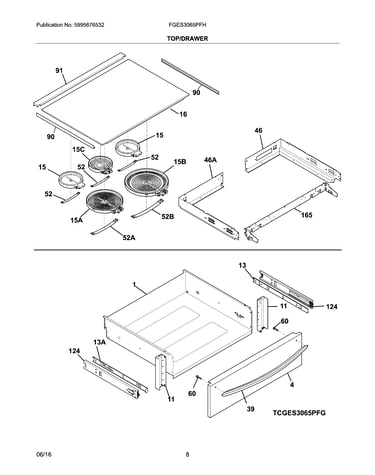

Top/drawer diagram

Tappan range dual radiant surface element (replaces 316465002)

Part #316282000

BEST SELLER
$125.58 |
9% OFF Phone Price : $137.58
In Stock
Terminal Block 5303935061
#62

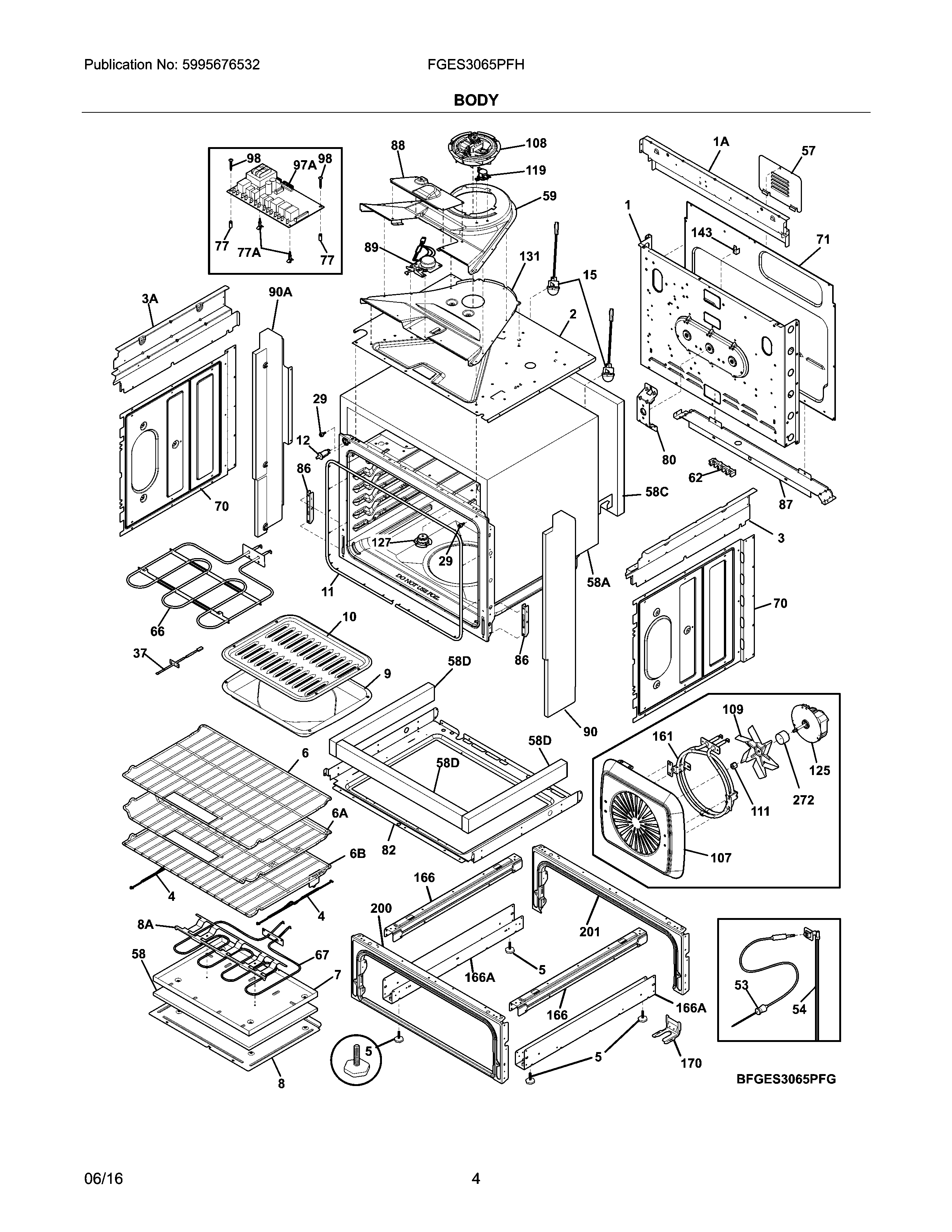

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Blade 139009100
#109

Body diagram

Blade

Part #139009100

Replaced by #318398302

?
Manufacturer substitution
This part replaces 139009100. Substitute parts can look different from the original.
BEST SELLER
$23.89 |
20% OFF Phone Price : $29.89
In Stock
Element 316282102
#15B

Top/drawer diagram

Element

Part #316282102

Replaced by #316282101

?
Manufacturer substitution
This part replaces 316282102. Substitute parts can look different from the original.
BEST SELLER
$172.14 |
7% OFF Phone Price : $184.14
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Body diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Range Broil Element 139008900
#66

Body diagram

Range broil element

Part #139008900

Replaced by #5304521498

?
Manufacturer substitution
This part replaces 139008900. Substitute parts can look different from the original.
BEST SELLER
$57.76 |
9% OFF Phone Price : $63.76
In Stock
Range Control Panel Cooling Fan 318575612
#108

Body diagram

Range control panel cooling fan

Part #318575612

$167.94 |
7% OFF Phone Price : $179.94
In Stock
Range Oven Meat Probe Sensor (replaces 5304514885) 5304504202
#53

Body diagram

Range oven meat probe sensor (replaces 5304514885)

Part #5304504202

$92.28 |
6% OFF Phone Price : $98.28
In Stock
