Model # 48624532 Official Craftsman power sprayer

Here are the diagrams and repair parts for Official Craftsman 48624532 power sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343
#49

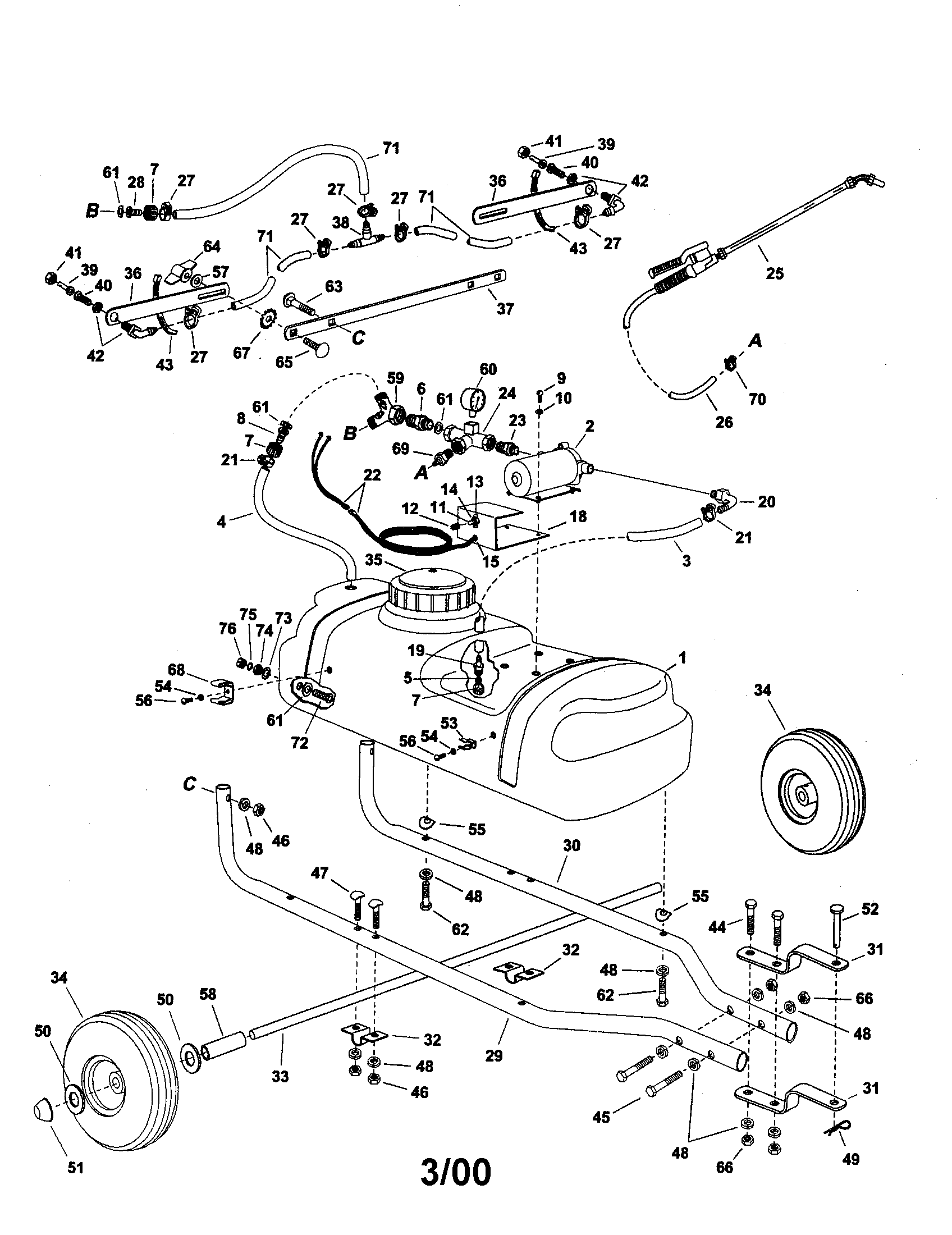

15 gallon 70 psi sprayer diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

BEST SELLER
This item is not returnable
$2.16
Back Order
Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
#57

15 gallon 70 psi sprayer diagram

Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn & Garden Equipment Lock Washer 43086
#48

15 gallon 70 psi sprayer diagram

Lawn & garden equipment lock washer

Part #43086

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Push Nut 44663
#51

15 gallon 70 psi sprayer diagram

Lawn & garden equipment push nut

Part #44663

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Cable Tie (replaces 725-0157, 926-0240, Gw-h212980) 726-0178
#43

15 gallon 70 psi sprayer diagram

Lawn tractor cable tie (replaces 725-0157, 926-0240, gw-h212980)

Part #726-0178

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Washer 44732
#67

15 gallon 70 psi sprayer diagram

Lawn & garden equipment washer

Part #44732

This item is not returnable
$2.16
In Stock
Lawn Tractor Sprayer Attachment Boom Bar Spray Nozzle 45028
#39

15 gallon 70 psi sprayer diagram

Lawn tractor sprayer attachment boom bar spray nozzle

Part #45028

This item is not returnable
$3.19 |
24% OFF Phone Price : $4.19
In Stock
Lawn Tractor Tow Bar Attachment Hitch Bracket 23014
#31

15 gallon 70 psi sprayer diagram

Lawn tractor tow bar attachment hitch bracket

Part #23014

Replaced by #23014BL1

?
Manufacturer substitution
This part replaces 23014. Substitute parts can look different from the original.
This item is not returnable
$15.80 |
11% OFF Phone Price : $17.80
Back Order
Lawn Tractor Attachment Hitch Pin 47623
#52

15 gallon 70 psi sprayer diagram

Lawn tractor attachment hitch pin

Part #47623

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Carriage Bolt 43682
#65

15 gallon 70 psi sprayer diagram

Lawn & garden equipment carriage bolt

Part #43682

This item is not returnable
$2.16
Back Order
