Model # LC-26DV20U Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-26DV20U lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Memorex Integrated Circuit I1KJ9A431A
#NI

Cabinet parts 1 diagram

Memorex integrated circuit

Part #I1KJ9A431A

The manufacturer no longer makes this part, and there's no substitute part

Cap,470pf CD39B0MQ2K
#NI

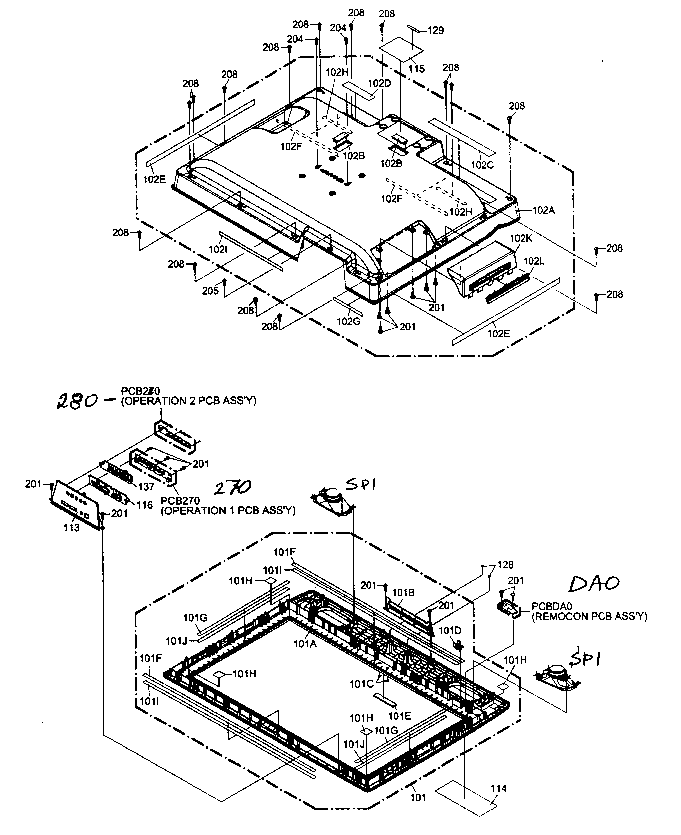

Cabinet parts 1 diagram

Cap,470pf

Part #CD39B0MQ2K

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit I07F0C0WF0
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #I07F0C0WF0

The manufacturer no longer makes this part, and there's no substitute part

Cap,220 Uf E5EZU2221M
#NI

Cabinet parts 1 diagram

Cap,220 uf

Part #E5EZU2221M

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit ICLJ022ET5
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #ICLJ022ET5

The manufacturer no longer makes this part, and there's no substitute part

Sharp Sw Pcb A5X002C640
#640

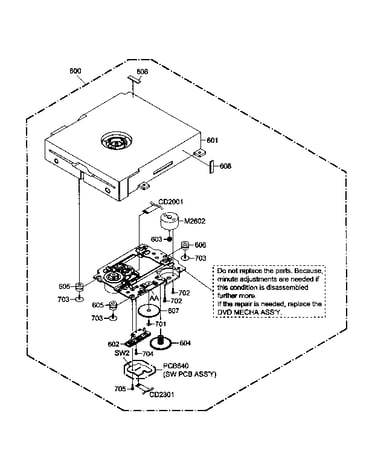

Cabinet parts 3 diagram

Sharp sw pcb

Part #A5X002C640

The manufacturer no longer makes this part, and there's no substitute part

Stand 704WPB0021
#104A

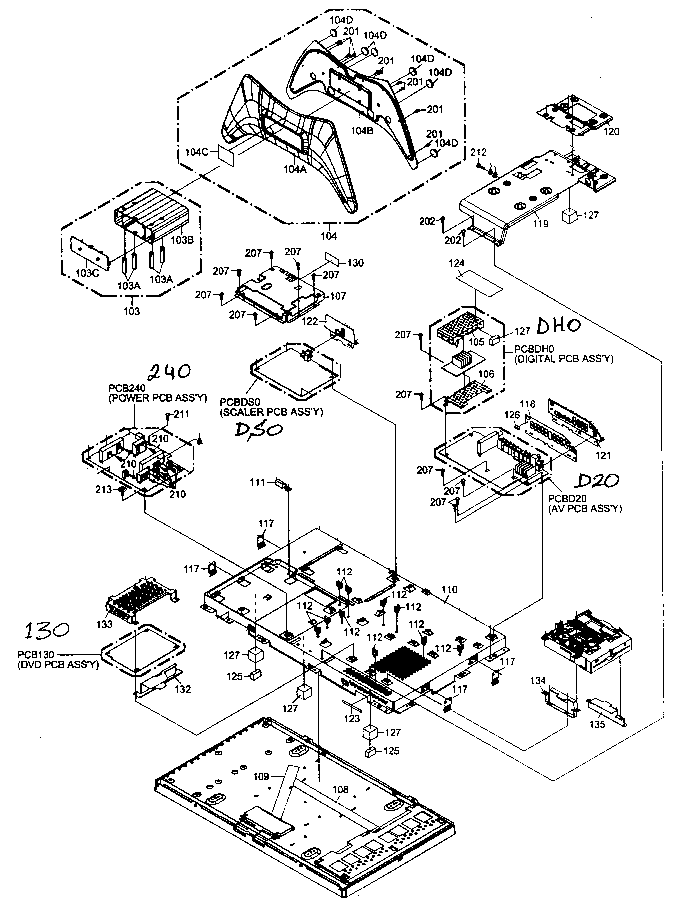

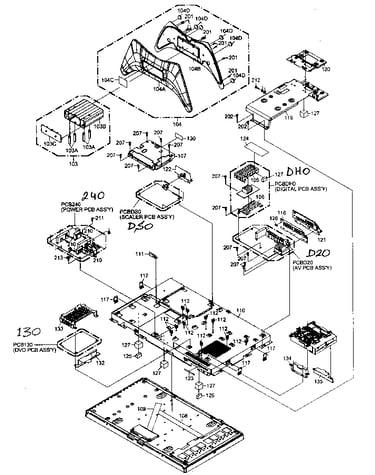

Cabinet parts 2 diagram

Stand

Part #704WPB0021

The manufacturer no longer makes this part, and there's no substitute part

Cap,590 Uf E71LFC591D
#NI

Cabinet parts 1 diagram

Cap,590 uf

Part #E71LFC591D

The manufacturer no longer makes this part, and there's no substitute part

Cap,1000 U E61FF2102D
#NI

Cabinet parts 1 diagram

Cap,1000 u

Part #E61FF2102D

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Diode D6E027110A
#NI

Cabinet parts 1 diagram

Panasonic diode

Part #D6E027110A

The manufacturer no longer makes this part, and there's no substitute part
