Craftsman
Lawn Edger

Model # 358796481 Official Craftsman edger

Here are the diagrams and repair parts for Official Craftsman 358796481 edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Edger Height Adjuster Knob 530402881
#41

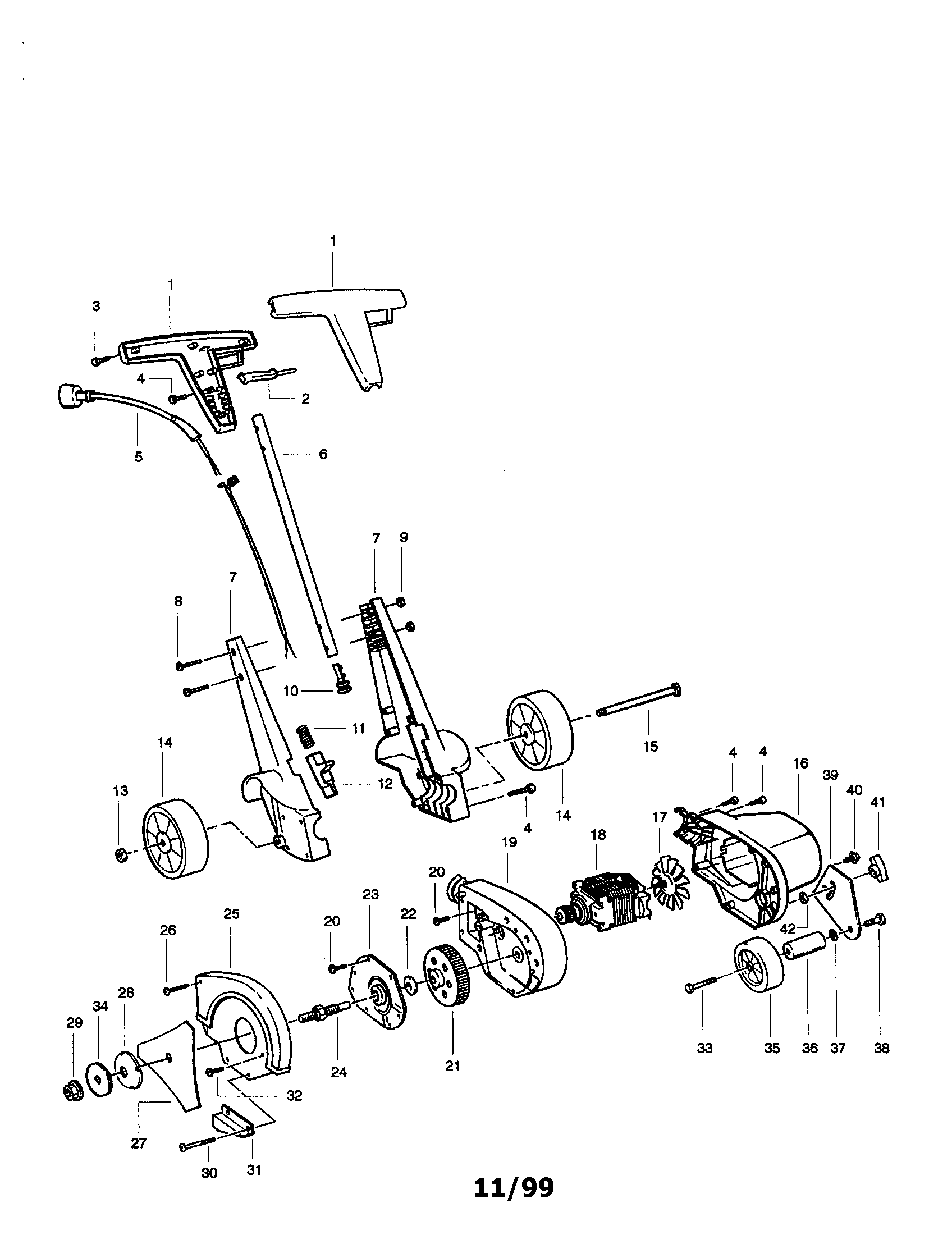

Edger diagram

Edger height adjuster knob

Part #530402881

This item is not returnable
$7.40
In Stock
Screw 530016248
#20

Edger diagram

Screw

Part #530016248

Replaced by #530015814

?
Manufacturer substitution
This part replaces 530016248. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Screw 530016244
#4

Edger diagram

Screw

Part #530016244

The manufacturer no longer makes this part, and there's no substitute part

Edger Rear Axle Housing 530402950
#7

Edger diagram

Edger rear axle housing

Part #530402950

The manufacturer no longer makes this part, and there's no substitute part

Edger Bearing 530402912
#23

Edger diagram

Edger bearing

Part #530402912

The manufacturer no longer makes this part, and there's no substitute part

Edger Screw 530016243
#26

Edger diagram

Edger screw

Part #530016243

The manufacturer no longer makes this part, and there's no substitute part

Motor 530402866
#18

Edger diagram

Motor

Part #530402866

The manufacturer no longer makes this part, and there's no substitute part

Edger Screw 530402888
#8

Edger diagram

Edger screw

Part #530402888

The manufacturer no longer makes this part, and there's no substitute part

Edger Nut 530016245
#13

Edger diagram

Edger nut

Part #530016245

The manufacturer no longer makes this part, and there's no substitute part

Screw 530016246
#3

Edger diagram

Screw

Part #530016246

The manufacturer no longer makes this part, and there's no substitute part
