Speed Queen
Dryer

Model # ADG4BRGS115TW01-THRU-S#1912999999 Official Speed Queen dryer

Here are the diagrams and repair parts for Official Speed Queen ADG4BRGS115TW01-THRU-S1912999999 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

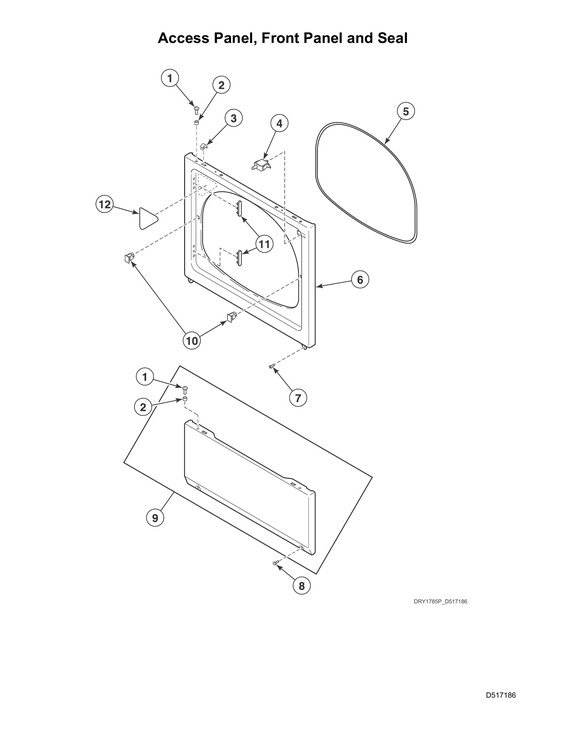

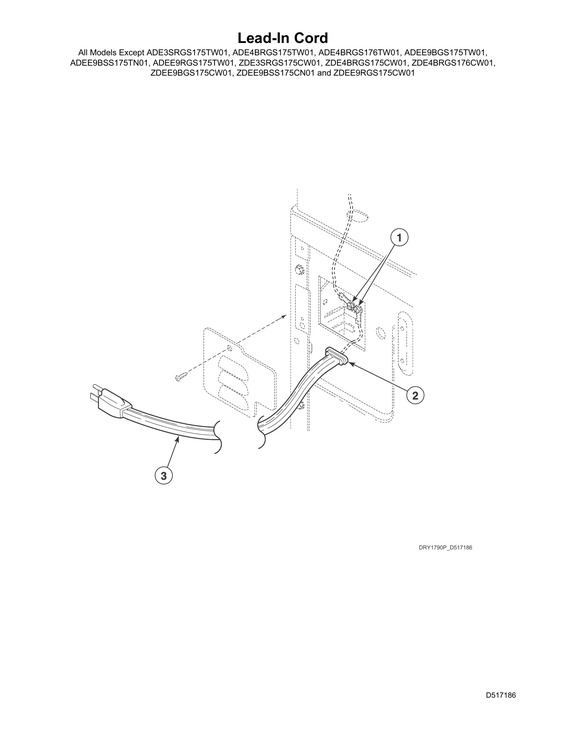

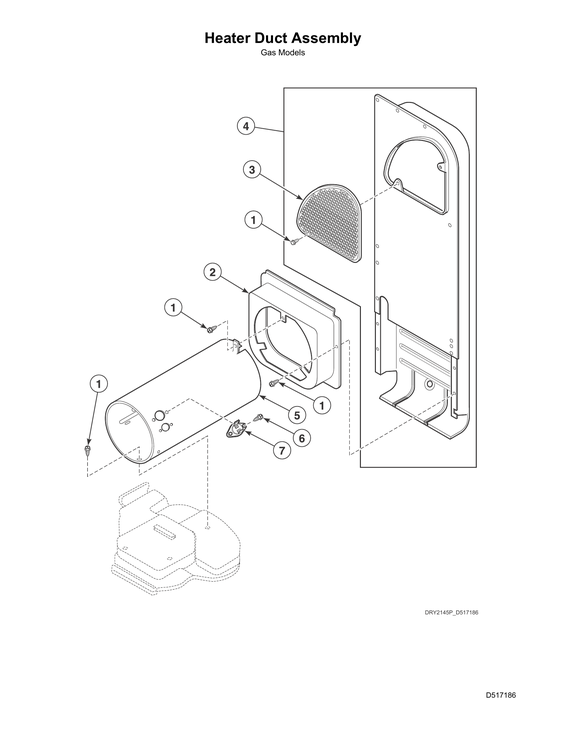

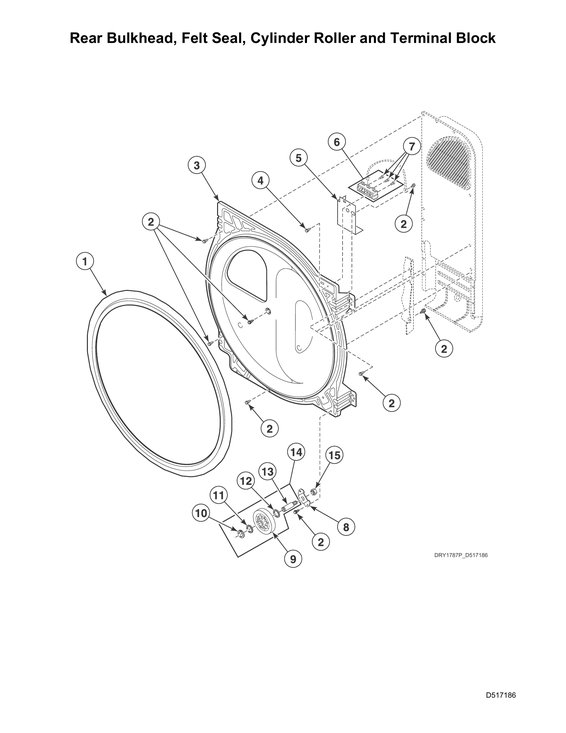

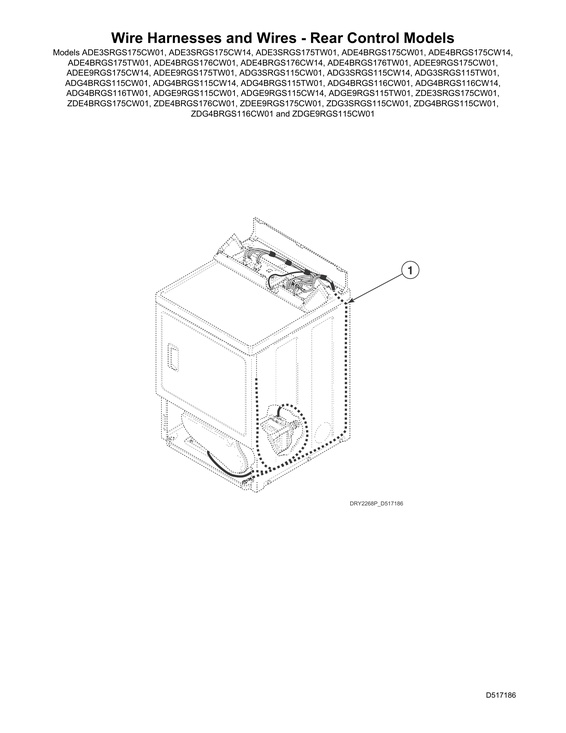

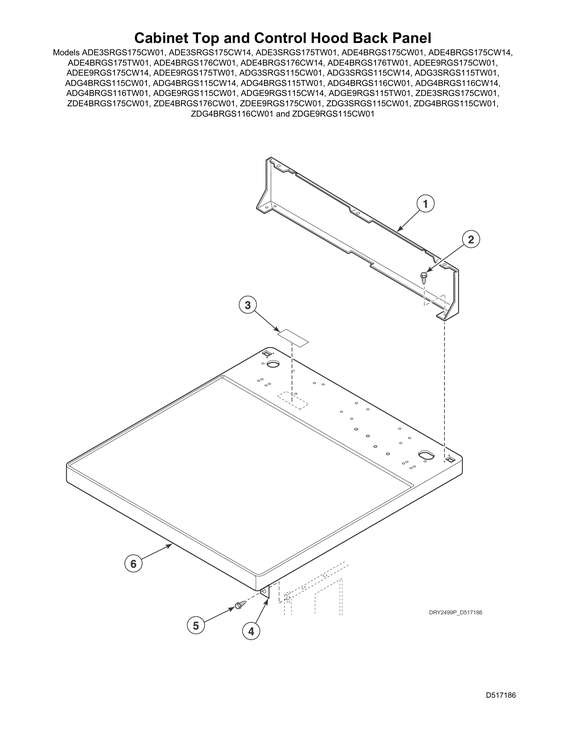

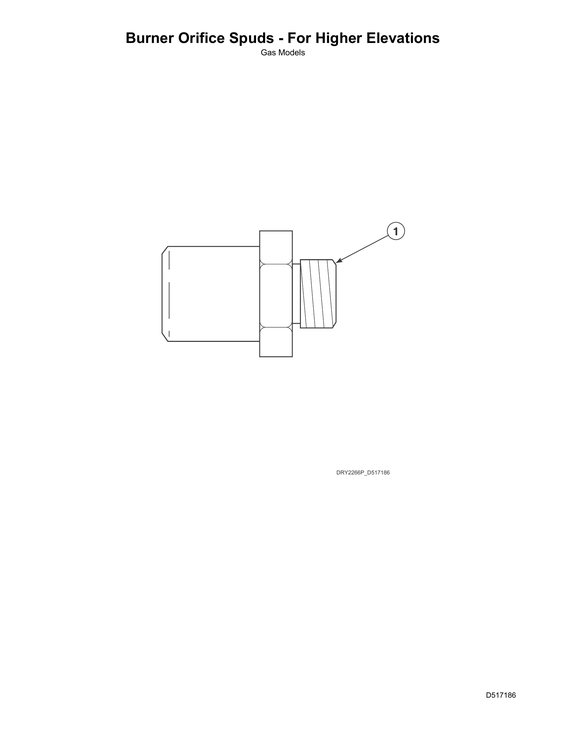

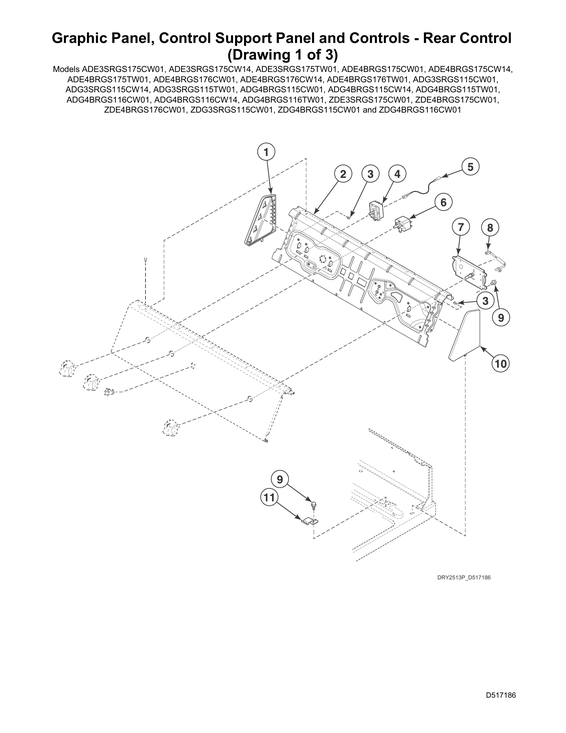

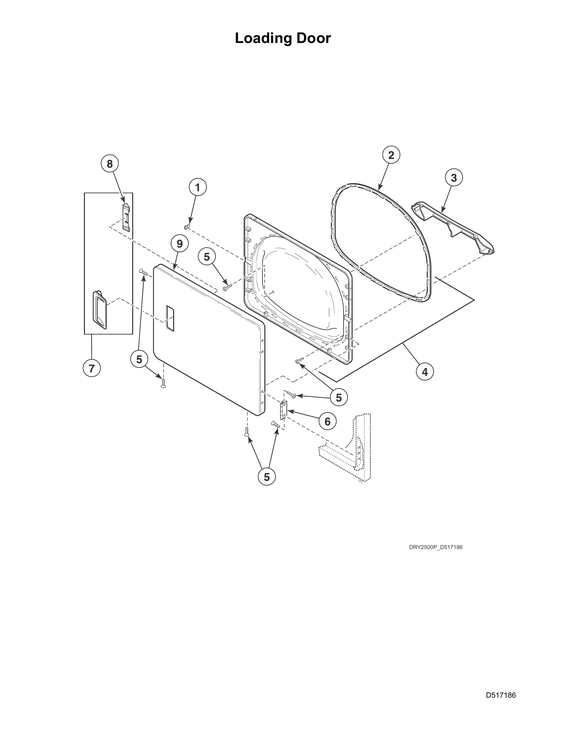

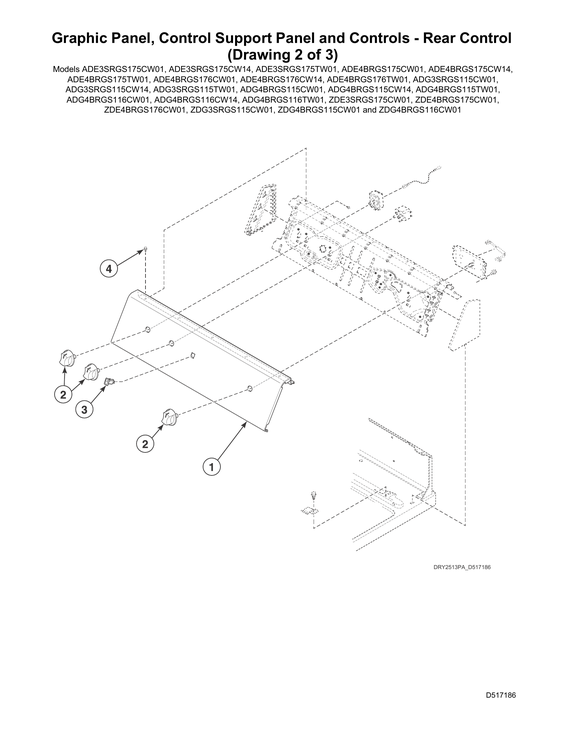

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Cylinder Belt D511255P
#6

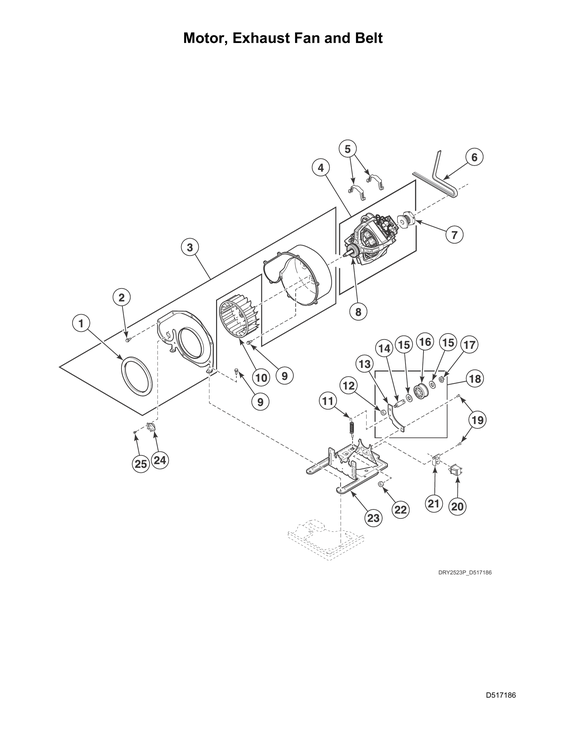

Motor/exahaust fan/belt diagram

Cylinder belt

Part #D511255P

$39.95 |
13% OFF Phone Price : $45.95
In Stock
Motor & Pulley Assy (120 Volt/60 Hertz; Incl. Items 5, 7 & 8; Apply Anti-seize Compound To Motor Shaft When Installing Blower Fan Assy) D511629P
#4

Motor/exahaust fan/belt diagram

Motor & pulley assy (120 volt/60 hertz; incl. items 5, 7 & 8; apply anti-seize compound to motor shaft when installing blower fan assy)

Part #D511629P

$371.38
In Stock
Light Bulb 60954
#15

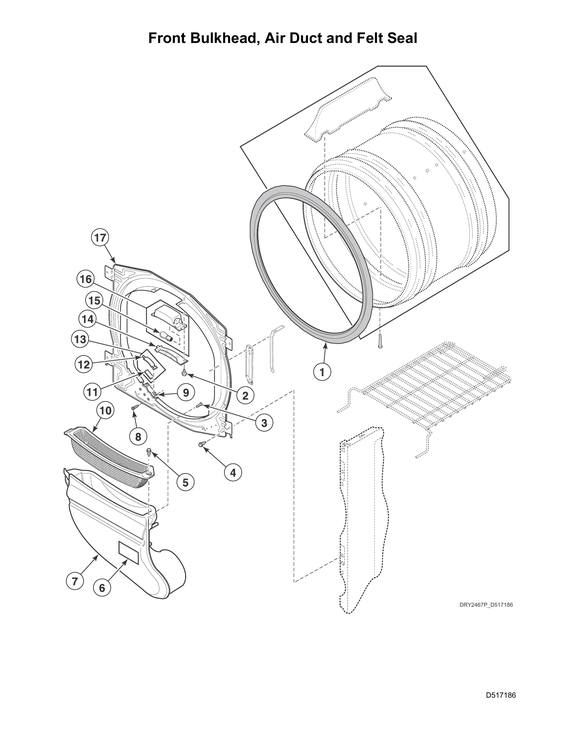

Front bulkhead/air duct/felt seal diagram

Light bulb

Part #60954

Replaced by #W10857122

?
Manufacturer substitution
This part replaces 60954. Substitute parts can look different from the original.
This item is not returnable
$9.26 |
10% OFF Phone Price : $10.26
In Stock
Output Control Assembly (not Used On This Model) D513797P
#19

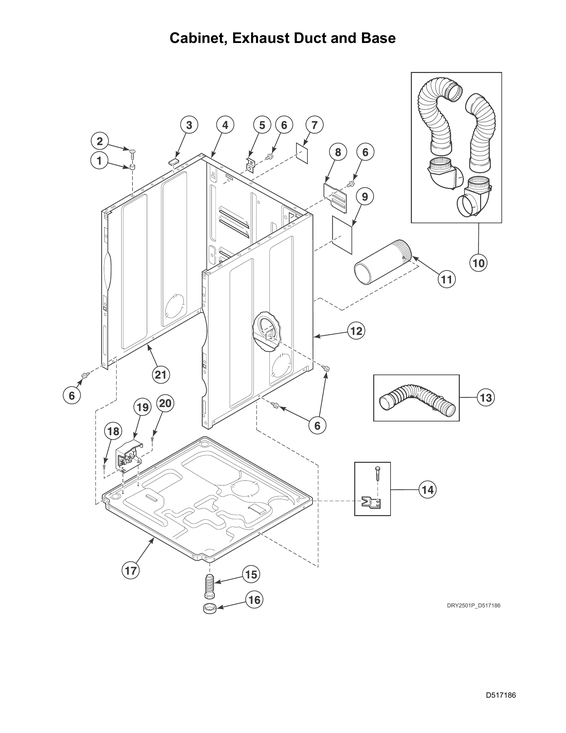

Cabinet/exhaust duct/base diagram

Output control assembly (not used on this model)

Part #D513797P

$423.88
In Stock

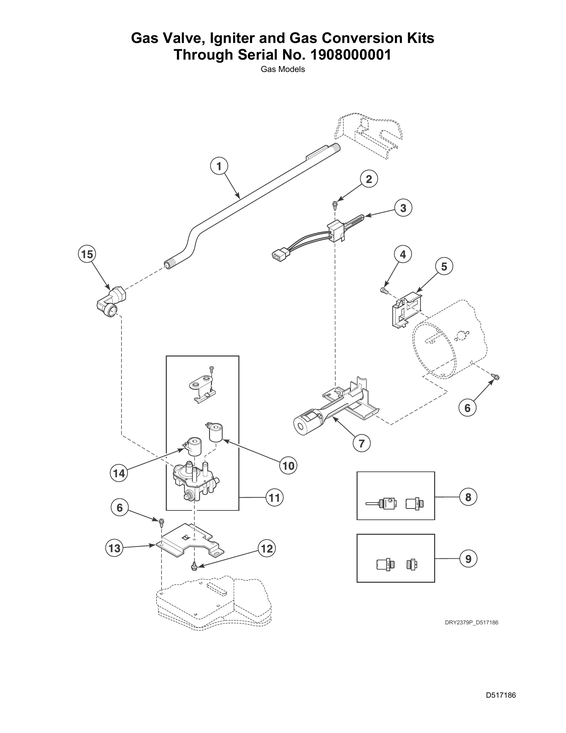

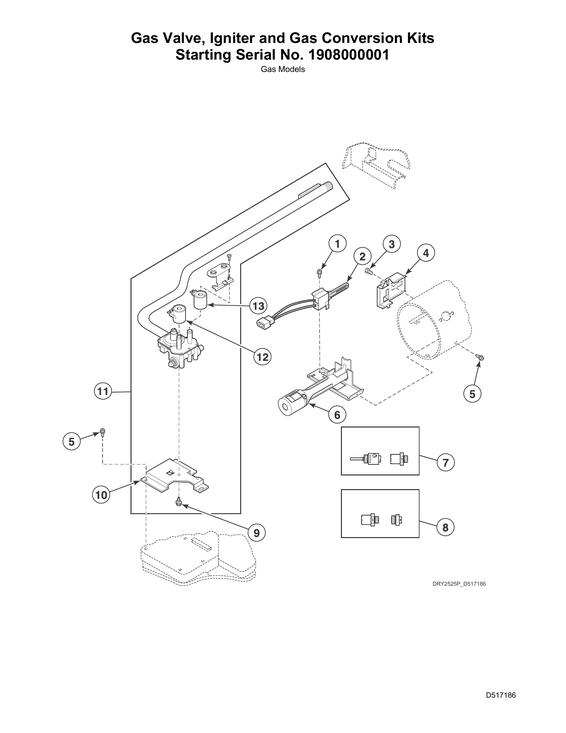

Dryer Booster And Holding Valve Coil 58804A
Dryer booster and holding valve coil

Part #58804A

The manufacturer no longer makes this part, and there's no substitute part

Igniter And Bracket Assembly D510184P
Igniter and bracket assembly

Part #D510184P

$79.20
In Stock
Cylinder Assembly (galvanized) D510265WP
#4

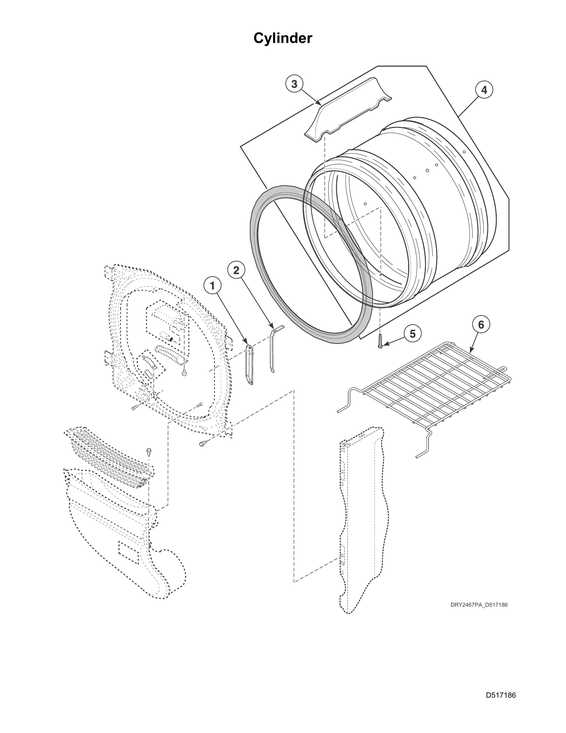

Cylinder diagram

Cylinder assembly (galvanized)

Part #D510265WP

$346.73
In Stock
Idler Wheel And Bearing Assembly D510142P
#16

Motor/exahaust fan/belt diagram

Idler wheel and bearing assembly

Part #D510142P

$24.57
In Stock
Light Housing Assembly (120 Volt; Includes Item 15) D512108
#16

Front bulkhead/air duct/felt seal diagram

Light housing assembly (120 volt; includes item 15)

Part #D512108

$35.78
In Stock
Seal Kit RB170001
Seal kit

Part #RB170001

The manufacturer no longer makes this part, and there's no substitute part
