Kenmore
Canister Vacuum

Model # 3462701080 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 3462701080 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |

Tool 90374
#64

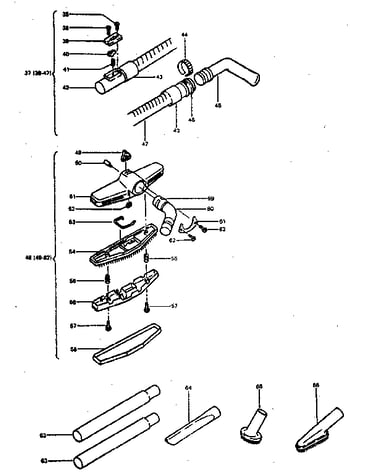

Attachment parts diagram

Tool

Part #90374

The manufacturer no longer makes this part, and there's no substitute part

Filter, 1-pack 90130
#19

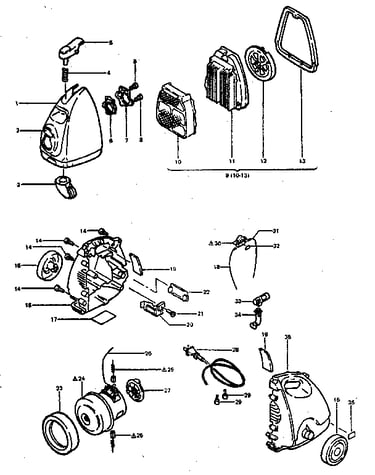

Unit parts diagram

Filter, 1-pack

Part #90130

The manufacturer no longer makes this part, and there's no substitute part

Removal Ring 90357
#44

Attachment parts diagram

Removal ring

Part #90357

The manufacturer no longer makes this part, and there's no substitute part

Tap Screw 90096
#38

Attachment parts diagram

Tap screw

Part #90096

The manufacturer no longer makes this part, and there's no substitute part

Tap Screw 90095
#8

Unit parts diagram

Tap screw

Part #90095

The manufacturer no longer makes this part, and there's no substitute part

Hook Spring 90064
#41

Attachment parts diagram

Hook spring

Part #90064

The manufacturer no longer makes this part, and there's no substitute part

Brush Base 90366
#54

Attachment parts diagram

Brush base

Part #90366

The manufacturer no longer makes this part, and there's no substitute part

Dust Compartment 90331
#1

Unit parts diagram

Dust compartment

Part #90331

The manufacturer no longer makes this part, and there's no substitute part

Hose Hook 90063
#40

Attachment parts diagram

Hose hook

Part #90063

The manufacturer no longer makes this part, and there's no substitute part

Dust Brush 90375
#65

Attachment parts diagram

Dust brush

Part #90375

The manufacturer no longer makes this part, and there's no substitute part
