Frigidaire
Side-By-Side Refrigerator

Model # FPCE24VWPW2 Official Frigidaire side-by-side refrigerator - 5995209482

Here are the diagrams and repair parts for Official Frigidaire FPCE24VWPW2 side-by-side refrigerator - 5995209482, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

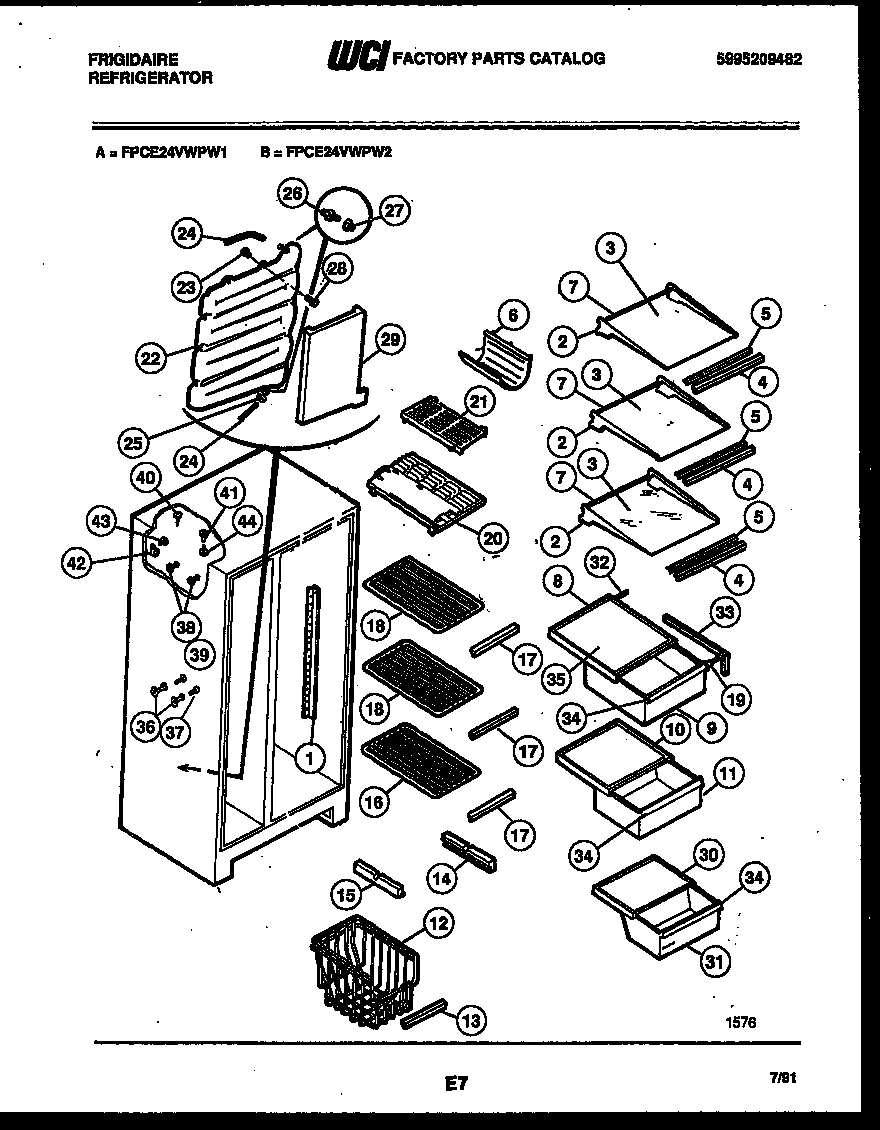

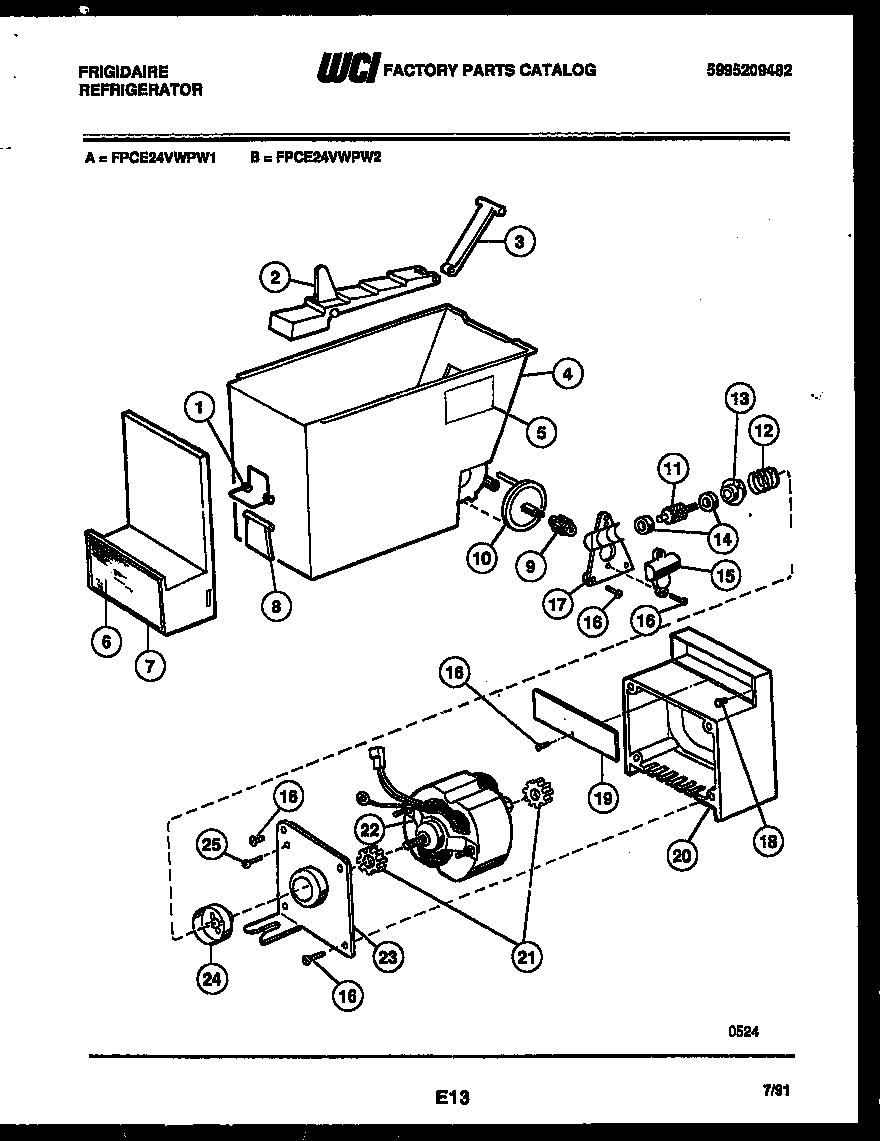

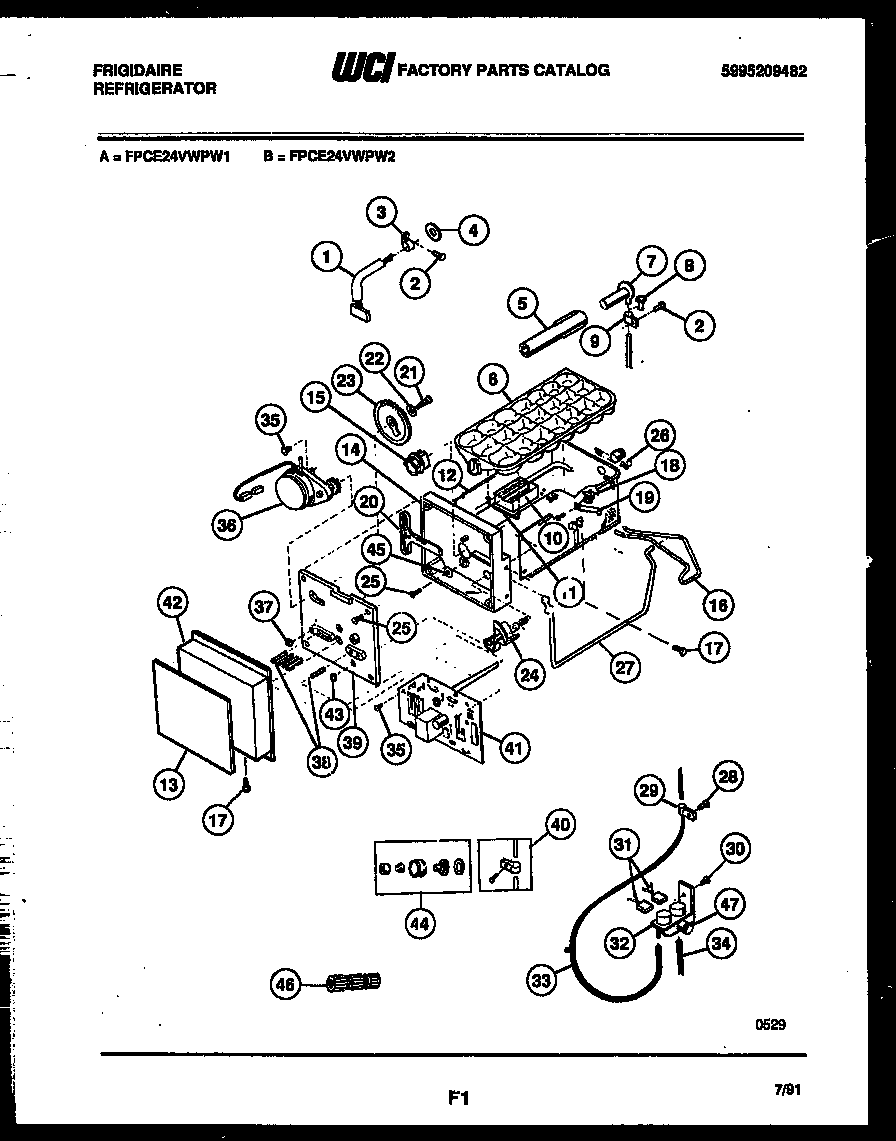

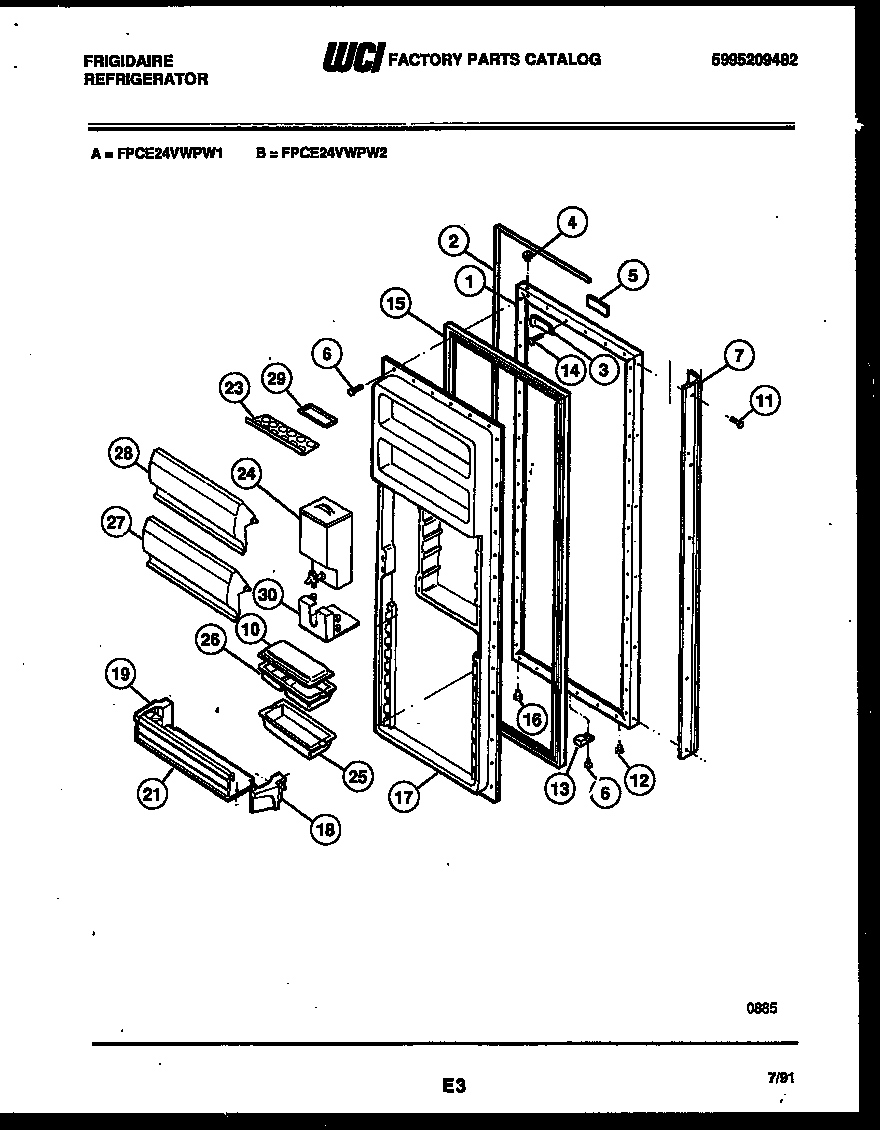

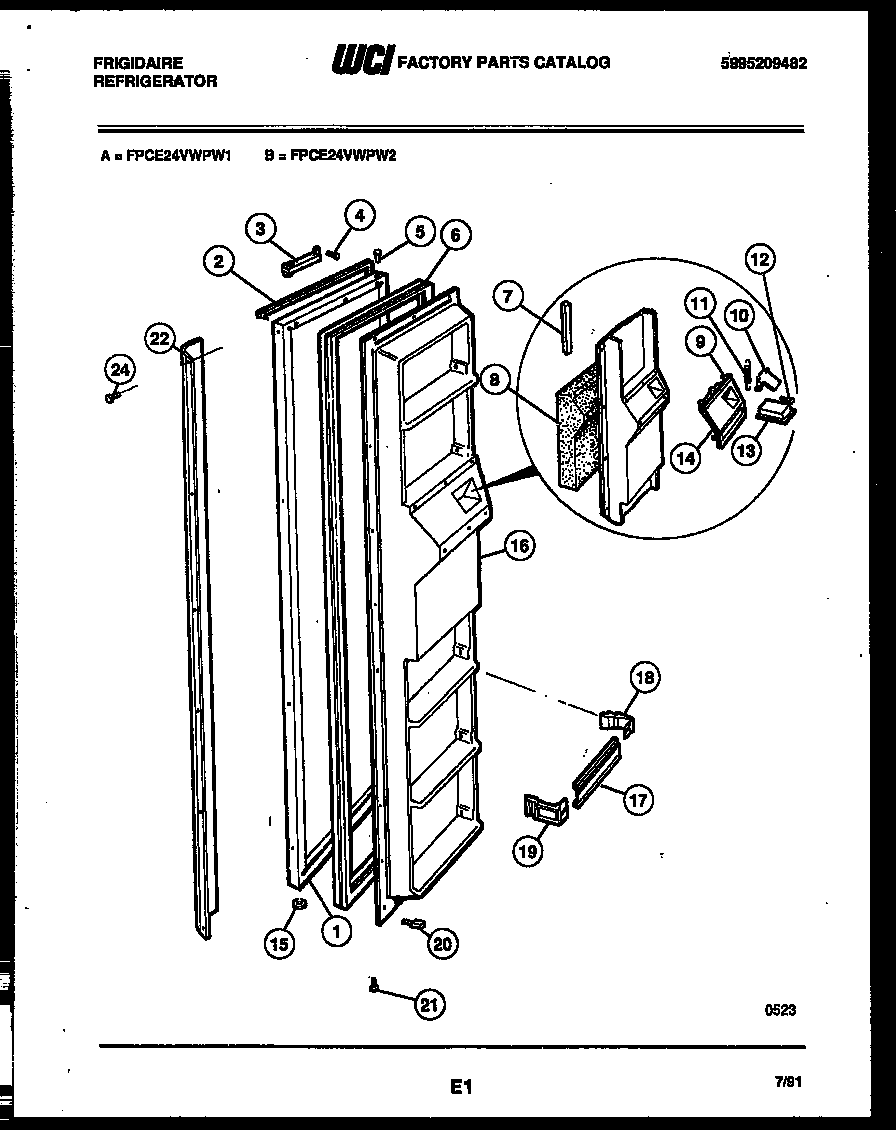

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 321 parts  |
Filter 5308000027
#11

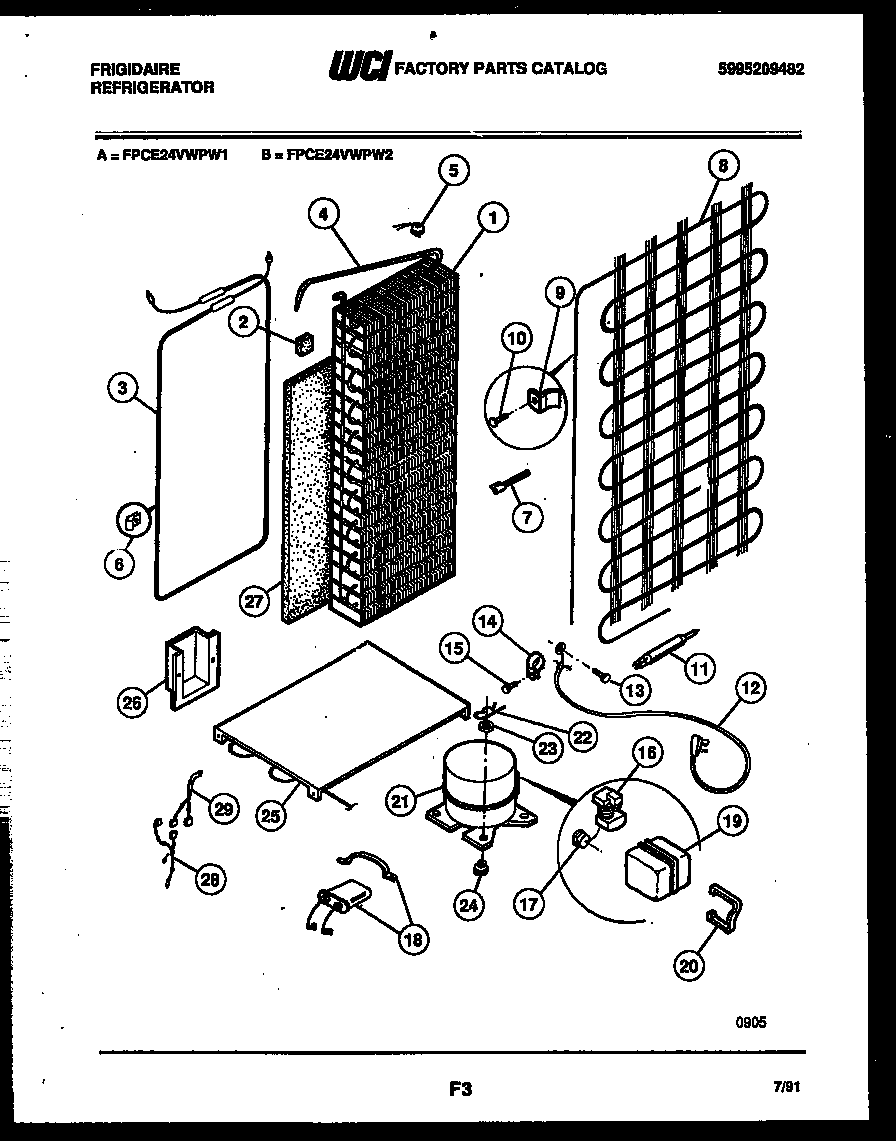

System and automatic defrost parts diagram

Filter

Part #5308000027

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 5308000027. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Timer 5300187484
#1

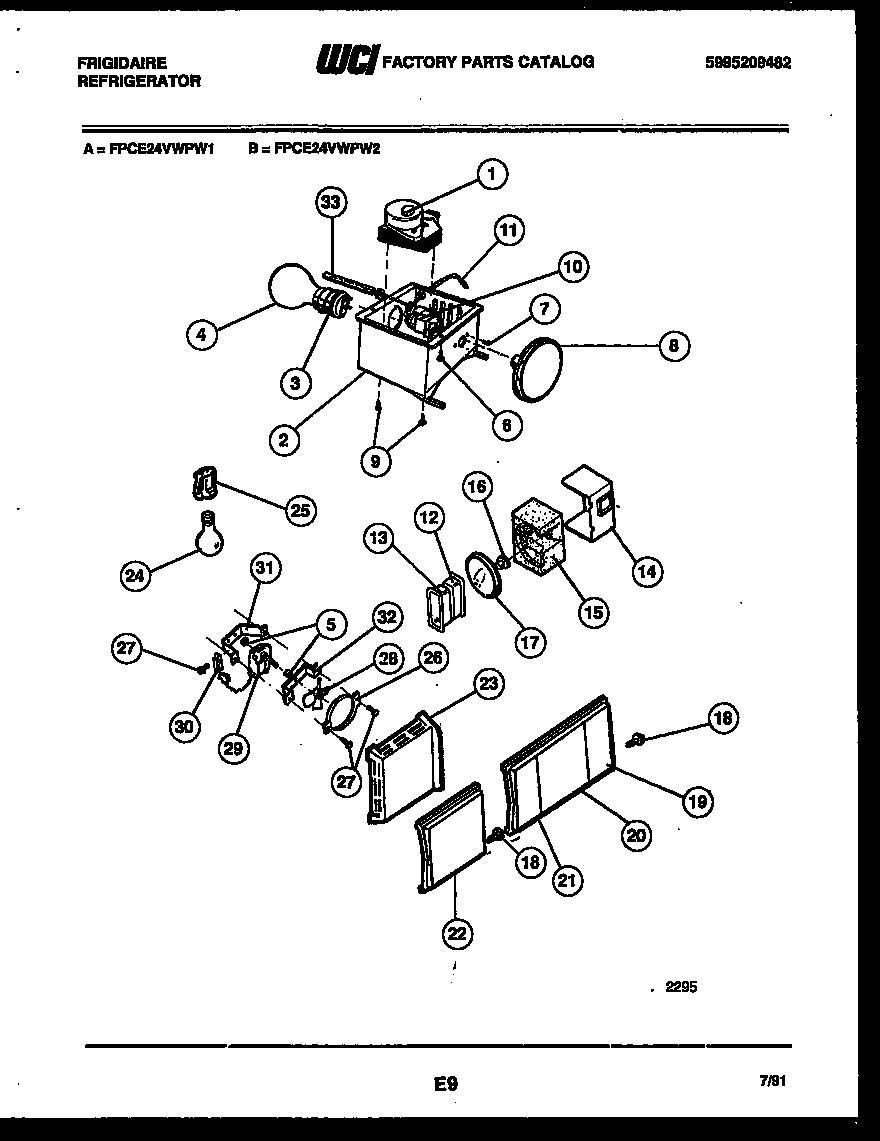

Refrigerator control assembly, damper control assembly and f diagram

Refrigerator timer

Part #5300187484

Replaced by #215846602

?
Manufacturer substitution
This part replaces 5300187484. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Refrigerator Evaporator Fan Motor 5300158289
#29

Refrigerator control assembly, damper control assembly and f diagram

Refrigerator evaporator fan motor

Part #5300158289

$88.69 |
6% OFF Phone Price : $94.69
In Stock
Refrigerator Receptacle 5308000815
#25

Refrigerator control assembly, damper control assembly and f diagram

Refrigerator receptacle

Part #5308000815

Replaced by #218906802

?
Manufacturer substitution
This part replaces 5308000815. Substitute parts can look different from the original.
This item is not returnable
$18.49 |
10% OFF Phone Price : $20.49
In Stock
Refrigerator Evaporator Fan Mounting Bracket Screw 5308016566
Refrigerator evaporator fan mounting bracket screw

Part #5308016566

Replaced by #5304455650

?
Manufacturer substitution
This part replaces 5308016566. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Light Bulb 5300187180
#19

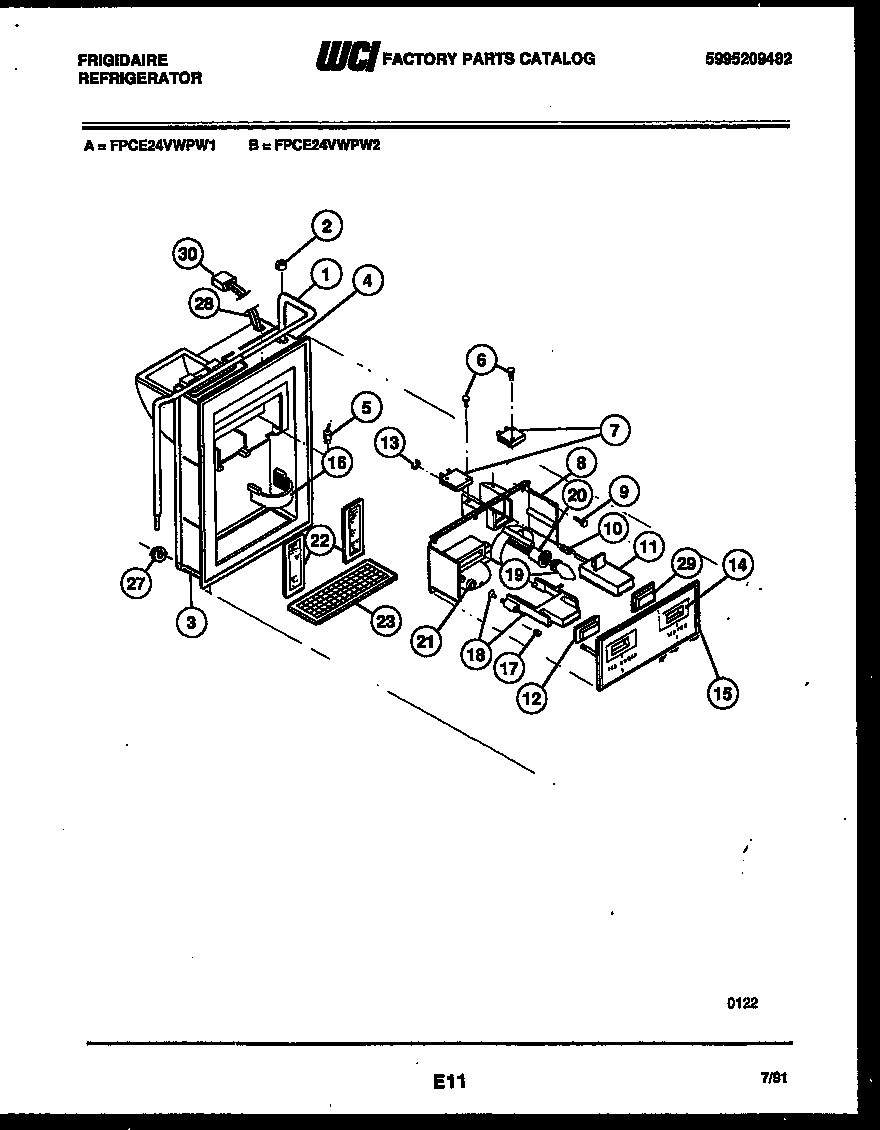

Ice door, dispenser and water tanks diagram

Light bulb

Part #5300187180

Replaced by #5304519036

?
Manufacturer substitution
This part replaces 5300187180. Substitute parts can look different from the original.
$44.39 |
12% OFF Phone Price : $50.39
In Stock
Refrigerator Cabinet Hole Plug (replaces 75303208309) 5303208309
#7B

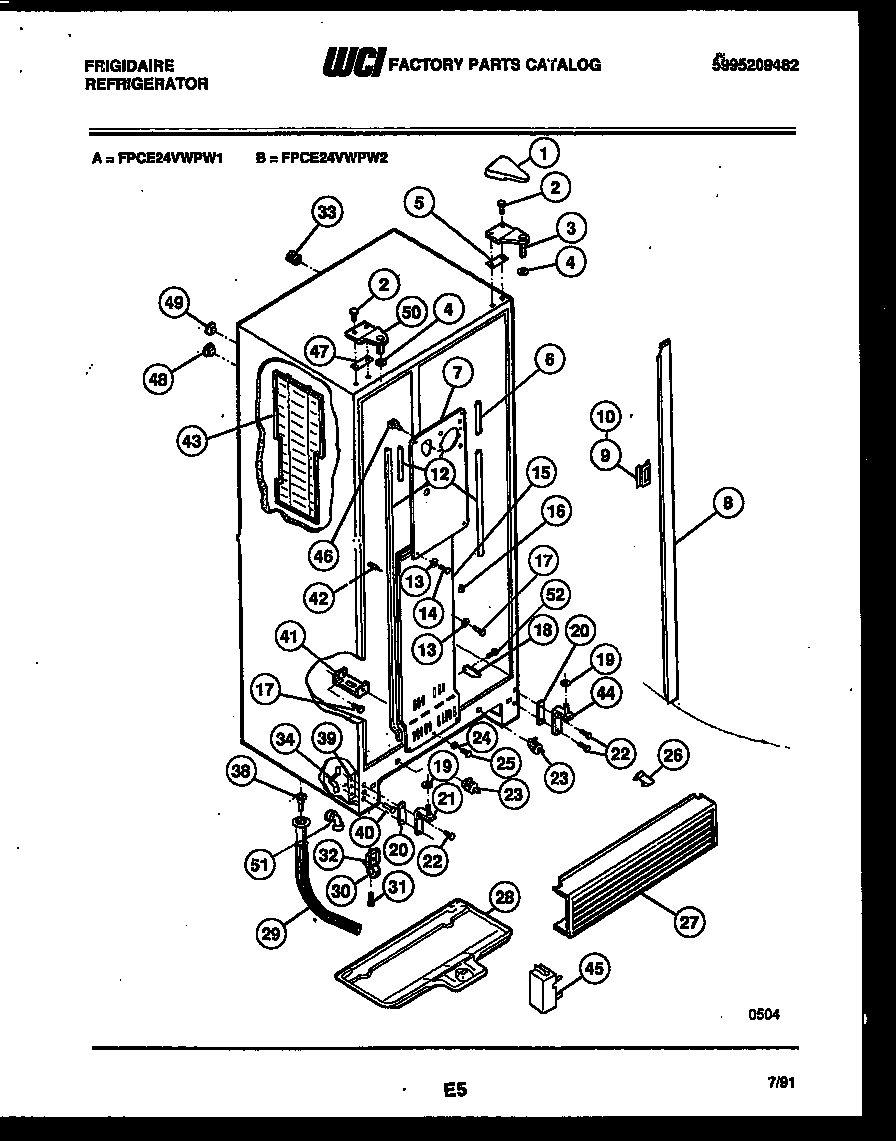

Cabinet parts diagram

Refrigerator cabinet hole plug (replaces 75303208309)

Part #5303208309

$34.59 |
15% OFF Phone Price : $40.59
In Stock
Refrigerator Screw 5303001041
Refrigerator screw

Part #5303001041

Replaced by #241710601

?
Manufacturer substitution
This part replaces 5303001041. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Screw 5303001479
#2

Cabinet parts diagram

Screw

Part #5303001479

Replaced by #241710601

?
Manufacturer substitution
This part replaces 5303001479. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
