Kenmore
Wall Oven/Microwave Combo

Model # 79047853407 Official Kenmore wall oven/microwave combo

Here are the diagrams and repair parts for Official Kenmore 79047853407 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Range Oven Light Bulb 5303013071
#15

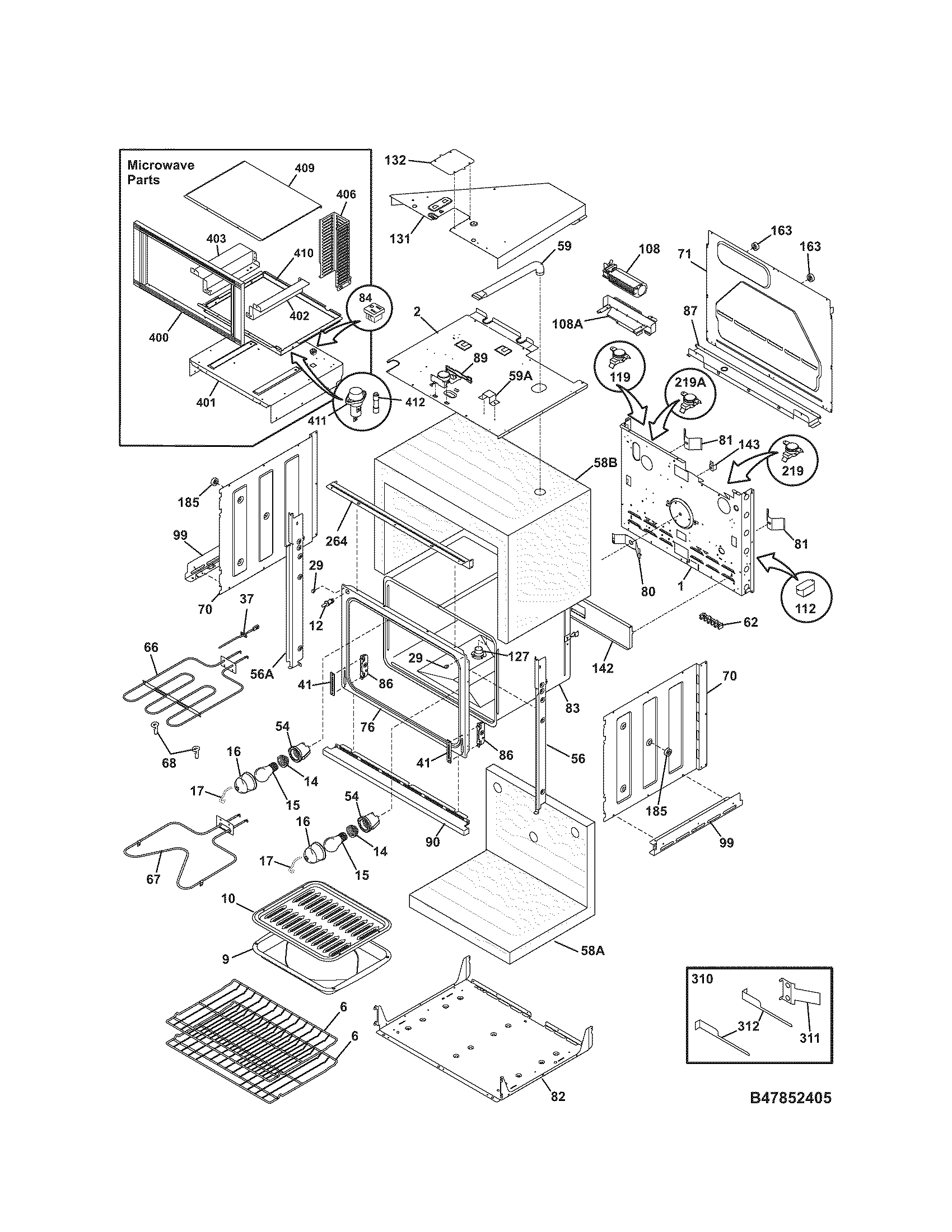

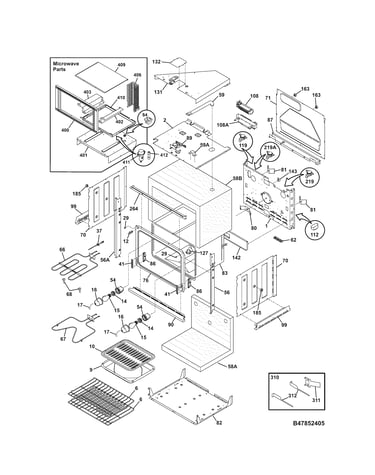

Lower oven diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Door Inner Glass 316117500
#8

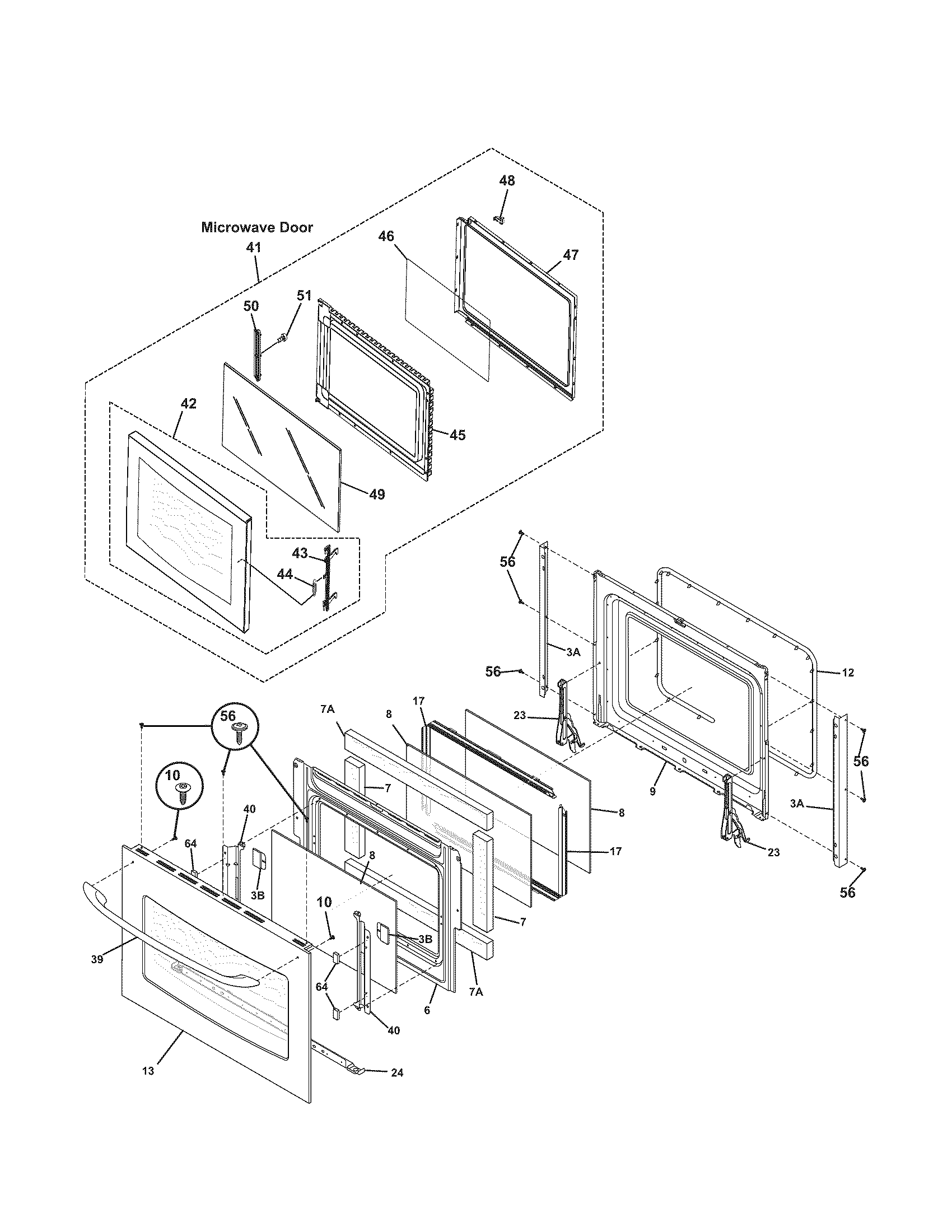

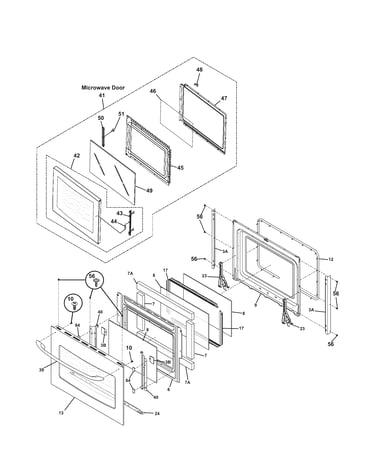

Doors diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Bake Element (replaces 318255402) 318255401
#67

Lower oven diagram

Range bake element (replaces 318255402)

Part #318255401

BEST SELLER
$156.67 |
7% OFF Phone Price : $168.67
In Stock
Terminal Block 316056000
#62

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Wall Oven Microwave Magnetron 5304440781
#8

Microwave diagram

Wall oven microwave magnetron

Part #5304440781

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304440781. Substitute parts can look different from the original.
BEST SELLER
$140.66 |
10% OFF Was : $156.29
In Stock
Holder 5304442354
#411

Lower oven diagram

Holder

Part #5304442354

Replaced by #318647300

?
Manufacturer substitution
This part replaces 5304442354. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Fuse 5304442353
#412

Lower oven diagram

Fuse

Part #5304442353

Replaced by #318647300

?
Manufacturer substitution
This part replaces 5304442353. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Latch 5304440840
#30

Microwave diagram

Latch

Part #5304440840

Replaced by #5304503439

?
Manufacturer substitution
This part replaces 5304440840. Substitute parts can look different from the original.
BEST SELLER
$48.11 |
11% OFF Phone Price : $54.11
In Stock
Switch 5304440027
#5

Microwave diagram

Switch

Part #5304440027

Replaced by #5304468224

?
Manufacturer substitution
This part replaces 5304440027. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Microwave Door Interlock Switch 5304440026
#6

Microwave diagram

Microwave door interlock switch

Part #5304440026

BEST SELLER
$39.53 |
13% OFF Phone Price : $45.53
In Stock
