Model # 143366102 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143366102 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Needle Seat 631021
#12

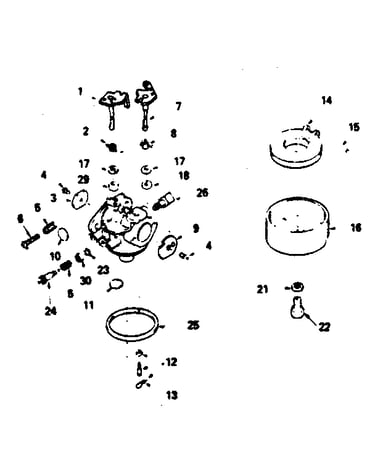

Carburetor diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
In Stock
Generac Lawn & Garden Equipment Engine Fuel Line (replaces 14306, 34357) 29774
#101

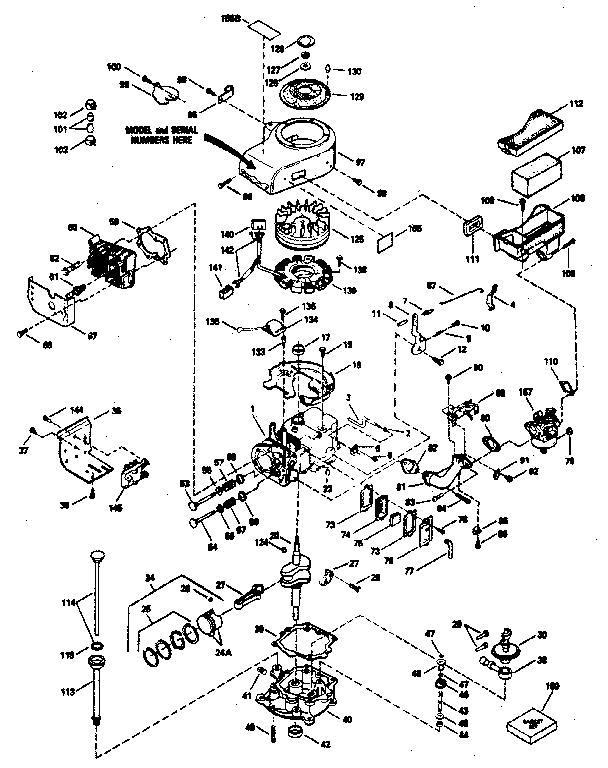

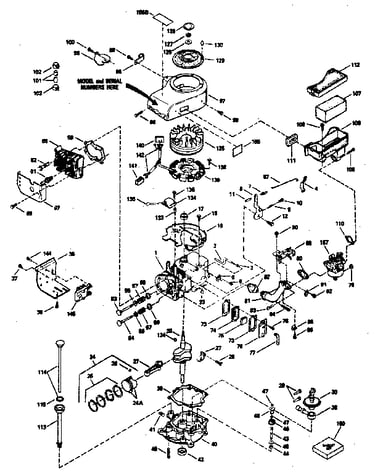

Basic engine diagram

Generac lawn & garden equipment engine fuel line (replaces 14306, 34357)

Part #29774

BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#102

Basic engine diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 27110
#21

Carburetor diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Cook Top Side Trim Kit Lawn & Garden Equipment Engine Air Filter (replaces 28424l) 28424
#75

Basic engine diagram

Cook top side trim kit lawn & garden equipment engine air filter (replaces 28424l)

Part #28424

BEST SELLER
This item is not returnable
$4.14 |
19% OFF Phone Price : $5.14
In Stock
Cook Top Side Trim Kit Lawn & Garden Equipment Engine Carburetor Manifold Gasket 33263
#80

Basic engine diagram

Cook top side trim kit lawn & garden equipment engine carburetor manifold gasket

Part #33263

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Spark Plug Boot (replaces 27276, Tc-610118) 610118
#135

Basic engine diagram

Troybilt lawn & garden equipment engine spark plug boot (replaces 27276, tc-610118)

Part #610118

This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Fuel Fitting 631775
#26

Carburetor diagram

Fuel fitting

Part #631775

Replaced by #632527

?
Manufacturer substitution
This part replaces 631775. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Troybilt Carburetor Float 631024
#15

Carburetor diagram

Troybilt carburetor float

Part #631024

This item is not returnable
$2.16
In Stock
Generac Lawn & Garden Equipment Engine Self-tapping Screw 30200
#90

Basic engine diagram

Generac lawn & garden equipment engine self-tapping screw

Part #30200

This item is not returnable
$2.16
In Stock
