Model # TRAIL BLAZER P100000 AND UP Official Troybilt cutter bar

Here are the diagrams and repair parts for Official Troybilt TRAIL-BLAZER-P100000-AND-UP cutter bar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

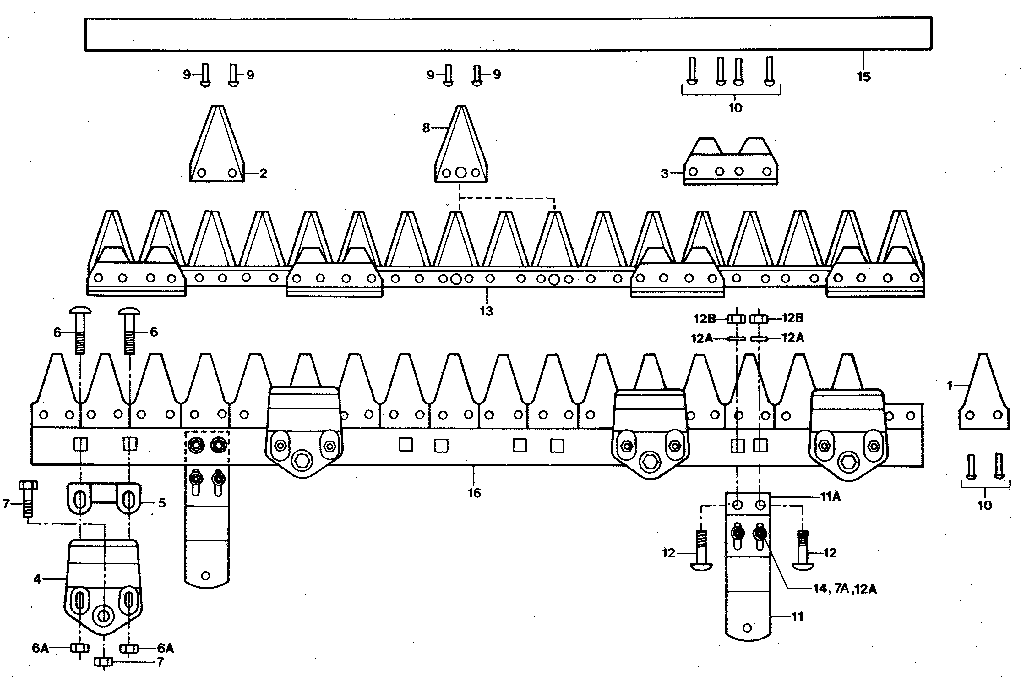

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Washer P406744
#44A

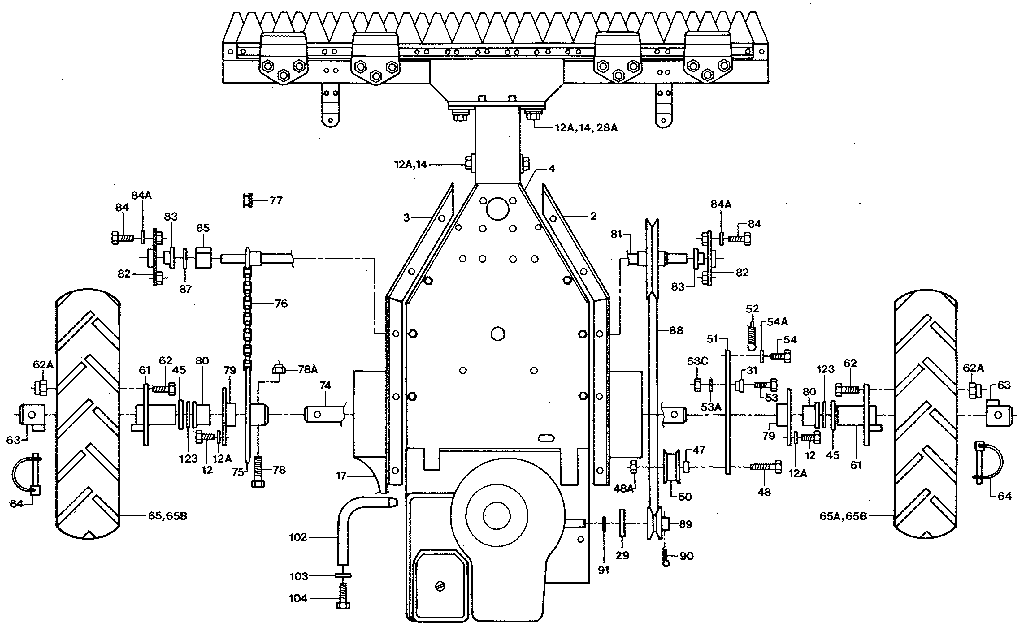

Wheel assembly diagram

Washer

Part #P406744

Replaced by #936-0119

?
Manufacturer substitution
This part replaces P406744. Substitute parts can look different from the original.
This item is not returnable
$6.05 |
14% OFF Phone Price : $7.05
In Stock
Screw P406756
#44

Wheel assembly diagram

Screw

Part #P406756

Replaced by #710-1681

?
Manufacturer substitution
This part replaces P406756. Substitute parts can look different from the original.
This item is not returnable
$10.34
In Stock
Screw P406753
#13

Wheel assembly diagram

Screw

Part #P406753

Replaced by #710-1376

?
Manufacturer substitution
This part replaces P406753. Substitute parts can look different from the original.
$12.00
In Stock
Blade Guide P406654
Blade guide

Part #P406654

Replaced by #GW-P406654

?
Manufacturer substitution
This part replaces P406654. Substitute parts can look different from the original.
$85.16
In Stock
Blade P406663
Blade

Part #P406663

Replaced by #GW-34509

?
Manufacturer substitution
This part replaces P406663. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$343.29 |
$12.00 OFF Phone Price : $355.29
In Stock
Grease P406323
#40

Wheel assembly diagram

Grease

Part #P406323

Replaced by #737-0475

?
Manufacturer substitution
This part replaces P406323. Substitute parts can look different from the original.
$20.34
In Stock
Washer P406741
#84A

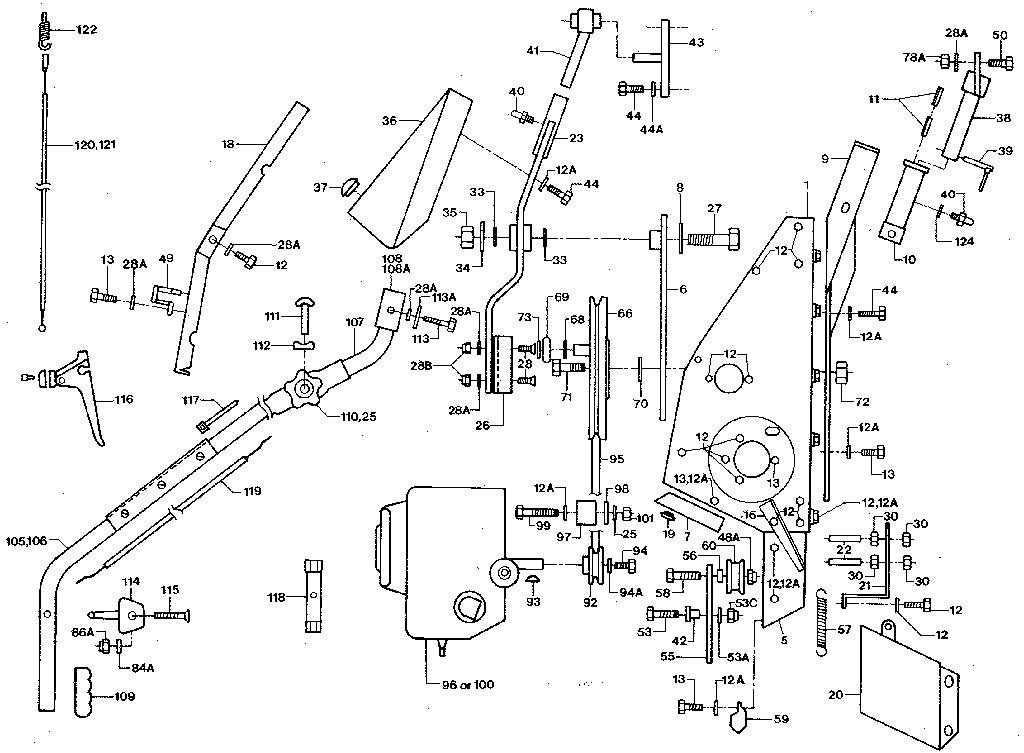

Main frame diagram

Washer

Part #P406741

Replaced by #936-0329

?
Manufacturer substitution
This part replaces P406741. Substitute parts can look different from the original.
$7.71
In Stock
Washer P406717
#12A

Wheel assembly diagram

Washer

Part #P406717

Replaced by #736-0607

?
Manufacturer substitution
This part replaces P406717. Substitute parts can look different from the original.
This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
Rivet P404962
Rivet

Part #P404962

Replaced by #GW-P404962099

?
Manufacturer substitution
This part replaces P404962. Substitute parts can look different from the original.
This item is not returnable
$5.20
In Stock
Bolt P406915
Bolt

Part #P406915

Replaced by #710-1683

?
Manufacturer substitution
This part replaces P406915. Substitute parts can look different from the original.
This item is not returnable
$6.34
In Stock
