Kenmore
Gas Water Heater

Model # 153336801 Official Kenmore water heater

Here are the diagrams and repair parts for Official Kenmore 153336801 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Thermocouple 42-9231
#8

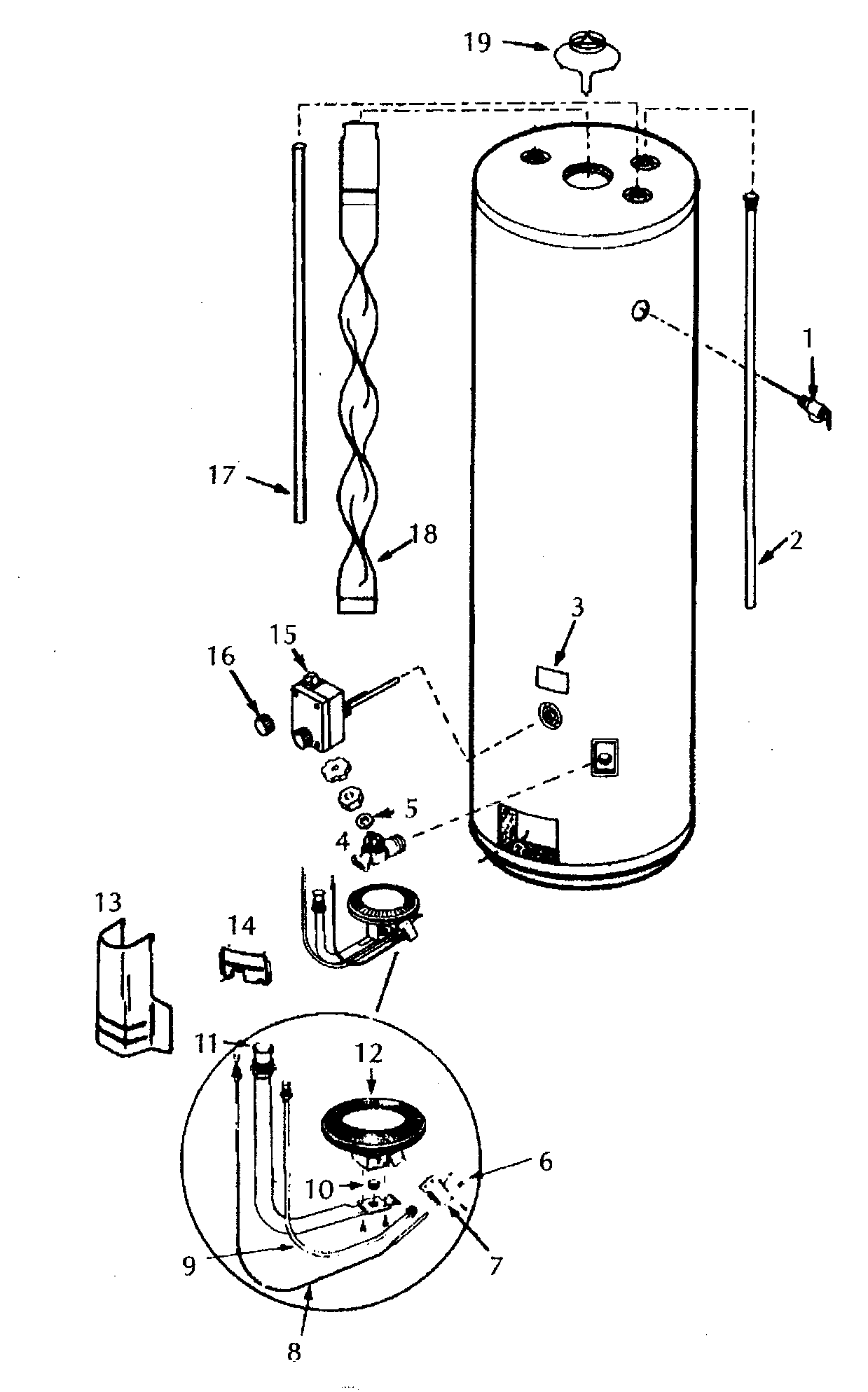

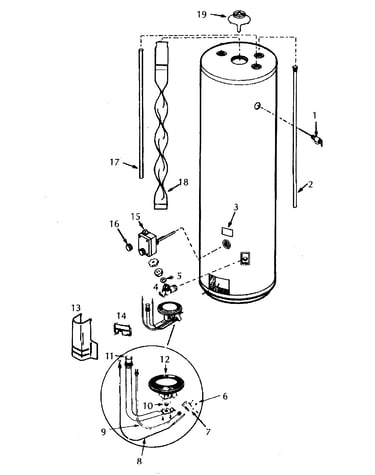

Water heater diagram

Thermocouple

Part #42-9231

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 42-9231. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
In Stock
Water Heater Temperature And Pressure Relief Valve 9000071
#1

Water heater diagram

Water heater temperature and pressure relief valve

Part #9000071

$15.54 |
11% OFF Phone Price : $17.54
In Stock
Gas Valve F145-0842
#15

Water heater diagram

Gas valve

Part #F145-0842

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Manifold Inner Door 9000281
#14

Water heater diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Dip Tube 0260111
#17

Water heater diagram

Dip tube

Part #0260111

Replaced by #100108608

?
Manufacturer substitution
This part replaces 0260111. Substitute parts can look different from the original.
$27.78
In Stock
Anode Rod 9000734
#2

Water heater diagram

Anode rod

Part #9000734

Replaced by #100108660

?
Manufacturer substitution
This part replaces 9000734. Substitute parts can look different from the original.
$60.00
In Stock
Knob F145-0697
#16

Water heater diagram

Knob

Part #F145-0697

The manufacturer no longer makes this part, and there's no substitute part

Drain 9000058
#4

Water heater diagram

Drain

Part #9000058

Replaced by #100108269

?
Manufacturer substitution
This part replaces 9000058. Substitute parts can look different from the original.
$18.57
In Stock
Pilot 9000284
#7

Water heater diagram

Pilot

Part #9000284

Replaced by #100109070

?
Manufacturer substitution
This part replaces 9000284. Substitute parts can look different from the original.
$47.78
In Stock
Mag Erad 3515
#NI

Water heater diagram

Mag erad

Part #3515

Replaced by #23600

?
Manufacturer substitution
This part replaces 3515. Substitute parts can look different from the original.
$35.19
In Stock
