Craftsman
Gas Walk-Behind Mower

Model # 3938 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 3938 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

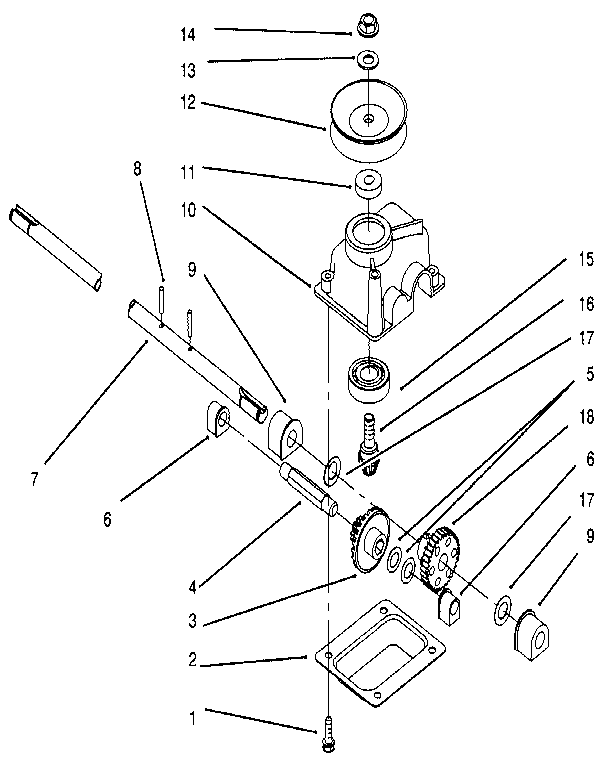

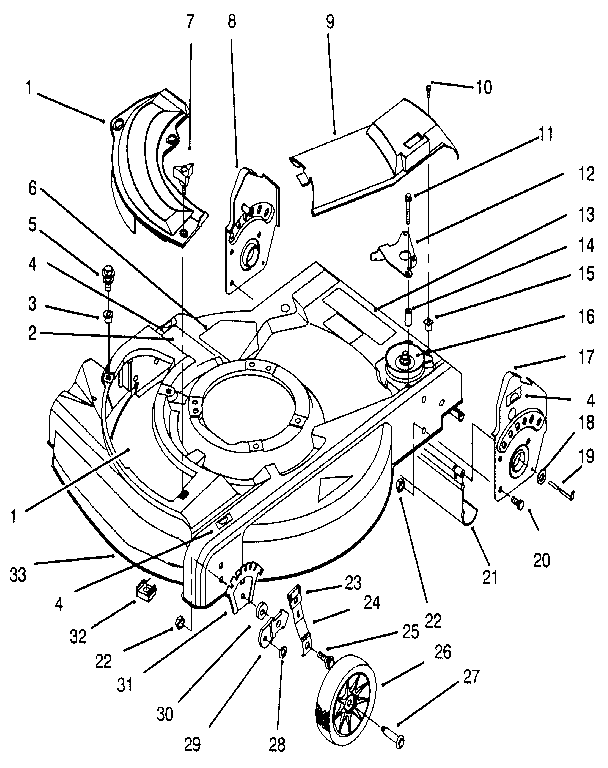

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Wheel Tire 684776
Wheel tire

Part #684776

Replaced by #684776

?
Manufacturer substitution
This part replaces 684776. Substitute parts can look different from the original.
This item is not returnable
$37.96 |
14% OFF Phone Price : $43.96
In Stock
Belt, 21-in 612543
#12

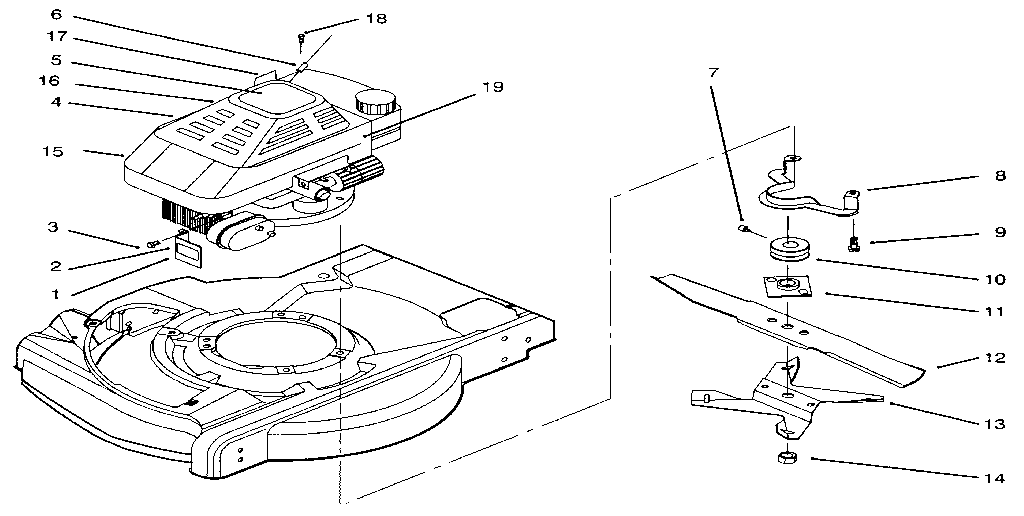

4 cycle engine, fuel tank & blade assembly diagram

Belt, 21-in

Part #612543

Replaced by #612543-03

?
Manufacturer substitution
This part replaces 612543. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$31.17 |
16% OFF Phone Price : $37.17
In Stock
Washer 614426
#19

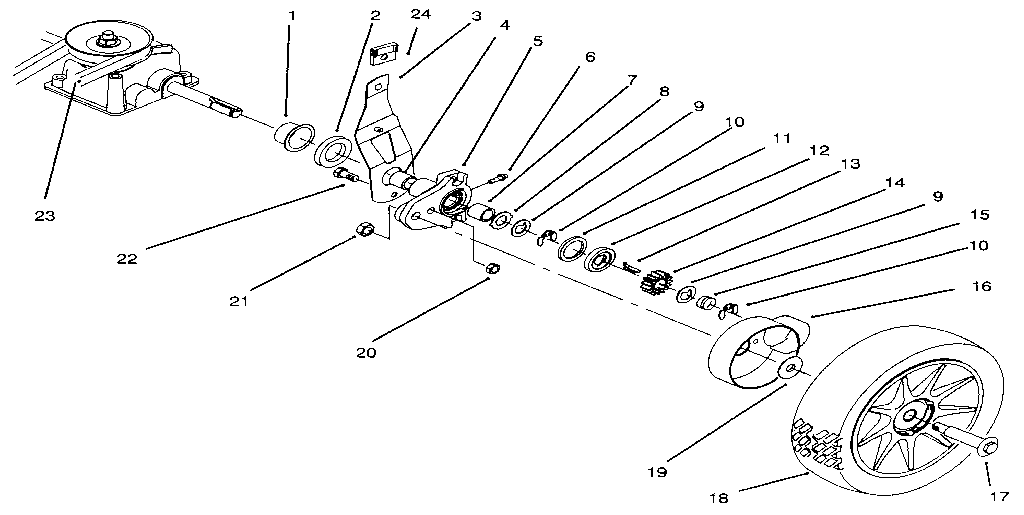

Rear axle assembly diagram

Washer

Part #614426

Replaced by #614426

?
Manufacturer substitution
This part replaces 614426. Substitute parts can look different from the original.
This item is not returnable
$4.31
In Stock
Screw 614697
#9

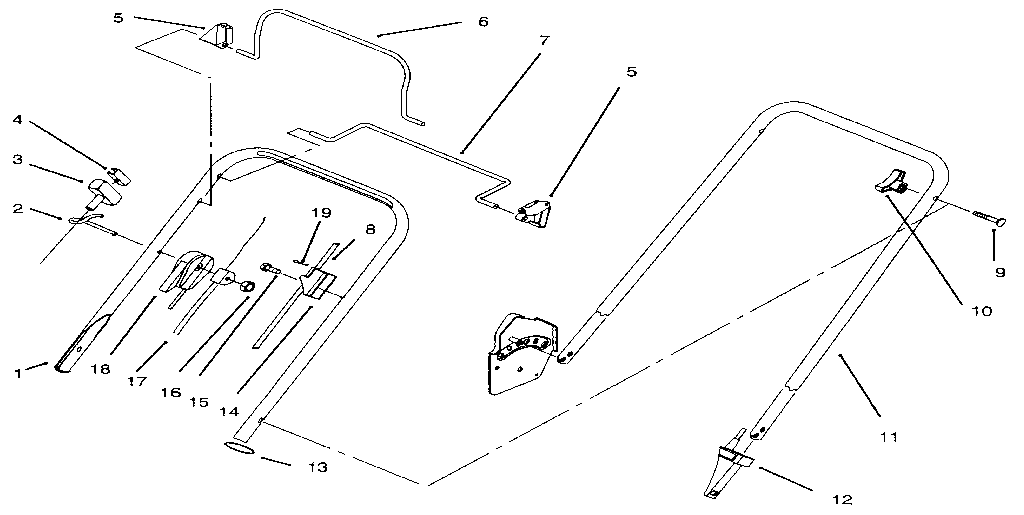

Handle assembly diagram

Screw

Part #614697

Replaced by #614697

?
Manufacturer substitution
This part replaces 614697. Substitute parts can look different from the original.
This item is not returnable
$5.29
In Stock
Collar Plate 677525
#11

4 cycle engine, fuel tank & blade assembly diagram

Collar plate

Part #677525

Replaced by #677525

?
Manufacturer substitution
This part replaces 677525. Substitute parts can look different from the original.
$30.89
In Stock
Cage Nut - 1 613765
Cage nut - 1

Part #613765

Replaced by #613765

?
Manufacturer substitution
This part replaces 613765. Substitute parts can look different from the original.
This item is not returnable
$16.23
In Stock
Shoulder Bolt 614650
#17

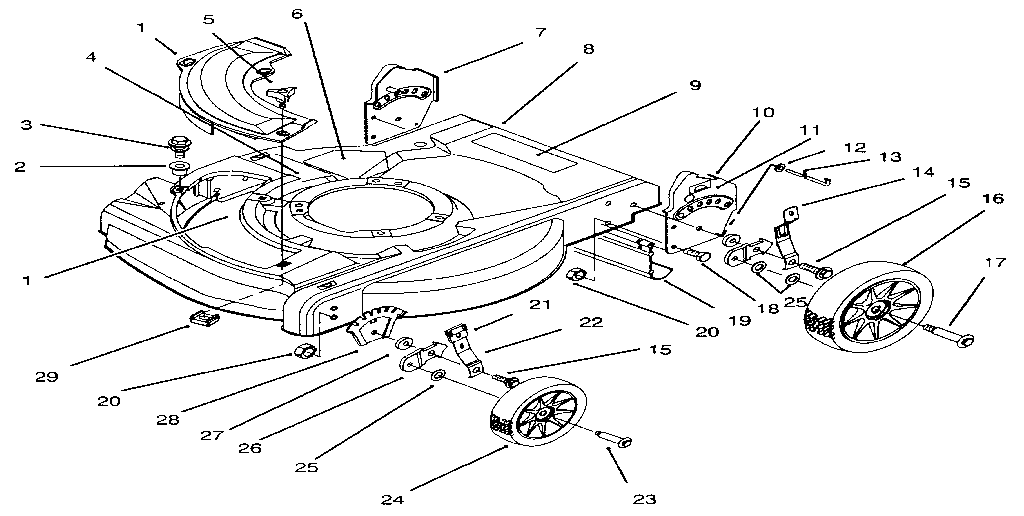

Deck & wheel assembly (hand push) diagram

Shoulder bolt

Part #614650

Replaced by #614650

?
Manufacturer substitution
This part replaces 614650. Substitute parts can look different from the original.
This item is not returnable
$5.97
In Stock
Start Handle 612825
#3

Handle assembly diagram

Start handle

Part #612825

Replaced by #81-1630

?
Manufacturer substitution
This part replaces 612825. Substitute parts can look different from the original.
$27.31
In Stock
Rope Stop 92-1701
#6

4 cycle engine, fuel tank & blade assembly diagram

Rope stop

Part #92-1701

Replaced by #2210-316

?
Manufacturer substitution
This part replaces 92-1701. Substitute parts can look different from the original.
$16.23
In Stock
Rope Guide 92-1021
#2

Handle assembly diagram

Rope guide

Part #92-1021

Replaced by #86-9671

?
Manufacturer substitution
This part replaces 92-1021. Substitute parts can look different from the original.
This item is not returnable
$5.74 |
15% OFF Phone Price : $6.74
In Stock
