Model # JKBL20561 Official Weslo jumpking basketball system

Here are the diagrams and repair parts for Official Weslo JKBL20561 jumpking basketball system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Exercise Equipment Bolt 103053
#60

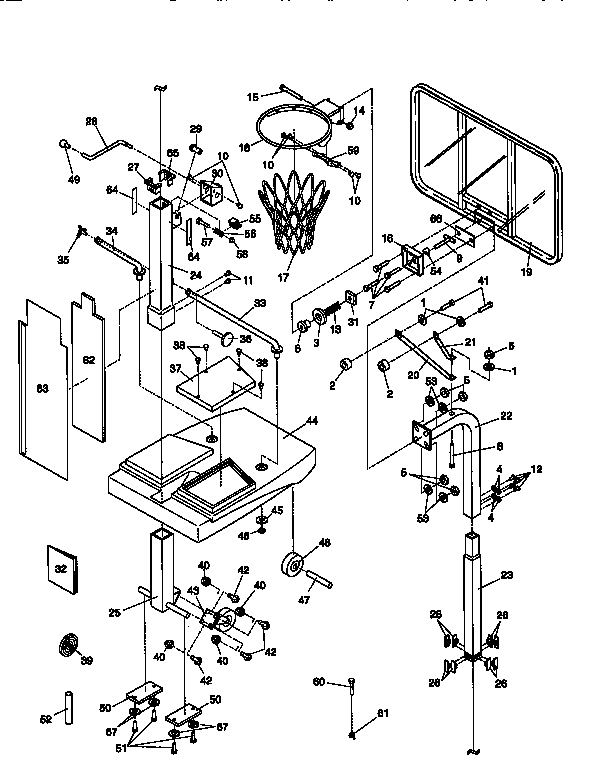

Unit parts diagram

Exercise equipment bolt

Part #103053

This item is not returnable
$2.16
In Stock
Lifestyler Wshr,flat,sa 014170
#3

Unit parts diagram

Lifestyler wshr,flat,sa

Part #014170

This item is not returnable
$2.16
In Stock
Om,jkbl20561 130935
Om,jkbl20561

Part #130935

This item is not returnable
$2.49
In Stock
Healthrider Wshr,lock,zp 110468
#67

Unit parts diagram

Healthrider wshr,lock,zp

Part #110468

This item is not returnable
$2.16
In Stock
Weider Exercise Equipment Hex Nut 105477
#5

Unit parts diagram

Weider exercise equipment hex nut

Part #105477

This item is not returnable
$2.16
In Stock
Screw,hhcs,z 013231
#8

Unit parts diagram

Screw,hhcs,z

Part #013231

This item is not returnable
$2.16
In Stock
Exercise Equipment Flat Washer 014041
#1

Unit parts diagram

Exercise equipment flat washer

Part #014041

This item is not returnable
$2.16
In Stock
Nordictrack Screw 105134
#51

Unit parts diagram

Nordictrack screw

Part #105134

This item is not returnable
$2.16
In Stock
1/4" Hex Nut 123214
#40

Unit parts diagram

1/4" hex nut

Part #123214

Replaced by #142686

?
Manufacturer substitution
This part replaces 123214. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Bkt,spring S 116754
#31

Unit parts diagram

Bkt,spring s

Part #116754

The manufacturer no longer makes this part, and there's no substitute part
