Model # 315117910 Official Craftsman 4" dustless belt sander

Here are the diagrams and repair parts for Official Craftsman 315117910 4" dustless belt sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Screw 998401-001
#16

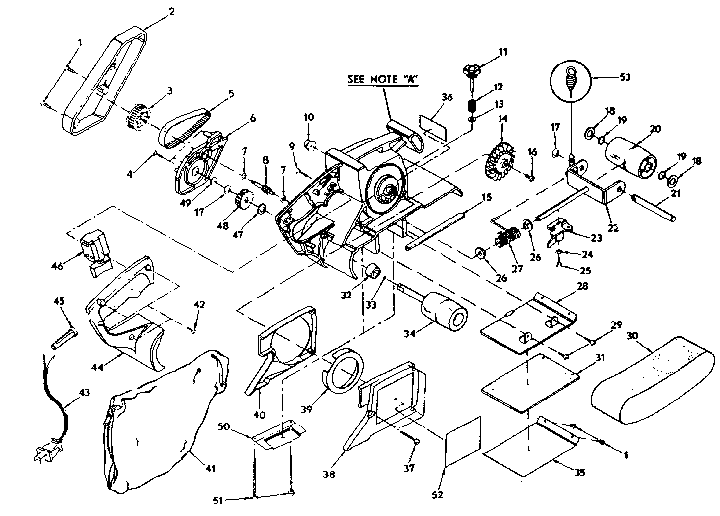

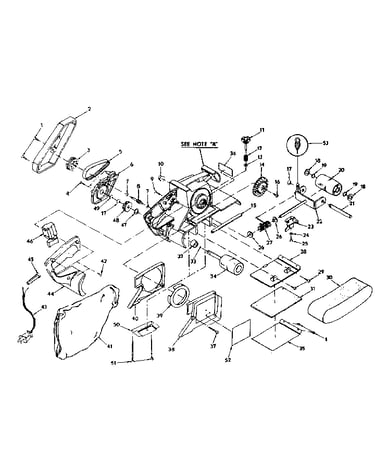

Gear and platen assembly diagram

Screw

Part #998401-001

The manufacturer no longer makes this part, and there's no substitute part

Deflector 999347-001
#50

Gear and platen assembly diagram

Deflector

Part #999347-001

The manufacturer no longer makes this part, and there's no substitute part

Gear Housing 998365-005
#13

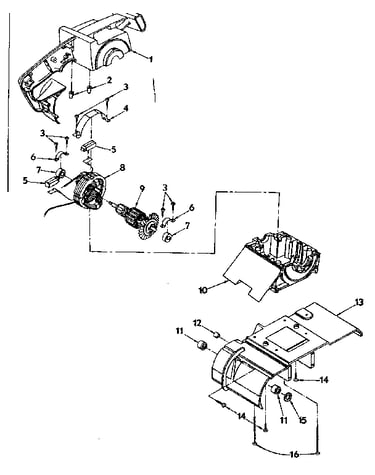

Field and armature assembly diagram

Gear housing

Part #998365-005

The manufacturer no longer makes this part, and there's no substitute part

Housing Cover 999930-001
#1

Field and armature assembly diagram

Housing cover

Part #999930-001

The manufacturer no longer makes this part, and there's no substitute part

Sander Rear Roller Spring 998375-001
#53

Gear and platen assembly diagram

Sander rear roller spring

Part #998375-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 610122-003
#1

Gear and platen assembly diagram

Screw

Part #610122-003

The manufacturer no longer makes this part, and there's no substitute part

Spacer Cup 998388-001
#32

Gear and platen assembly diagram

Spacer cup

Part #998388-001

The manufacturer no longer makes this part, and there's no substitute part

Lever Assembly 999927-001
#23

Gear and platen assembly diagram

Lever assembly

Part #999927-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 999923-001
#25

Gear and platen assembly diagram

Screw

Part #999923-001

The manufacturer no longer makes this part, and there's no substitute part

Gr Cover 998366-005
#6

Gear and platen assembly diagram

Gr cover

Part #998366-005

The manufacturer no longer makes this part, and there's no substitute part
