Murray
Gas Walk-Behind Mower

Model # 22106X9A Official Murray lawn mower

Here are the diagrams and repair parts for Official Murray 22106X9A lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

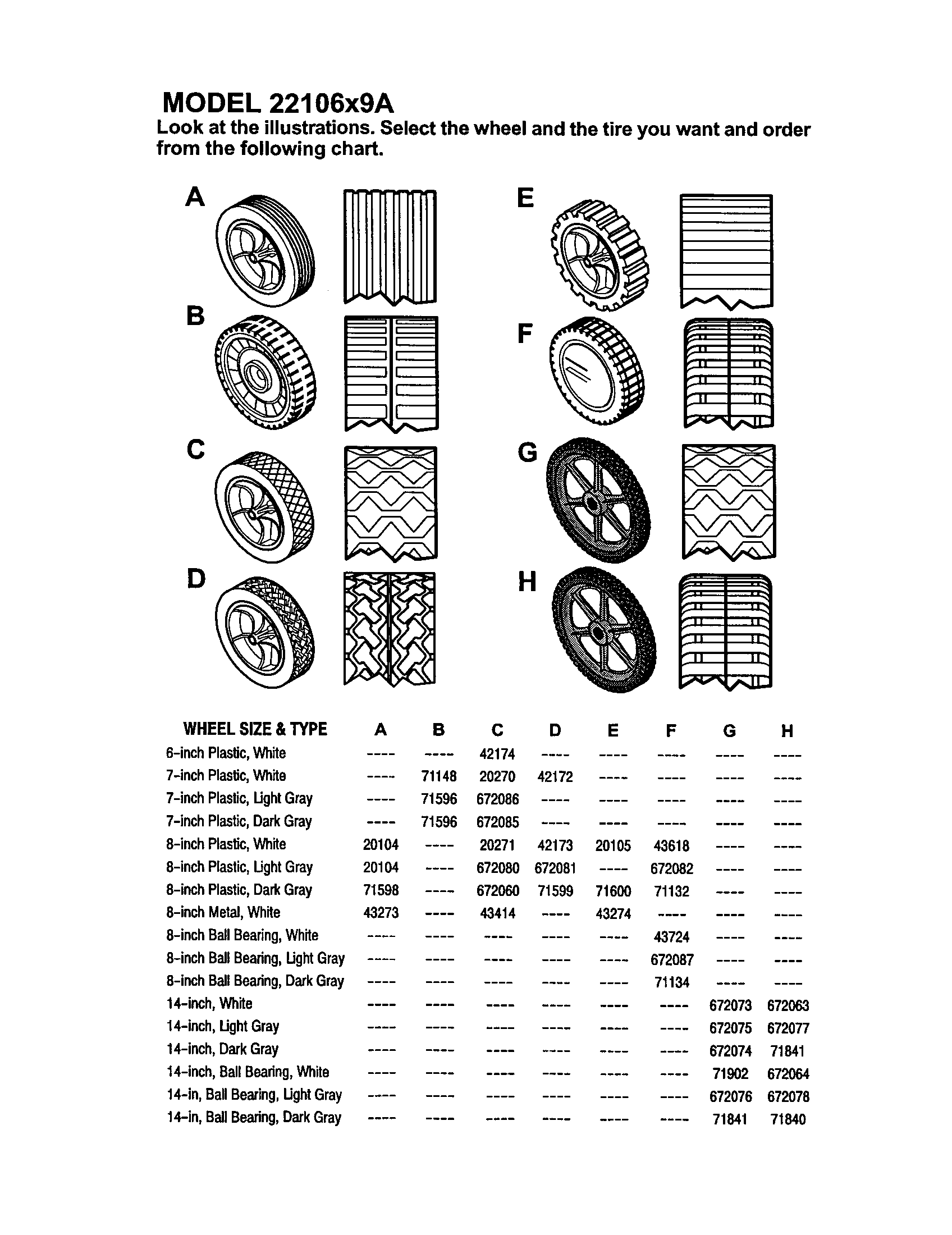

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Nut 15X116
#7

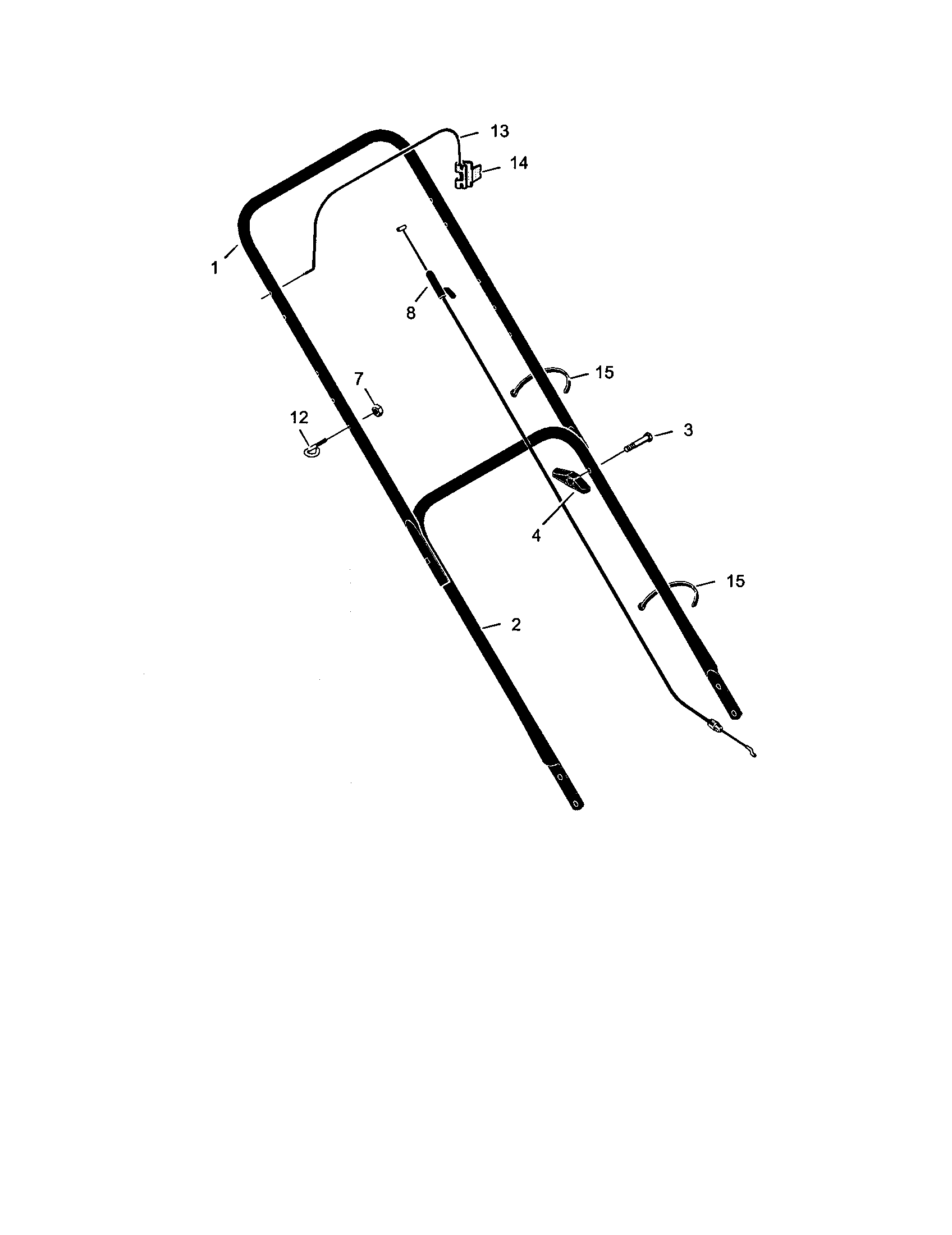

Handle diagram

Nut

Part #15X116

Replaced by #703232

?
Manufacturer substitution
This part replaces 15X116. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Wing Nut 71495
#4

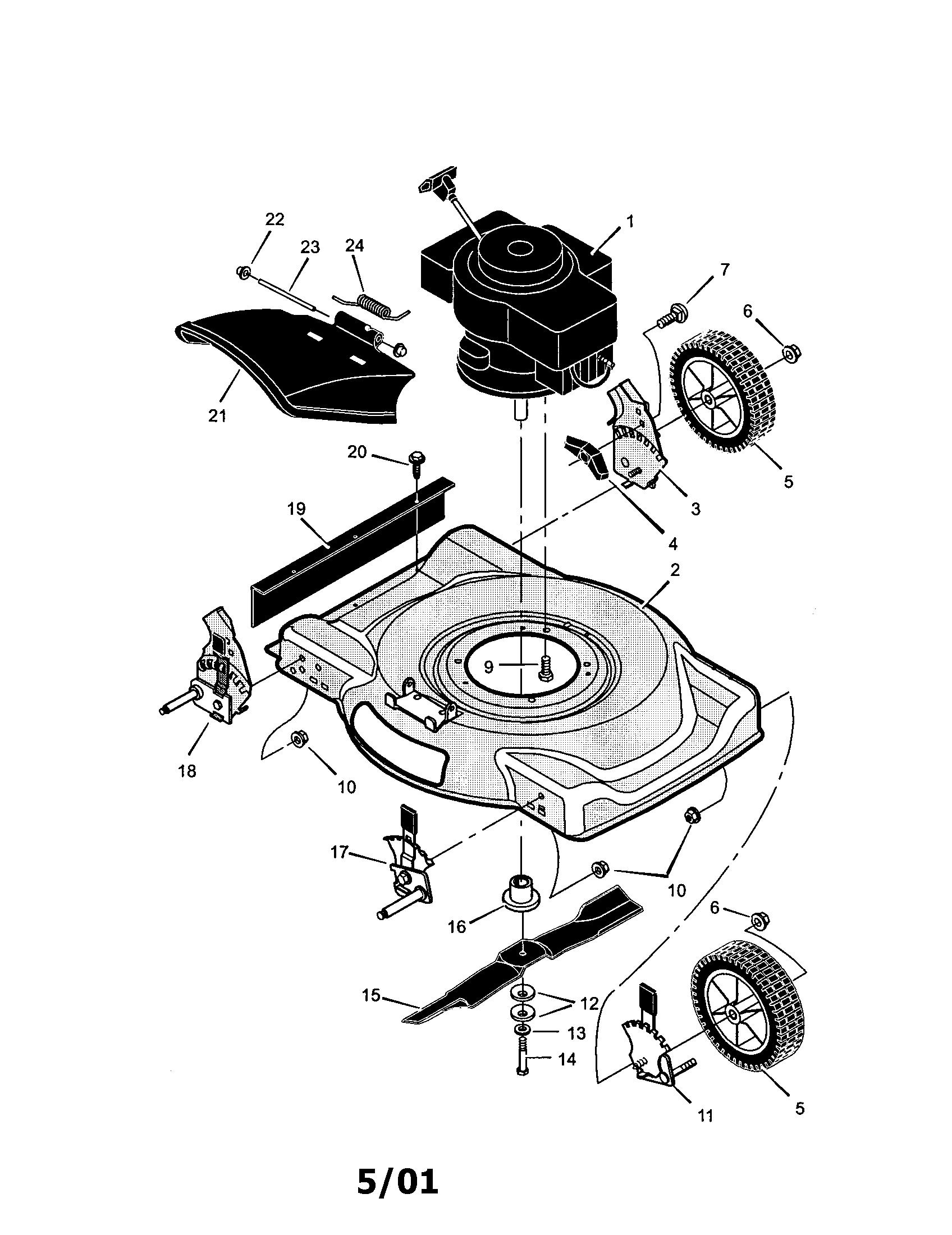

Engine diagram

Wing nut

Part #71495

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 71495. Substitute parts can look different from the original.
BEST SELLER
$10.93 |
15% OFF Phone Price : $12.93
In Stock
Wing Nut 71294
#4

Handle diagram

Wing nut

Part #71294

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 71294. Substitute parts can look different from the original.
BEST SELLER
$10.93 |
15% OFF Phone Price : $12.93
In Stock
Blade Adapter 71056
#16

Engine diagram

Blade adapter

Part #71056

Replaced by #071056MA

?
Manufacturer substitution
This part replaces 71056. Substitute parts can look different from the original.
$19.17
In Stock
Stop Bracket 43628BC
#14

Handle diagram

Stop bracket

Part #43628BC

Replaced by #1101454E701MA

?
Manufacturer substitution
This part replaces 43628BC. Substitute parts can look different from the original.
$29.69
In Stock
Rear Guard 672500
#19

Engine diagram

Rear guard

Part #672500

Replaced by #672738MA

?
Manufacturer substitution
This part replaces 672500. Substitute parts can look different from the original.
$46.87
In Stock
Bolt 2X81
#7

Engine diagram

Bolt

Part #2X81

Replaced by #2X81MA

?
Manufacturer substitution
This part replaces 2X81. Substitute parts can look different from the original.
This item is not returnable
$6.23
In Stock
Rope Guide 71530
#12

Handle diagram

Rope guide

Part #71530

Replaced by #071530MA

?
Manufacturer substitution
This part replaces 71530. Substitute parts can look different from the original.
$10.49
In Stock
Lever 43653E700
#13

Handle diagram

Lever

Part #43653E700

Replaced by #43653E701MA

?
Manufacturer substitution
This part replaces 43653E700. Substitute parts can look different from the original.
$48.62
In Stock
Spring 166X5
#24

Engine diagram

Spring

Part #166X5

Replaced by #166X5MA

?
Manufacturer substitution
This part replaces 166X5. Substitute parts can look different from the original.
This item is not returnable
$7.11
In Stock
