Model # 48DUN042090300 Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 48DUN042090300 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

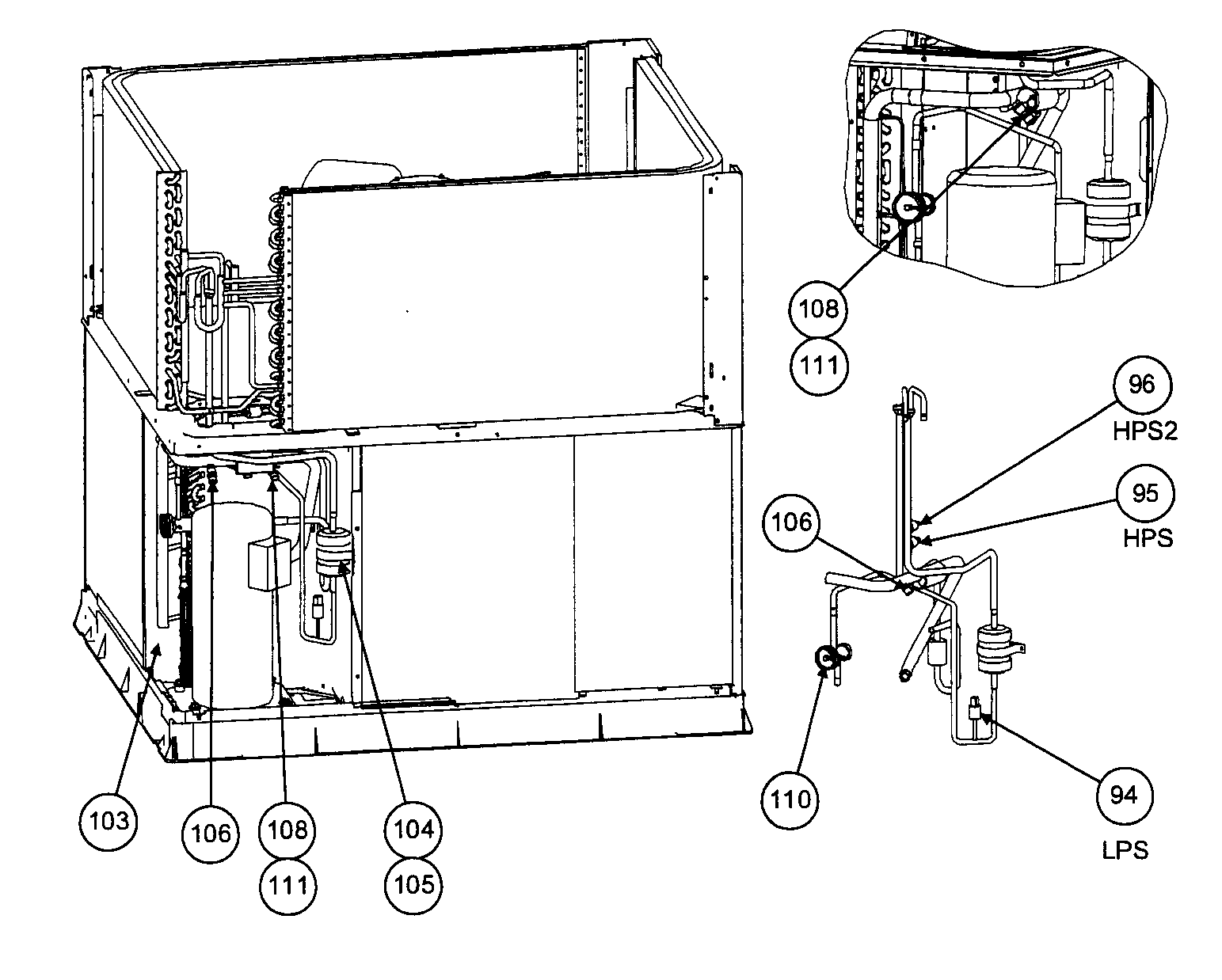

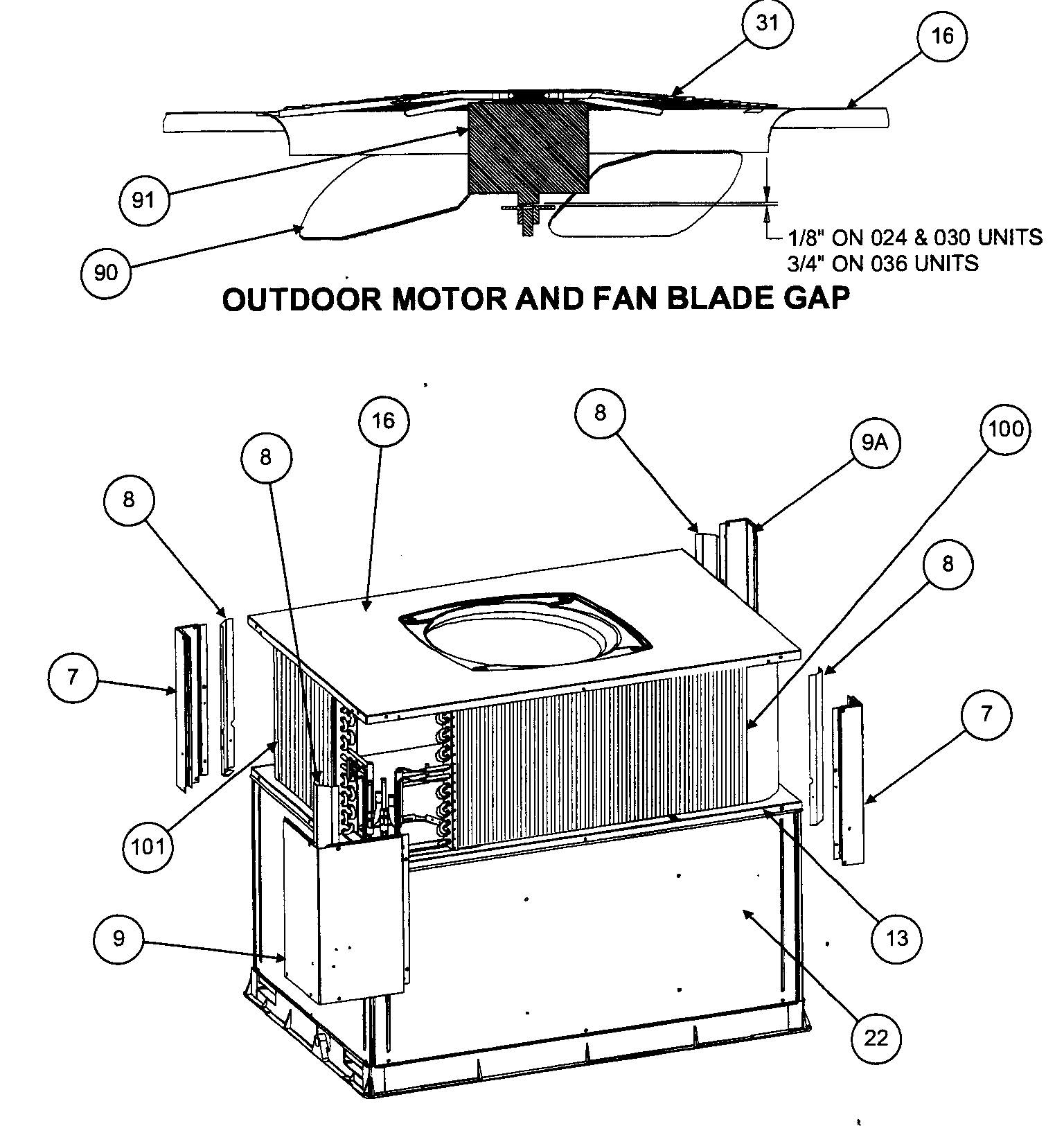

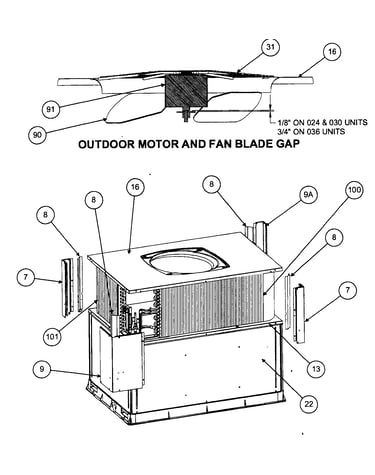

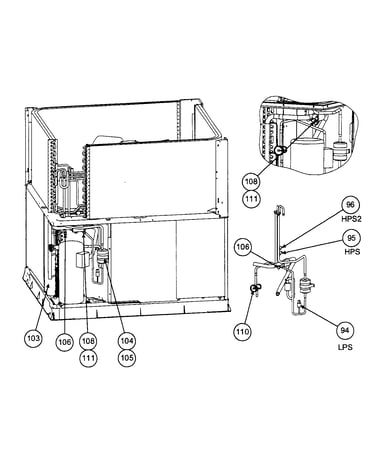

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Contactor HN51KB024
#63

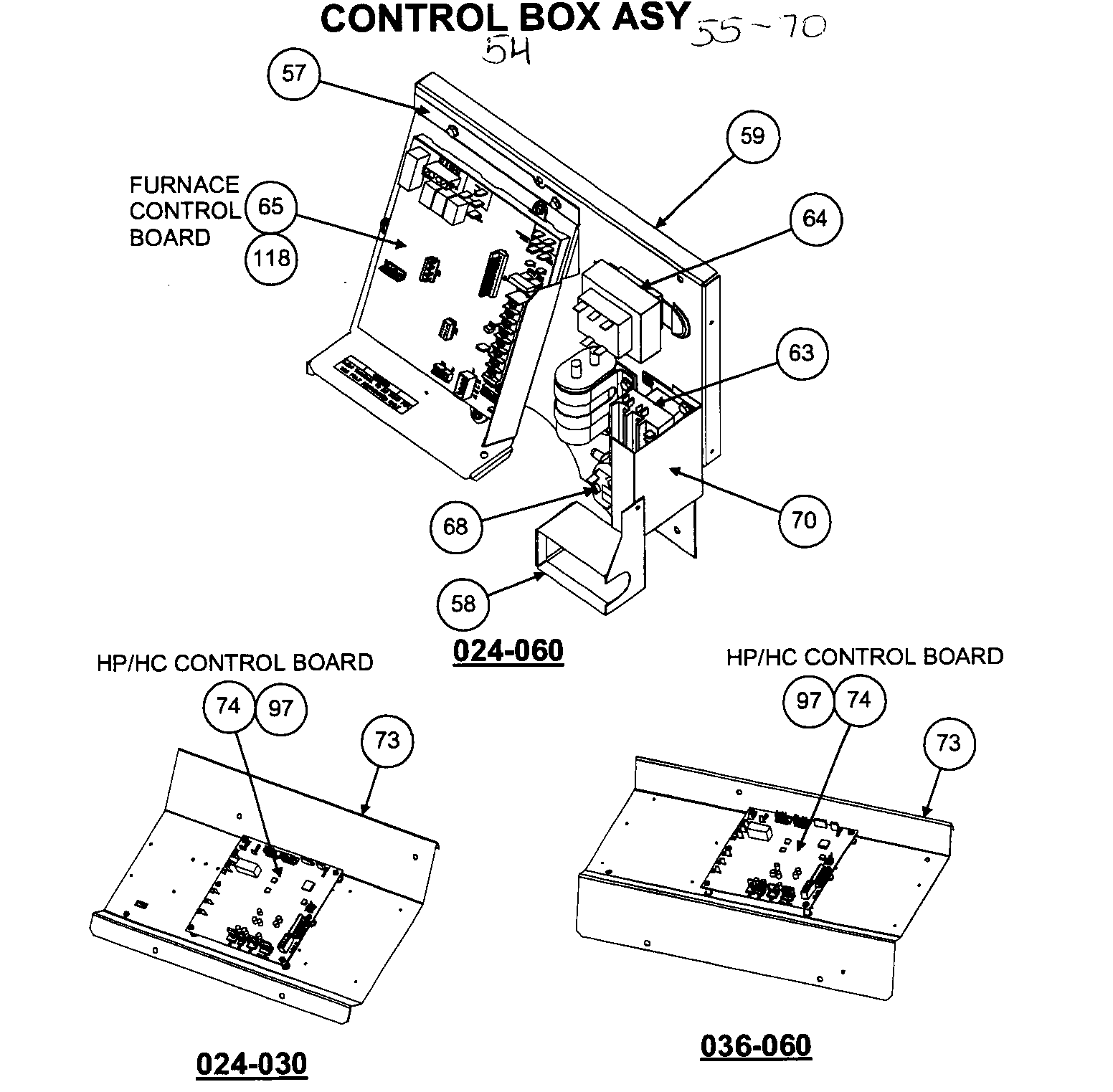

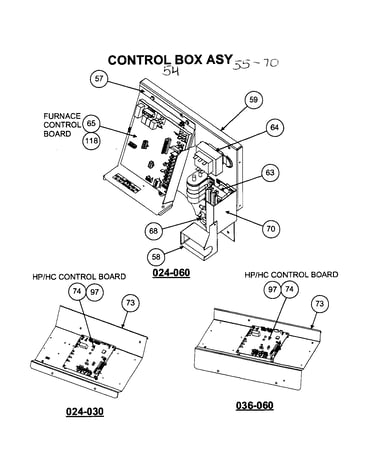

Control box/control panel assy diagram

Contactor

Part #HN51KB024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51KB024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Blower HD46RE120
#87

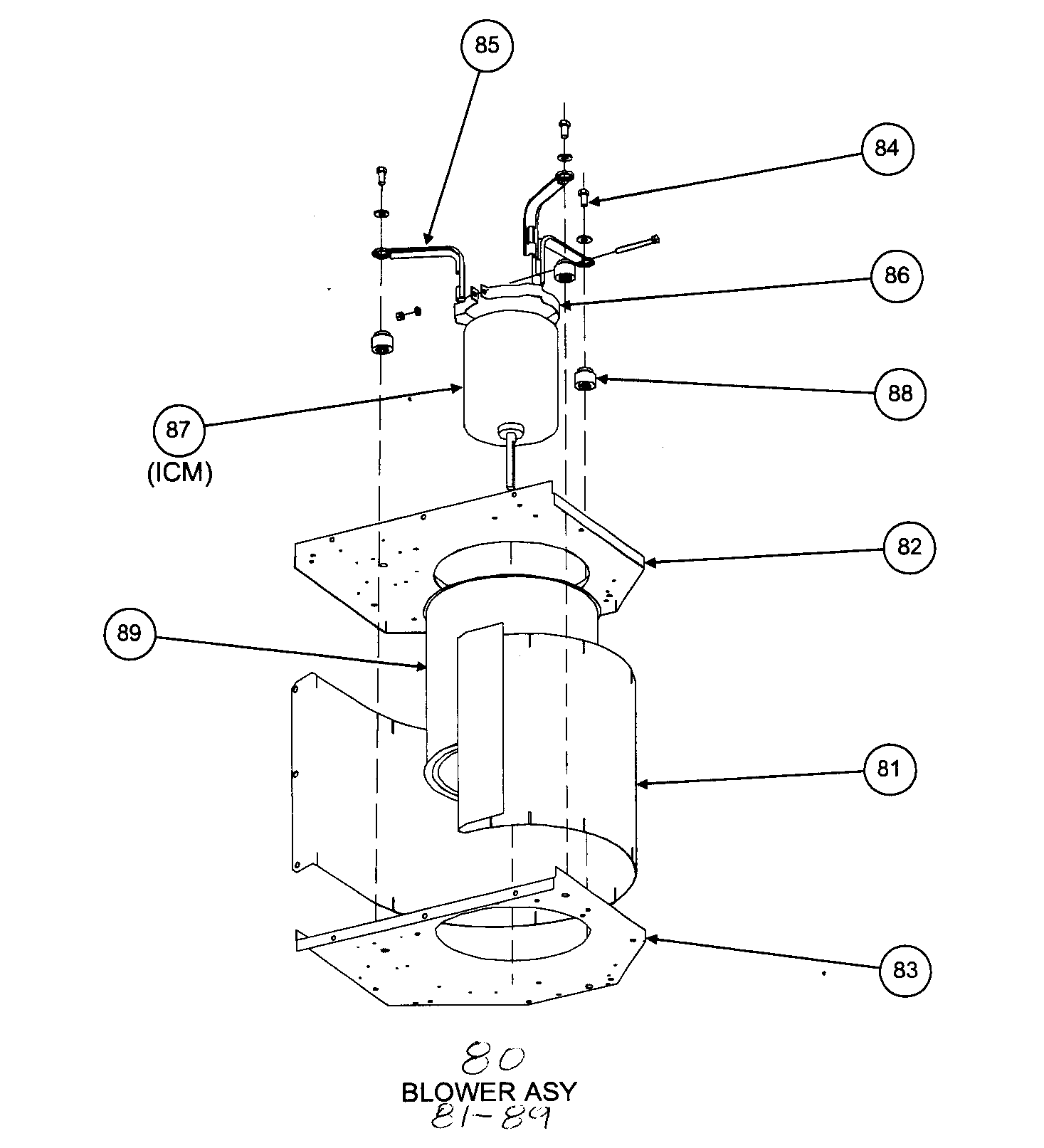

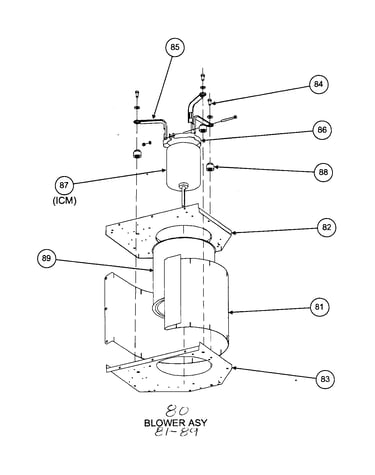

Blower assy diagram

Blower

Part #HD46RE120

Replaced by #58MV660002

?
Manufacturer substitution
This part replaces HD46RE120. Substitute parts can look different from the original.
$1522.17 |
$12.00 OFF Phone Price : $1534.17
In Stock
Control Board HK42FZ024
#65

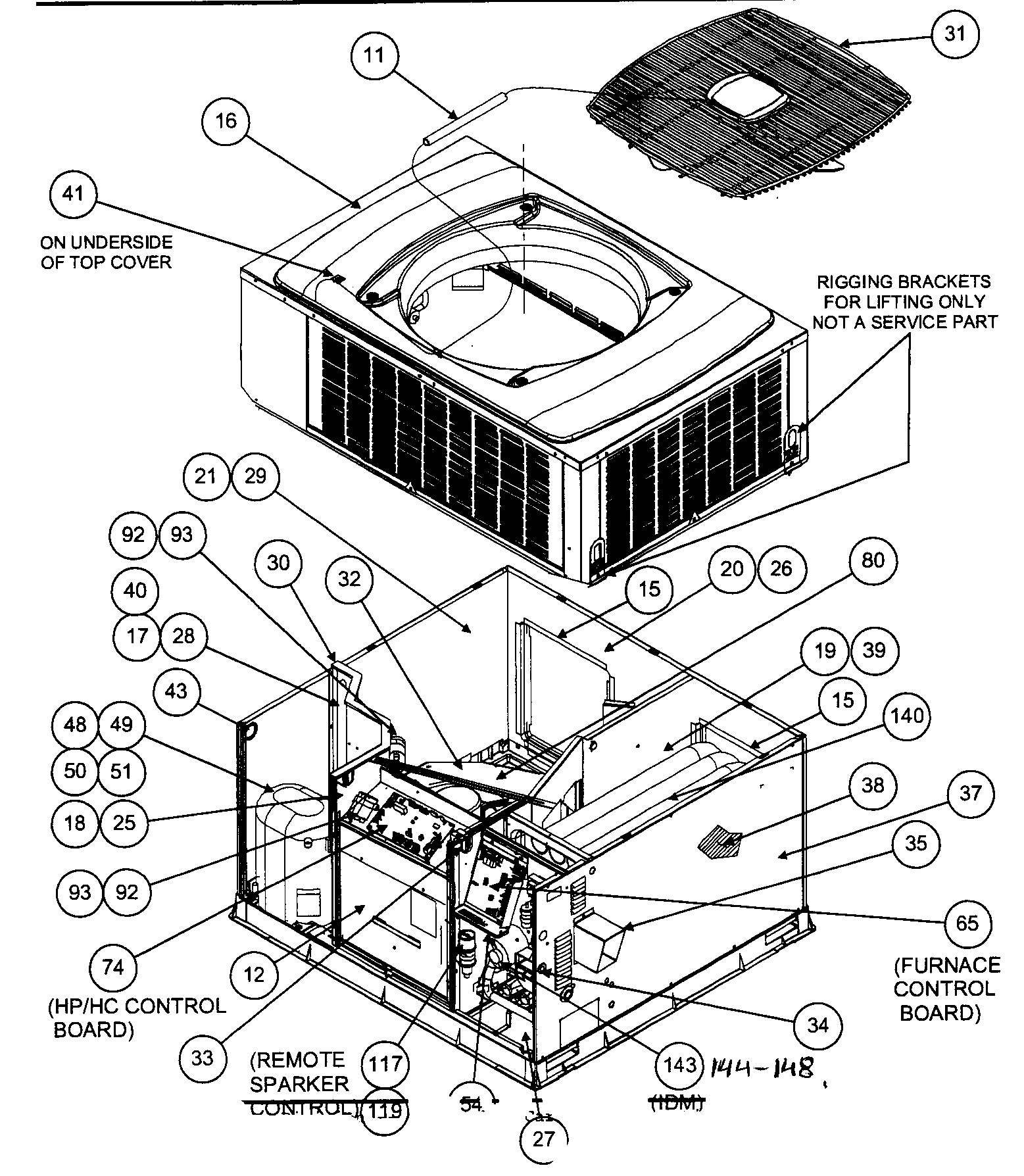

Inside view diagram

Control board

Part #HK42FZ024

Replaced by #HK42FZ035

?
Manufacturer substitution
This part replaces HK42FZ024. Substitute parts can look different from the original.
$809.30 |
$12.00 OFF Phone Price : $821.30
In Stock
Wheel Blwr LA22RC001
#89

Blower assy diagram

Wheel blwr

Part #LA22RC001

$223.38
In Stock
Central Air Conditioner Condenser Fan Motor HC30CK233
#146

Inside view diagram

Central air conditioner condenser fan motor

Part #HC30CK233

$469.57
In Stock
Switch,prs HK06WC061
#68

Control box/control panel assy diagram

Switch,prs

Part #HK06WC061

$62.29
In Stock
Cover Assembly 48GS400552
#15

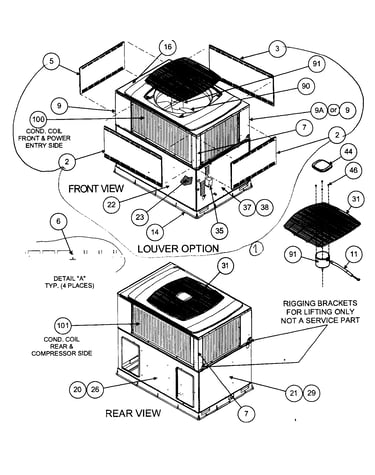

Inside view diagram

Cover assembly

Part #48GS400552

$267.15
In Stock
Plug Assembly HY07MP261
#55

Control box/control panel assy diagram

Plug assembly

Part #HY07MP261

$104.48
In Stock
Harness Ay 48DU400001
#56

Control box/control panel assy diagram

Harness ay

Part #48DU400001

$580.53
In Stock
Temp Swtch HH18HA211
#137

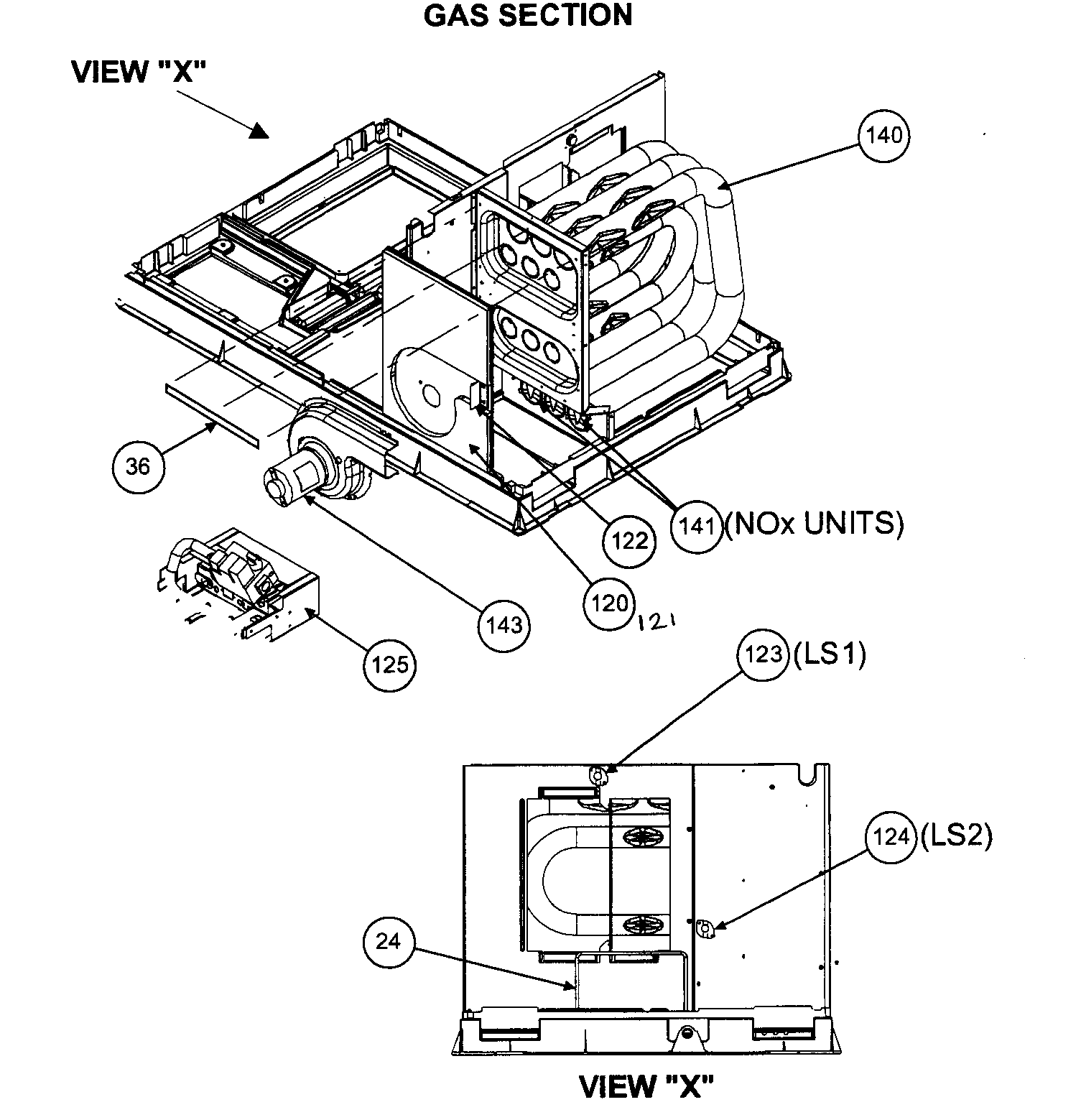

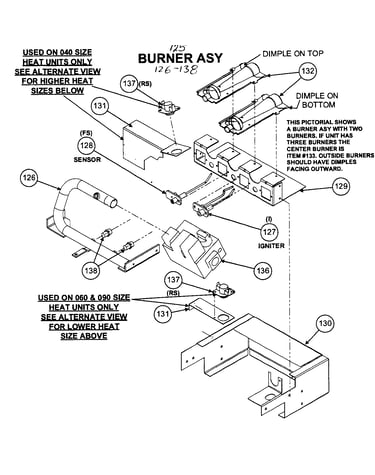

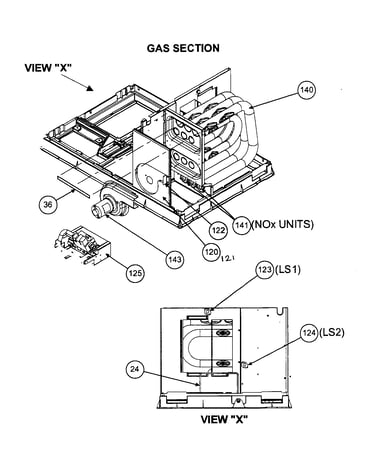

Burner assy diagram

Temp swtch

Part #HH18HA211

$25.71
In Stock
