Gas Line Trimmer

Model # 536773520 Official Craftsman high wheel brush trimmer

Here are the diagrams and repair parts for Official Craftsman 536773520 high wheel brush trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

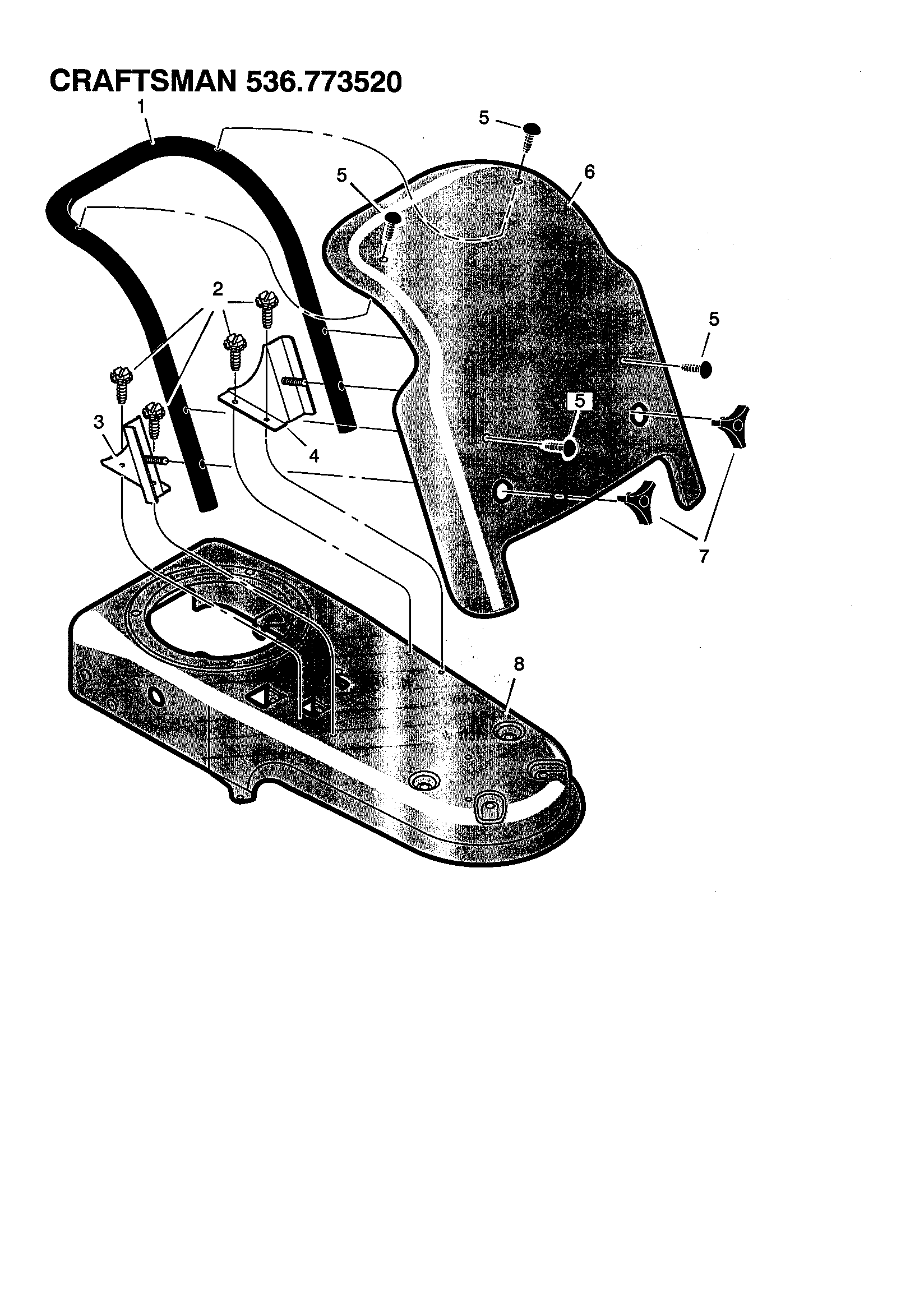

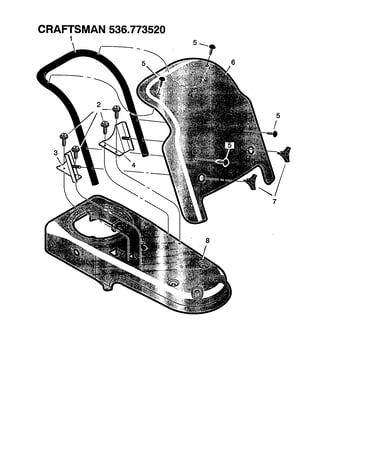

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 249 parts  |
Nut, 1/4-20 710203
#34

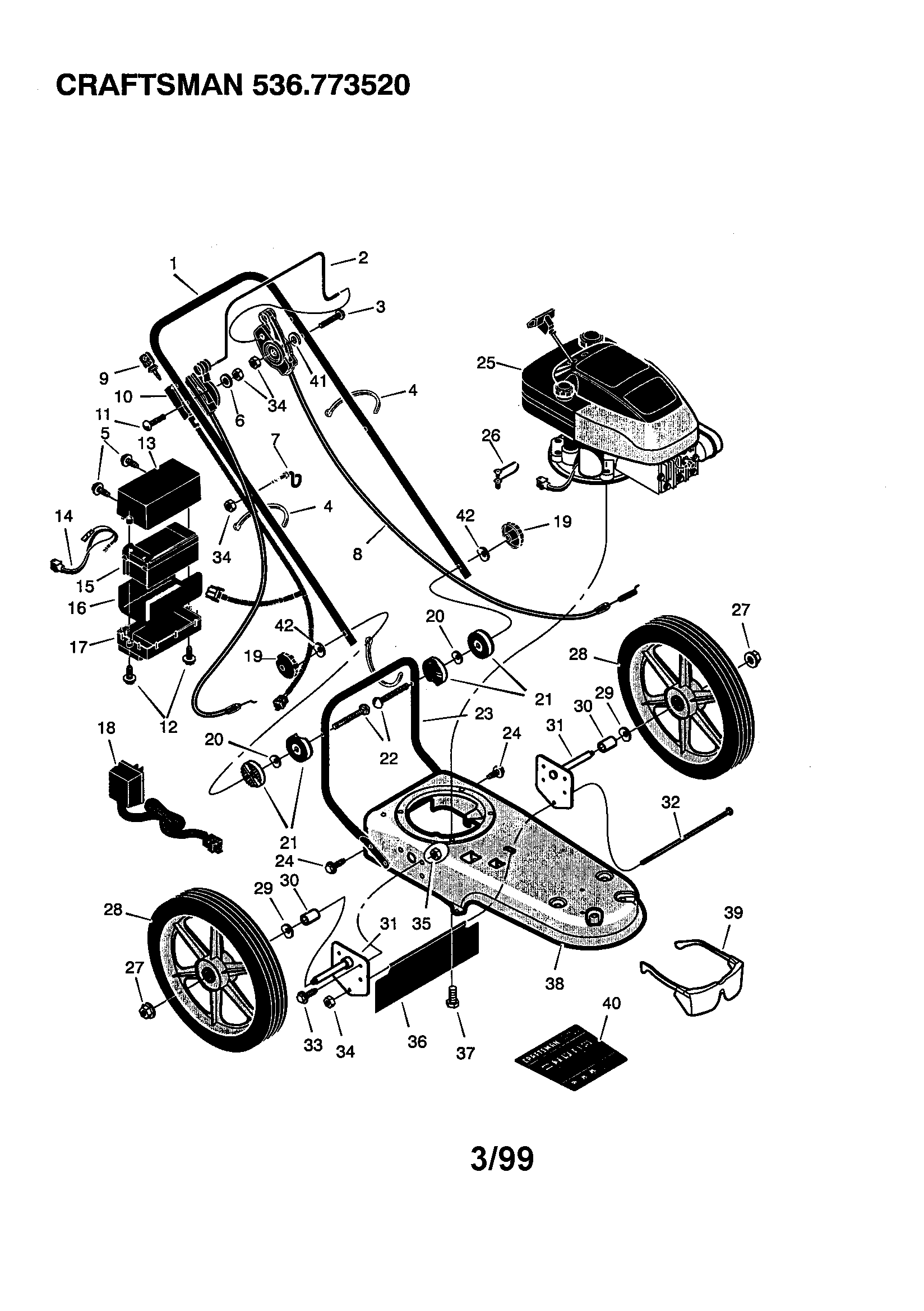

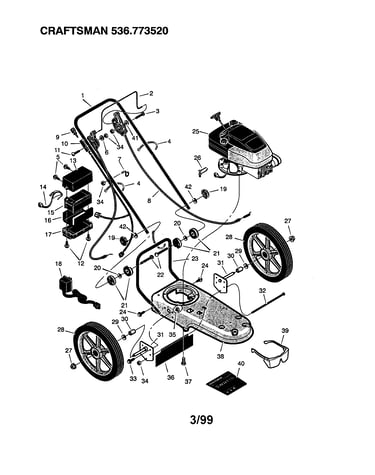

Main frame diagram

Nut, 1/4-20

Part #710203

Replaced by #703232

?
Manufacturer substitution
This part replaces 710203. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Height Guide 740226
#33

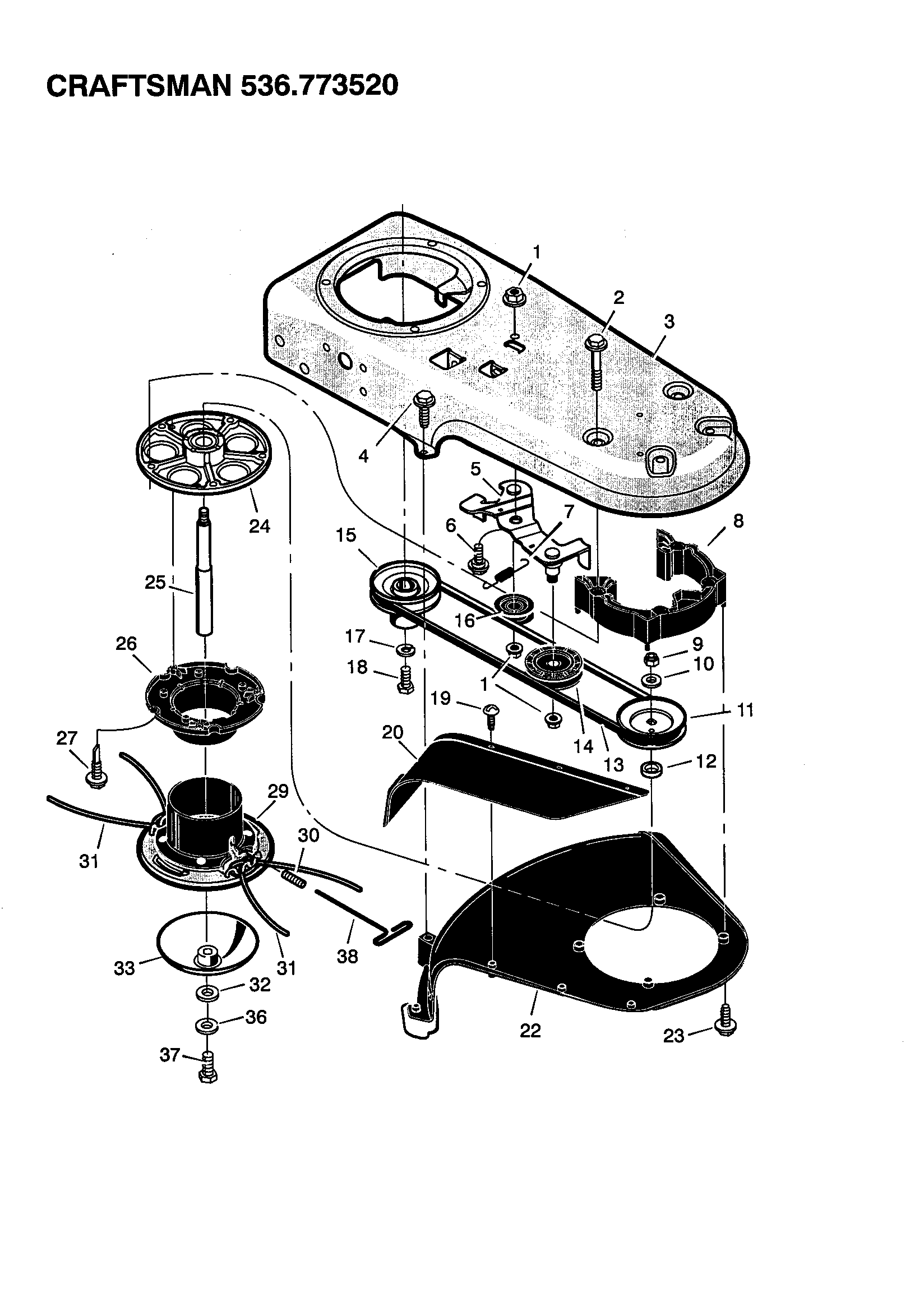

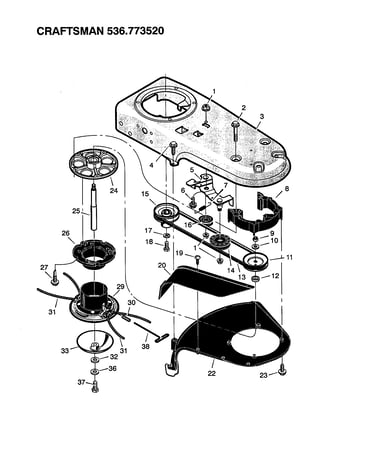

Cutting head assembly diagram

Height guide

Part #740226

Replaced by #740299MA

?
Manufacturer substitution
This part replaces 740226. Substitute parts can look different from the original.
$52.69 |
10% OFF Phone Price : $58.69
In Stock
Control Cable 740193
#8

Main frame diagram

Control cable

Part #740193

Replaced by #740193MA

?
Manufacturer substitution
This part replaces 740193. Substitute parts can look different from the original.
$71.71 |
8% OFF Phone Price : $77.71
In Stock
Debris Shield 740167
#20

Cutting head assembly diagram

Debris shield

Part #740167

Replaced by #740167MA

?
Manufacturer substitution
This part replaces 740167. Substitute parts can look different from the original.
This item is not returnable
$29.53 |
17% OFF Phone Price : $35.53
In Stock
Washer,.343i 783000
#42

Main frame diagram

Washer,.343i

Part #783000

Replaced by #783000MA

?
Manufacturer substitution
This part replaces 783000. Substitute parts can look different from the original.
This item is not returnable
$9.34
In Stock
Control Lever 740198-848
#2

Main frame diagram

Control lever

Part #740198-848

Replaced by #740198E701MA

?
Manufacturer substitution
This part replaces 740198-848. Substitute parts can look different from the original.
$52.96
In Stock
Weed Wrap, Upper 740163
#26

Cutting head assembly diagram

Weed wrap, upper

Part #740163

Replaced by #740163MA

?
Manufacturer substitution
This part replaces 740163. Substitute parts can look different from the original.
$31.07
In Stock
Screw, 3/8 - 711978
#2

Cutting head assembly diagram

Screw, 3/8 -

Part #711978

Replaced by #25X11MA

?
Manufacturer substitution
This part replaces 711978. Substitute parts can look different from the original.
$12.26
In Stock
Belt 711933
#13

Cutting head assembly diagram

Belt

Part #711933

Replaced by #7701014MA

?
Manufacturer substitution
This part replaces 711933. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$39.06 |
13% OFF Phone Price : $45.06
In Stock
Flat Washer 710083
#10

Cutting head assembly diagram

Flat washer

Part #710083

Replaced by #710083MA

?
Manufacturer substitution
This part replaces 710083. Substitute parts can look different from the original.
$12.94
In Stock
