Model # LRSC26925TT/00 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LRSC26925TT-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Refrigerator Drier Assembly 5851JJ2002F
#317A

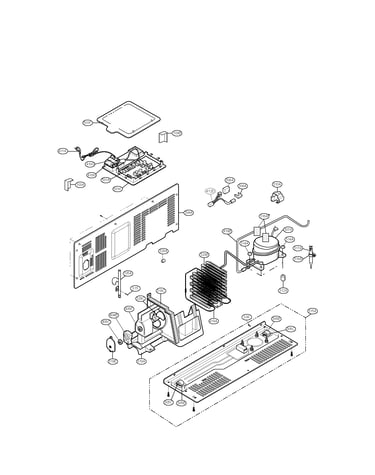

Machine compartment parts diagram

Refrigerator drier assembly

Part #5851JJ2002F

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JJ2002F. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Kenmore Lg Lt600p Refrigerator Water Filter (replaces 5231ja2006a) 5231JA2006F
#NI

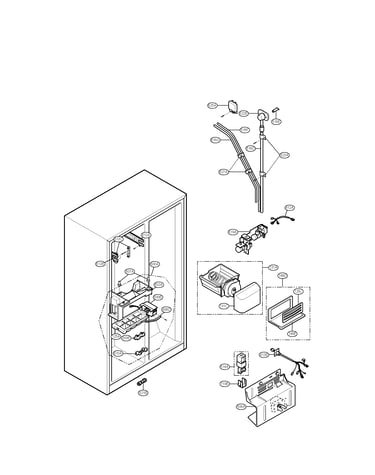

Ice and water parts diagram

Kenmore lg lt600p refrigerator water filter (replaces 5231ja2006a)

Part #5231JA2006F

BEST SELLER

Get free shipping with Automatic Reorder

$55.95
In Stock
Refrigerator Water Inlet Valve (replaces 5221ja2005d, Aju34125501, Mjx42111401) 5221JA2006D
#619A

Ice and water parts diagram

Refrigerator water inlet valve (replaces 5221ja2005d, aju34125501, mjx42111401)

Part #5221JA2006D

BEST SELLER
$124.74 |
9% OFF Phone Price : $136.74
In Stock
Refrigerator Insulation 5410JA3011A
#303B

Machine compartment parts diagram

Refrigerator insulation

Part #5410JA3011A

Replaced by #5989JA1002D

?
Manufacturer substitution
This part replaces 5410JA3011A. Substitute parts can look different from the original.
BEST SELLER
$87.76 |
6% OFF Phone Price : $93.76
In Stock
Refrigerator Compressor TCA30358201
#307A

Machine compartment parts diagram

Refrigerator compressor

Part #TCA30358201

Replaced by #TCA37091209

?
Manufacturer substitution
This part replaces TCA30358201. Substitute parts can look different from the original.
BEST SELLER
$316.23 |
$12.00 OFF Phone Price : $328.23
In Stock
Refrigerator Sensor 6500JK1003A
#903D

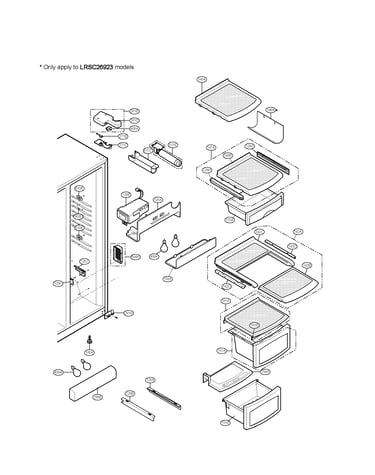

Refrigerator compartment parts diagram

Refrigerator sensor

Part #6500JK1003A

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
BEST SELLER
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Kenmore Refrigerator Water Tubing, 91-3/4-inch (replaces 5210ja3005g, 5210ja3005q, 5210ja3005s) 5210JA3005E
#616G

Ice and water parts diagram

Kenmore refrigerator water tubing, 91-3/4-inch (replaces 5210ja3005g, 5210ja3005q, 5210ja3005s)

Part #5210JA3005E

BEST SELLER
$16.75 |
11% OFF Phone Price : $18.75
In Stock

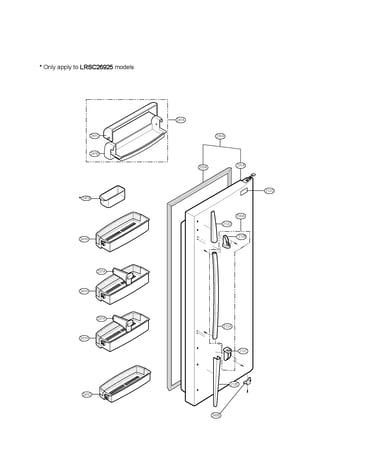

Refrigerator Hinge Assembly 4775JA2085B
#281H

Refrigerator compartment parts diagram

Refrigerator hinge assembly

Part #4775JA2085B

Replaced by #4775JA2113A

?
Manufacturer substitution
This part replaces 4775JA2085B. Substitute parts can look different from the original.
BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock

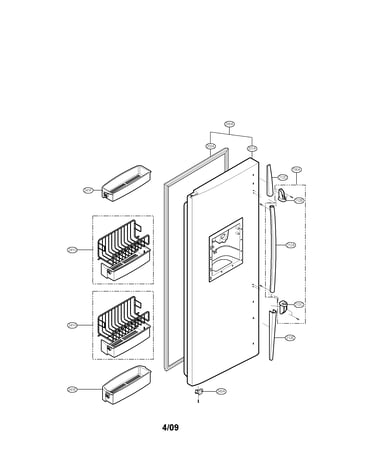

Refrigerator Door Hinge 4775JA2085A
#281G

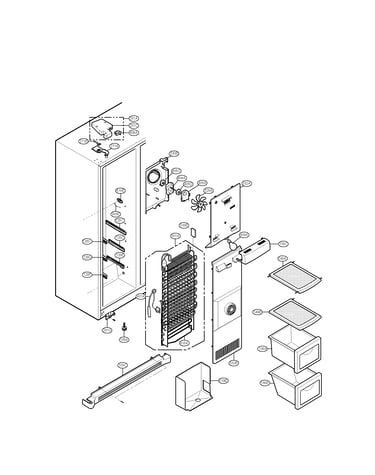

Freezer compartment parts diagram

Refrigerator door hinge

Part #4775JA2085A

Replaced by #4775JA2113A

?
Manufacturer substitution
This part replaces 4775JA2085A. Substitute parts can look different from the original.
BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Refrigerator Motor Support Damper 5040JA2009B
#405D

Machine compartment parts diagram

Refrigerator motor support damper

Part #5040JA2009B

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
