Model # GSE20IBTNFBB Official GE refrigerator - t series

Here are the diagrams and repair parts for Official GE GSE20IBTNFBB refrigerator - t series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

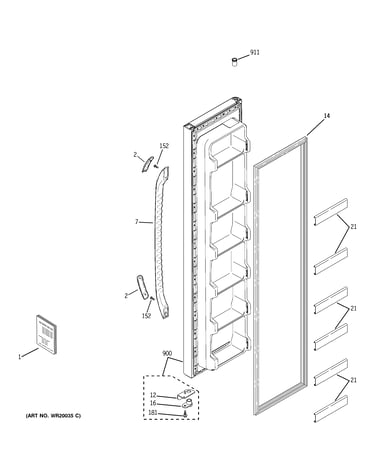

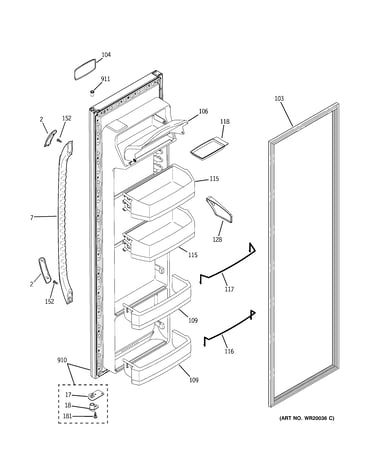

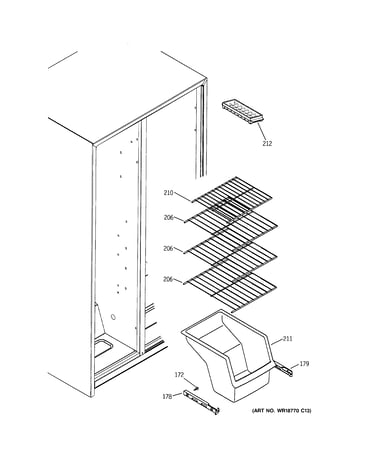

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 185 parts  |
Refrigerator Temperature Sensor WR55X10737
#244

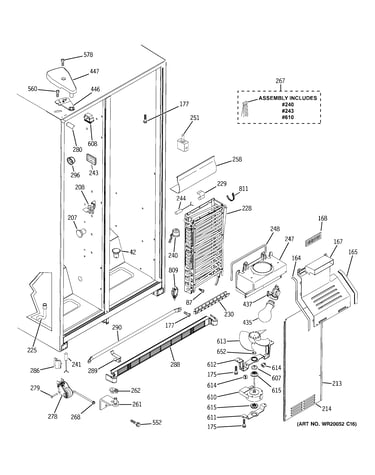

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10737

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10737. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10735
#241

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10735

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10735. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10736
#242

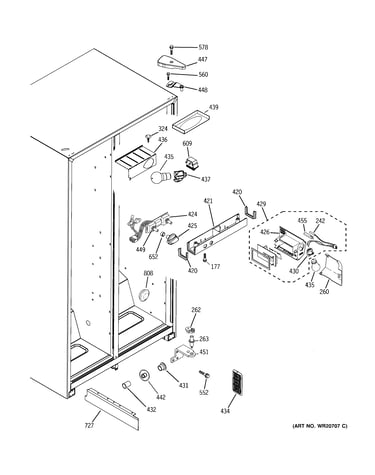

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10736

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10736. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Filter Dryer WR86X96
#740

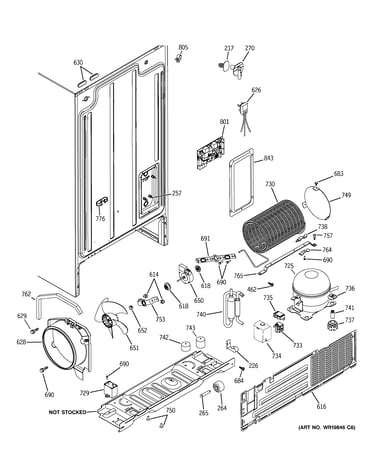

Sealed system & mother board diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#613

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Comp Rep Kit WR87X10044
#725

Sealed system & mother board diagram

Comp rep kit

Part #WR87X10044

Replaced by #WR87X10111

?
Manufacturer substitution
This part replaces WR87X10044. Substitute parts can look different from the original.
BEST SELLER
$608.56 |
$12.00 OFF Phone Price : $620.56
In Stock
Condenser Motor WR60X10216
#650

Sealed system & mother board diagram

Condenser motor

Part #WR60X10216

Replaced by #WR60X10209

?
Manufacturer substitution
This part replaces WR60X10216. Substitute parts can look different from the original.
BEST SELLER
$57.54 |
9% OFF Phone Price : $63.54
In Stock
Refrigerator Slide Assembly, Right WR72X0240
#479

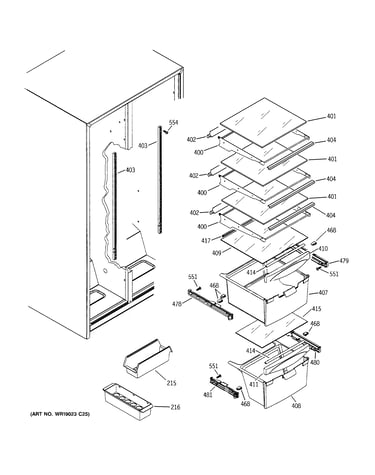

Fresh food shelves diagram

Refrigerator slide assembly, right

Part #WR72X0240

Replaced by #WR72X240

?
Manufacturer substitution
This part replaces WR72X0240. Substitute parts can look different from the original.
BEST SELLER
$37.72 |
14% OFF Phone Price : $43.72
In Stock
Ge Profile Refrigerator Condenser Coil (replaces Wr49x10151, Wr84x10065, Wr84x10071, Wr84x10072, Wr84x10074, Wr84x10078, Wr84x37865, Wr87x37966) WR84X10022
#730

Sealed system & mother board diagram

Ge profile refrigerator condenser coil (replaces wr49x10151, wr84x10065, wr84x10071, wr84x10072, wr84x10074, wr84x10078, wr84x37865, wr87x37966)

Part #WR84X10022

BEST SELLER
$386.88 |
$12.00 OFF Phone Price : $398.88
In Stock
Refrigerator Slide Assembly, Left WR72X0239
#478

Fresh food shelves diagram

Refrigerator slide assembly, left

Part #WR72X0239

Replaced by #WR72X239

?
Manufacturer substitution
This part replaces WR72X0239. Substitute parts can look different from the original.
BEST SELLER
$26.43 |
19% OFF Phone Price : $32.43
In Stock
