Wine & Beverage Cooler

Model # EI24WL10QS1 Official Electrolux wine cellar

Here are the diagrams and repair parts for Official Electrolux EI24WL10QS1 wine cellar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

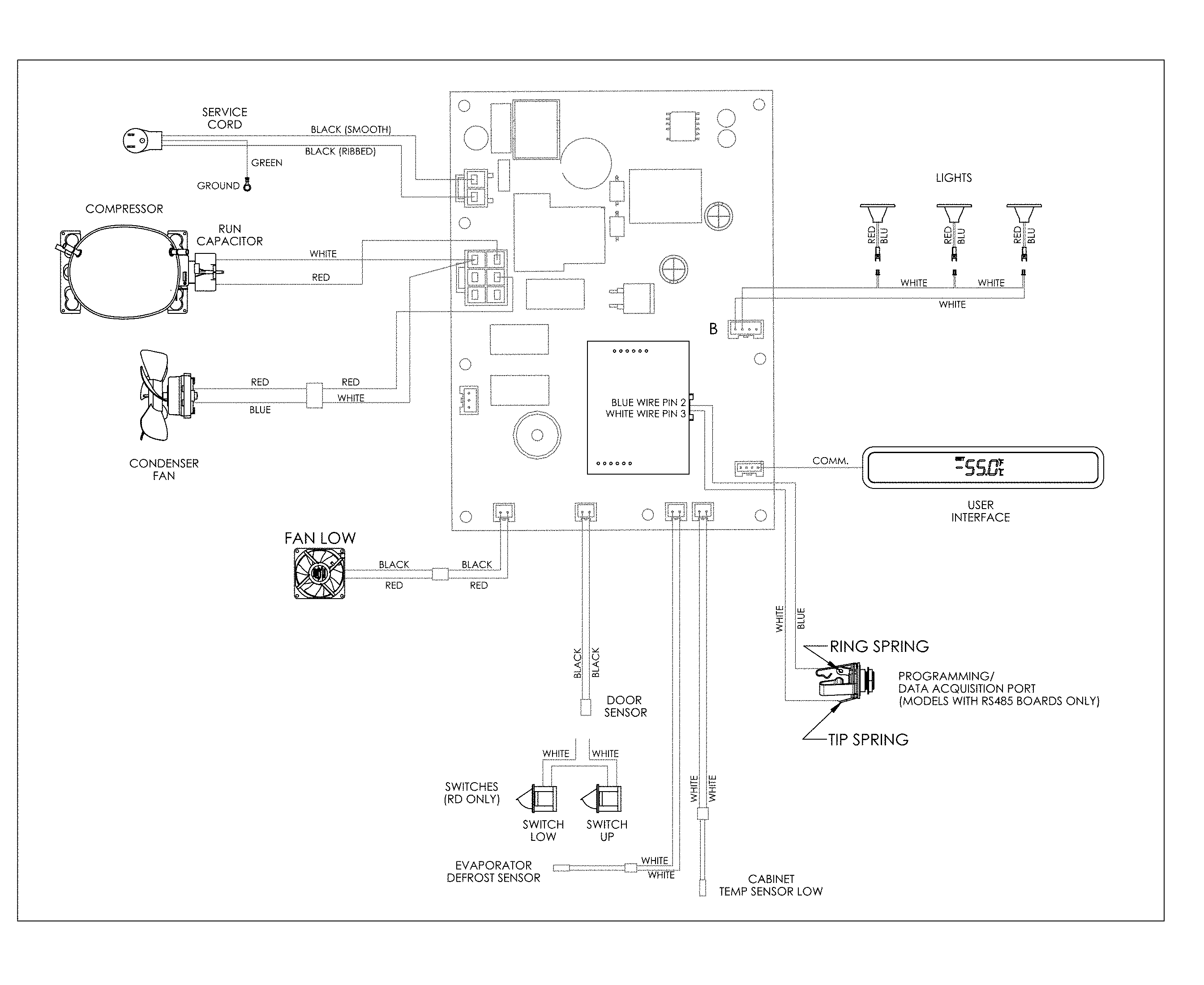

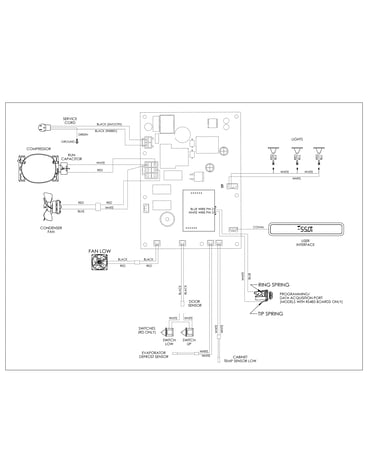

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Sensor 5304496746
#28

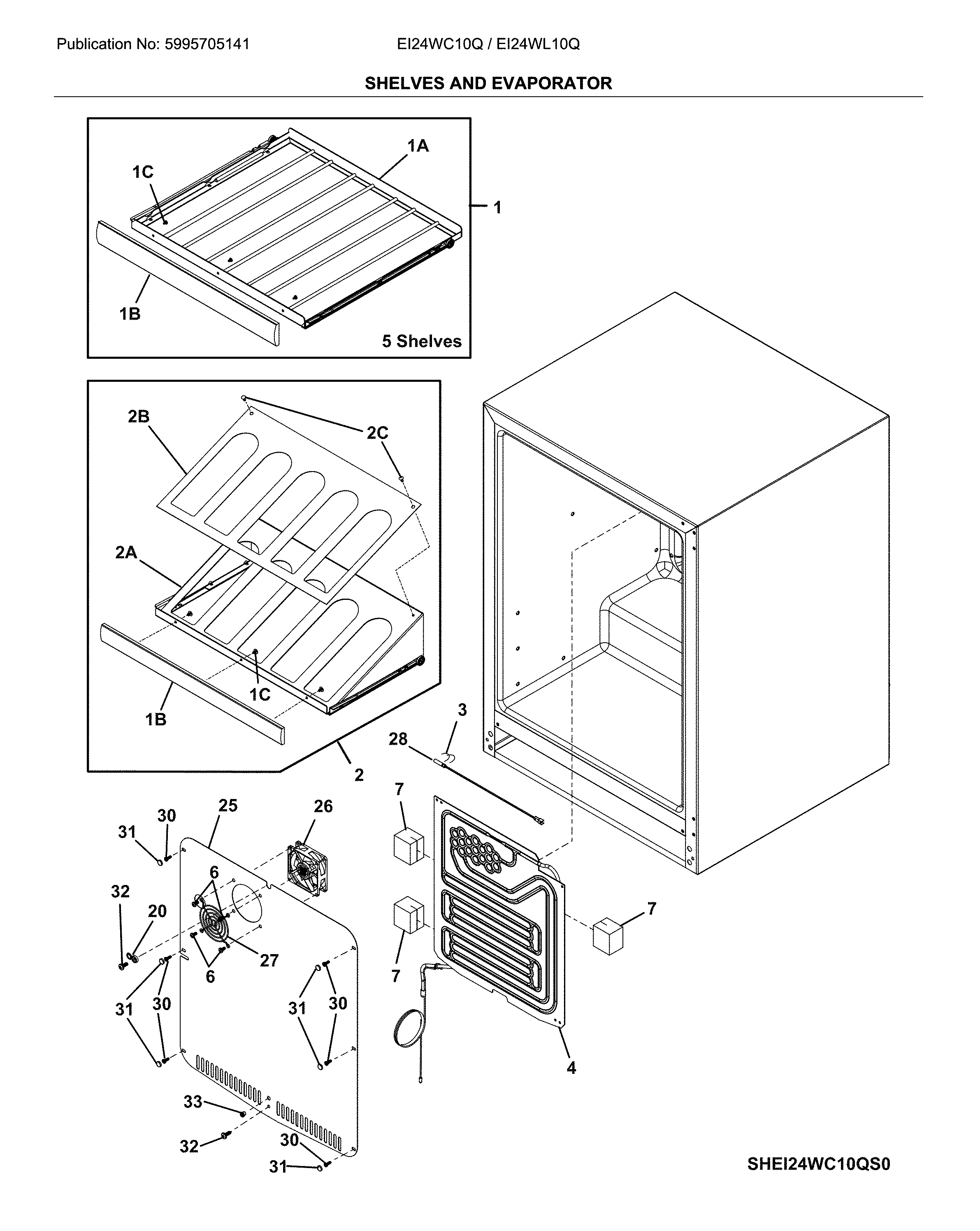

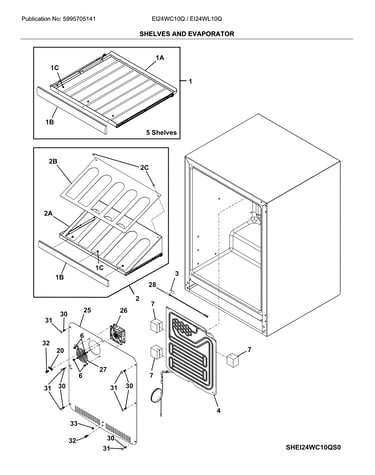

Shleves diagram

Sensor

Part #5304496746

$76.42
In Stock
Pan Head Screw, #8-32 X 3/8-in 5304496778
#22

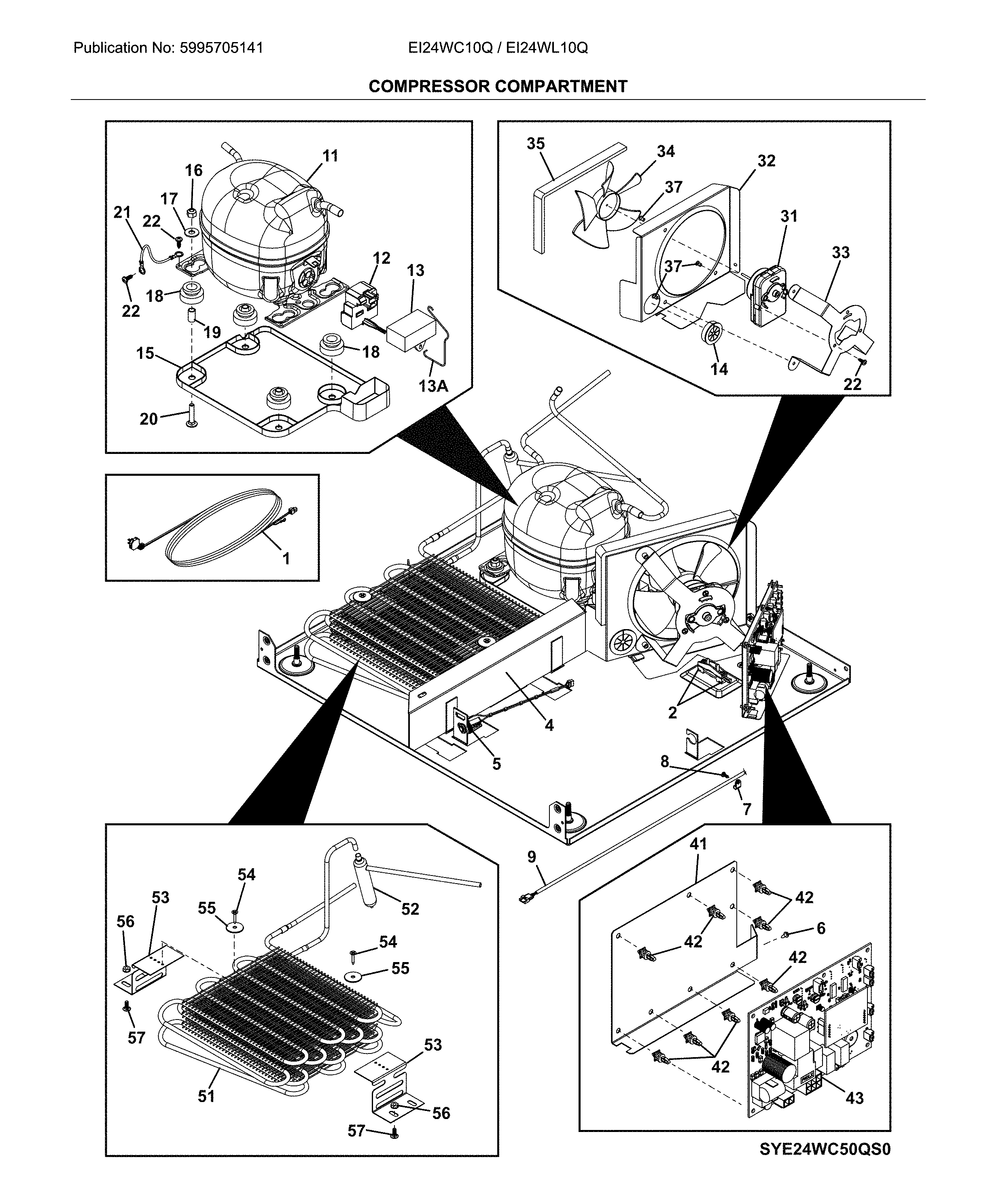

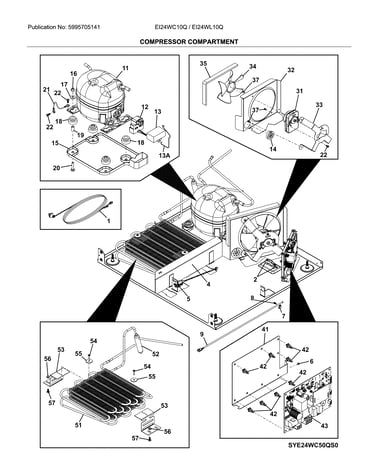

System diagram

Pan head screw, #8-32 x 3/8-in

Part #5304496778

Replaced by #5304480396

?
Manufacturer substitution
This part replaces 5304496778. Substitute parts can look different from the original.
$11.17
In Stock
Cover 5304496831
#29

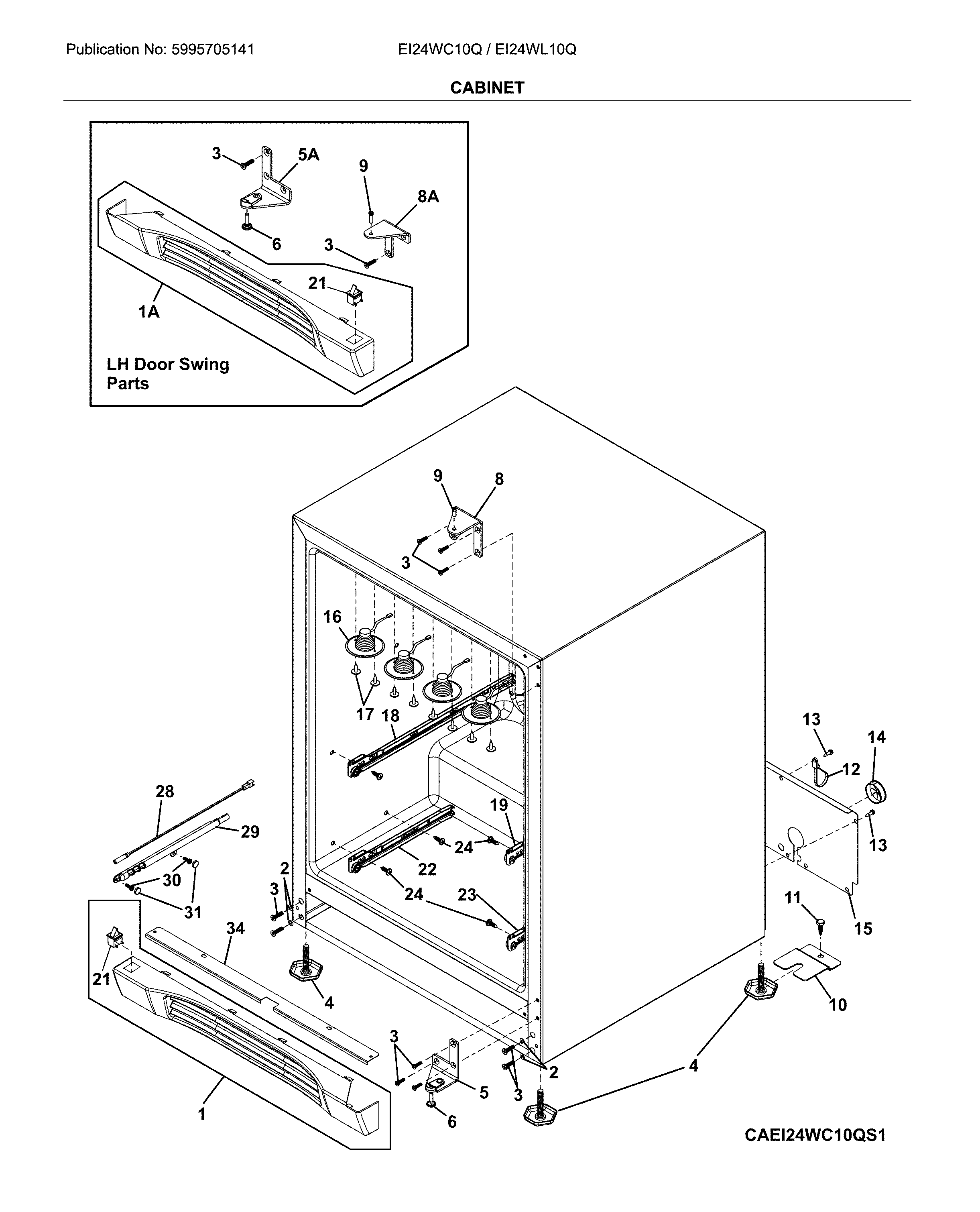

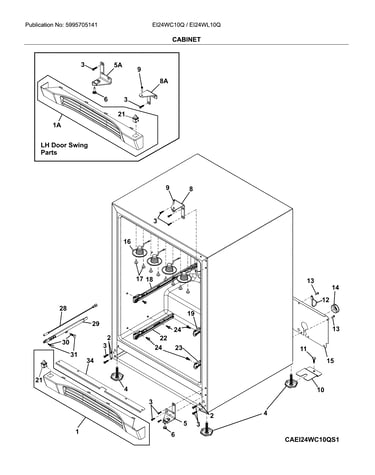

Cabinet diagram

Cover

Part #5304496831

$34.33
In Stock
Nut 5304496793
#56

System diagram

Nut

Part #5304496793

$28.31
In Stock
Shelf Assembly 5304496854
#2

Shleves diagram

Shelf assembly

Part #5304496854

$324.67
In Stock
Door Assembly 5304496846
#1A

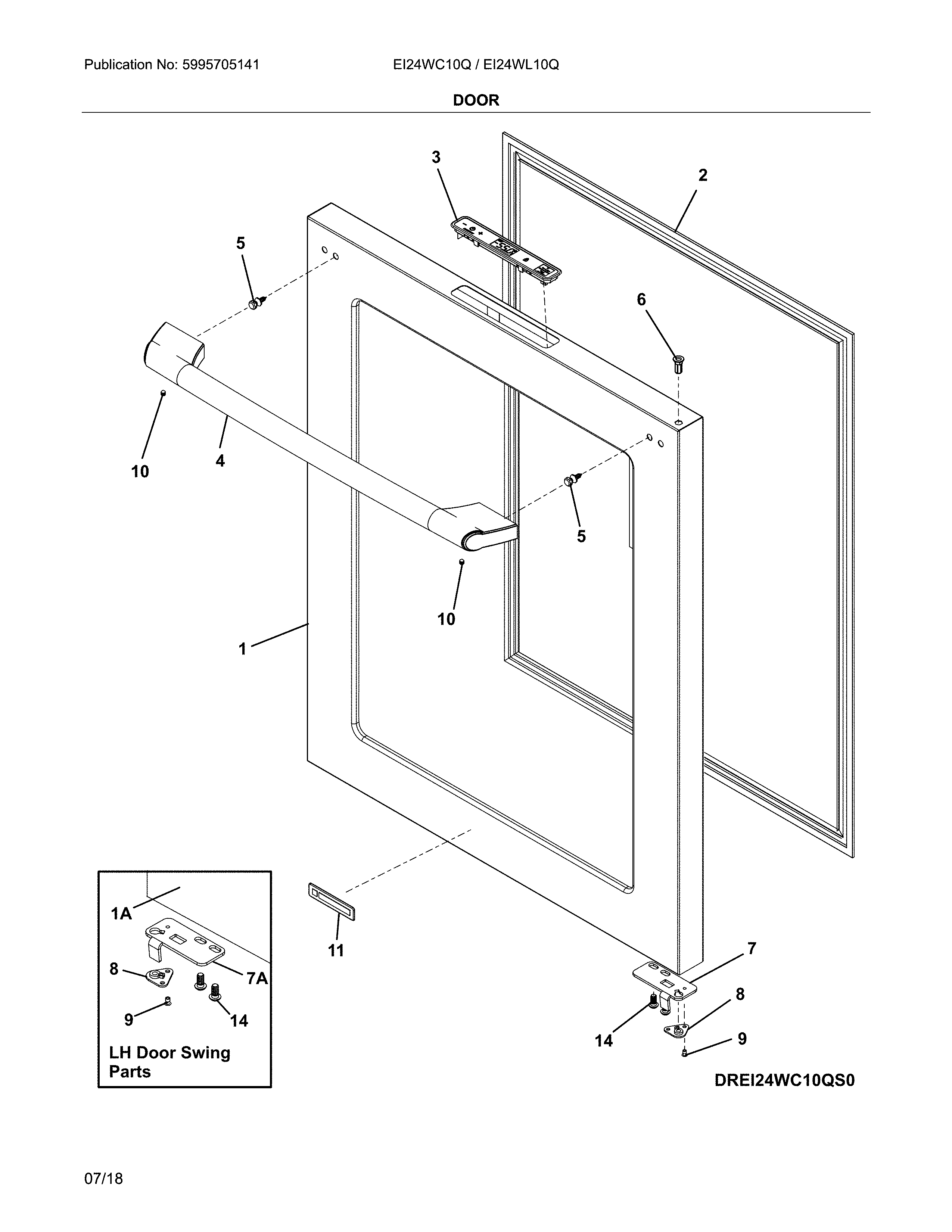

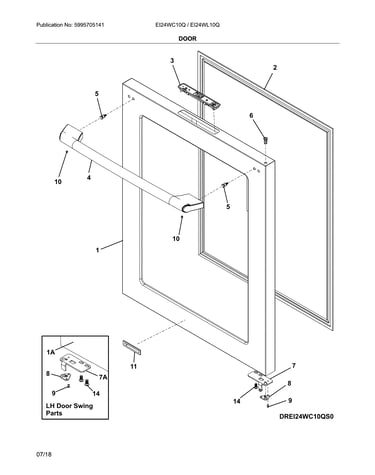

Door diagram

Door assembly

Part #5304496846

$2230.63
In Stock
Refrigerator Drawer Handle 5304496717
#4

Door diagram

Refrigerator drawer handle

Part #5304496717

$323.36
In Stock
Motor 5304496779
#31

System diagram

Motor

Part #5304496779

$257.25
In Stock
Right Swing Door Stop 5304496810
#7

Door diagram

Right swing door stop

Part #5304496810

$68.67
In Stock
Blade 5304496782
#34

System diagram

Blade

Part #5304496782

$61.53
In Stock
